Rotary punching machine
US $55900
Automatic machinery CCD camera Target eyelet Punching Machine target hole drilling machine for plastic
- Category: Punching Machines >>>
- Supplier: Shenzhen Vility Automatic Machinery Co. Ltd.
Share on (1600280083553):
Product Overview
Description
Product Overview
Automatic CCD alignment hole punching machine
Automatic target punching machine are also known as automatic punching machine, computer target punching machines, computer punching machines, automatic positioning punching machine, automatic positioning punching machines,according to different regions and industries. Different names, but actually the same kind of equipment widely used in printing and packaging, electronic printing, nameplates and signs and other industries post-printing alignment hole punching! The equipment is used in PCB circuit boards, FPC flexible boards, IMD/IML, filaments, diazo sheets, mobile phone panels, mobile phone keys, stickers, membrane switches, films, PE, PC, PVC, PET film, polyester film, thin aluminium, aluminium substrates, FR4 glass fibre boards and many other materials.
FEATURES AT A GLANCE
Suitable for:
Mobile phone keys / mobile phone panel,FPC flexible board,
Film / palm sheet /dark-frame/ diazo film
IML / IMD, electronic membrane switch
PCB glass fiber board
PVC / PET / PC panel,nameplate signs
Computer numerical control system
Punch position
CCD automatic positioning

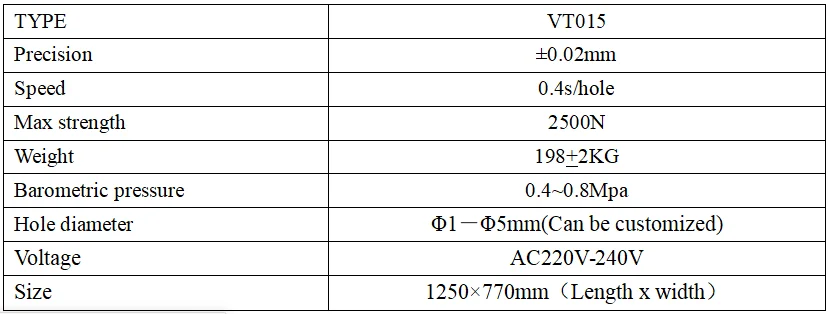

PRODUCT SPECIFICATIONS
The above parameters are for our standard Automatic CCD alignment hole punching machine. If this specification meets your production requirements you can place your order directly and we will ship it to you immediately.
If you need to customise some of these parameters, we will improve them for you to ensure that the product meets your requirements exactly. As soon as the machine has been commissioned, we will deliver it to you.
If you need to customise some of these parameters, we will improve them for you to ensure that the product meets your requirements exactly. As soon as the machine has been commissioned, we will deliver it to you.

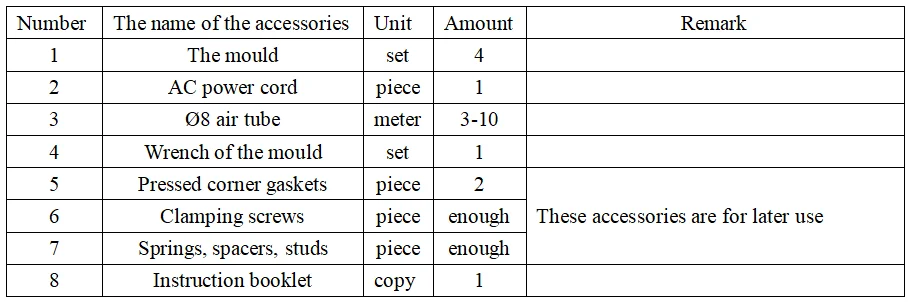

List of accessories of equipment
In accordance with the equipment name and specifications stipulated, the equipment shall be delivered with the following accessories:
Automatic CCD alignment hole punching machine
PRODUCT CONFIGURATION
List of major accessories and consumables for equipment
Automatic CCD alignment hole punching machine
SMCSolenoid valves
SMC Air cylinder
THK Guide rail
The characteristics
Automatic CCD alignment hole punching machine:
(1) Function: Sheet is all OK; CCD fully automatic positioning punching.(2) High accuracy, overall error less than or equal to 0.015mm.
(3) Fast punching speed, the average punching speed is 7-8 times faster than manual punching speed, only 0.5 seconds per hole.
(4) No material dragging, accurate positioning of icons and automatic punching.
(5) Flexible materials and fragile materials such as acrylic sheets can be punched by the machine without damaging the material. Fast speed, software can be upgraded free of charge for life.
(6) Computerised working system, human-machine interface, direct working mode setting on the touch screen, simple and intuitive.
(7) Special light source identification method, can automatically identify the round figure on various materials, automatic alignment punching.
(8) Punching can be viewed directly on the 8" computer screen or at the punching station, respectively.
(9) The presser foot on the machine flattens the film to be punched during punching, making it more accurate.
(10) Specialised settings are available. The computer system can be upgraded and provides you with a strong professional technical support.
(11) Image processing: 2-value integrated image processing method.
(12) Capable of punching defective circles with unclear printing or more than half circles, special printing materials, reflective and other mirror materials, etc.

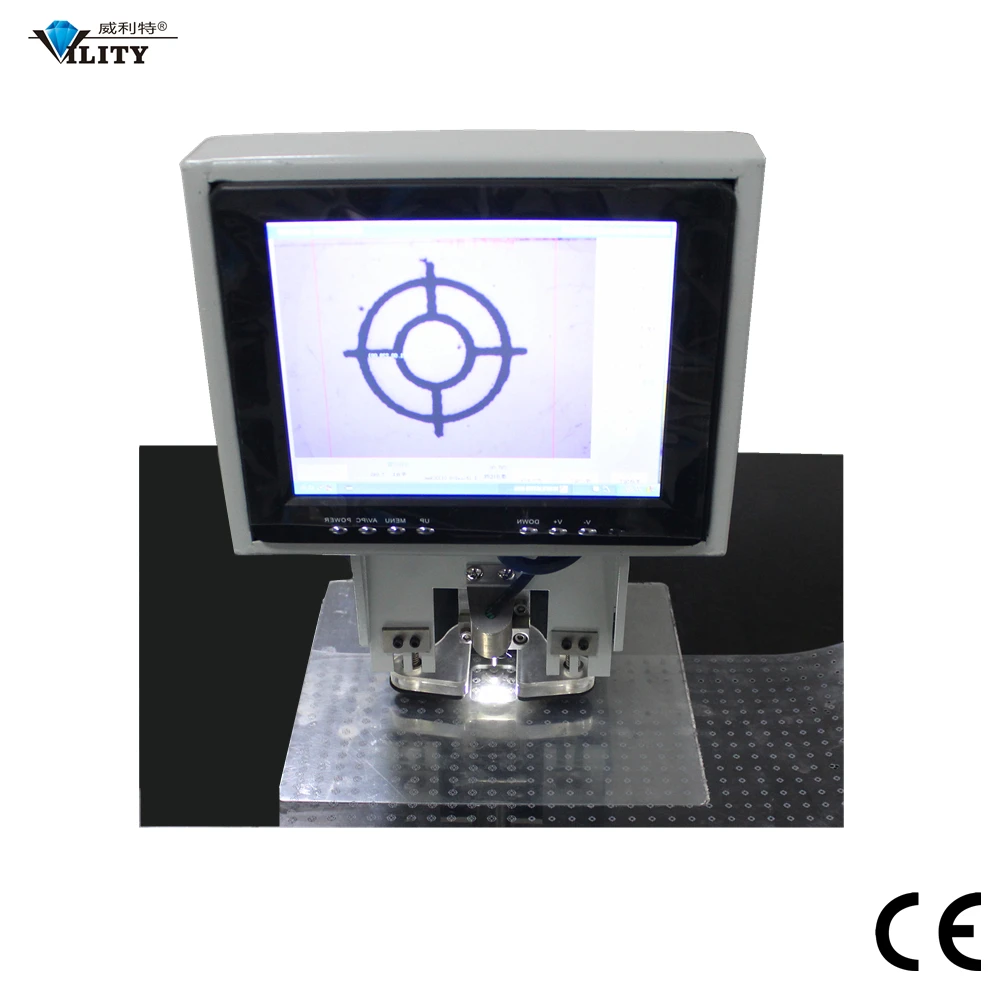

Straight view of punched position
Special light source identification method,
can automatically identify the round figure on various materials, automatic alignment punching.

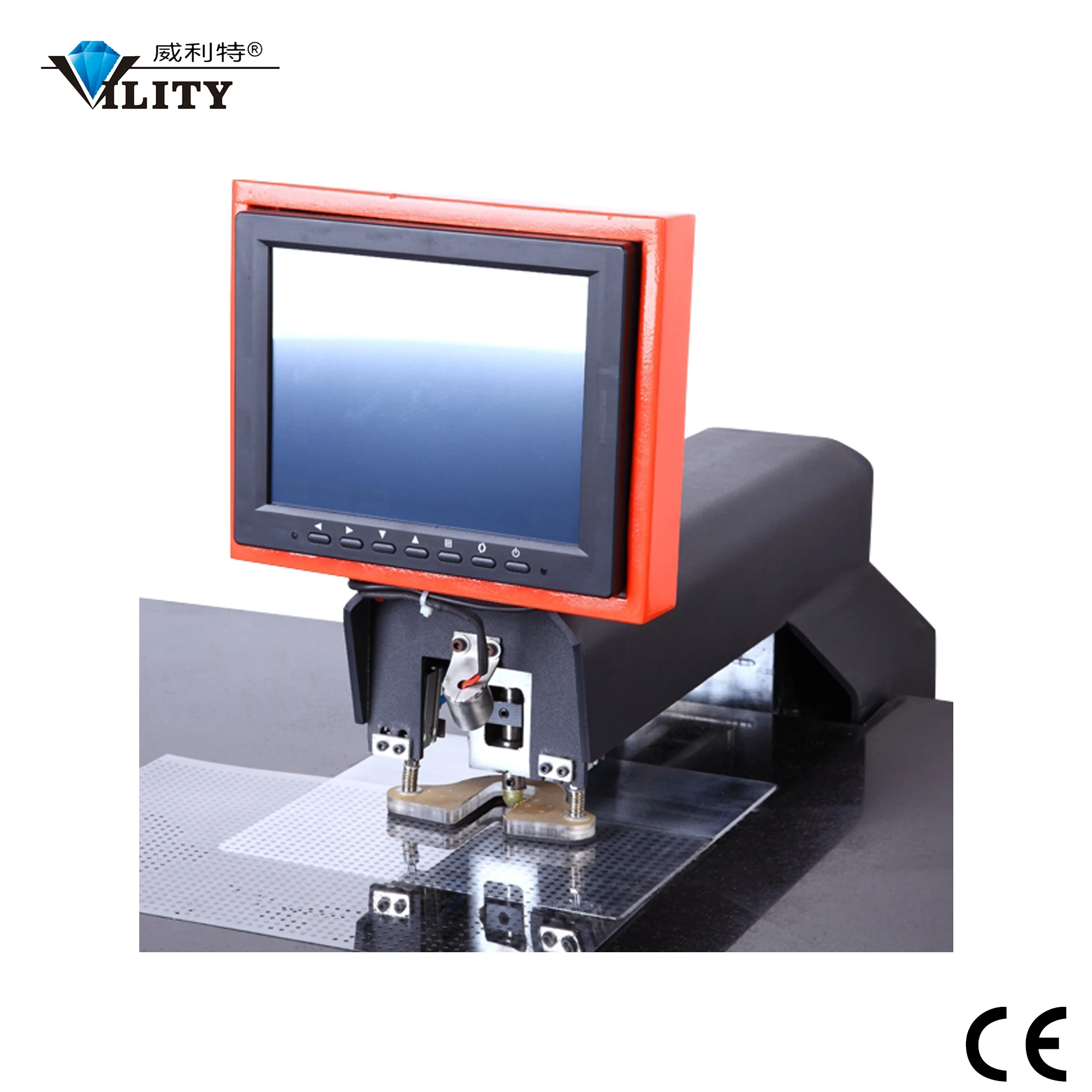

Image processing by CCD alignment system
Capable of punching defective circles with unclear printing or more than half circles, special printing materials, reflective and other mirror materials, etc.
