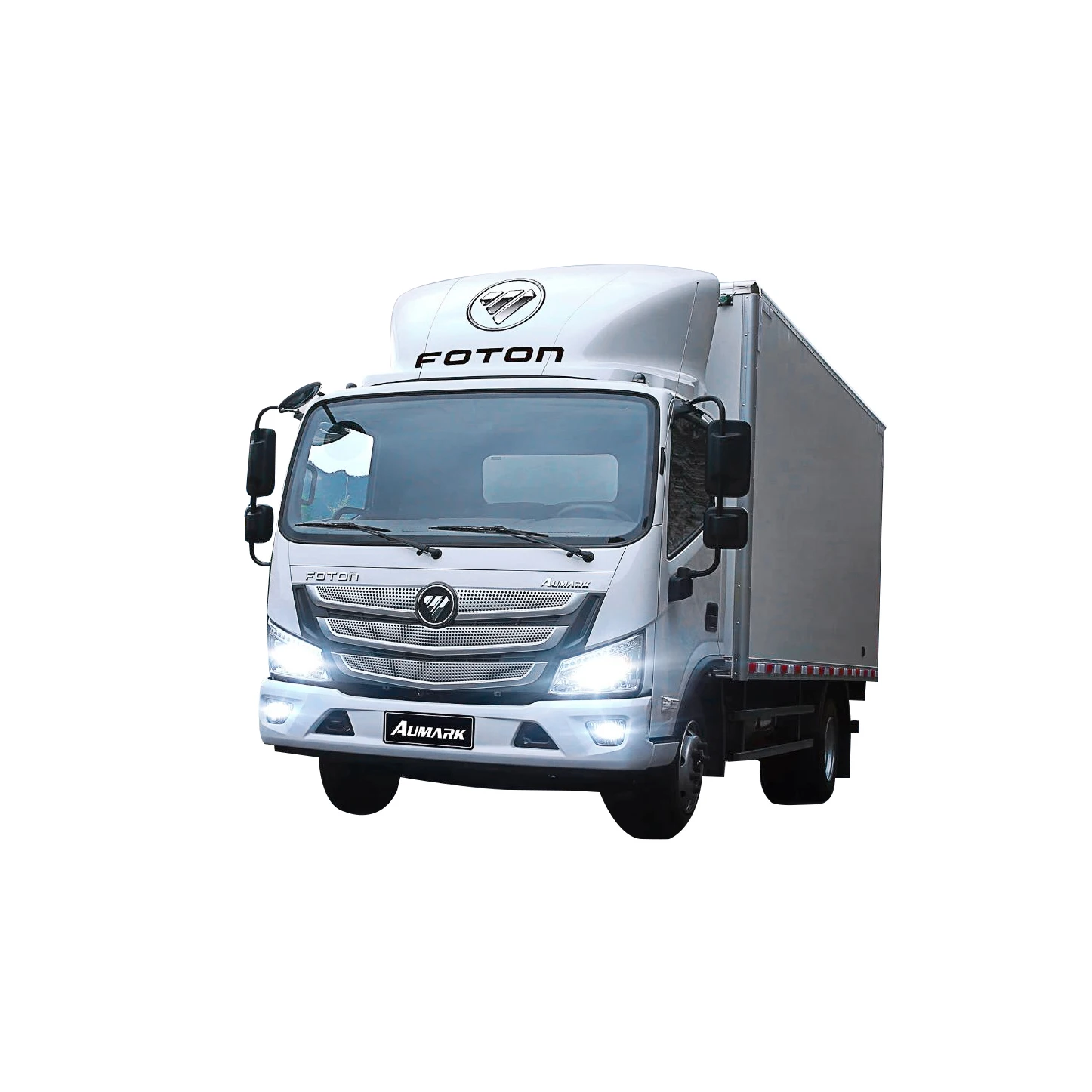

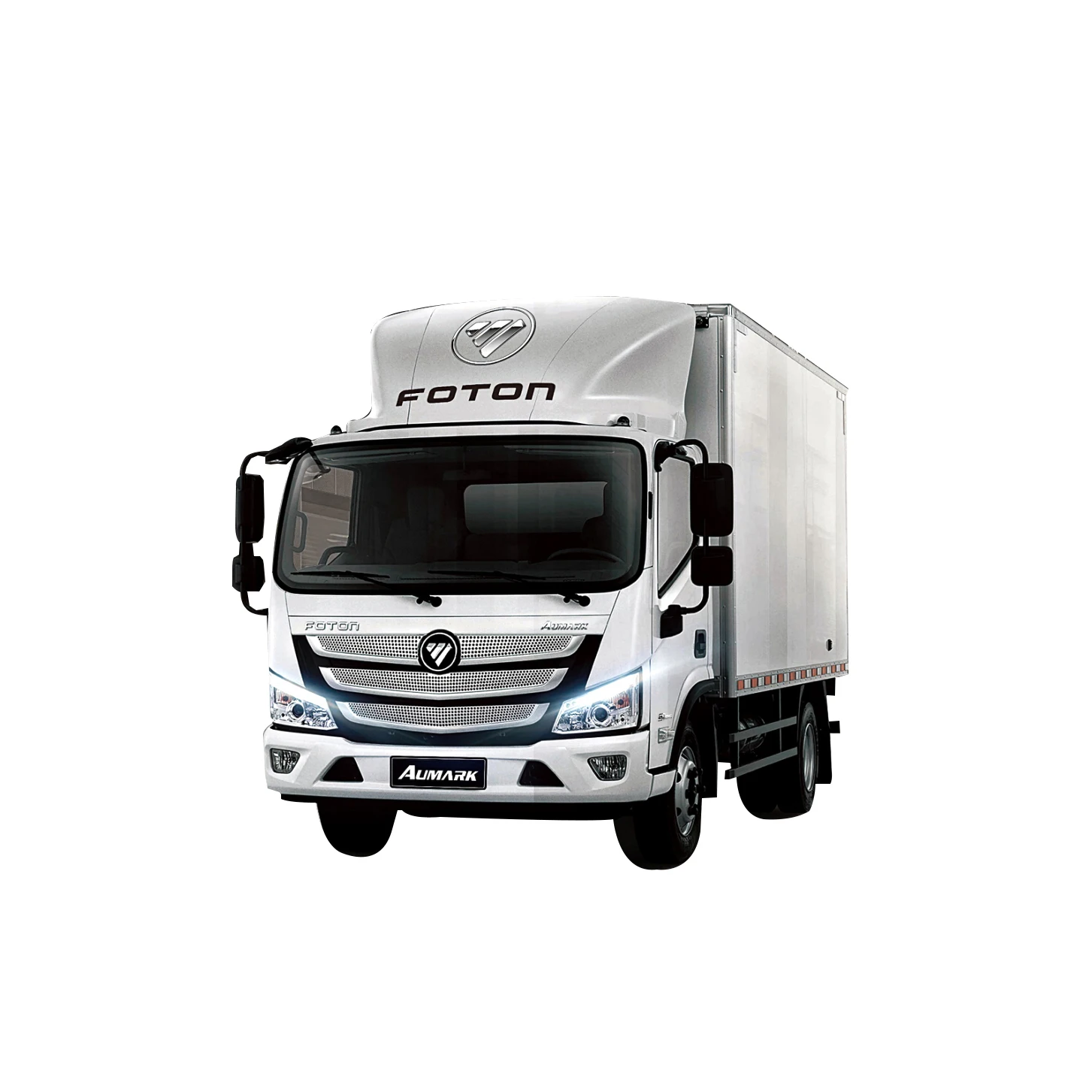

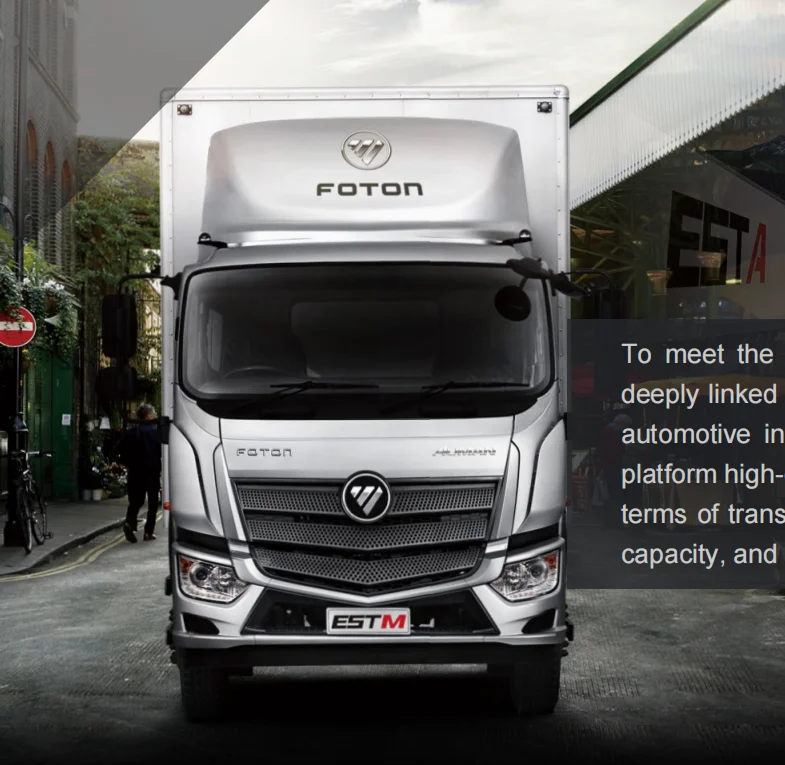

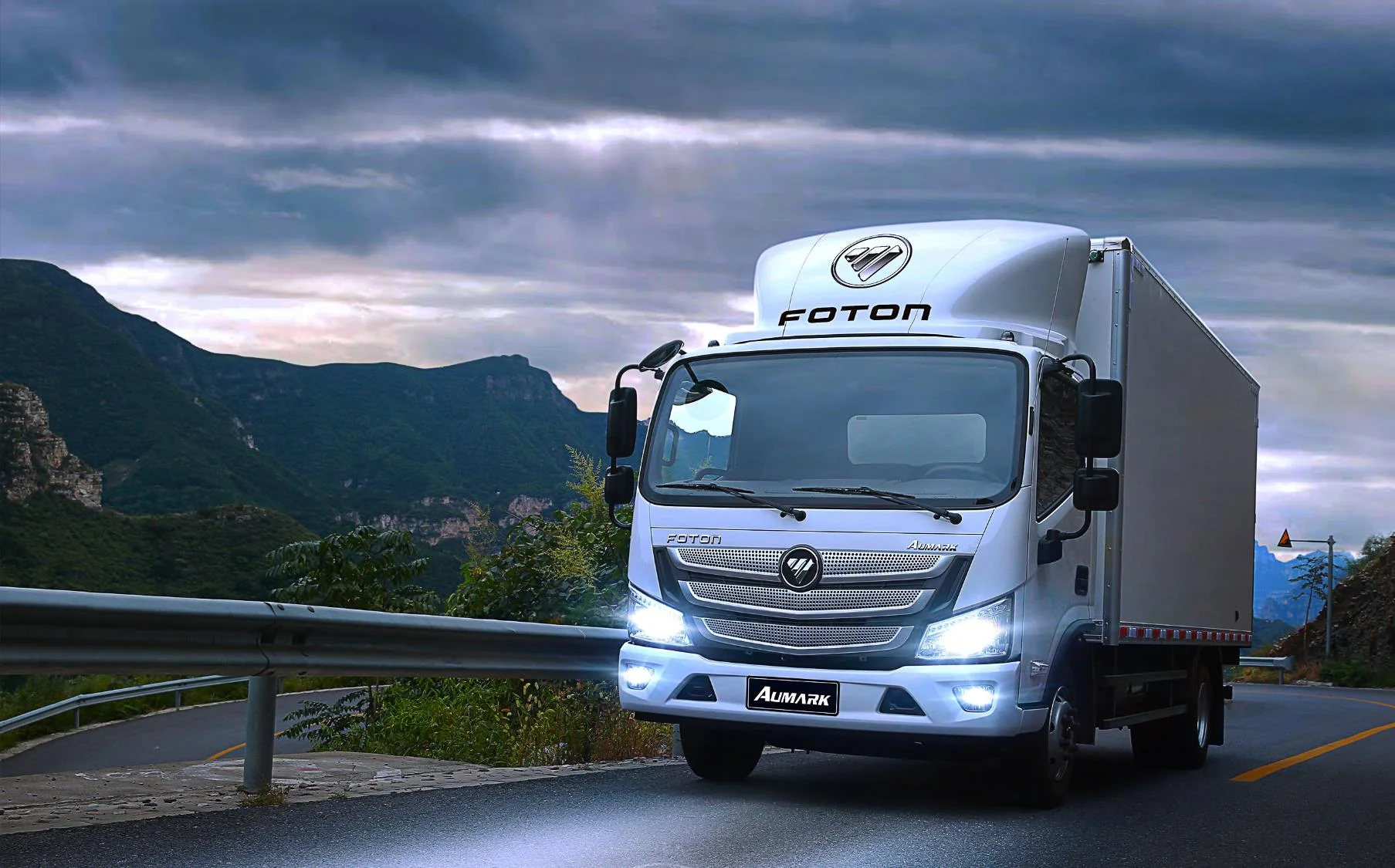

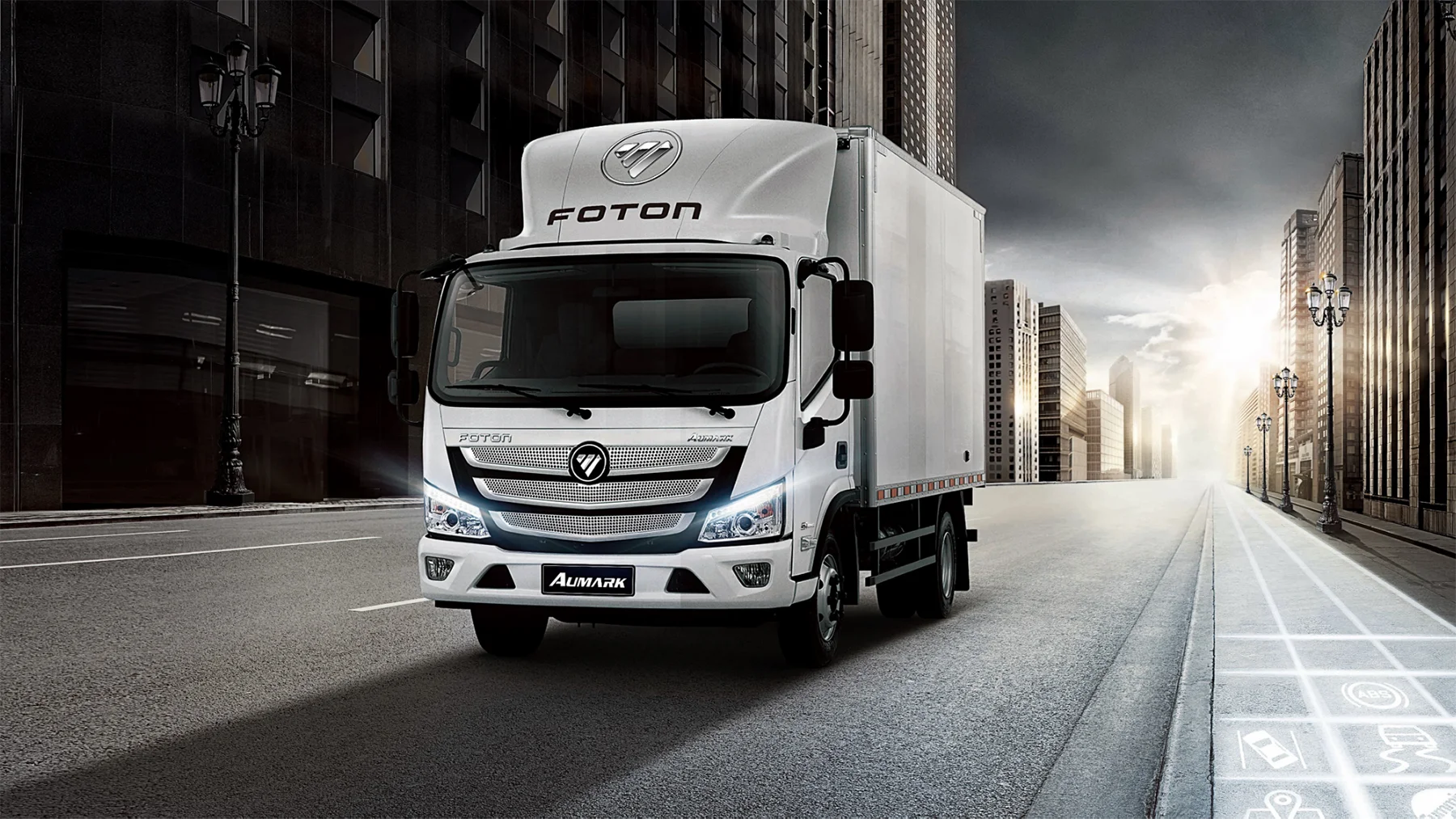

Foton 4x2 6 Ton Cooling Box Van Cold Transportation Freezer Truck Refrigerator Truck
- Category: >>>
- Supplier: Xinbaiqin Special Vehicle Co. Ltd.
Share on (1600280104154):
Product Overview
Description
Product Description
Model | BJ1108VEJEA-FA | |||
Drive style | 4×2 | |||
Steering wheel position | Left hand | |||
| Whole vehicle overall dimension (L x W x H) (mm) | 7100*2300*3375mm | ||
Whole vehicle gross weight ( kg) | 5430kg | |||
Vehicle design parameters | Chassis dimension(mm) | 6885×2195×2335 | ||
Wheelbase(mm) | 3800 | |||
Wheelbase Front / Rear (mm) | 1715/1680 | |||
Maximum speed (km/h) | 110 | |||
Kerb weight (kg) | 3430 | |||
Maximum total design mass (kg) | 10000 | |||
Carrying number | 3 | |||
Basic parameters | Engine | Model | ISF3.8s5154 | |
Fuel | Diesel | |||
Power (kw/PS/rpm) | 115 | |||
Max torque (Nm/rpm) | 500 | |||
Displacement (ML) | 3760 | |||
Emission | Euro V | |||
Clutch | Clutch Type | Single piece, dry type, diaphragm spring | ||
Operating style | Pneumatic assist-hydraulic operation | |||
Gearbox | Model | 6s500 | ||
Operating style | Manual | |||
Front axle | Type | Non-breaking I-beam | ||
Rated load (T) | 3.6 | |||
Rear axle | Type | Stamping and welding integral axle housing | ||
Reduction ratio | 4.778 | |||
Rated load (T) | 6.5 | |||
Suspension | Front suspension | Type | Non-independent suspension of leaf spring | |
leaf spring number | 3 | |||
Rear suspension | Type | Non-independent suspension of leaf spring | ||
leaf spring number | 4+3 | |||
Steering Gear | Steering Gear Type | Recirculating ball | ||
Brake | Front brake | Disc pneumatic brake | ||
Rear brake | Drum hydraulic brake | |||
Parking brake | Air brake | |||
Auxiliary brake | Exhaust brake | |||
Tires and rims | Tubeless tire (metric) 235/75 R17.5 | |||

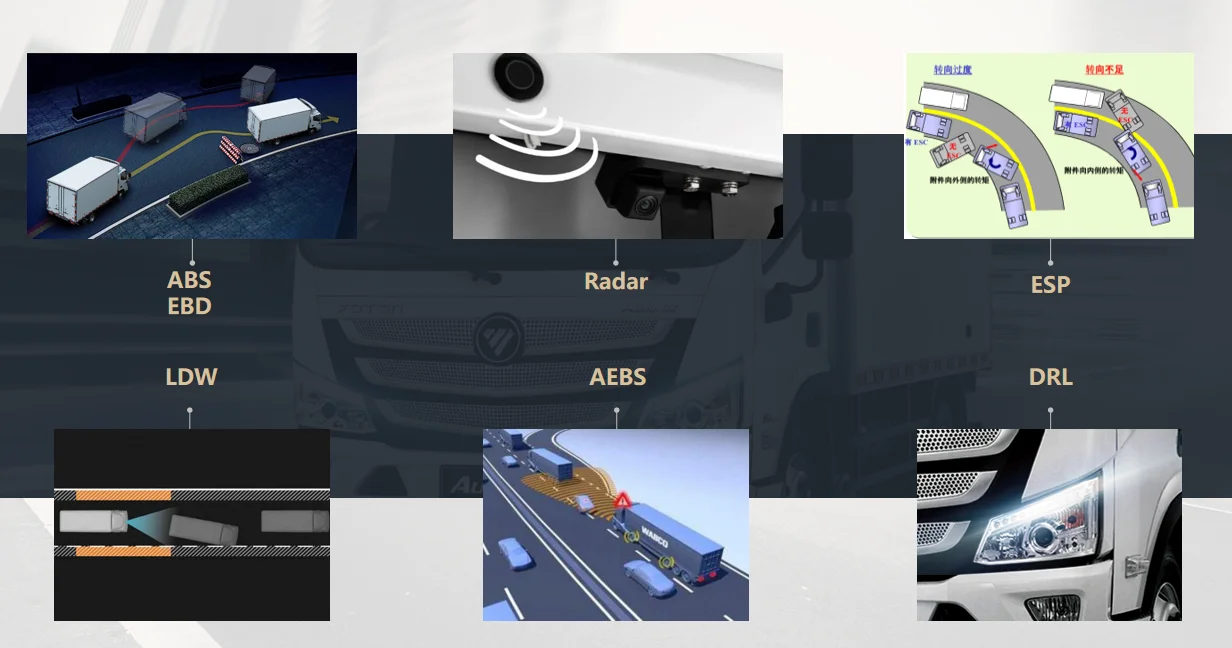

Main basic configuration | Basic speed ratio of front and rear drum (self-adjusting arm)/manual flip/no air deflector/reversing radar/manual air-conditioning/manual doors and windows and rearview mirror/no driving recorder/no stabilizer bar/MP3/ABS/power steering/ Fabric luxury seats | |||
Specific parameters | Internal dimensions (mm) | 5100*2000*2000 | ||
Volume (m3) | 20.4 | |||
Material | Inside and outside: glass steel plate, sandwich: polyurethane plate (≥40kg/m3) | |||
Board thickness | Front panel, rear panel, left and right side panels: above 80mm, top panel and bottom panel: above 100mm | |||
Independent chiller | American Cold King/SV400 | |||
lowest temperature | -18℃ | |||

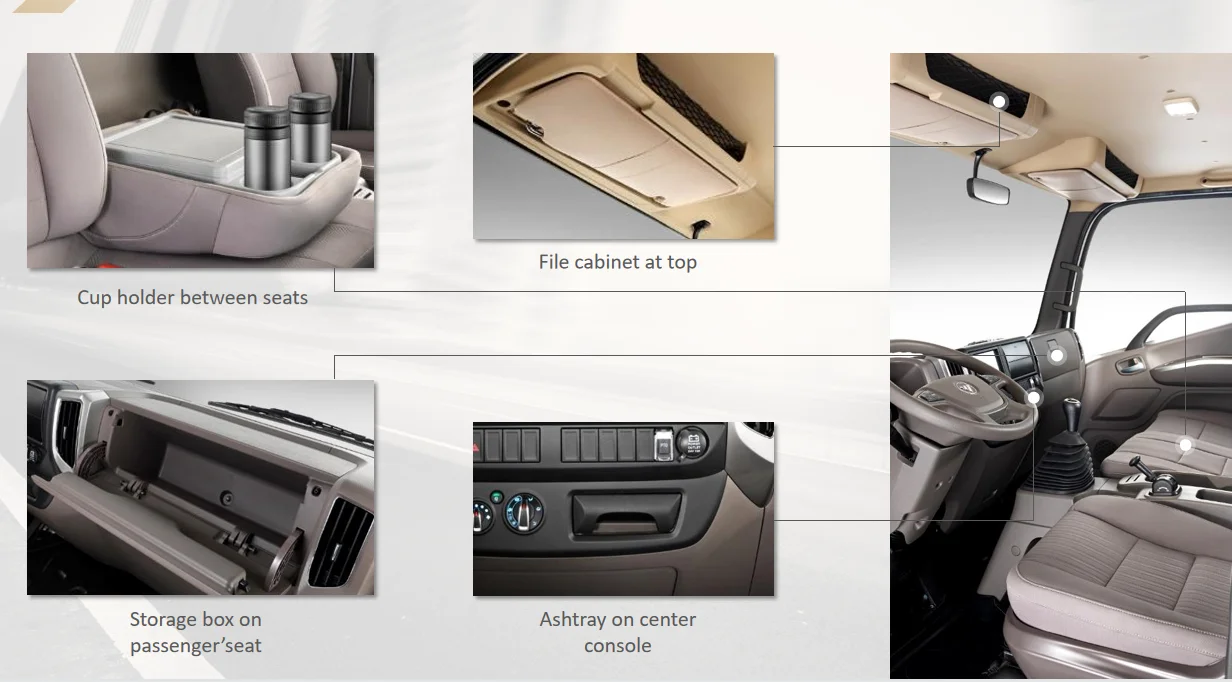

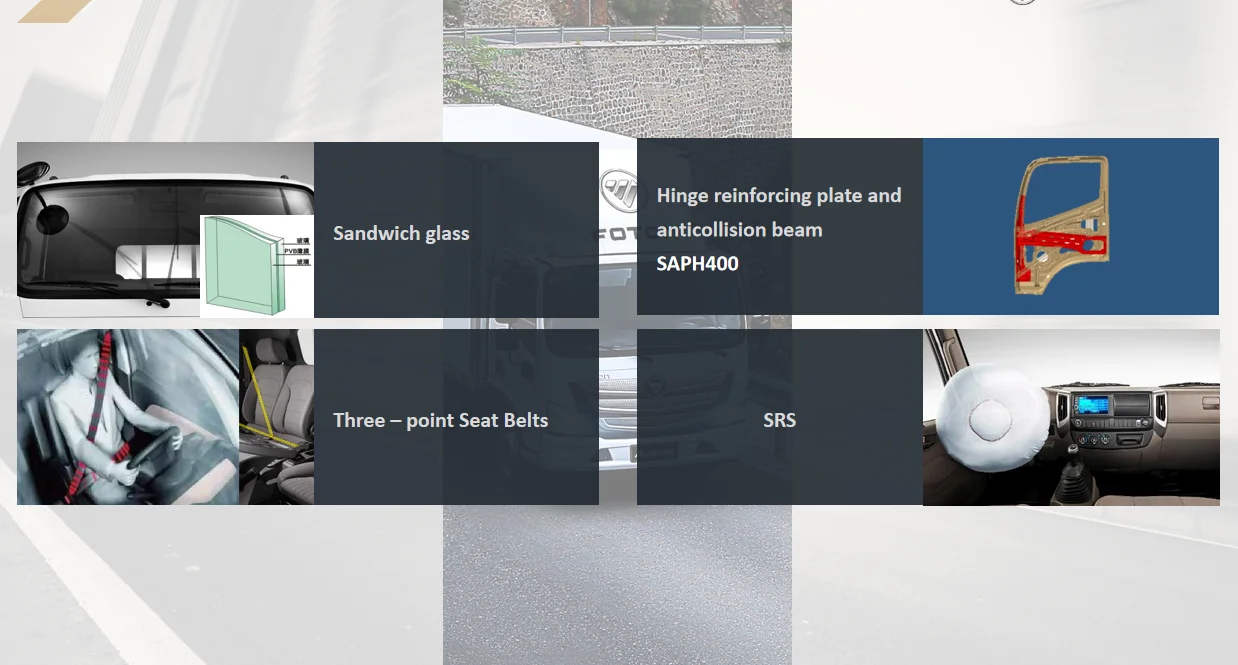

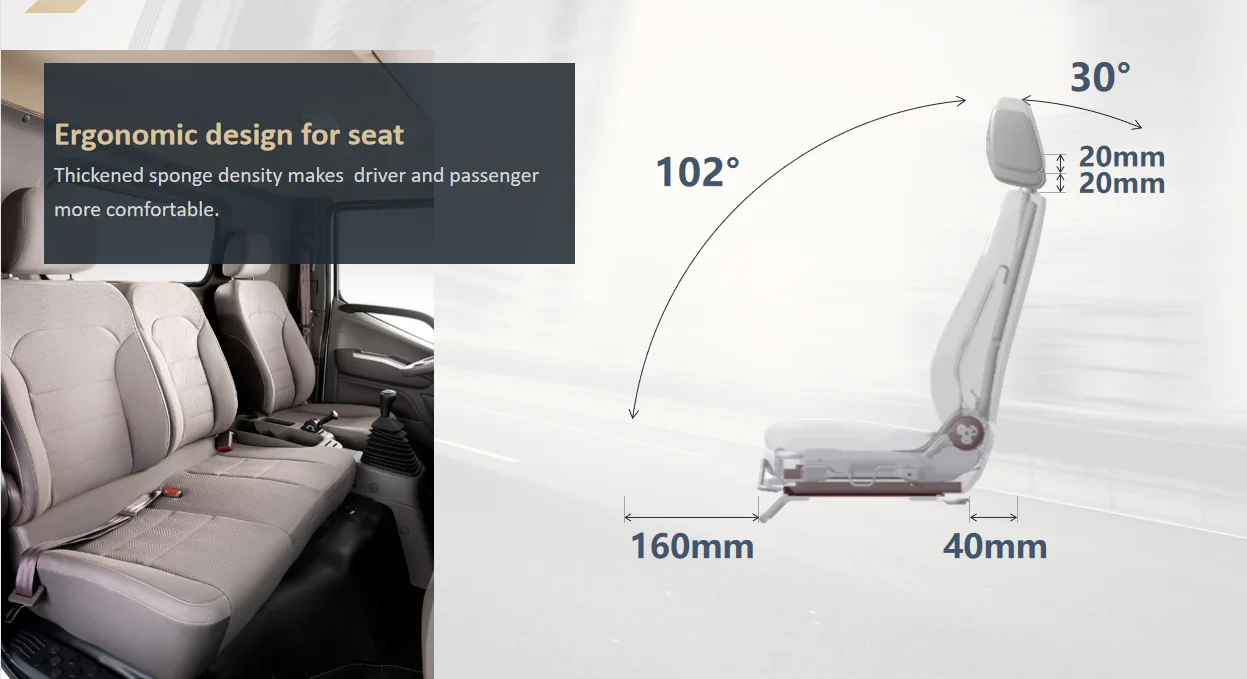

Product Display
