10TPH Rock Gold Grinding Process Limestone Ball Mill Price
- Category: Mine Mill >>>
- Supplier: Jiangxi,Province,County,Mining,Machinery,Factory
Share on:
Product Overview
Description
Product Description

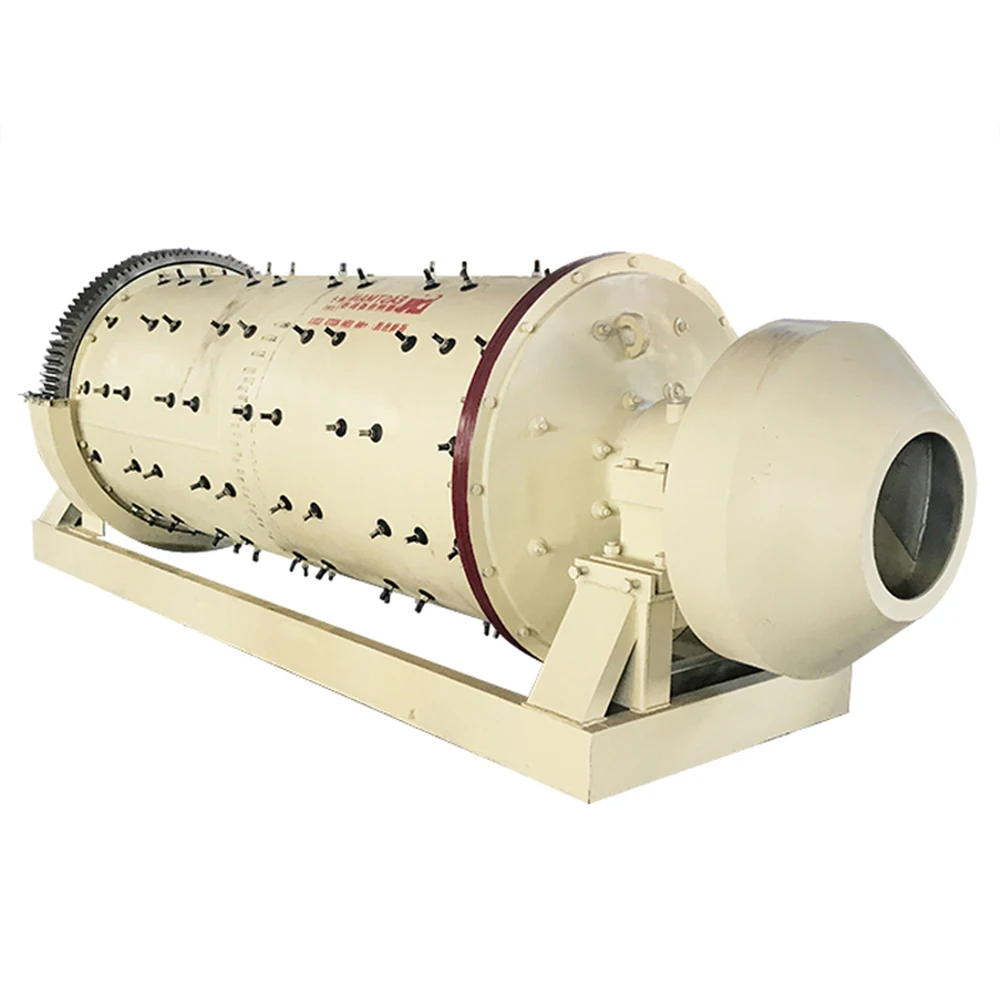

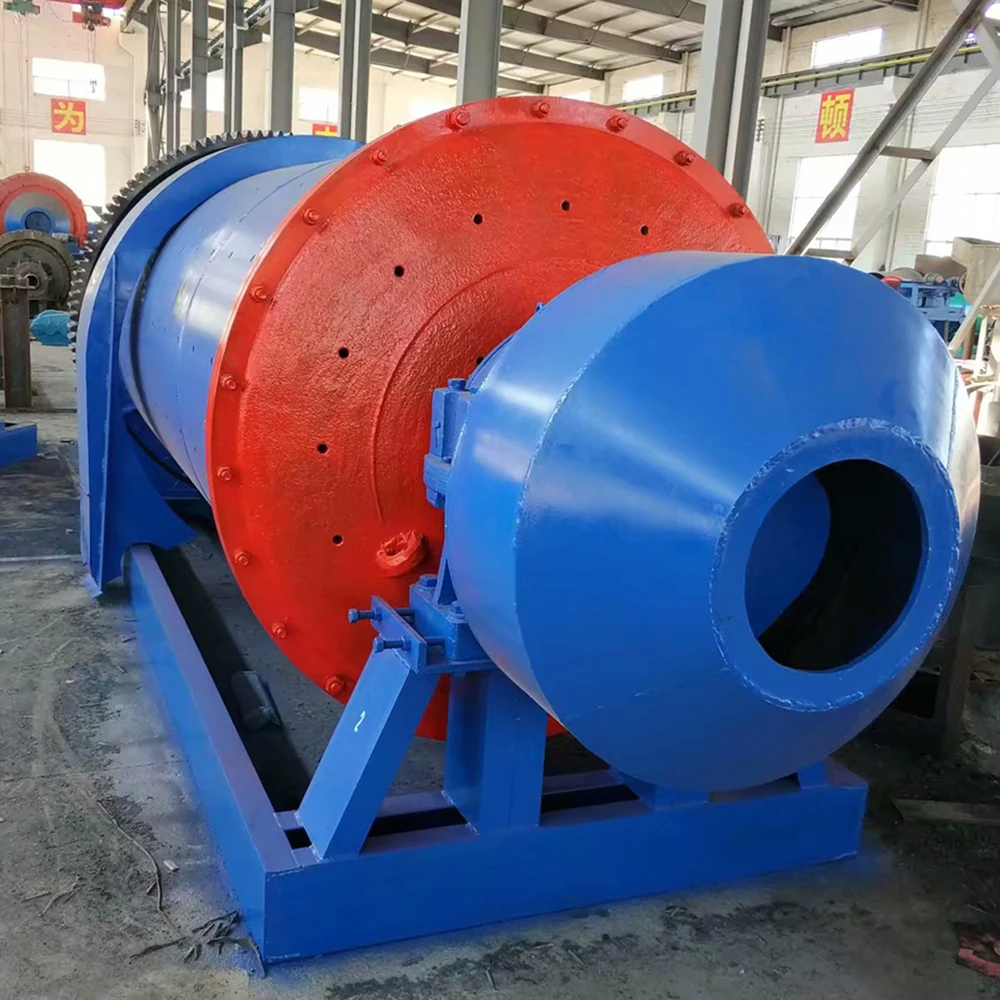

Mineral Ball Mill Machine
Product Introduction:
Ball Mill is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements. Ball Mills consist of a large cylinder which slowly rotates around a horizontal axis. The cylinder is partially filled with the material to be ground plus the grinding medium (metal grinding balls). Inside the cylinder, the medium will be lifted to a certain height under the action of centrifugal force and then drop or fall, grinding the ore in between the balls as they interact. Feed material to be ground enters the cylinder via a hopper on one end and after being crushed by the grinding medium is discharged at the other end.
Structural Characteristics:
The ball mill is composed of feeding device, discharge device, rotation device ,speed reducer, small transmission gears, motor, and electric control part. The Hollow Shaft is made of cast iron, the inner plates can be changed, the large rotating gears are manufactured by the casting process, and inside the cylinder is equipped the wear-resistant plates, it has good abrasion resistance. The machine is running smoothly, it works reliably.
Performance Parameter | ||||||||||||||||
Model | Drum Size | Speed | Ball Weight | Feed Size | Output Size | Capacity | Power | Weight | ||||||||
m | r/min | t | mm | mm | t/h | kw | t | |||||||||
MQZ0918 | 0.9x1.8 | 38.8 | 1.92 | 0-20 | 0.074-0.6 | 0.4-2.14 | 22 | 5.34 | ||||||||
MQZ1224 | 1.2x2.4 | 31 | 4.8 | 0-20 | 0.074-0.6 | 0.4-6.8 | 55 | 13.43 | ||||||||
MQZ1245 | 1.2x4.5 | 31 | 5.2 | 0-20 | 0.074-0.6 | 1.6-12 | 75 | 17.4 | ||||||||
MQZ1530 | 1.5x3 | 27.5 | 8.1 | 0-25 | 0.074-0.4 | 2.9-16.5 | 95 | 18.6 | ||||||||
MQZ1557 | 1.5x5.7 | 29.2 | 15 | 0-25 | 0.074-0.4 | 4-25 | 130 | 24.54 | ||||||||
MQZ1836 | 1.8x3.6 | 23.9 | 11 | 0-25 | 0.074-0.4 | 8-40 | 155 | 33 | ||||||||
MQZ2136 | 2.1x3.6 | 23.8 | 27 | 0-25 | 0.074-0.4 | 8-61 | 210 | 46.8 | ||||||||
MQZ2436 | 2.4x3.6 | 22 | 28 | 0-25 | 0.074-0.4 | 7-95 | 240 | 73 | ||||||||
MQZ2465 | 2.4x6.5 | 22 | 36 | 0-25 | 0.074-0.4 | 7-110 | 310 | 76 | ||||||||
MQZ2736 | 2.7x3.6 | 21.9 | 39 | 0-25 | 0.074-0.4 | 13-145 | 400 | 77 | ||||||||
MQZ2740 | 2.7x4.0 | 21.9 | 43 | 0-25 | 0.074-0.4 | 13-150 | 400 | 91 | ||||||||
MQZ3060 | 3x6 | 19 | 70 | 0-25 | 0.074-0.4 | 100-145 | 800 | 155 | ||||||||
Application of Ball Mill
Ball Mill Machine Application:
The ball mill is widely used in the production of industries such as cement, silicate products, new construction materials, refractory materials, fertilizers, ferrous and non-ferrous metals, ceramics, glass and others, can grind various types of mineral and other grinding-power materials in dry or humid.
Packing&Shipping
Packing：Standard parts use wooden case to pack, whole machine is directly loading on the container.
Shipping: BY sea shipping, use 20'GP container or 40'HQ container or Flat rack container.
Our Company
Jiangxi shicheng Mine Machinery Factory was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported to Africa,Nigeria,Zambia,Zimbabwe,Congo,Uganda,Mozambique,Angola,Southeast Asia,South America and many other coutries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.
Our service & FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

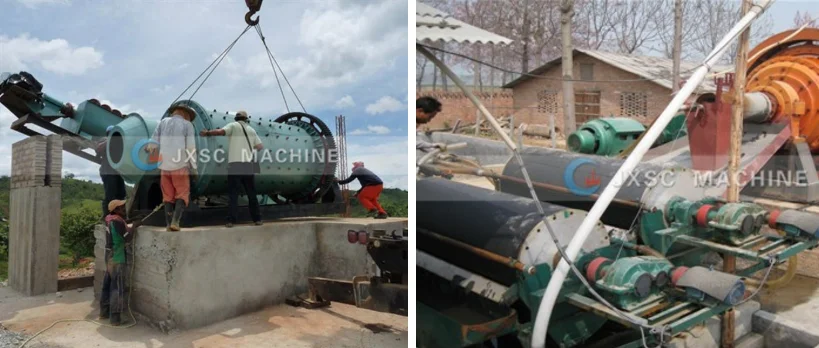

●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
