Industrial nickel alloy cladding reactors
- Category: >>>
- Supplier: Weihai Huixin Chemical Machinery Co. Ltd.
Share on (1600280229016):
Product Overview
Description
Product Description

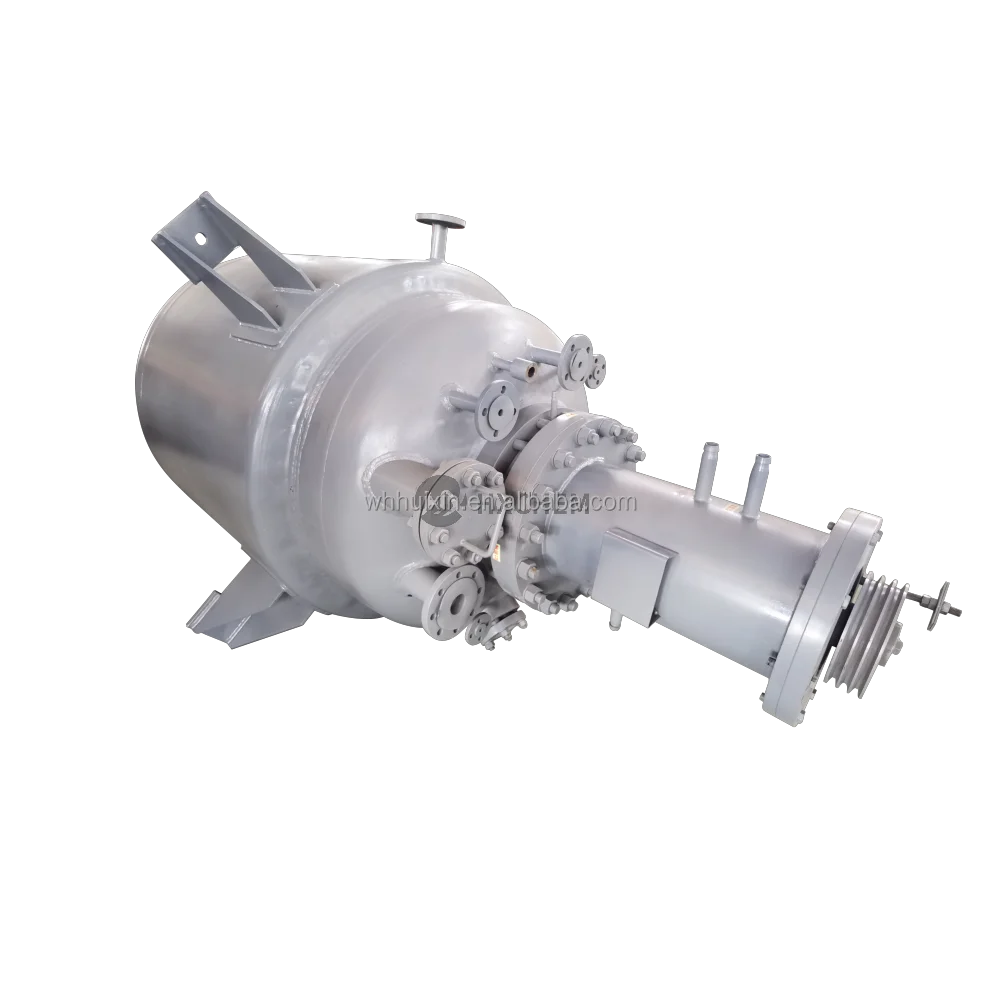

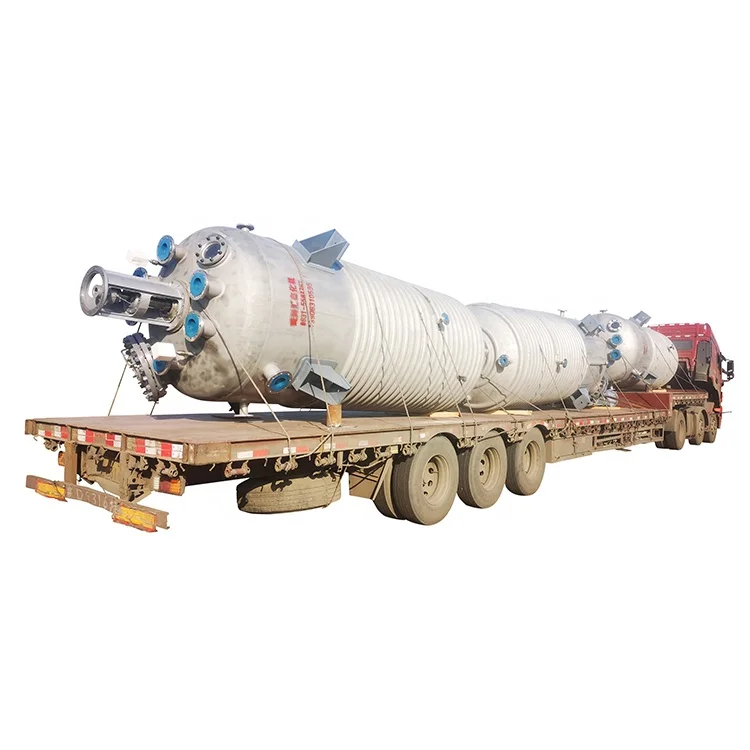

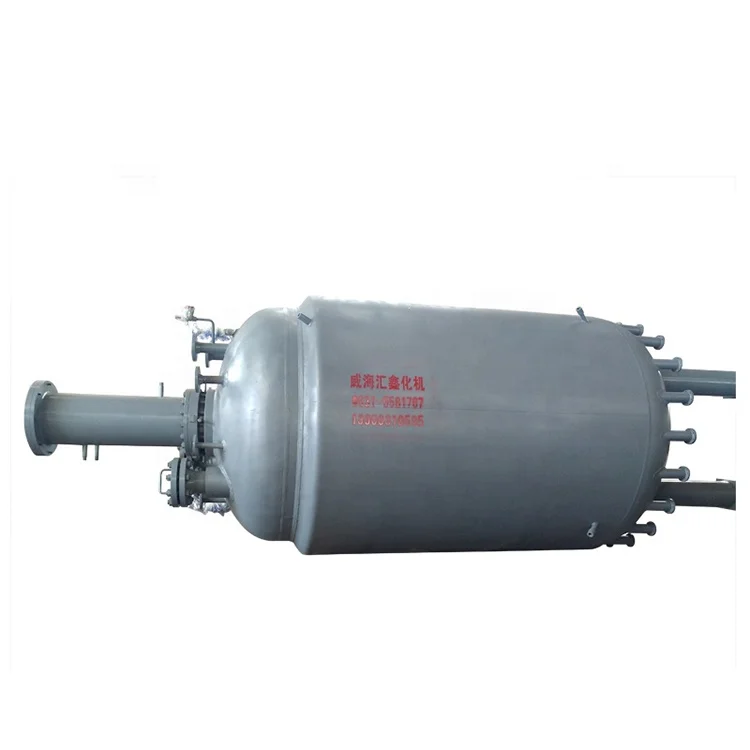

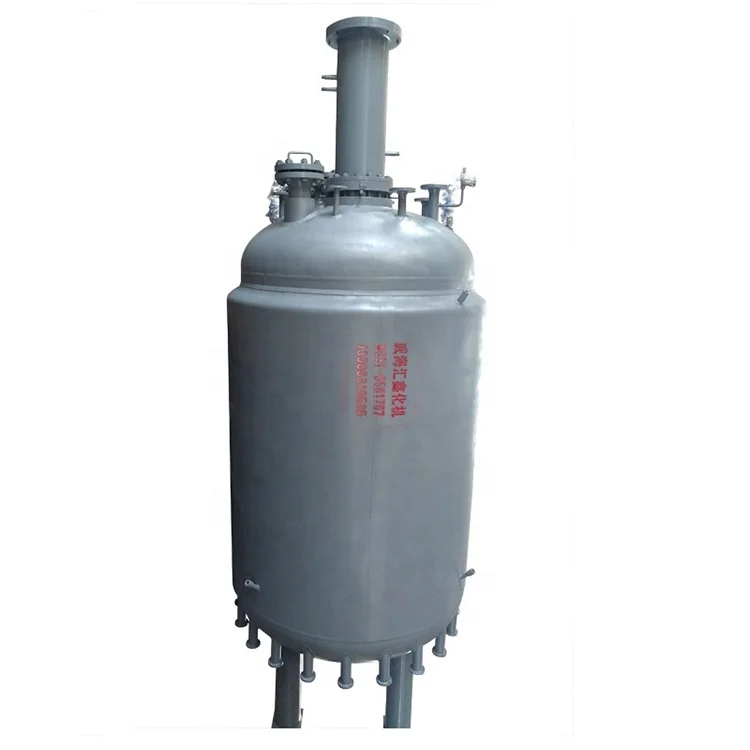

Industrial nickel alloy cladding reactors
Introduction
Nickel-6 (>99.5% pure) is one of the pure nickel. It offers extensive advantages including outstanding resistance to various corrosive and caustic conditions, alkalis, and acids at the different magnitudes and temperature limits. Nickel-6 is resistant to reducing, oxidizing & neutral conditions and offers outstanding resistance to caustic alkalis in the high temperature.
Application: H acid；Alkali melting process;
Nickel-6 (>99.5% pure) is one of the pure nickel. It offers extensive advantages including outstanding resistance to various corrosive and caustic conditions, alkalis, and acids at the different magnitudes and temperature limits. Nickel-6 is resistant to reducing, oxidizing & neutral conditions and offers outstanding resistance to caustic alkalis in the high temperature.
Application: H acid；Alkali melting process;
Nickel alloy clad reactor | Pure nickel reactor is used in the chemical industry for its corrosion resistance - particularly to alkalis. Pure nickel shows excellent corrosion resistance in alkaline solutions such as caustic soda, and also shows outstanding resistance against highly pure halogen gas and non-oxidizing acids. Pure nickel reactor is used in the chemical industry for its corrosion resistance - particularly to alkalis. Pure nickel shows excellent corrosion resistance in alkaline solutions such as caustic soda, and also shows outstanding resistance against highly pure halogen gas and non-oxidizing acids.
MAIN SPECIFICATION | ||
Type | FCH1000~80,000L | |
Volume(L) | 1000~80,000L | |
Working pressure(MPa) | Negative pressure -0.1~20 | |
Working temperature(°C) | -196~350℃ | |
Stirring speed(rpm) | 0~500 | |
Motor power(KW) | 5kw~125kw | |
Heating power(KW) | 3~90 | |
Heating type | Heat oil heating, steam heating, Electric heating, Electromagnetic heating, far-infrared heating, | |
Charging type | Charging from above, discharging from bottom. | |
Stirring type | Customized propeller, turbine, paddle, anchor, frame, screw belt type. ...etc | |
Seal type | Magnetic seal, mechanical seal, | |
Motor | Explosion-proof motor according to customers’ requirements. | |
Construction materials （Wetted parts） | Stainless steel SUS304, SS316L, SS310S, 321, duplex steel 2205, Titanium, Nickel, Zirconium, or PTFE lining, Hastelloy C-276, C22, cladding plate. | |
Other Accessories | Condenser, storage vessel, constant pressure feed tank, receiving tank | |
Product Features
Corrossion Resistance
Metal process scope including:
*Carbon steel
*Stainless steel
*Duplex steel
*Titanium alloy
*Nickel alloy
*Hastelloy C-276
*Zirconium
*Metal clad plate
Internal component design as per customer's requires, including:
*Internal condenser
*Agitator & impeller
*Dip tube
*Temperature measuring tube
*Various functional tube
*Cleaning device
*Bottom support & bearing
*Gas distributor
*Others
Reasonably customize the nozzle port and orientation, including:
*Manhole, liquid inlet, gas inlet, solid inlet, safety device, vent outlet... etc.
* 100% Sealing. Zero leakage.
* Zero emission of hazardous fluids.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
Agitator
*Different impeller type available for specific mixing mission.
*Special impeller design according to process condistions
Product Paramenters
Model No. | Vol. (L) | A (mm) | B (mm) | C (mm) | ||||
FCH1000 | 1000 | 1000 | 1100 | 3800 | ||||
FCH2000 | 2000 | 1200 | 1500 | 4200 | ||||
FCH3000 | 3000 | 1400 | 1700 | 4500 | ||||
FCH5000 | 5000 | 1600 | 2150 | 4700 | ||||
FCH6000 | 6000 | 1700 | 2350 | 5300 | ||||
FCH8000 | 8000 | 1900 | 2500 | 5700 | ||||
FCH10000 | 10000 | 2000 | 2800 | 5800 | ||||
FCH15000 | 15000 | 2400 | 2900 | 6100 | ||||
FCH20000 | 20000 | 2600 | 3300 | 7100 | ||||
FCH25000 | 25000 | 2800 | 3550 | 7600 | ||||
FCH30000 | 30000 | 2800 | 4350 | 9100 | ||||
Note: Larger size and specific data will be designed and confrimed according to your requires! | ||||||||
Details Images
Magnetic Coupling Stirrer
Motor & Reducer
Pressure & Leakage Test
Mechanical Seal agitator

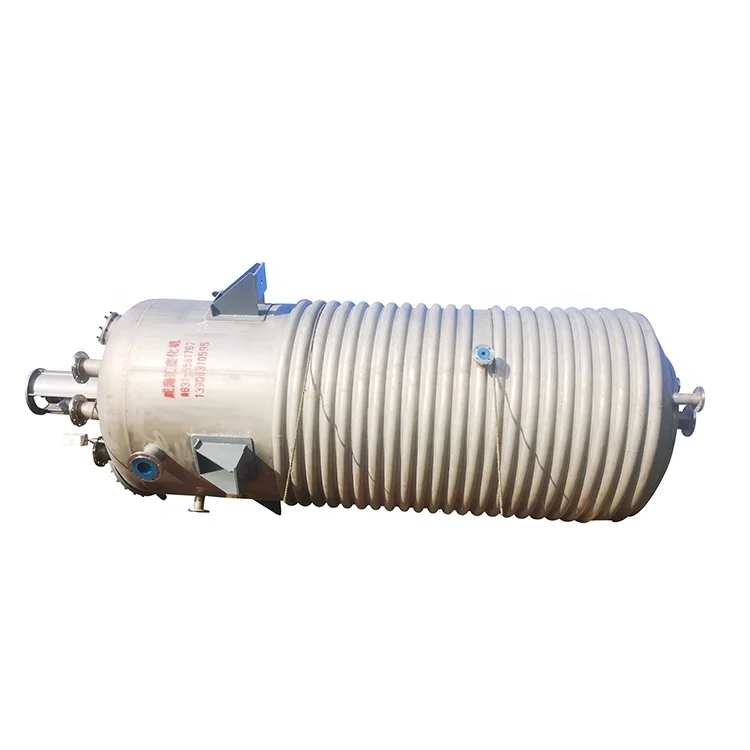

External limpit Coils Jacket
Full Jacket
Pressure Vessel Barrel
Upper Head
Manhole
Agitator & internal cools
Tubular Coils
Serpentine Coils
Recommend Products
Customization
Customized Specifications
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Your other requests
......Contact us！
We like to help you to accomplish your plans.
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Your other requests
......Contact us！
We like to help you to accomplish your plans.

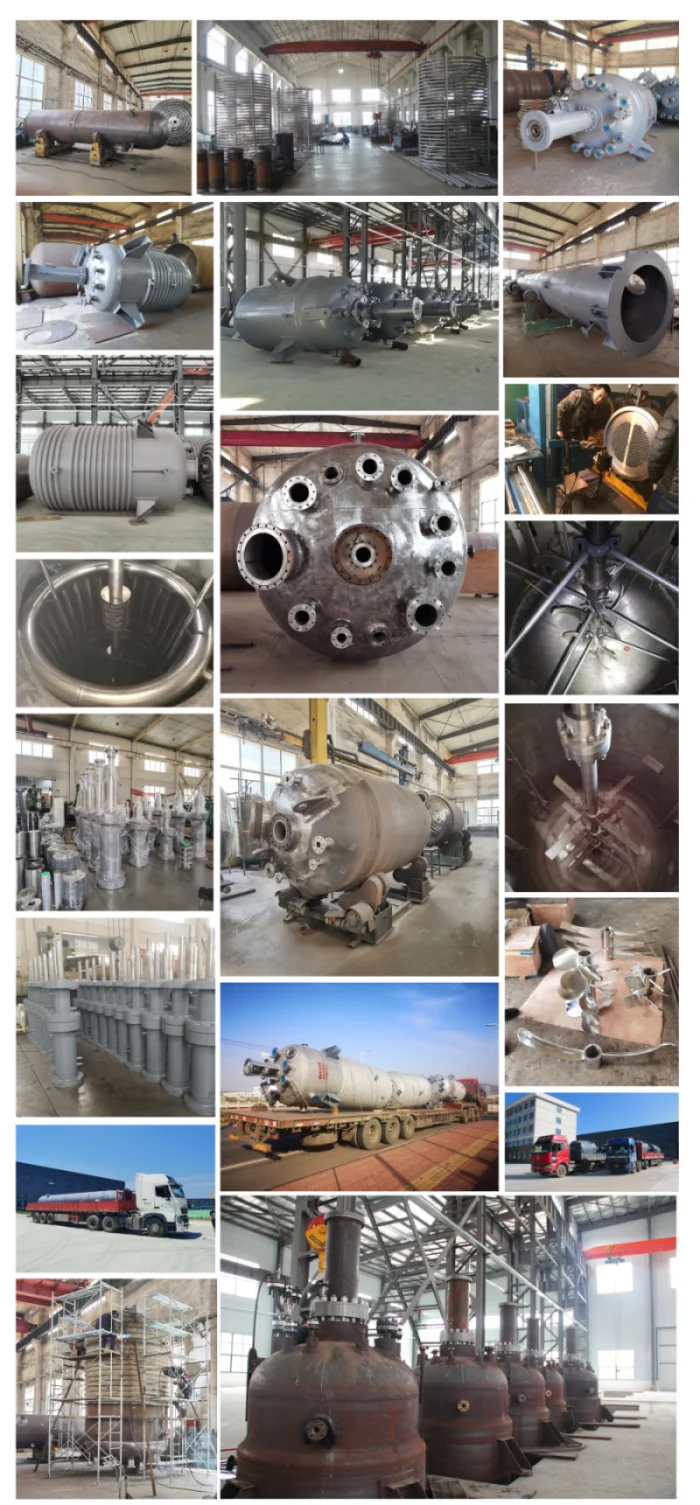

Company Introduction
Hydrothermal Synthesis Reactors
Lab high pressure autoclave reactor
Lab reactor with lift & tilt

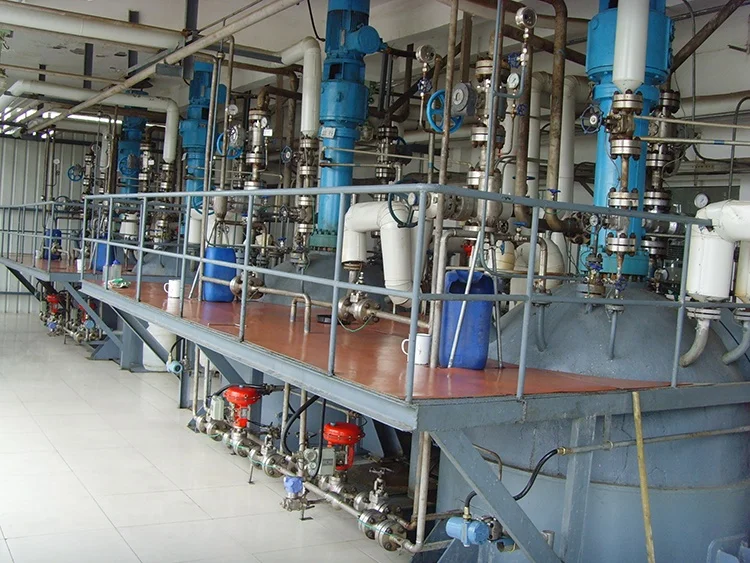

Pilot reactor & Plant
