Price:$10.00 - $20.00
Price in USD:Details

Quantity:


Product Overview

Description



STHL FACTORY
Factory interior photography.




Company Profile


Our Services
STHL 14+ Years One-Stop PCB & PCBA Factory
High-quality PCB PCBA Factory PCB Assembly Manufacture




Company Information


STHL is a high-quality provider of electronics manufacturing services (EMS) locate in in Shenzhen,China. We serve customers worldwide along the whole industry chain including product design, material sourcing, PCBA production, cable assembly, box build assembly and comprehensive testing services. Our 4,000 sqm facilities include 6 surface-mount technology (SMT) production lines, 2 through hole technology (THT) lines , 2 function testing lines and 2 box build production lines.




STHL Service


STHL offer PCB Assembly service for prototypes, trial and mass orders. Our market covers a lot of fields like communication, aviation, energy & power, safety & security, medical device, LED lighting, consumer electronics, industrial, automotive electronics,smart home appliance, etc.

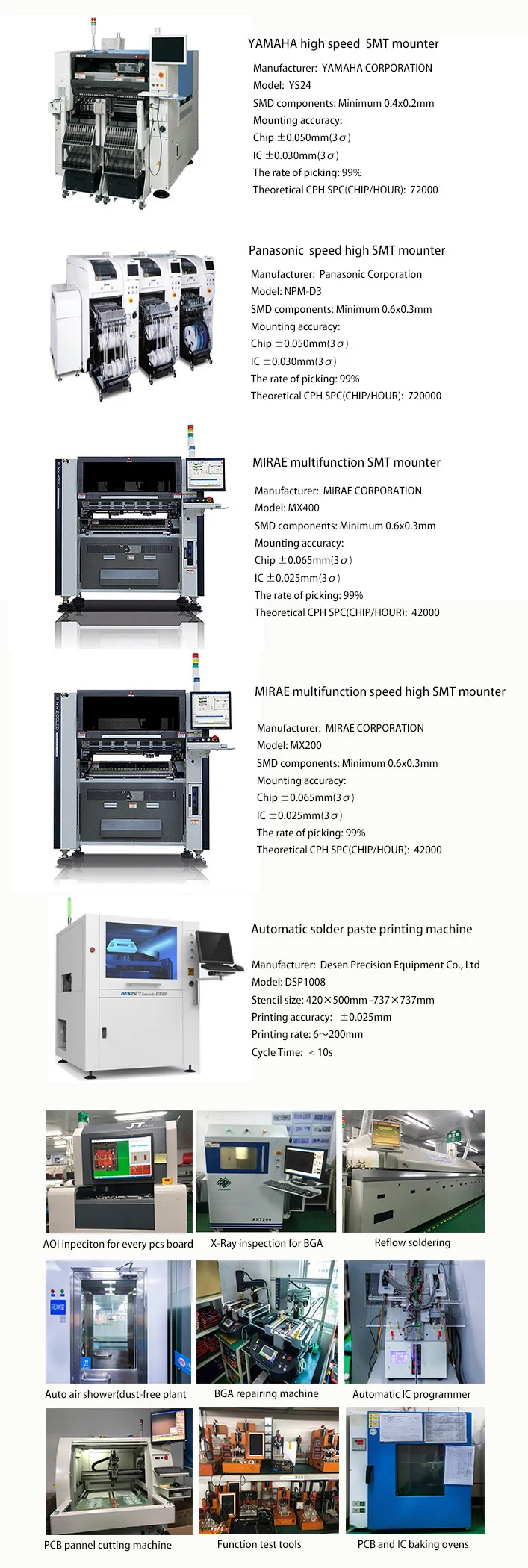

Manufacturing Technique


Testing & Control
STHL provide custom test service according to client's requirements and products. Usually STHL PCBA Tech
offers a full range of testing service. Including:
*AOI(Automatic Optical Inspection)
* Function Testing
* In Circuit Testing
* Testing Jig
* Testing Service
* X-Ray for BGA Testing
* Printing Solder Paste Test
Each board is carefully examined by our dedicated inspection  team using AOI and high magnification viewers.
Using our X-Ray machine, we test PCBs to component level and all wiring is fully inspected and tested. Flash
testing and earth bonding tests can also be undertaken where required.






Product Capability


Items
PCBA capacity
Product name
mobile app controlled elevator drone flight controller board pcb
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Testing on products
Testing jig/mold , X-ray Inspection, AOI Test, Functional test
Quantity
Min quantity : 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB : Gerber files(CAM, PCB, PCBDOC)
Components : Bill of Materials(BOM list)
Assembly : Pick-N-Place file
PCB Panel Size
Min size : 0.25*0.25 inches(6*6mm)
Max size : 1200*600mm
Components details
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine BGA Pitch to 0.2mm(8mil)
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape, Tube, Reels, Loose Parts
PCB+ assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching
-----Electrical Testing-----SMT-----Wave Soldering-----Assembling
-----ICT-----Function Testing-----Temperature & Humidity


FAQ


1. What is your MOQ?
Our MOQ is 1 PCS, sample and mass production all can support.

2. How could I can a quotation?
PCB: Please send us Gerber file.
PCBA:Please send us Gerber file+BOM

3. Are you factory?
Yes, we are a true factory.

4. Can you produce the goods as customer design?
Welcome to send us the design or sample, we will calculated the cost and unit price for you as soon aspossible.

5. How about the products packing?
Flexible packing according to the specific requirements of the clients.

6. Are my design files secure when I send them to you?
We can sign NDA, don’t worry your files are held in complete safety and security.

7. How can you make sure the components quality?
We buy components from famous international platform like Mouser, Digikey, Farnell, Future, Avnet, Arrow or agents. Repeat orders material normally ordered from the same source, we do not change suppliers time by time if everything goes well. And we have IQC workers test.

8. How long is the delivery time ?
Make PCB board or PCBA assembly need 15-20 workdays;
Test the function need 1-2workdays.


Product packaging






Contact us


GET QUOTATION NOW, PLS CONTACT:
Melody

Shenzhen STHL Electronics Co.,Ltd.
www.firstpcba.com
Email: [email protected]
Tel: 0086-755-89369123
Mobile & Whatsapp &Wechat: +86 13632851496
