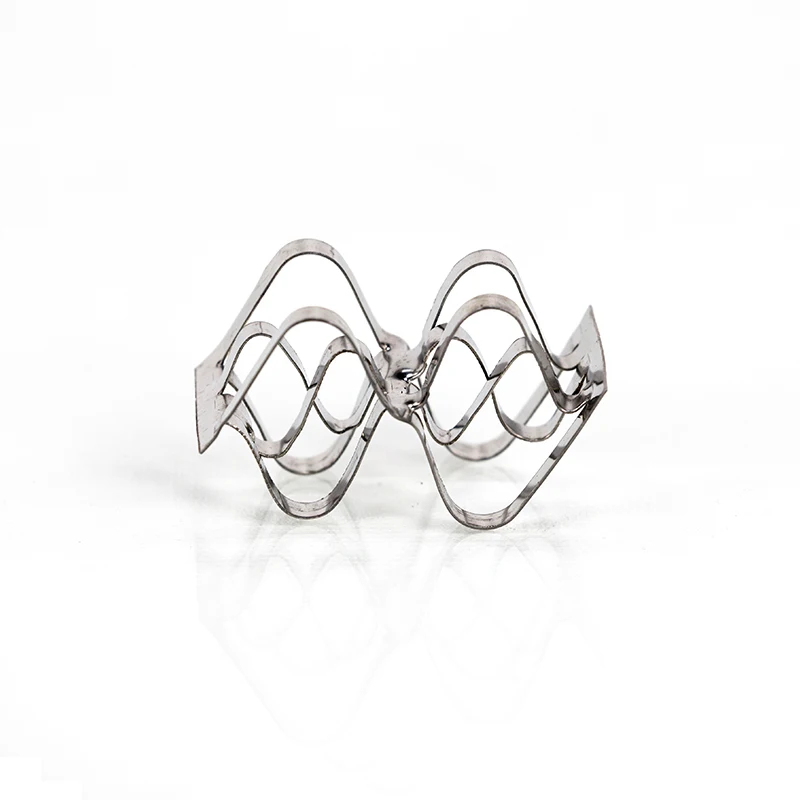

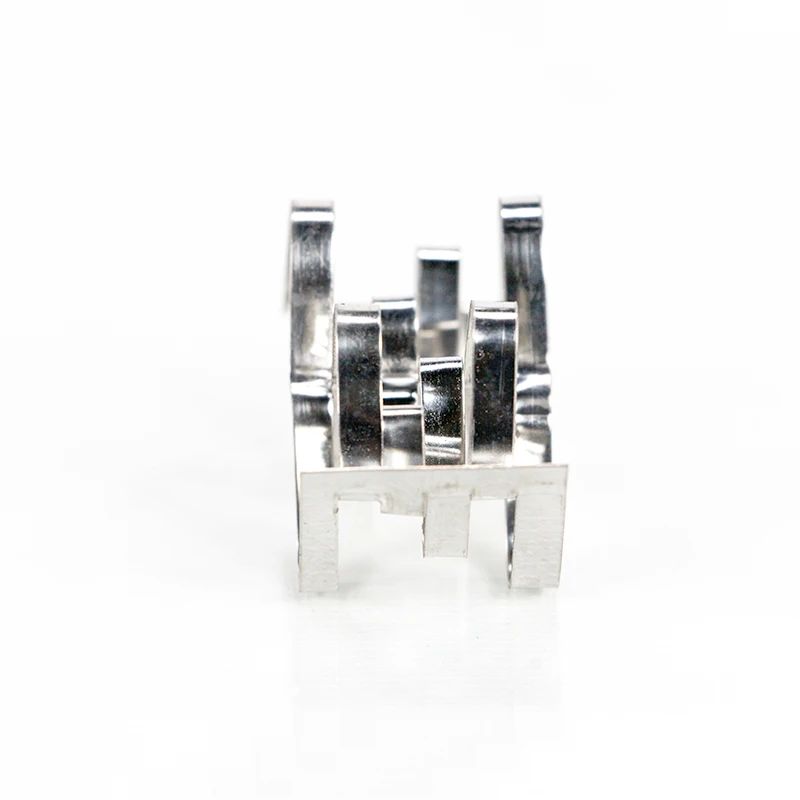

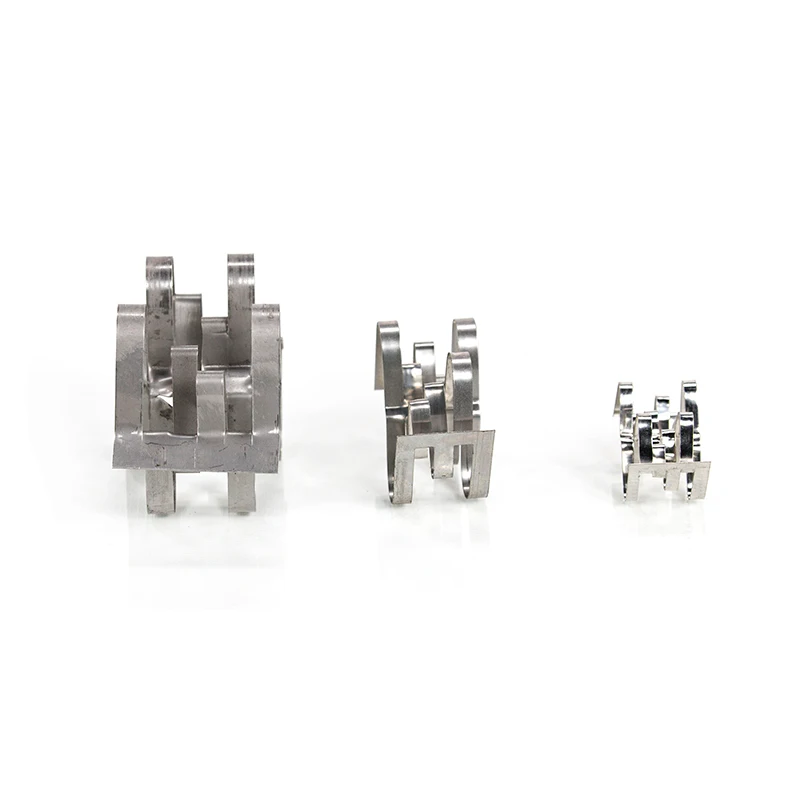

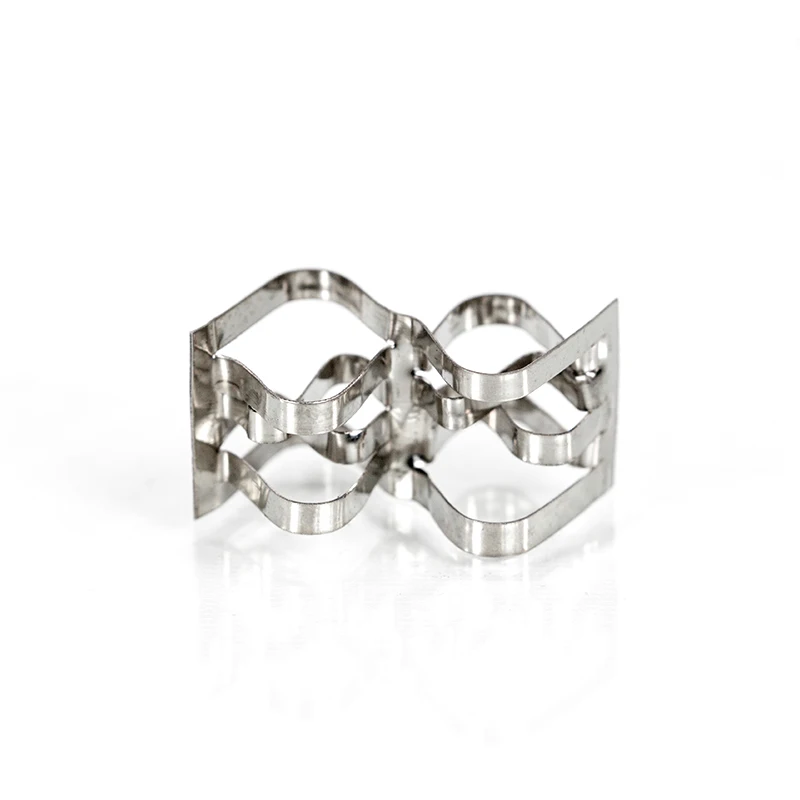

8 89mm Stainless Steel 304 Raschig Ring Packing Metal Super Raschig Ring For Scrubbing Tower Packing
- Category: >>>
- Supplier: Jiangxi Kelley Chemical Packing Co. Ltd.
Share on (1600280240504):
Product Overview
Description
Products Description
Products description:

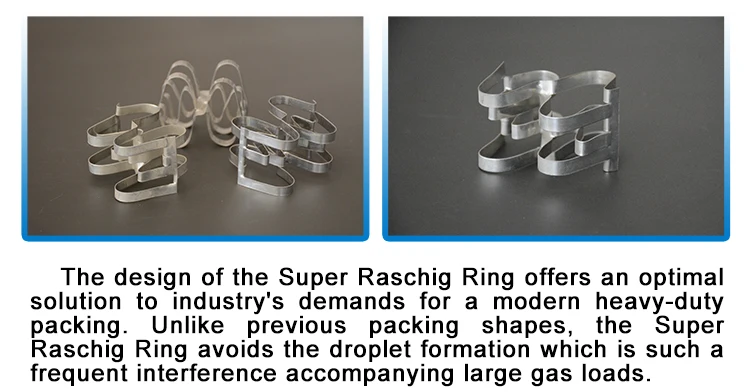

The design of the Super Raschig Ring offers an optimal solution to industry's demands for a modern heavy-duty packing. Unlike previous packing shapes, the Super Raschig Ring avoids the droplet formation which is such a frequent interference accompanying large gas loads.
The Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal packing by over 10%，them are widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
Metal raschig ring can be a variety of materials, such as carbon steel, stainless steel 304,304 L, 410,316,316 L, etc. to choose from.
The Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal packing by over 10%. The development of the new " Super Raschig Ring " packing element sets new standards in the field of separation technology, as the designer so the Super Raschig Ring have succeeded in finding an optimum link to those demands which a modern, high-performance packing element must fulfill under industrial conditions.
Application :
It is widely used in petrochemical engineering, fertilizer, enviromental protection fields as one of the tower packings. Such as vapor washing tower, purification tower,etc.
The design of the Super Raschig Ring offers an optimal solution to industry's demands for a modern heavy-duty packing. Unlike previous packing shapes, the Super Raschig Ring avoids the droplet formation which is such a frequent interference accompanying large gas loads.
The Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal packing by over 10%，them are widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
Metal raschig ring can be a variety of materials, such as carbon steel, stainless steel 304,304 L, 410,316,316 L, etc. to choose from.
The Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal packing by over 10%. The development of the new " Super Raschig Ring " packing element sets new standards in the field of separation technology, as the designer so the Super Raschig Ring have succeeded in finding an optimum link to those demands which a modern, high-performance packing element must fulfill under industrial conditions.
Application :
It is widely used in petrochemical engineering, fertilizer, enviromental protection fields as one of the tower packings. Such as vapor washing tower, purification tower,etc.
Size (Inch) | Bulk density (304,kg/m3) | Number (per m3) | Surface area (m2/m3) | Free volume (%) | Dry Packing Factor m-1 |
0.3” | 230 | 180000 | 315 | 97.1 | 343.9 |
0.5” | 275 | 145000 | 250 | 96.5 | 278 |
0.6” | 310 | 145000 | 215 | 96.1 | 393.2 |
0.7” | 240 | 45500 | 180 | 97.0 | 242.2 |
1.0” | 220 | 32000 | 150 | 97.2 | 163.3 |
1.5” | 170 | 13100 | 120 | 97.8 | 128.0 |
2” | 165 | 9500 | 100 | 97.9 | 106.5 |
3” | 150 | 4300 | 80 | 98.1 | 84.7 |
3.5” | 150 | 3600 | 67 | 98.1 | 71.0 |
Packing & Shipping

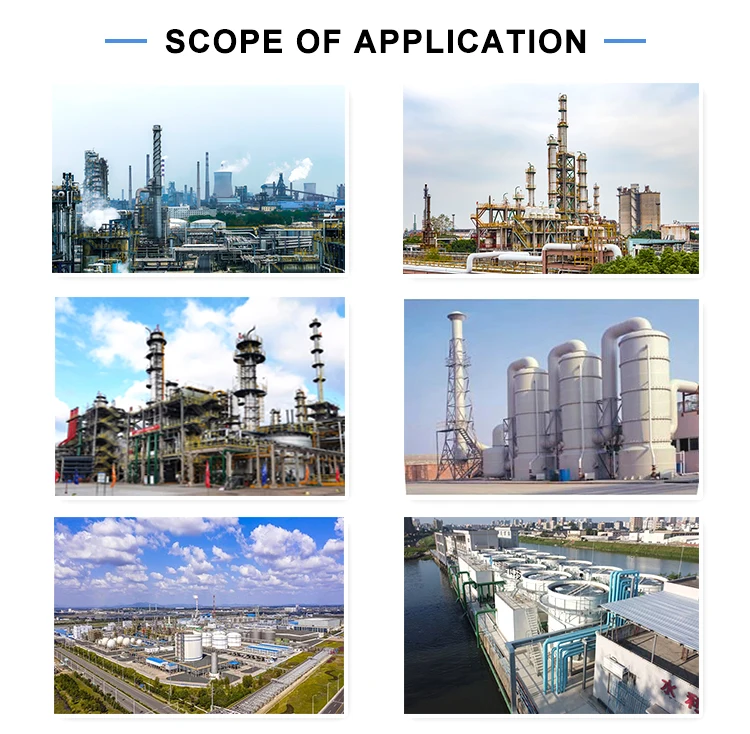

Scope of application
Why Choose Us
Certifications
CONTACT US
FAQ
Q: How do I pay for my purchase order? A: T/T, Irrevocable L/C at sight, Paypal,Western Union, etc... Q:What’s your company Production Capacity? A:More than 2000cubic meter/Month. Q: What's the MOQ? A: Our MOQ is 1cubic meter. If the quantity less than 1cubic meter,the price will be higher. Q: What's the delivery time for MOQ? A: It will takes about 3 days. But the exact time is according to actual situation. Q: Can I have my own customized product? A: Yes, your customized requirements are welcome. Q: Do you have quality control? A: Yes, we have ISO, SGS, some other third party certificate and our company’s QC depart can do the regular test . Q:Which countries and the main Clients your company export the goods to? A: UK, USA, France, Kazakhstan, Japan, Korea, Singapore, Belgium, Russia, Netherland , Middle East etc. | ||||||||
