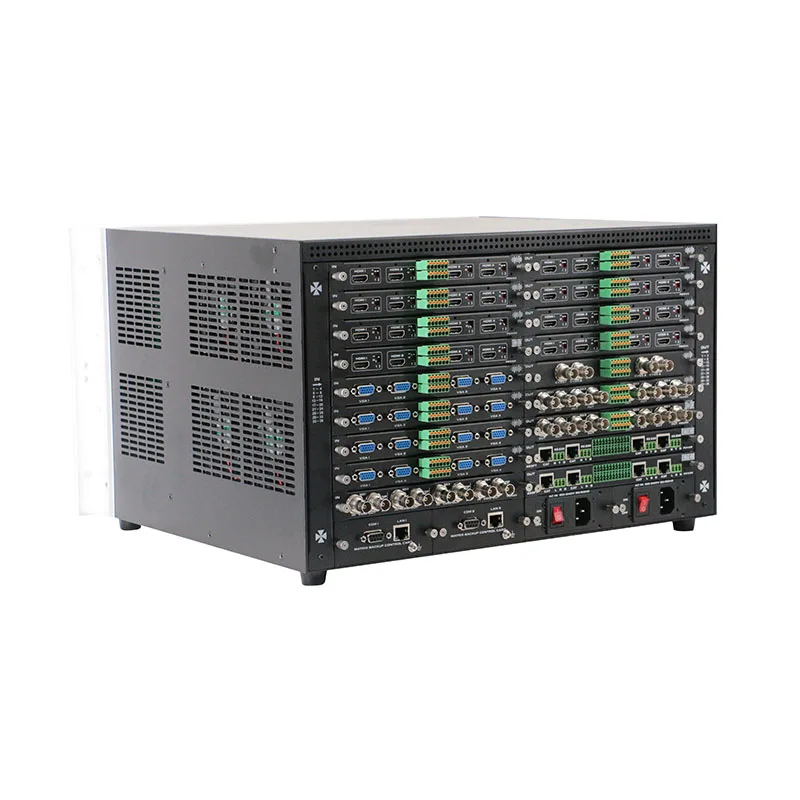

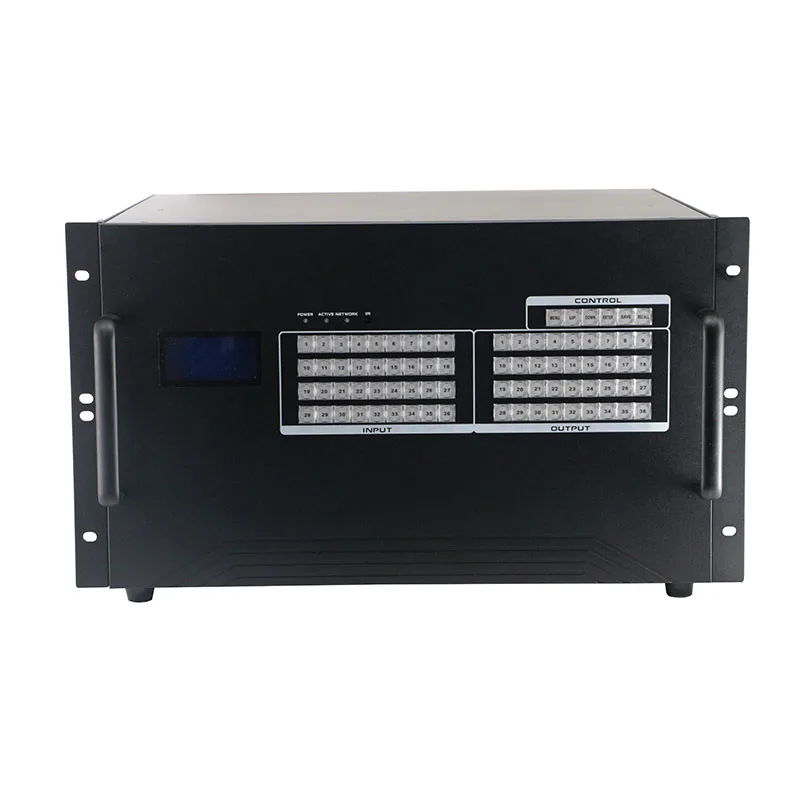

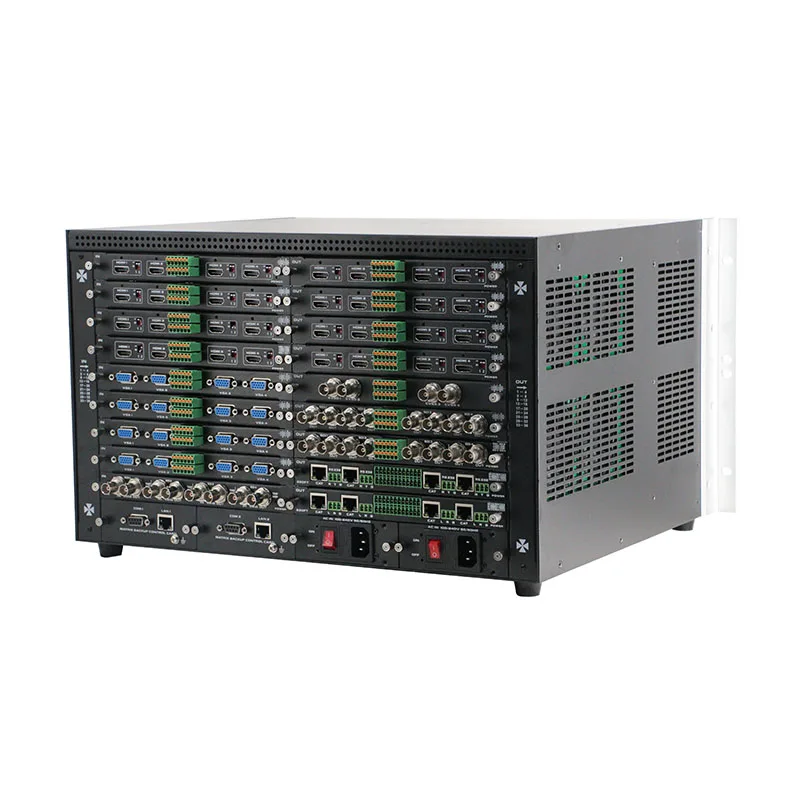

WEB/RS232 APP control 1080P/4K30/4K60 4x4/8x8/36x36 HDI/3GSDI/DVI/VGA/YPBPR/CVBS/HD Base video processor Matrix Switcher
- Category: Presentation Equipment >>>
- Supplier: Beijing Guangyu Xingzhou Communication Technology Co. Ltd.
Share on (1600280248474):
Product Overview
Description
Products Description
Introduction

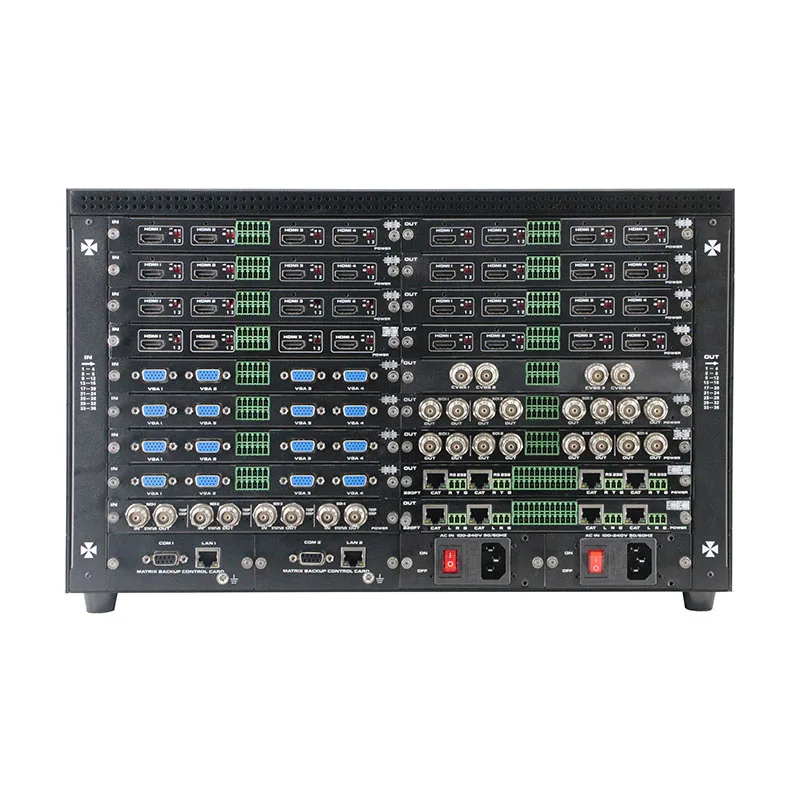

The FM-3600 modular matrix switcher series have 36 inputs interfaces and 36 output interfaces, all the signal input and output cards are 1-card for 4-port, so it offers wide range selections of the input and output cards, and the most flexible configuration ability. With dual LAN and RS232 backup control, it is convenient for users to control via PC, iPad, APP, and to easily set up and control the peripheral equipment, such as the projector, electric curtain and TVs. And the 1080P and 4K60 I/O cards support switching, converting, extension, resolution adjustment. Supports screen splicing, seamless or fast switching function, electromagnetic protection. The single channel signal switching speed can reach 12.5Gbps, and the main board is using four core four links processing technology, the switching ability speed can reach 32Gbps. With uncompressed transmission technology for the digital signal, the image output has high fidelity.
This matrix switcher is widely used in the conferencing, radio & television project, multimedia conferencing hall, large screen display project, television teaching, command control center and so on.
This matrix switcher is widely used in the conferencing, radio & television project, multimedia conferencing hall, large screen display project, television teaching, command control center and so on.
Features
Modular designing chassis
1 card for 4 ports, supports mixed input and output signals of HDMI/DVI-I/ VGA/ YPBPR/ CVBS/HD-SDI/ 3GSDI/ CAT(RJ45)/ Fiber
Support screen splicing, and seamless switching between all the signals, no black/ blue/ split screen when switching
4-core 4 links processing chipset provides up to 32GBPS signal switching processing ability
Front buttons with background lights, easier to operate in darkness
EDID automatic recognition and compatible with HDCP
Support audio embed and de-embed function
Support 4K60, HDMI2.0 444 digital HD video signal transmission and seamless switching
Support 3D image frequency repairing, pixel reread processing function
Support scaling up/down function via the DIP switch
Support dual RS232 and dual LAN ports backup control and centralization network management function
Support hot-plug function
Support auto saving and auto recovery function from power cut
Modular designing chassis
1 card for 4 ports, supports mixed input and output signals of HDMI/DVI-I/ VGA/ YPBPR/ CVBS/HD-SDI/ 3GSDI/ CAT(RJ45)/ Fiber
Support screen splicing, and seamless switching between all the signals, no black/ blue/ split screen when switching
4-core 4 links processing chipset provides up to 32GBPS signal switching processing ability
Front buttons with background lights, easier to operate in darkness
EDID automatic recognition and compatible with HDCP
Support audio embed and de-embed function
Support 4K60, HDMI2.0 444 digital HD video signal transmission and seamless switching
Support 3D image frequency repairing, pixel reread processing function
Support scaling up/down function via the DIP switch
Support dual RS232 and dual LAN ports backup control and centralization network management function
Support hot-plug function
Support auto saving and auto recovery function from power cut
Product Parameters
Model | 36x36 |
Description | 36x36 modular chassis |
Input Card | 1-card 4-port, support HDMI, DVI, 3GSDI, VGA, HD BaseT, Fiber Optic |
Output Card | 1-card 4-port, support HDMI, DVI, 3GSDI, VGA, HD BaseT, Fiber Optic |
Protocol | HDMI1.4a/ HDMI2.0, DVI1.0, compatible with HDCP and EDID function |
Color Space | RGB444, YUV444, YUV422, support x.v.Color extension color gamut standard |
Resolution | HDMI(DVI-I): 640*480-1920*1200(VESA), 480i-4K*2K30hz(HDTV), 4K60Hz |
DVI(DVI-I): 640*480-1920*1200(VESA) | |
VGA(DVI-I): 640*480-1920*1200(VESA) | |
YPBPR(DVI-I): 480i-1080p60(HDTV) | |
CVBS(DVI-I): NTSC/PAL | |
SDI(BNC): 480i-1080p(SMPTE) | |
CAT(RJ45): HDBaseT technology, 70/100m Extension (work with extenders) | |
FIBER(XFP): 300m for one multi-mode fiber and 2km over one single-mode fiber | |
Data Speed | 12.5Gbps |
Transmission distance | 70/100m(Cat6), 80Km(Single-mode), 20m(Digital cable), 25m(Analog cable) |
Control Methods | Broadcasting switching button, dual RS232+LAN control |
Dimension | 482*390*298(3U)mm |
Weight | 18.6KG(No cards) |
Consumption | 40W(No cards) |
Power Supply | AC 110V-240V 50/60HZ |
Working Temp | -10℃ - 50℃ |
Storage Temp | -25℃ - 55℃ |

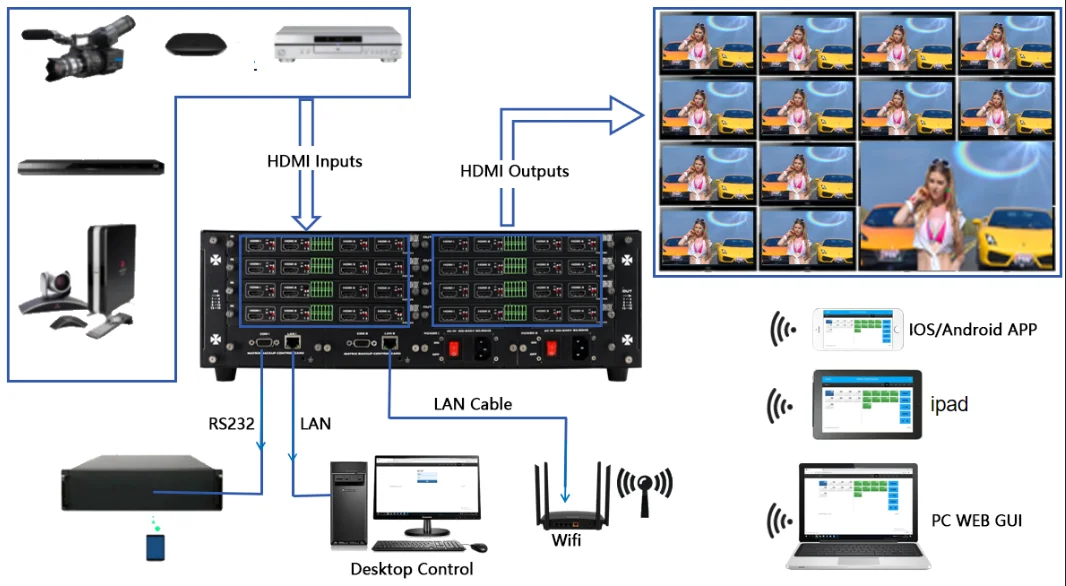

Equipment Connection Diagram

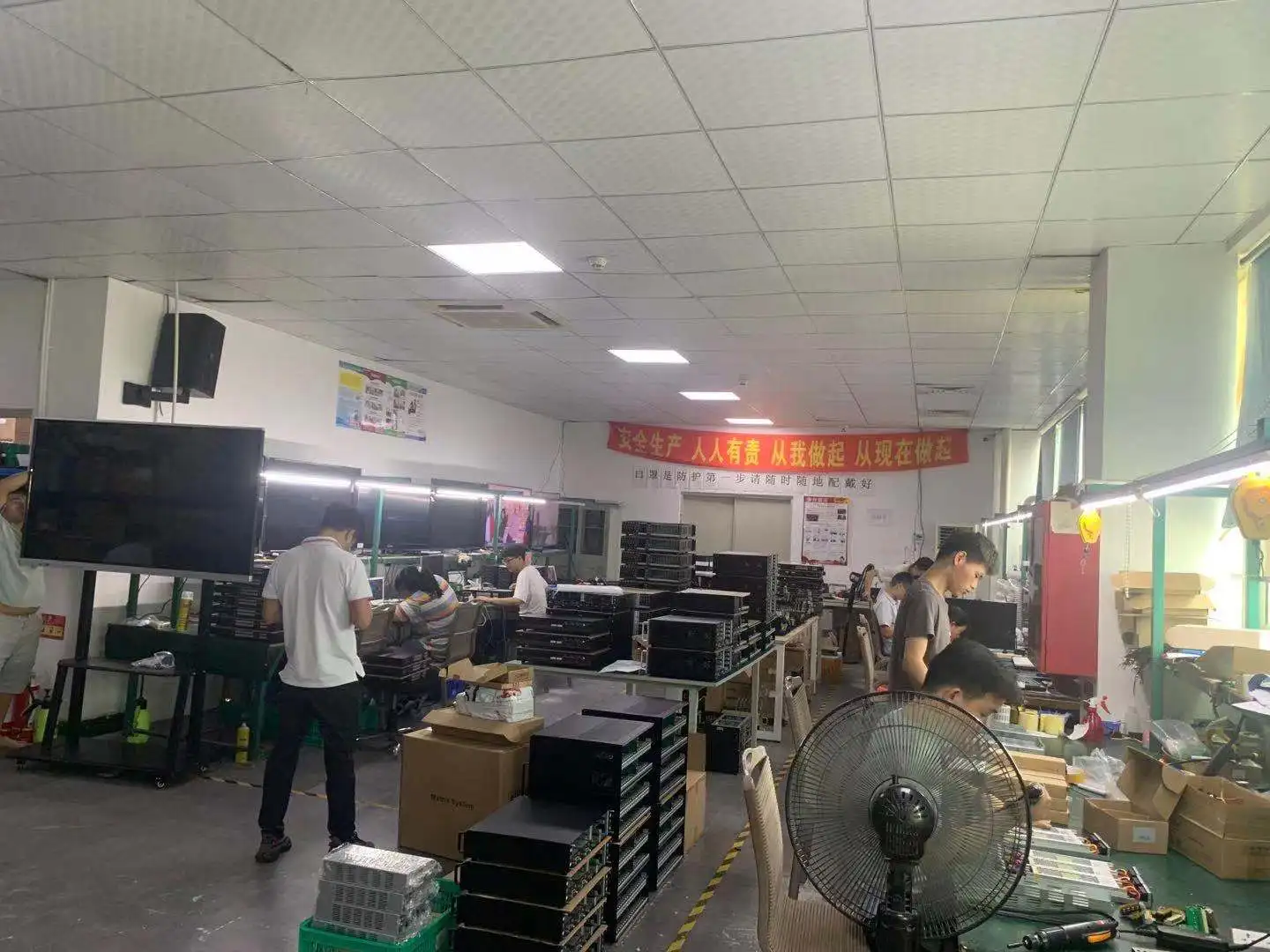

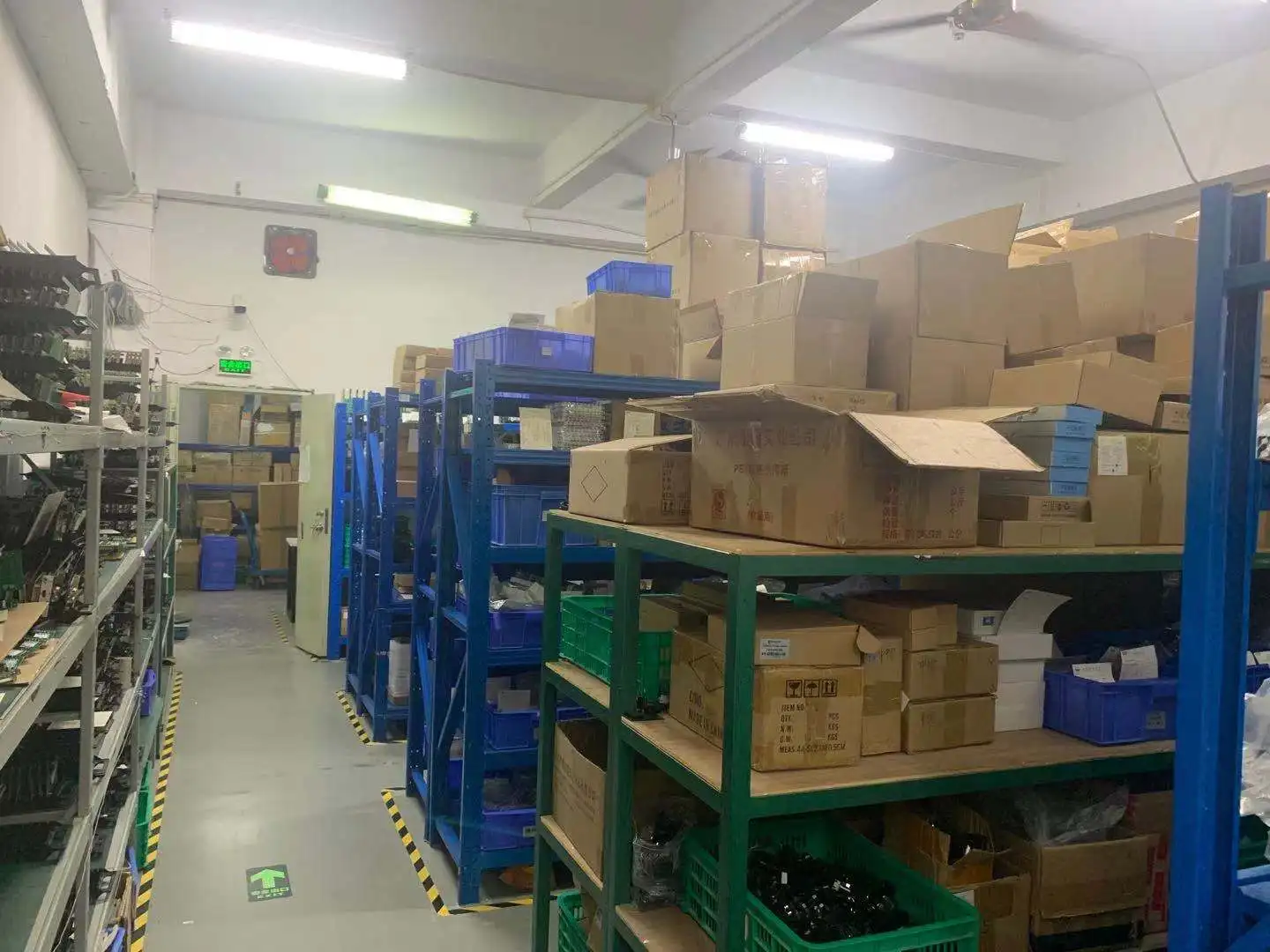

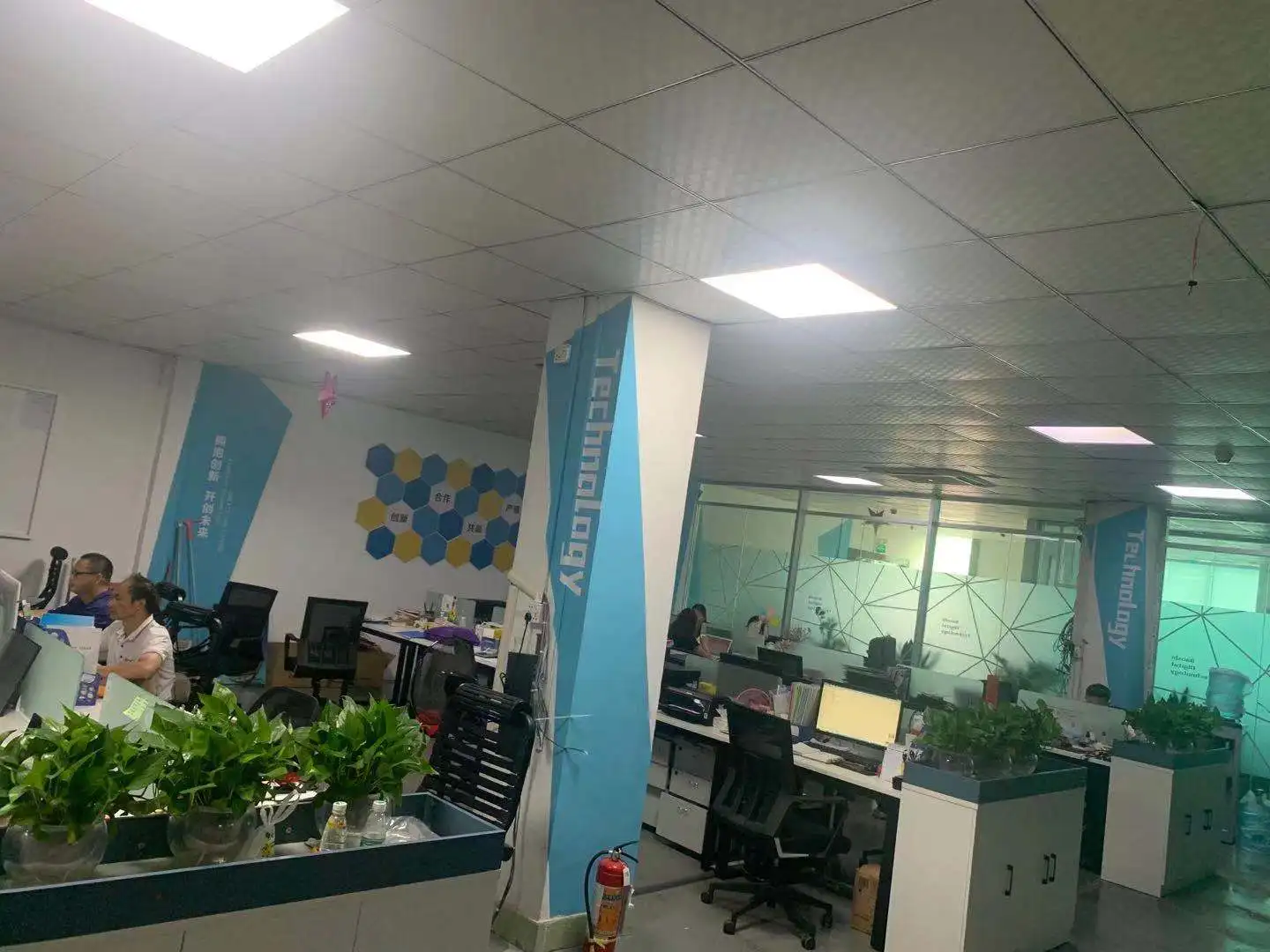

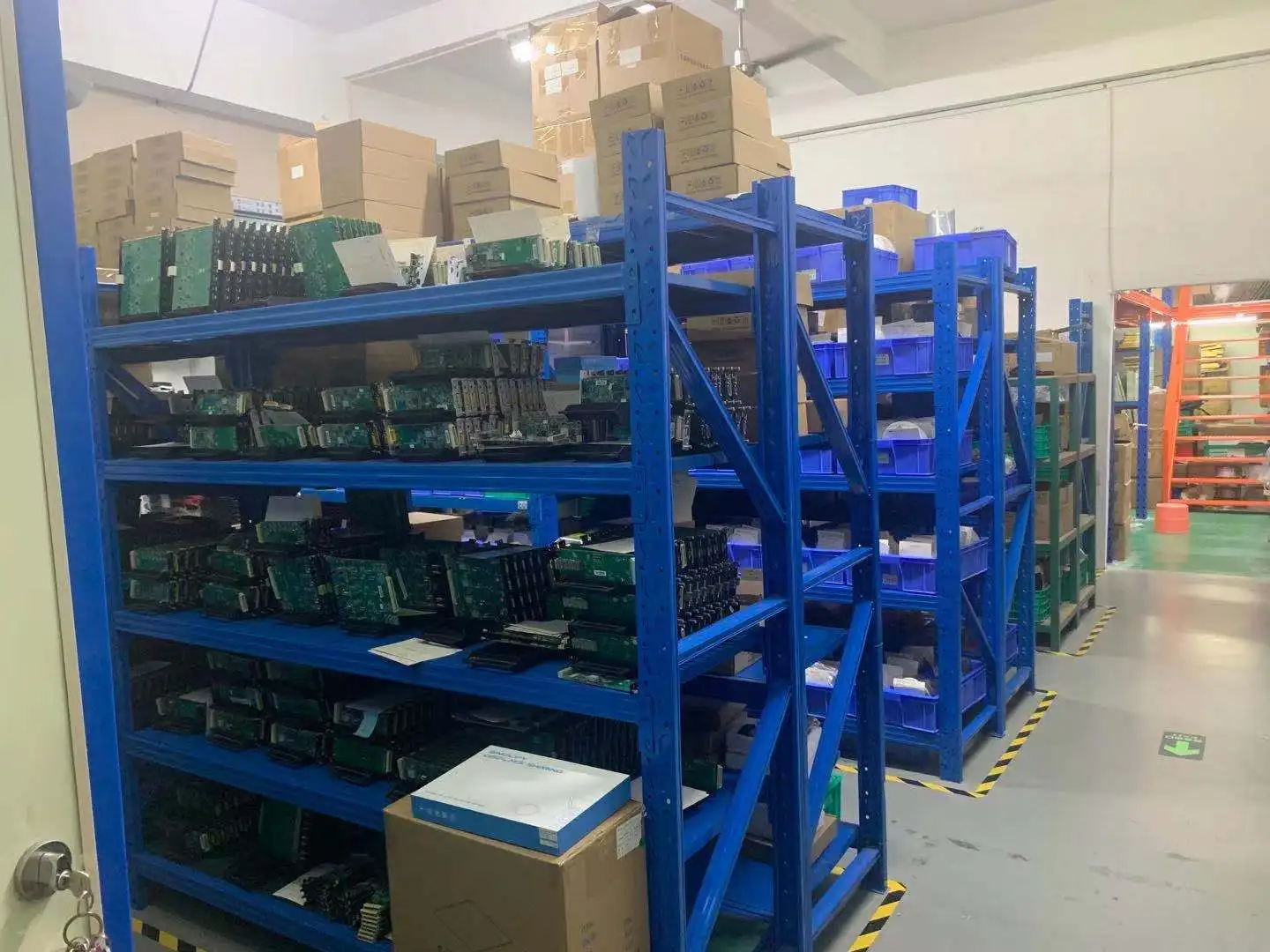

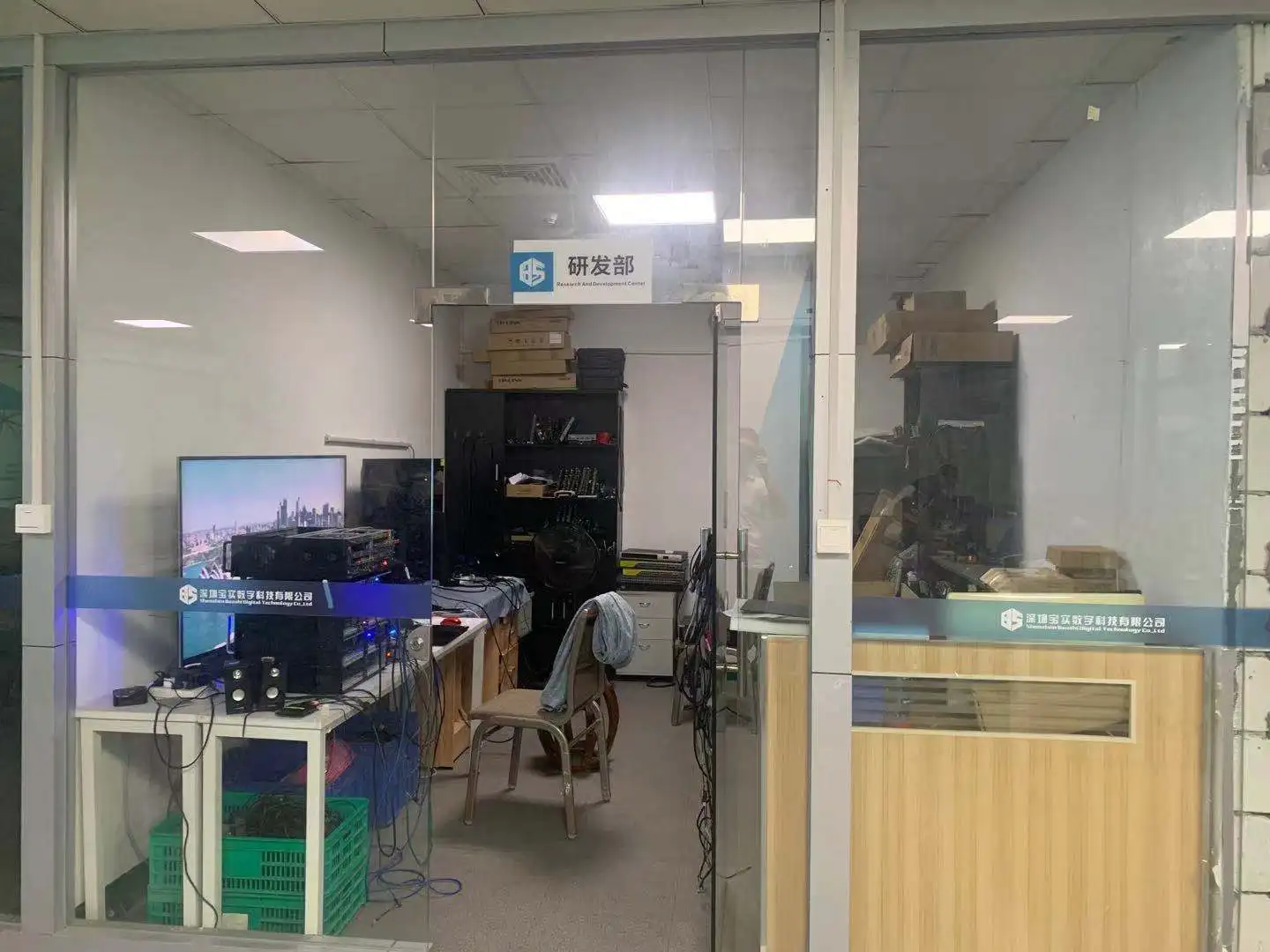

Company Profile
