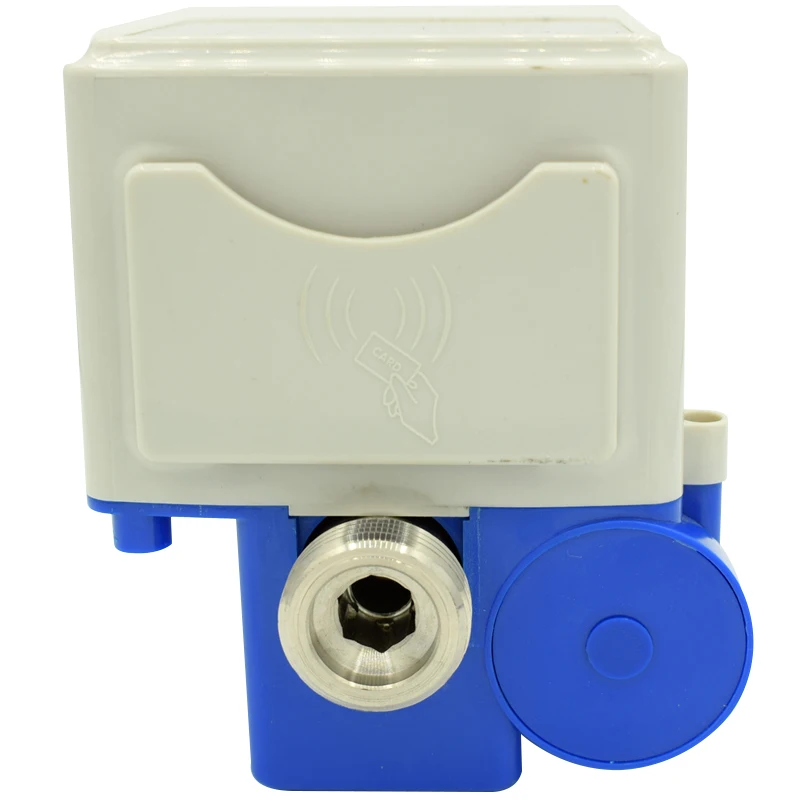

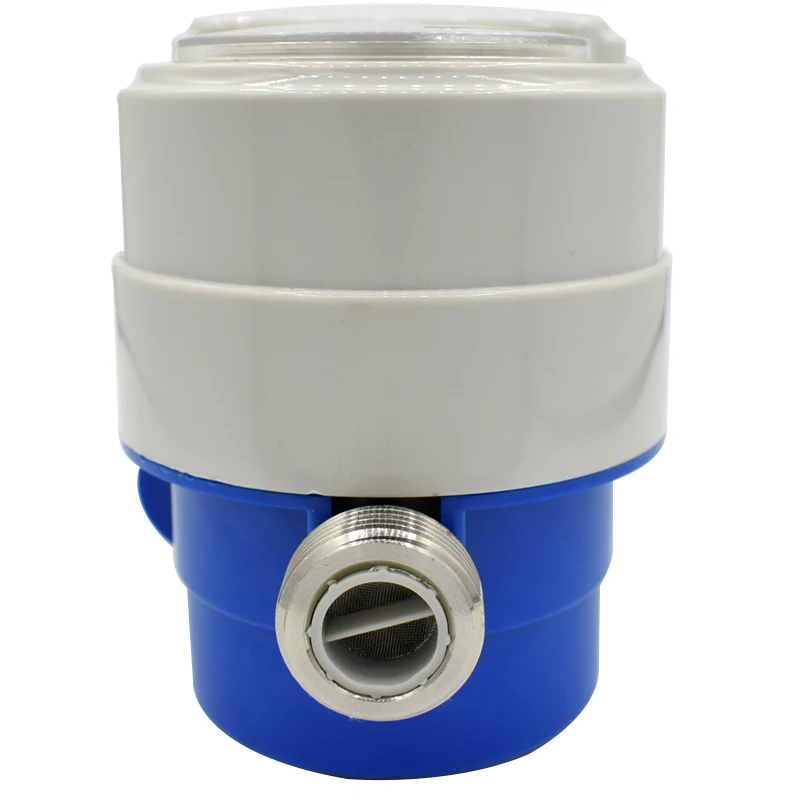

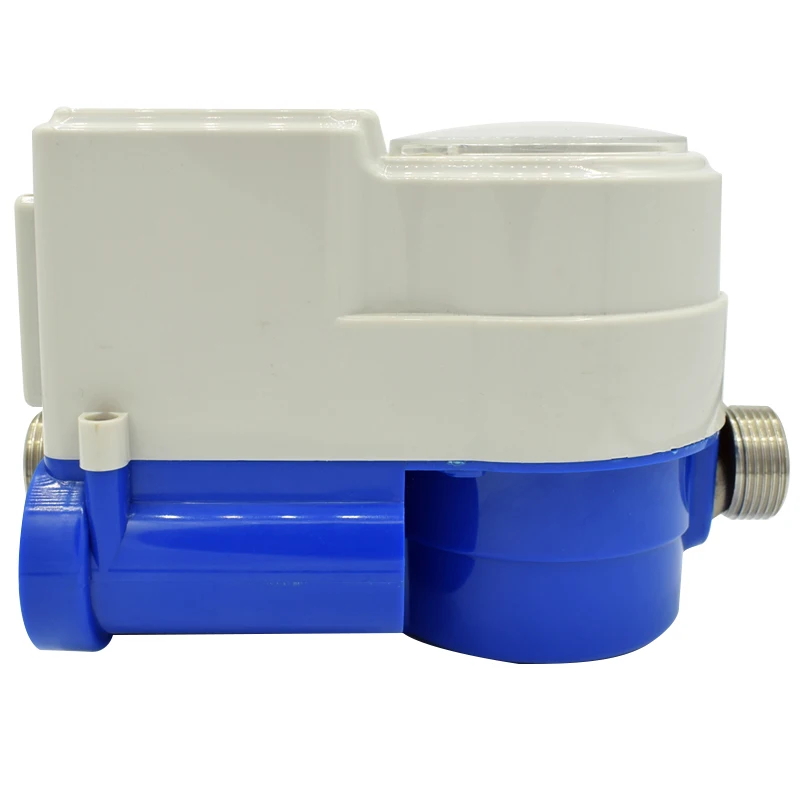

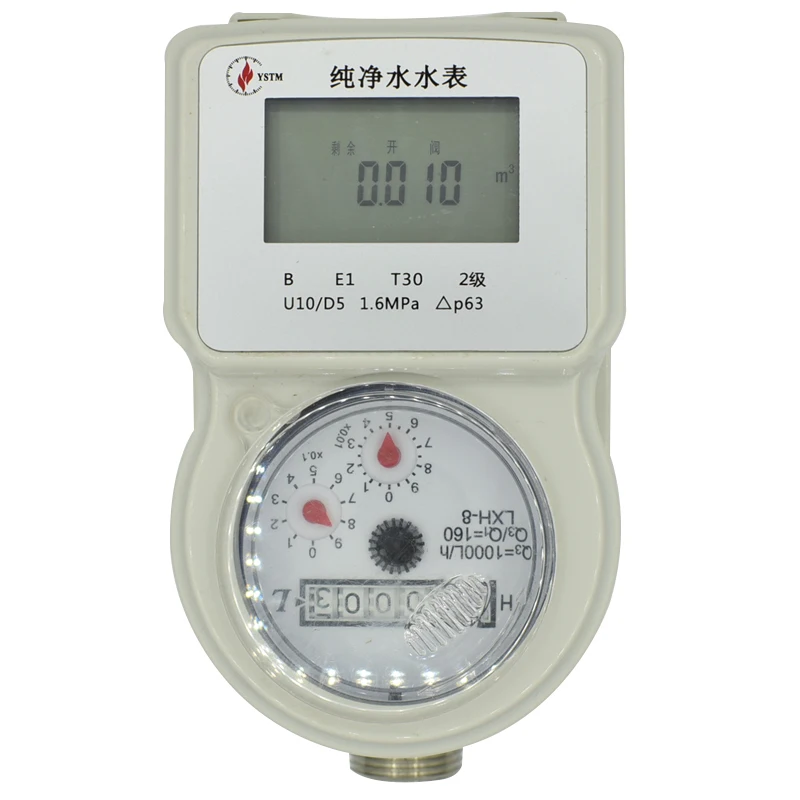

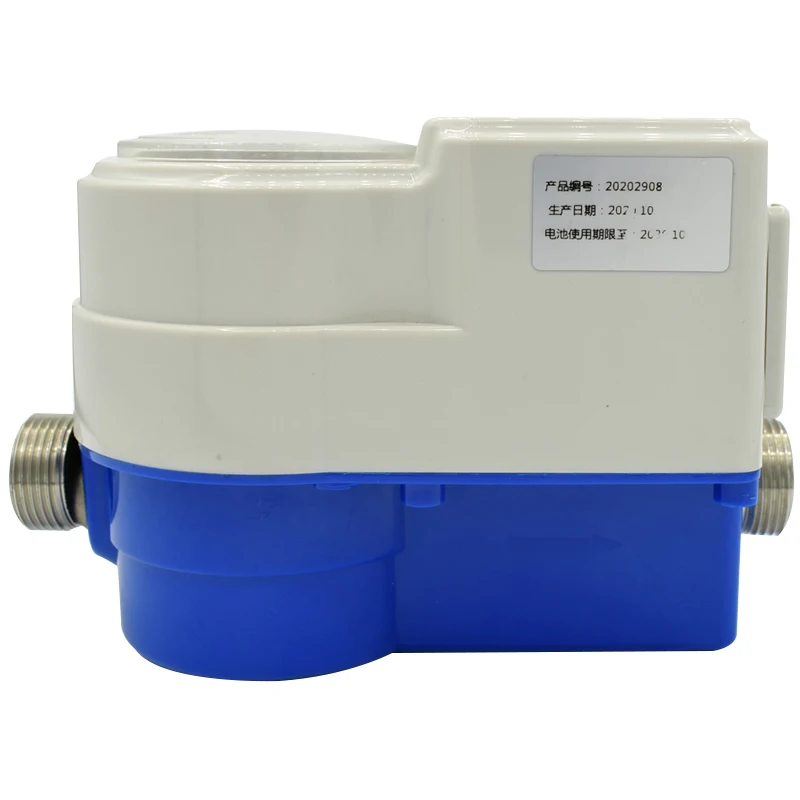

Prepaid direct drinking purified water water meter

Product Overview

Description

Product description

The wired remote direct drinking water meter can record the total amount of water flowing through the water pipeline, and convert the direct drinking water consumption into electrical signal output. Realize remote meter reading. This product adopts volumetric structure, and the precision reaches C level.



Communication mode



Protocol



Product feature

1. Instantaneous power supply for meter reading directly reads the status of counter wheel, which is not subject to difficulty in judging and error codes due to time and environment.

2. Fault protection devices are provided for bus open circuit, short circuit idle, etc.

3. The overall protection level reaches IP68 (optional protection IP65).

4. The pressure level is MAP10/MAP16.

5. Can be installed at any angle.



Technical parameter

Type	DN	Q4	Q3	Q2	Q1	R	Length	Width	Height	Connection  thread
	mm	L/h					mm
LXH-8 card meter	8/15	0.9375	0.75	0.012	0.0075	100	165	94	101	G3/4B
LXH-8 common water meter	8/15	2	1.6	32	20	80	110	81.8	91	G3/4B
		2	1.6	25.6	16	100
		2	1.6	20.5	12.8	125
		2	1.6	16	10	160
		2	1.6	12.8	8	200
		2	1.6	10.2	6.4	250
