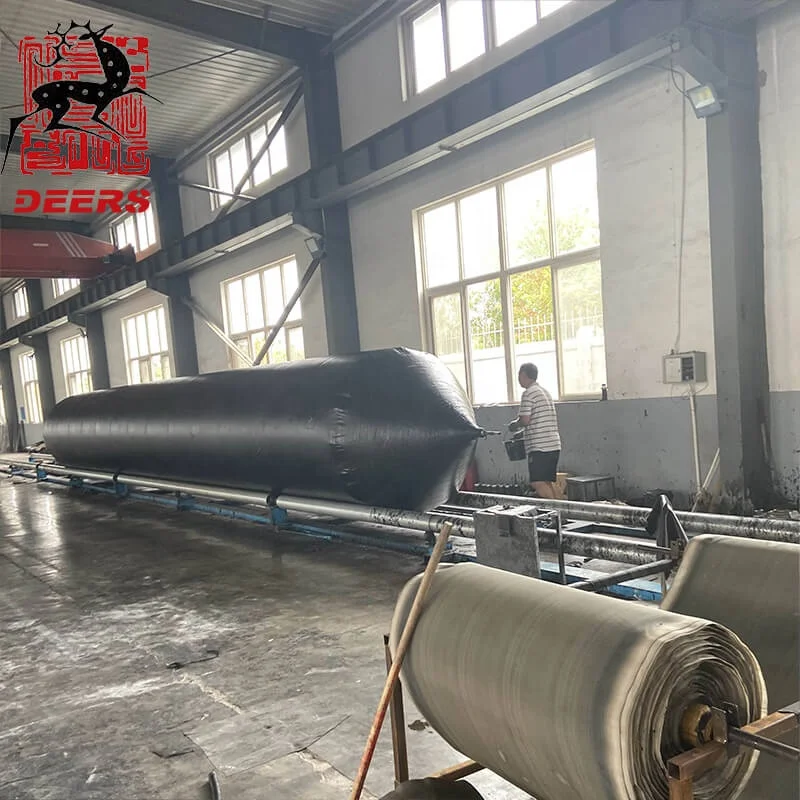

Durable marine inflatable pontoon lifting airbags for launching
- Category: >>>
- Supplier: Nanjing Deers Industrial Co. Ltd.
Share on (1600280285306):
Product Overview
Description
Product Description

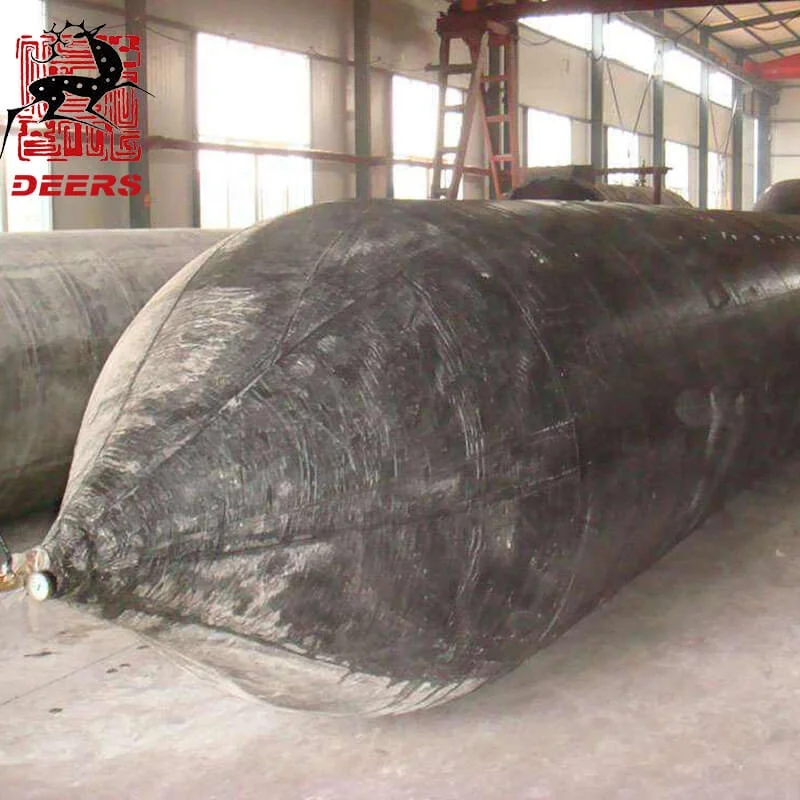

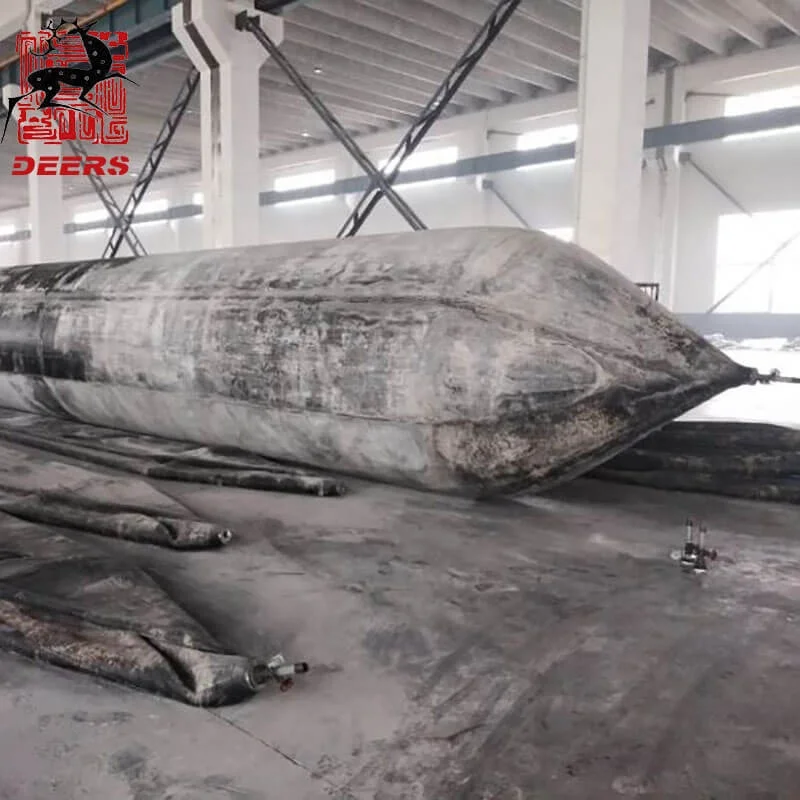

Lifting Airbag

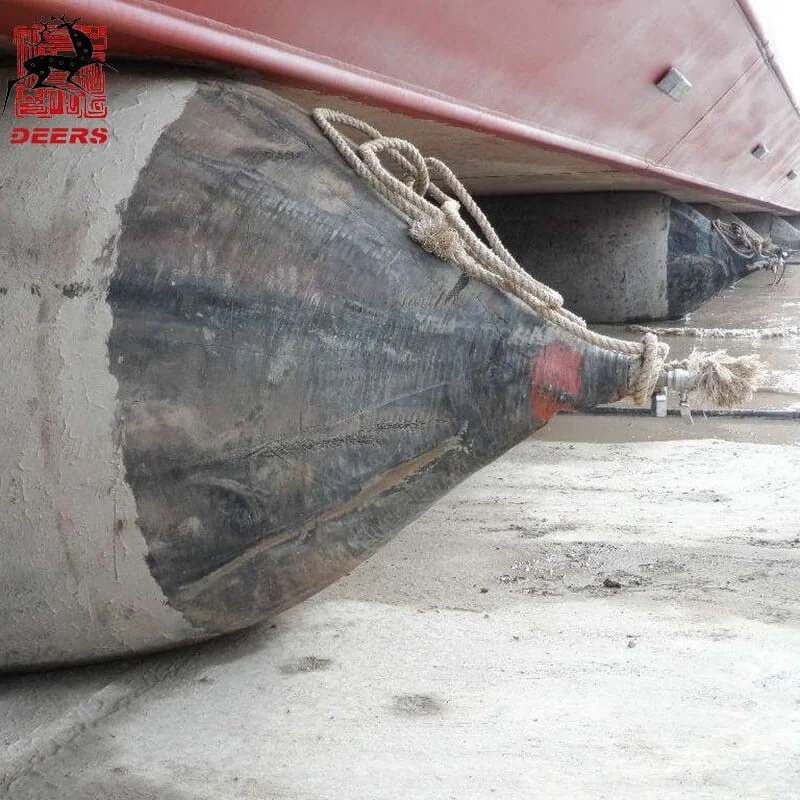

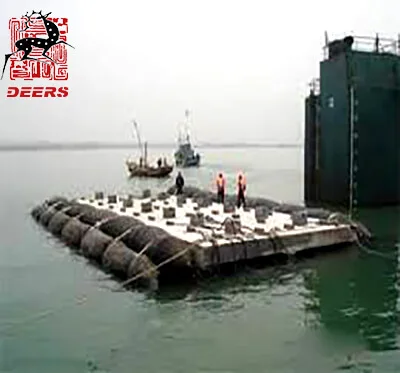

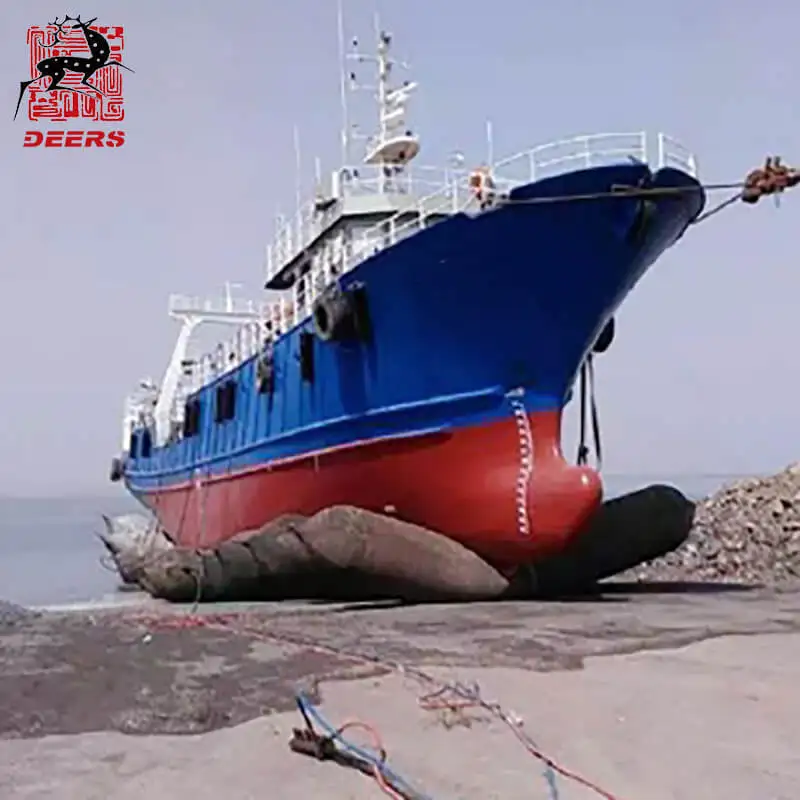

Marine airbags are also known as inflatable marine airbags, ship launching airbags, roller bags, air lift bags, and salvage bags,which are made of synthetic-tire-cord reinforcement layers and rubber layers. They are widely used in cargo boat launching and landing, lifting and moving sunken ships, installation of underwater buoyancy aid, and salvaging stranded boats. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Additionally they are flexible, portable and dependable. Therefore, Airbags are very popular with shipyard, ship owner and marine supplies company now.
1. Pull Ring 2. End Hardware 3. End Hardware
4. Three-way Pipe 5. Pressure Gauge 6. Valve
7. Hose Connector 8. Radical Lines 9. Latitude
Specification
Diameter | Working Pressure | Working height | Bearing capacity per unit length | ||
KN/m | ton/m | ||||
D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 | |
0.5m | 157.16 | 16.02 | |||
D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 | |
0.6m | 160.3 | 16.34 | |||
D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 | |
0.8m | 143.03 | 14.58 | |||
0.7m | 163.43 | 16.66 | |||
D=1.8mm | 0.11Mpa | 1.1m | 120.96 | 12.33 | |
1.0m | 138.22 | 14.09 | |||
0.9m | 155.59 | 15.86 | |||
0.8m | 172.85 | 17.62 | |||
0.7m | 190.22 | 19.39 | |||
D=2m | 0.10Mpa | 1.2m | 125.76 | 12.82 | |
1.1m | 141.46 | 14.42 | |||
1.0m | 157.16 | 16.02 | |||
0.9m | 172.85 | 17.62 | |||
0.8m | 188.64 | 19.23 | |||
The length of an airbag is specified by the customer when it is manufactured.
Besides, we will choose a reasonable size for the customer, according to the information provided by the customer, such as the type of vessel, LOA of ship, vessel's actual launched weight.
Certifications
Marine Airbag Repair
Marine airbags can be repaired, good repair can restore full performance of airbags.
This video shows marine airbag repair steps in detail.

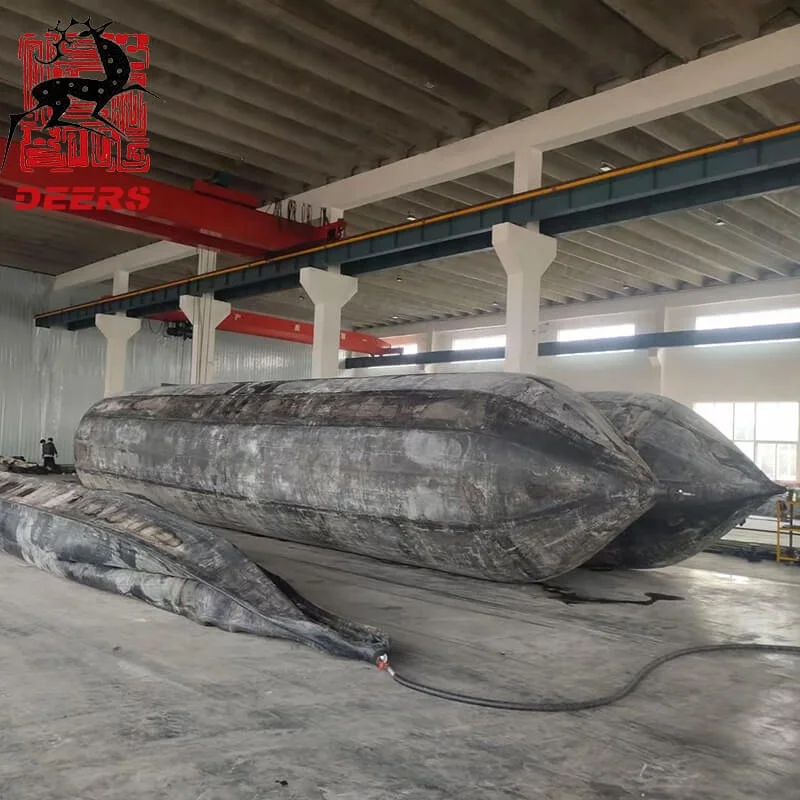

Production Process
Overall Winding
Vulcanization
Marine rubber airbags overall winding structure uses cross whole intertwine technology, which make its overall structure more reasonable, texture clear.

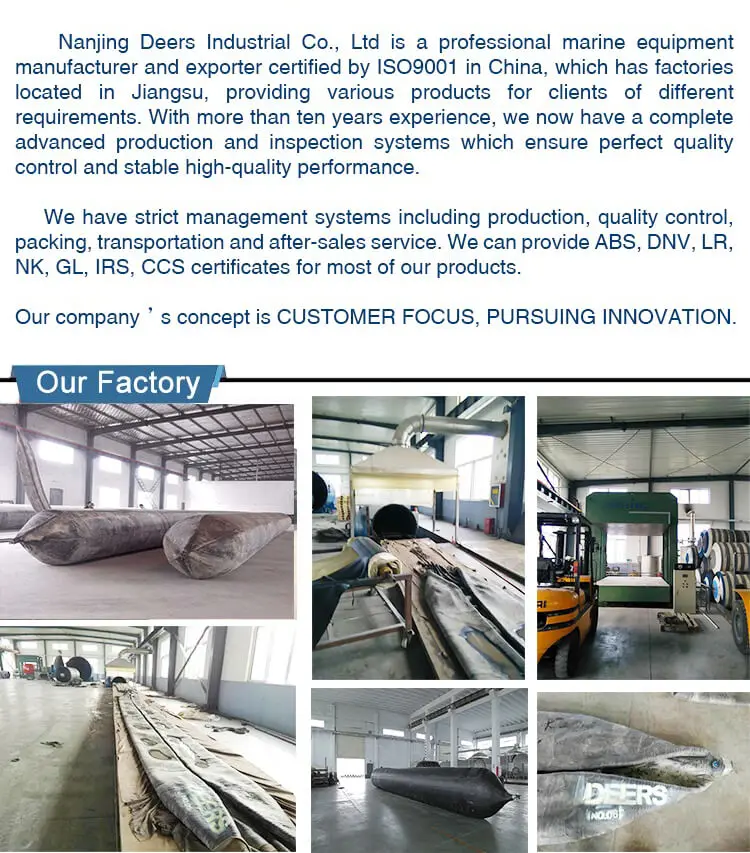

Company Profile
Exhibition
Our Service
.Timely feedback on the production schedule
Testing after completion of products
Timely return visits on product usage
Timely and effective communication
Why Choose Us
Packing & Delivery
FAQ
Q: How should marine airbag be maintained when storing?
A: When the air bag is unused for a long time, it should be washed and dried, filled with talcum powder and placed in a dry, cool and ventilated place. The air bag should be stretched out flat, not stacked, also not on the air bag pile pressure heavy. Keep airbags away from heat. Airbags should not come into contact with acids, bases, oils and organic solvents.
Q: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord fabric.
Q: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: Do you have any international certificate?
A: Our raw material is natural rubber, and rubber-dipped nylon cord fabric.
Q: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: Do you have any international certificate?
A: Yes. We have BV, DNV, ISO, CCS.
Q: Can you make the airbags with our brand?
A: Of course, we accept OEM and ODM. You just need to offer your drawing, we can design it for you.
Q: Can you make the airbags with our brand?
A: Of course, we accept OEM and ODM. You just need to offer your drawing, we can design it for you.
Please consult the salesperson in advance for sample details and prices, if you need it.
