Product Overview

Description





YE3230-508 5.08mm pitch wire to wire terminal connector din rail mounted pluggable terminal block
Description:
Material:PA66 UL94-0
Certificates:UL,ROHS
Rating: 16Amp,AC300V




Product Description




















































Electrical Specifications

Square needle

Brass nickel plate

Rated Voltage

300V

Plastic Parts

PA66,UL94V-0

Rated Current

16A

Screw

M3,STEEL WITH ZIN

Contact resistance

20MΩ

Color

Green

Insulation resistance

5000 MΩ DC500V

Working Conditions

Insulation withstand voltage

AC2000V/1Min

Operation temperature

-40°C ~150°C

Wire range

28-12AWG 2.5MM2

Instantaneous temperature

250°C 5SEC

Stripping Length

5-7MM

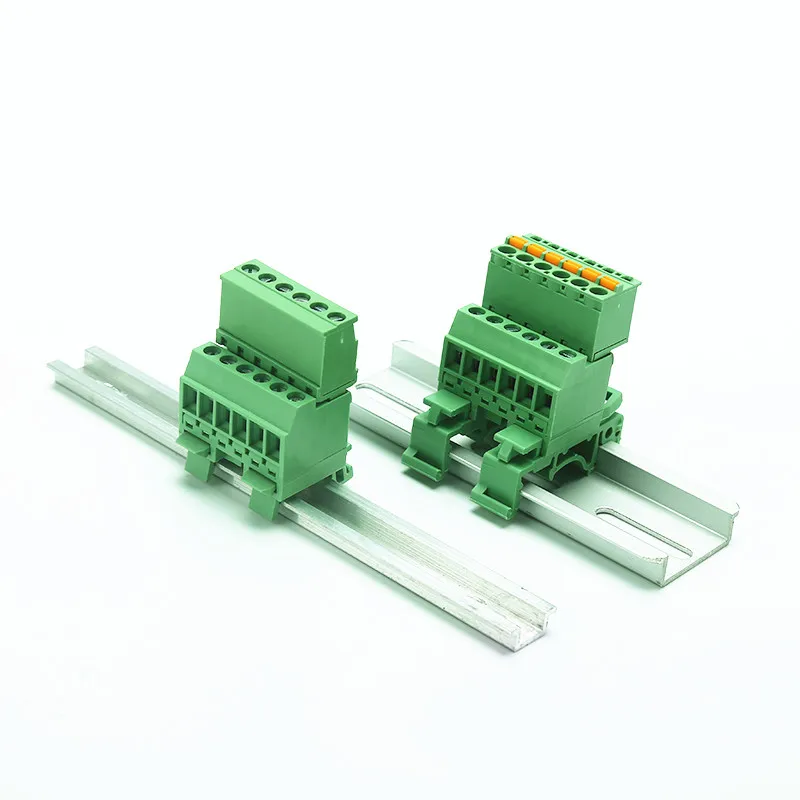

Connect with Pluggable Terminal Block on 35mm Din Rail

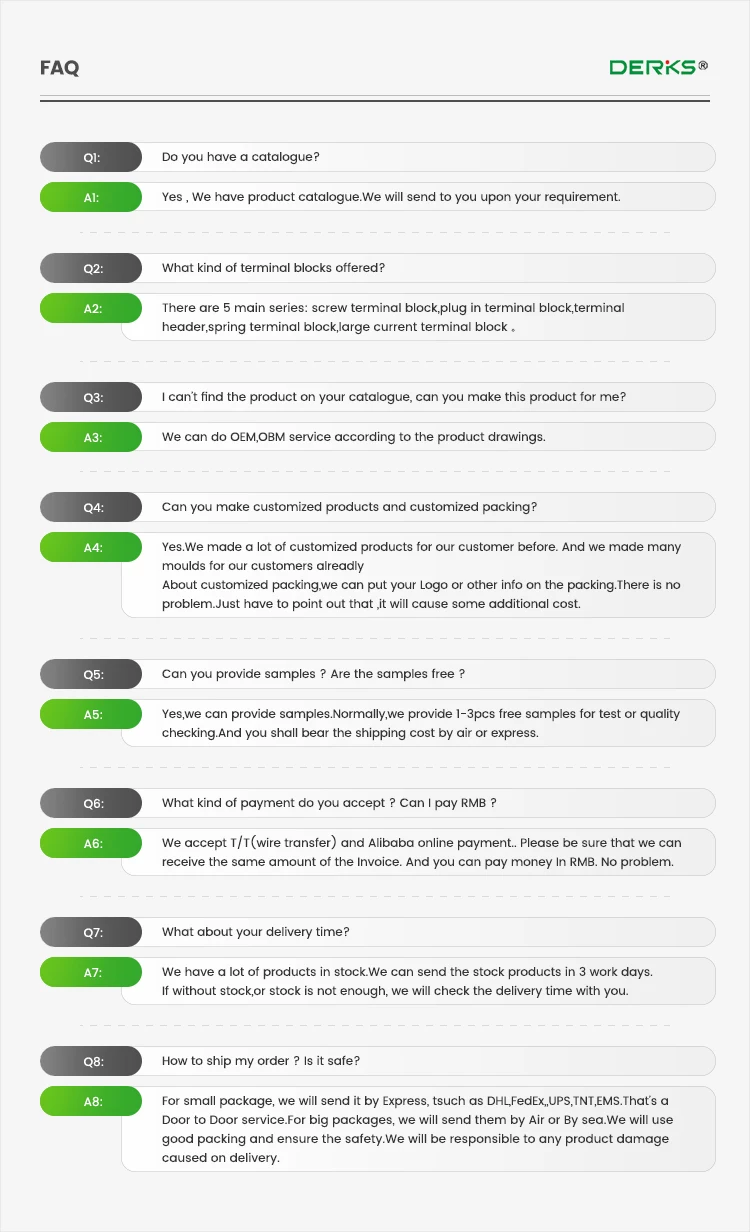

FAQ
