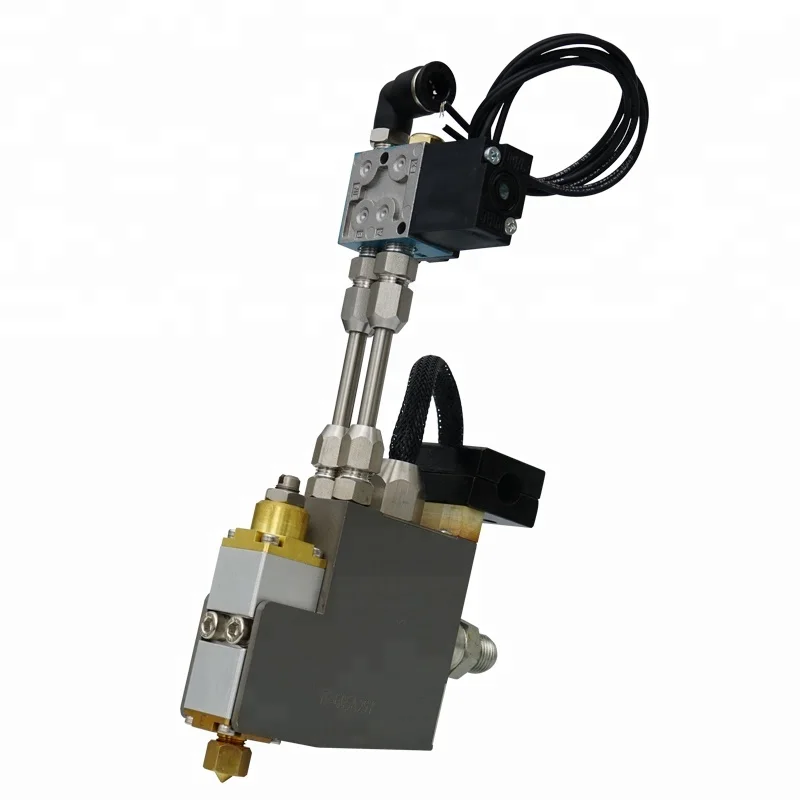

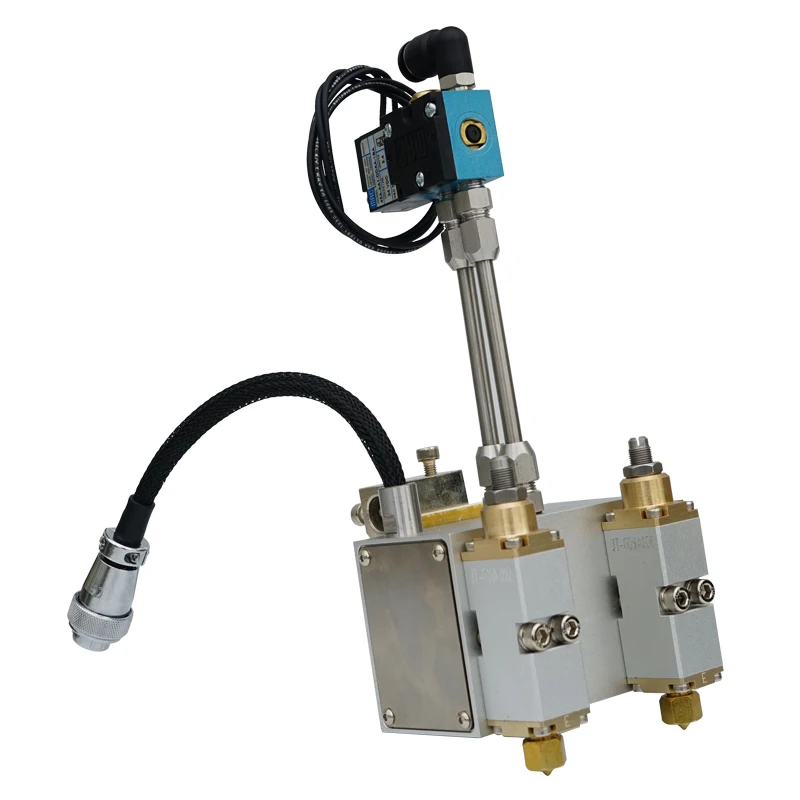

Gluing Machines cardboard box making machine multi purpose modular guns for elastic string

Product Overview

Description

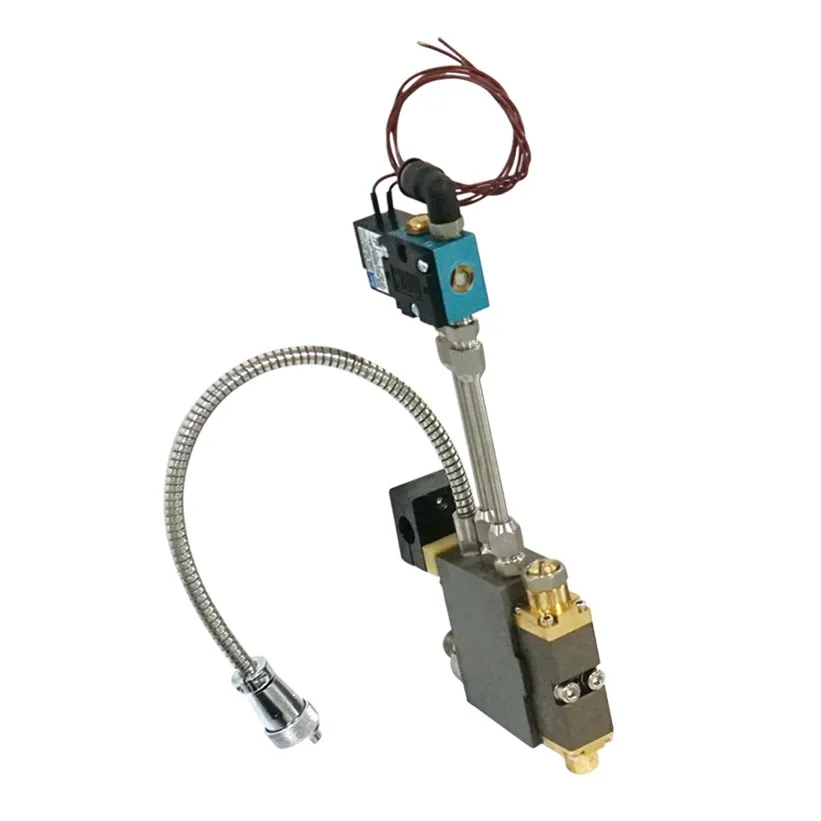

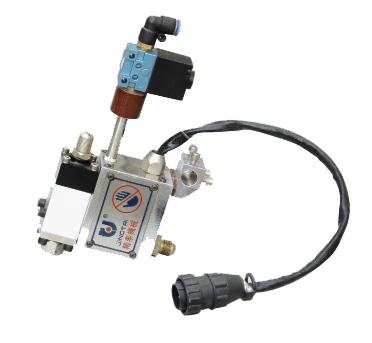

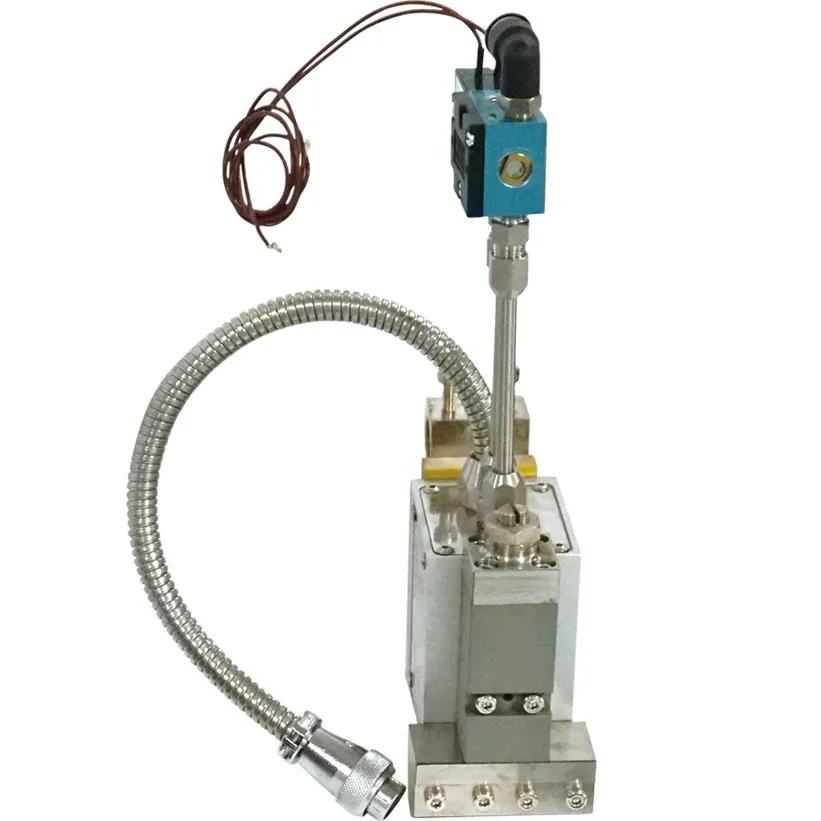

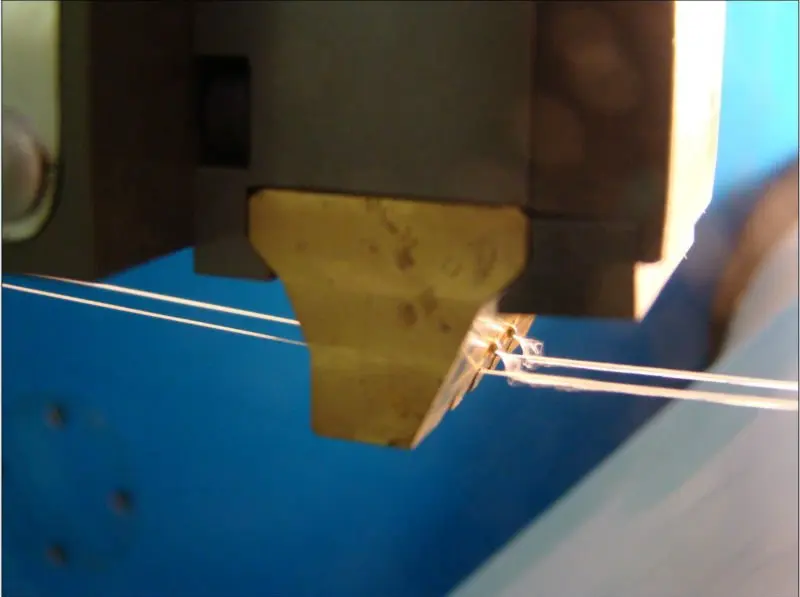

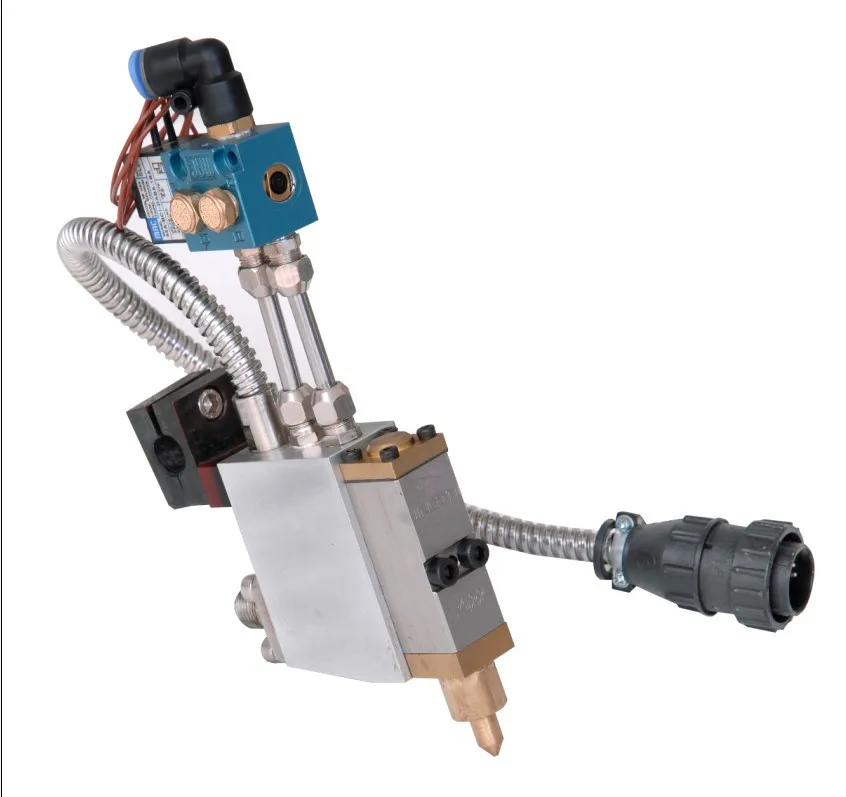

    Jingtai multi-purpose modular guns for elastic string adopts accurately technological manufacturing to guarantee accurate glue spraying for each elastic string. Meanwhile 360 °wrap elastic string on leg part and waist part of baby diapers, training pants and adult incontinence products could be achieved. Nozzle includes guiding slot of elastic string and four air holes to ensure 360 °wrap elastic string. To a large extent, consumption of glue could be effectively reduced to ensure equal coating between elastic string and elastic string to improve the quality of products. Exceptional low weight spraying and same state of glue spraying improve product quality. Diversified designs can be adapted to single and multiple application of elastic string.



Features:

1, optimal reverse control module can significantly increase the speed of material and effectively reduce impact of glue leakage and broken glue on the quality of product.

2, Equipped with special design of a pad below the mouth of extruded glue, it ensures that the switch for extruded glueis high sensitivity and accuracy.

3, integrated modules and scraping gun body enable fast reaction.

4, with built-in filter, it could effectively prevent blockage.

5, nozzle adopts accurately technological manufacturing to guarantee accurate glue spraying for each elastic string



Technical specifications:

Hole diameter of nozzle : 0.4MM

Distance between nozzle and the surface of material: touching

Glue flow : 2G to 20G per min per extruded glue hole

Max gram weight:20MG to 100MG/strip /M

CPS scope: 8000 CPS to 15000 CPS

Working temperature: Max 200 °C

Temperature sensor: PT100 or K-shape



Air consumption: 1.5 cm³/min—10.5 cm³/min per strip

Air pressure: 0.2 kg/ cm² ------2.5 kg/ cm²

Working voltage: 220V AV, 50/60HZ, single phase

Control voltage: 24 V DC
