Dew point monitoring oxygen generator medical use oxygen machine for breathing






Product Overviews


 6_01





Descreption of  High Oxygen Concentration Hospital


Oxygen is an indispensable gas for supporting life in the earth, special in the hospital, medical oxygen plays a very important role to saving the patients.

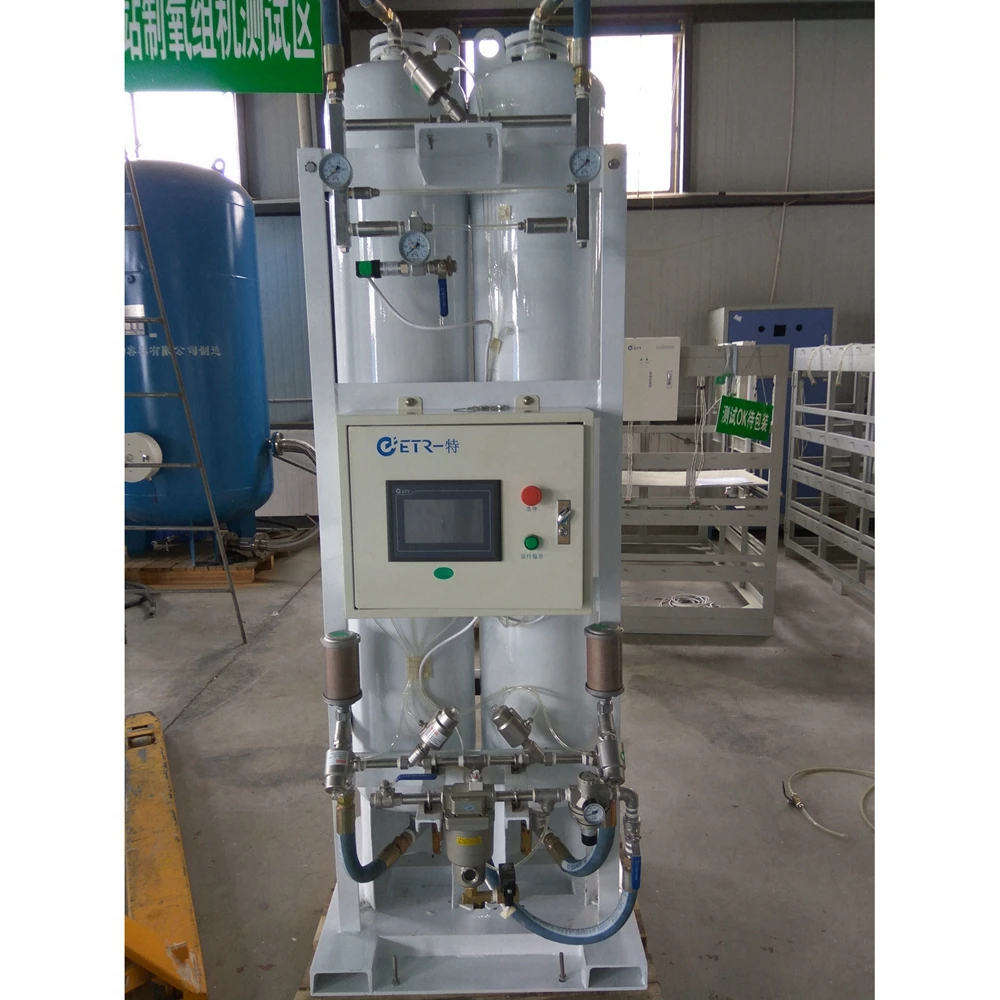

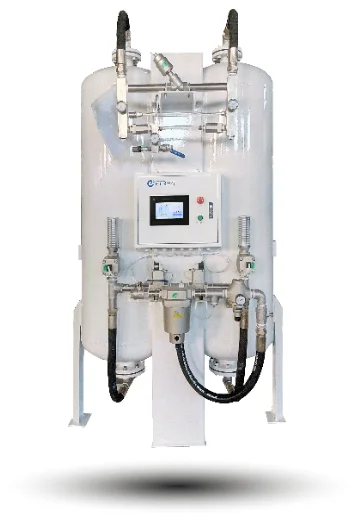

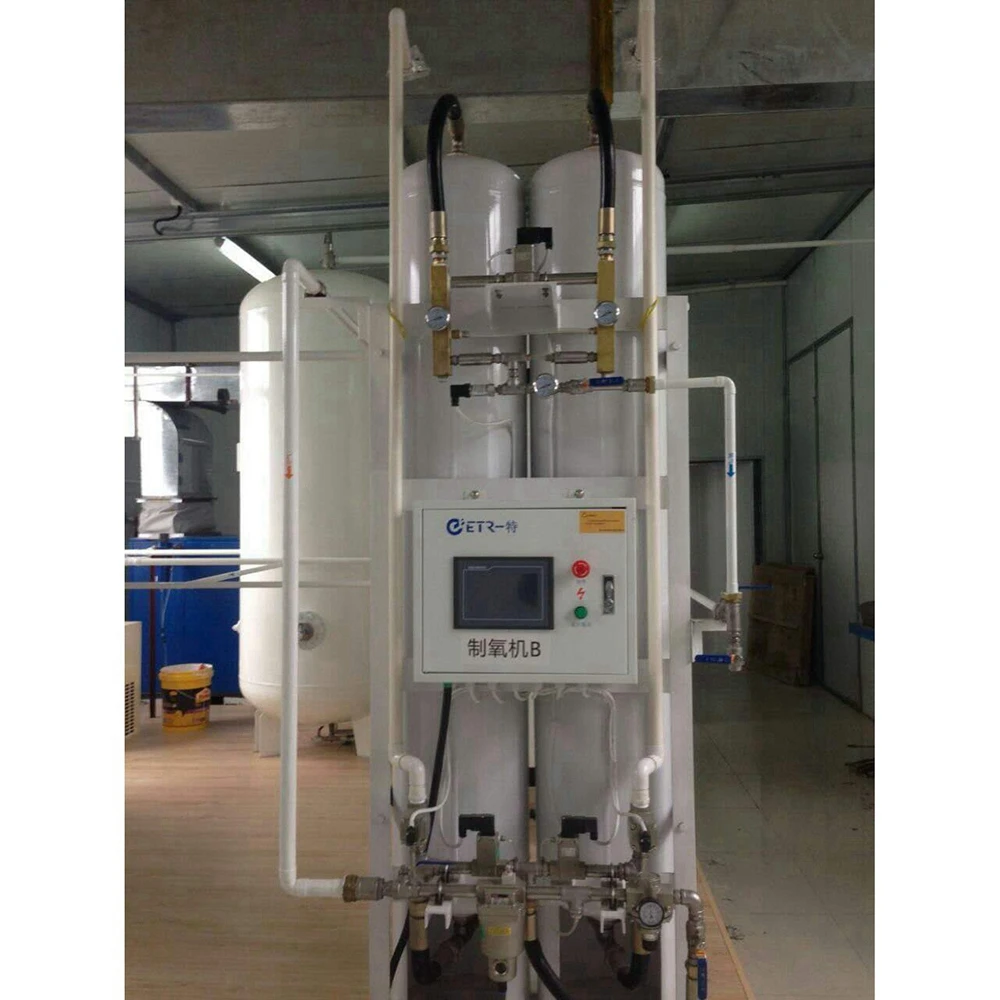

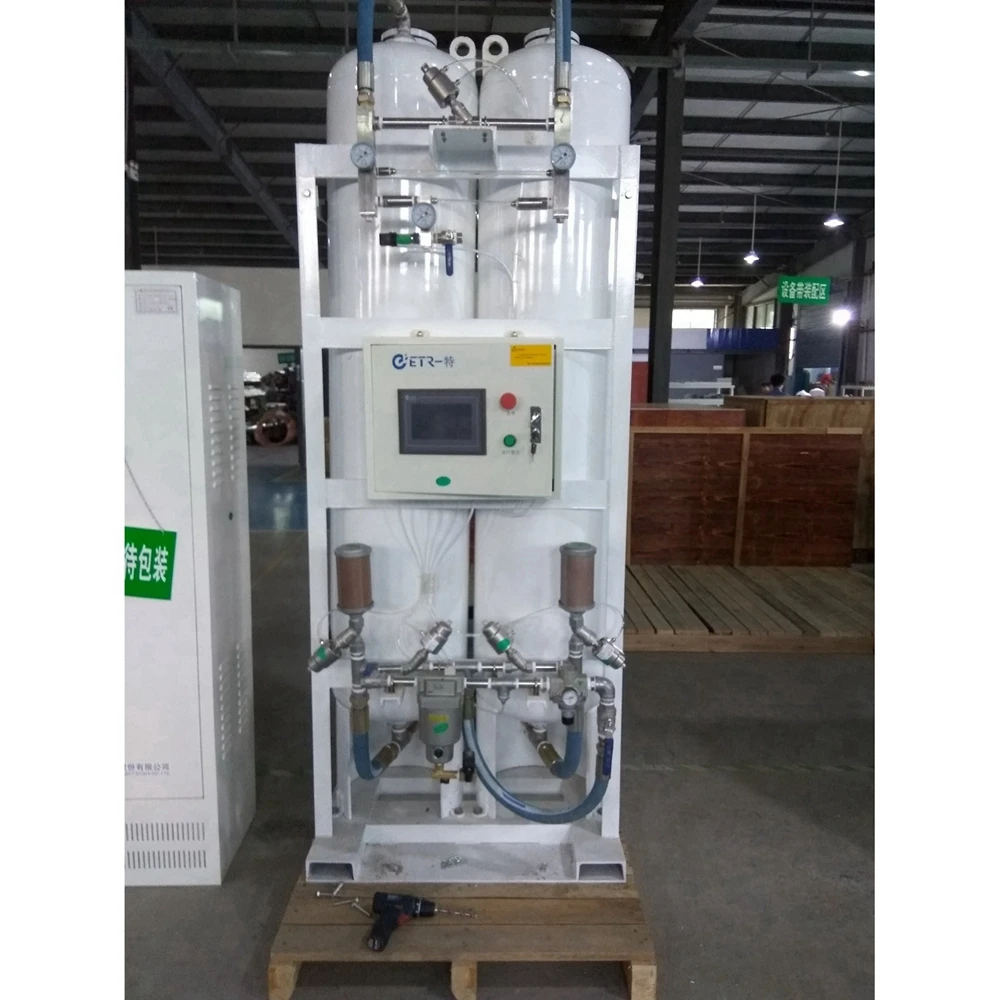

ETR PSA Medical Oxygen Plant can produce medical level oxygen from the air directly. ETR Medical Oxygen Plant is consisted of Atlas Copco air compressor, SMC dryer and filters, PSA oxygen plant, buffer tanks, . The HMI control cabinet and APP monitoring system support for the online and remote monitor.





ETR PSA Medical Oxygen Plant can fill medical level oxygen into cylinders, as a complete system, ETR Medical Oxygen Plant is widely used for the oxygen gas station and hospitals.


Compressed air is purified through the air dryer and filters to a certain level for main generator to work with. Air buffer is incorporated for smooth supply of compressed air thus to reduce fluctuation of compressed air source. The generator produces oxygen with PSA (pressure swing adsorption) technology, which is a time proven oxygen generation method. Oxygen of desired purity at 93%±3% is delivered to oxygen buffer tank for smooth supply of product gas. Oxygen in buffer tank is maintained at 4bar pressure.





oxygen4





Model Select






















































































































ItemModelCapacitySize (mm)WeightPowerConnector
(Nm3/h)L*W*H(KG)(W)Air InletOxygen Outlet
1ETO-033760×750×185038060DN15(G1/2")DN15(G1/2")
2ETO-055760×750×220045060DN15(G1/2")DN15(G1/2")
3ETO-1010880×780×240078060DN20(G3/4")DN15(G1/2")
4ETO-15151070×940×2500108060DN25(G1")DN20(G3/4")
5ETO-20201450×950×2500126060DN32(G11/4")DN20(G3/4")
6ETO-30301500×1000×3000168060DN40(G11/2")DN25(G1")
7ETO-40401750×1200×3150215060DN40(G11/2")DN25(G1")
8ETO-50502000×1350×3300250060DN40(G11/2")DN25(G1")
9ETO-60602288×1599×3500290060DN40(G11/2")DN25(G1")
Note: Customization is acceptable

— Working Principles


The medical molecular sieve PSA Medical Oxygen Plant applies the international advanced pressure swing adsorption (PSA) technology to form a rapid cycle of pressurization adsorption and depressurization desorption under the conditions of normal temperature and low pressure.


Working Diagram-2.jpg





Advantage —




































Product Comparison
NameETR Oxygen generatorOther Oxygen generator
Purity93+/-3%90+/-3%
Warranty18 months12 months
Maintenance Low (we supply all spare parts without any profit)It will be about 2. 5times of cost
Price

Low price


High price

1,Nitric oxide and dew point monitoring
2,Multi-stage filtration, European and US Pharmacopoeia medical level oxygen
3,The manufacturer has ISO13485 quality management certification for oxygen generators


4,PSA oxygen plant, buffer tanks:stainless steel (optional)


5,fast delivery time


6,20 years experiences in manufacturing medical oxygen generator









Features






























 1More Economical
100,000-hour service life(more than 10 years), Completely automatic, labor cost saved, 0.15 dollar cost per cube meter.
Stable oxygen purity. 24 hour safe oxygen usage.
Convenience
The system can be controlled by computer automatically, LCD touch screen interface, it is easy to operate and run.
No need for complex  operation such as purchase,transportation,storage,canning etc. online oxygen monitor, remote monitoring system.
Energy - Saving and Environmentally Friendly
The raw material is air, which is easy to get.
Low noise ≤85dB, physical process, gas control system, no pollution.
No need to transport oxygen by cylinders because there are the connected pipes.
Safety
Time Proven PSA (pressure swing adsorption) technology to separate the oxygen from the air Directly.
No split charging during the shipment, which decreases the safety risks. Issuing alarm signal against abnormal parameters.







Unique intelligent control system-Online APP Online Oxygen Monitor Remote Monitioring System.







6_02_016_02_026_02_03

6_02_046_02_056_02_06















Company Information





6_046_06

6_056_03



Our Services


1. Setting trace file for every sold product and survey it quarterly.
2. Providing remote instruction and training for free.
3. Providing on-site services and repairs for free under warranty if problems caused by Eter.
4. Spare parts and on-site services would be provided with best price out of warranty.
5. 7*24 hours online services for free, solution for any problems will be provided within 48 hours.
6. Professional engineer for on-site services will reach within 7 days when needed. (Visa apply should be considered.)





Successful Cases






















The First Affiliated Hospital of Medical College of Shihezi University


3


Hospital description
Built at 1949 with more than 2000 beds.
Project description
Equipped for 3 units ETR oxygen generator system and each with 60Nm3/h capacity The biggest single medical oxygen generator in China







FAQ





  1. Are you manufacturer or trade company?
    We are the manufacturer of High Oxygen Concentration Hospital, founded in 2003.



 2. What's the order  High Oxygen Concentration Hospital process?
   a. Inquiry---provide us all clear requirements.
   b. Quotation---official quotation form with all clear specifications.
   c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
   d. Contract confirmation---provide correct contract details.
   e. Payment terms--- Negotiable.
   f. Production---mass production
   g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
   h. Installation and commissioning



3.What terms of payment you use?
   T/T, L/C etc.



4. How to get a prompt quotation of  High Oxygen Concentration Hospital?
  When you send the inquiry to us, pls kindly send it with below technical information.
  1) O2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours)
  2) O2 purity: _____%
  3) O2 discharge pressure: _____Bar
  4) Voltages and Frequency : ______V/PH/HZ
  5) Application


  6) Project Location:





High Oxygen Concentration Hospital


High Oxygen Concentration Hospital


High Oxygen Concentration Hospital
