Vertical Ribbon Mixer for Coating Powder Machine
- Category: >>>
- Supplier: Permix Tec Co. Ltd.
Share on (1600280643852):
Product Overview
Description
Products Description
PerMix Advantages & Services: | ||||||||
● PerMix machines are designed and manufactured as “tailor-made” ones to meet our customers’ individual requirement. | ||||||||
● Since 1954, PerMix has been building our know-how in mixing and processing with our design team located in both Israel and China. | ||||||||
● PerMix has been setting up a global network of agents and representatives to serve our worldwide customers locally and on time. | ||||||||
● PerMix has a lot of experience to sub-contract mixers for well-known equipment suppliers in Europe and USA, and we build the machines to fulfil the highest standard. | ||||||||
● PerMix has its workshop located in Shanghai area, China; where there is a complete and endless production capability at a reasonable price. | ||||||||
● PerMix mixers price is competitive compared with the quality of the same level. | ||||||||
● PerMix offers a comprehensive range of industrial mixing equipment in the market. | ||||||||
● Applications of PerMix industrial mixers cover wherever there is a need for mixing, including but not limited to chemicals, food, cosmetics, rubber, plastics, pharmaceuticals. | ||||||||
INTRODUCTION:

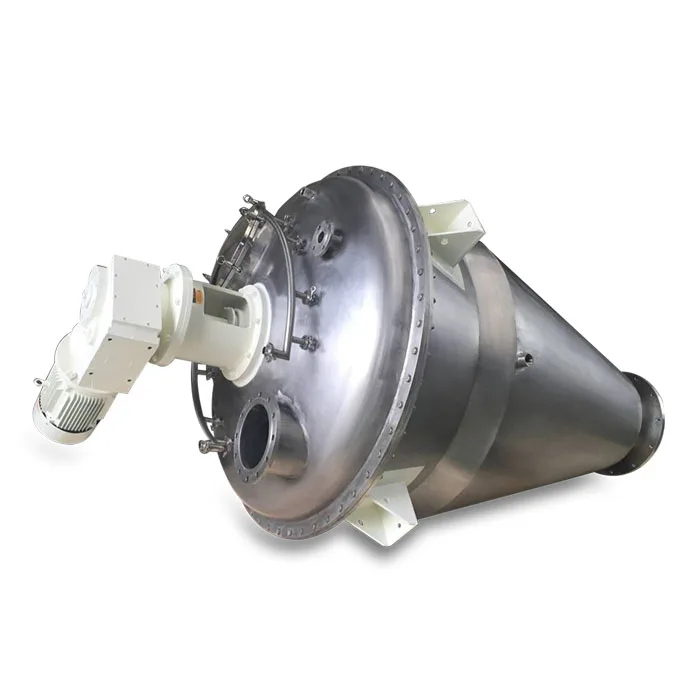

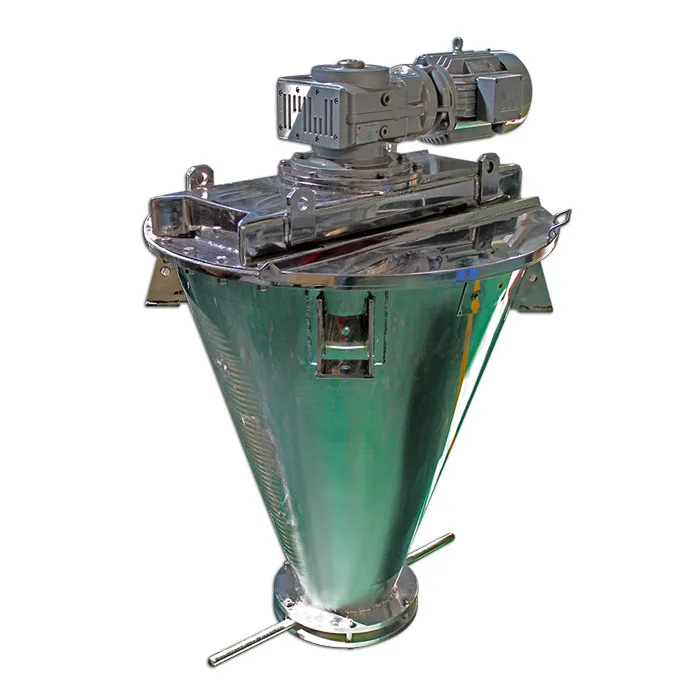

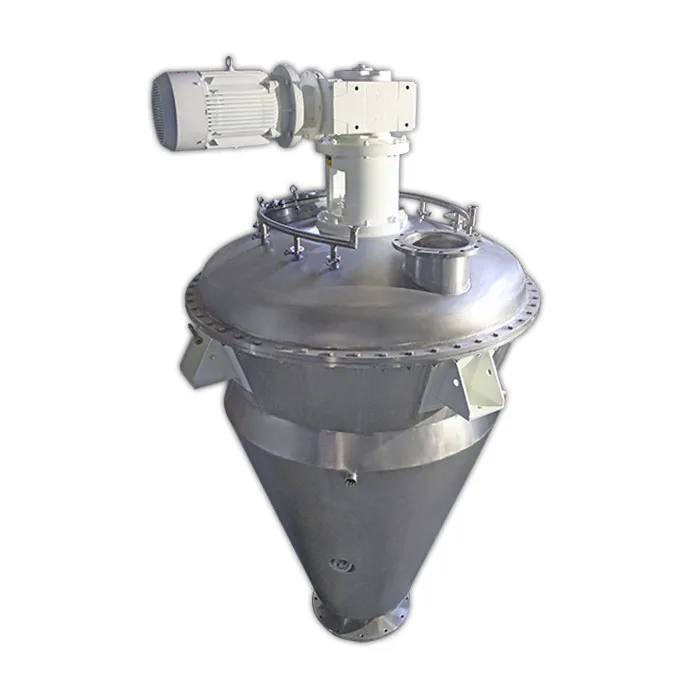

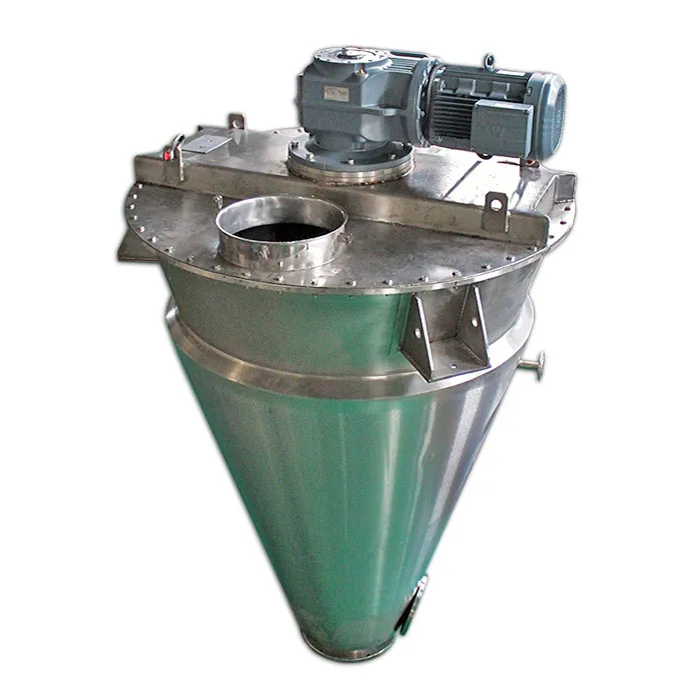

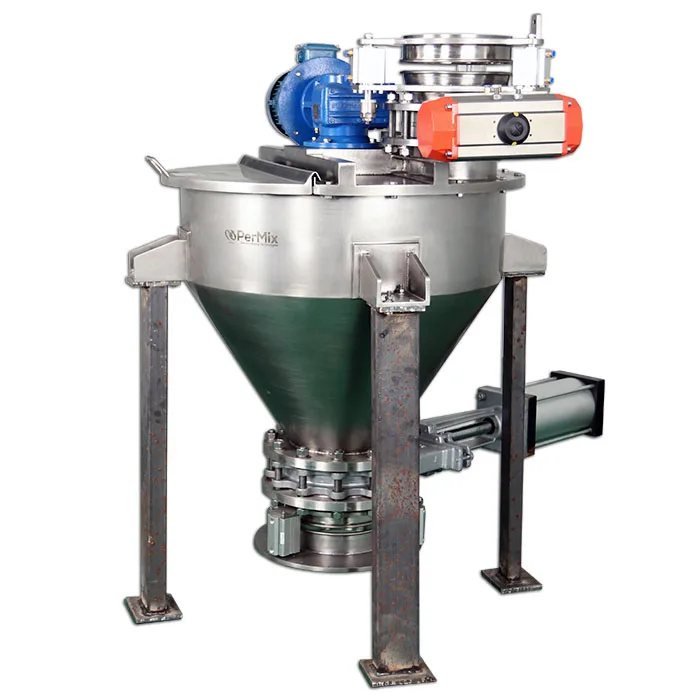

The PerMix PVR series Vertical Ribbon Mixer has a similar appearance with the popular Ribbon Blender, but stands vertically. It is an efficient and versatile blending machine for batch mixing of free-flowing powders. The PerMix PVR series Vertical Ribbon Mixer is able to give perfect result for mixing due to the innovative design of an outer spiral type mixing element with an inner reverse direction screw, rotating together into a conical shape trough allowing a perfect discharge of the mixed material.
HOW IT WORKS:
The construction of PerMix PVR series Vertical Ribbon Mixer is very compact: it consists of a cone vessel with the drive unit on the top and discharge valve at the bottom, and a tapered ribbon mounted on the central shaft. In the cone vessel, there is a central tapered ribbon with very small clearance between its edge and the wall. The ribbon moves the materials upward along the vessel wall to the top, where the materials then drop by gravity into the center. During this continuous operation, material particles and heat are exchanged quickly which leads to a homogeneous product. Besides, the material particles are mixed with minimal mechanical and thermal stress, which makes this type of mixer a good solution for fragile and heat sensitive product.
ADVANTAGES:
1. High level of accuracy with minor component ratio to be 1:100,000
2. Gentle mixing for sensitive materials without generation of heat
3. No minimal quantity is required
4. Full discharge with minimal residue
5. Easy to clean in either dry or wet way
6. High heat transfer rate, ideal for heating or cooling process of the powders
7. Chopper can be installed for intensive mixing and lump breaking
2. Gentle mixing for sensitive materials without generation of heat
3. No minimal quantity is required
4. Full discharge with minimal residue
5. Easy to clean in either dry or wet way
6. High heat transfer rate, ideal for heating or cooling process of the powders
7. Chopper can be installed for intensive mixing and lump breaking
SPECIFICATION:
Model | Total capacity (liter) | Working capacity (liter) | Power (*) (kW) | Diameter (mm) | H, total height (**) (mm) | Inlet (***) (mm) | Outlet (****) (mm) | Weight (kg) |
PVR-100 | 100 | 70 | 1.5-2.2 | 708 | 1420 | 140 | 150 | 180 |
PVR-300 | 300 | 210 | 2.2-5.5 | 990 | 1998 | 180 | 230 | 460 |
PVR-500 | 500 | 350 | 4-7.5 | 1156 | 2268 | 200 | 230 | 510 |
PVR-1000 | 1000 | 700 | 5.5-11 | 1600 | 2742 | 300 | 300 | 1020 |
PVR-1500 | 1500 | 1050 | 7.5-15 | 1780 | 2580 | 300 | 300 | 1100 |
PVR-2000 | 2000 | 1400 | 11-18.5 | 1948 | 2825 | 350 | 300 | 1270 |
PVR-2500 | 2500 | 1750 | 15-22 | 2062 | 3020 | 350 | 400 | 1530 |
PVR-3000 | 3000 | 2100 | 18.5-22 | 2175 | 3200 | 350 | 400 | 1780 |
1. (*) (**) (***) (****): Changes are available according to the customer’s request.
2. All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.
3. PerMix reserves the right to modify the design without notice.
2. All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.
3. PerMix reserves the right to modify the design without notice.
OPTIONS:
1.Ribbon
We offer several types of spiral ribbon for different sizes and applications.
2.Construction Material and Finish
We are able to offer our PVR Mixers with contact part to be built in Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Standard of internal and external finish can be adopted to the customer's needs. For abrasive materials we offer hardened steel as the contact part.
3.Feeding & Discharging
A variety of feeding & discharging methods can be selected by the customers.
4.Drive system
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
5.Heating/Cooling jacket
Jacketed trough for heating/cooling operation.
6.Vacuum drying & deaerating
The PVR mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
7.Spray nozzle
Liquid can be added into the powder by spray nozzles on the top.
8.Extended height bases
Height of our PVR Mixer can be defined according to customer’s requirements.
9.Sizes
From 100 to 10000 lit. total volume with bigger size as per request.
We offer several types of spiral ribbon for different sizes and applications.
2.Construction Material and Finish
We are able to offer our PVR Mixers with contact part to be built in Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Standard of internal and external finish can be adopted to the customer's needs. For abrasive materials we offer hardened steel as the contact part.
3.Feeding & Discharging
A variety of feeding & discharging methods can be selected by the customers.
4.Drive system
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
5.Heating/Cooling jacket
Jacketed trough for heating/cooling operation.
6.Vacuum drying & deaerating
The PVR mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
7.Spray nozzle
Liquid can be added into the powder by spray nozzles on the top.
8.Extended height bases
Height of our PVR Mixer can be defined according to customer’s requirements.
9.Sizes
From 100 to 10000 lit. total volume with bigger size as per request.
Product Details
More Products
Our Advantage
Company Information
Our Customers
Packaging & Shipping
FAQ
Q: What is your price level compared with European suppliers and local Chinese suppliers?
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
