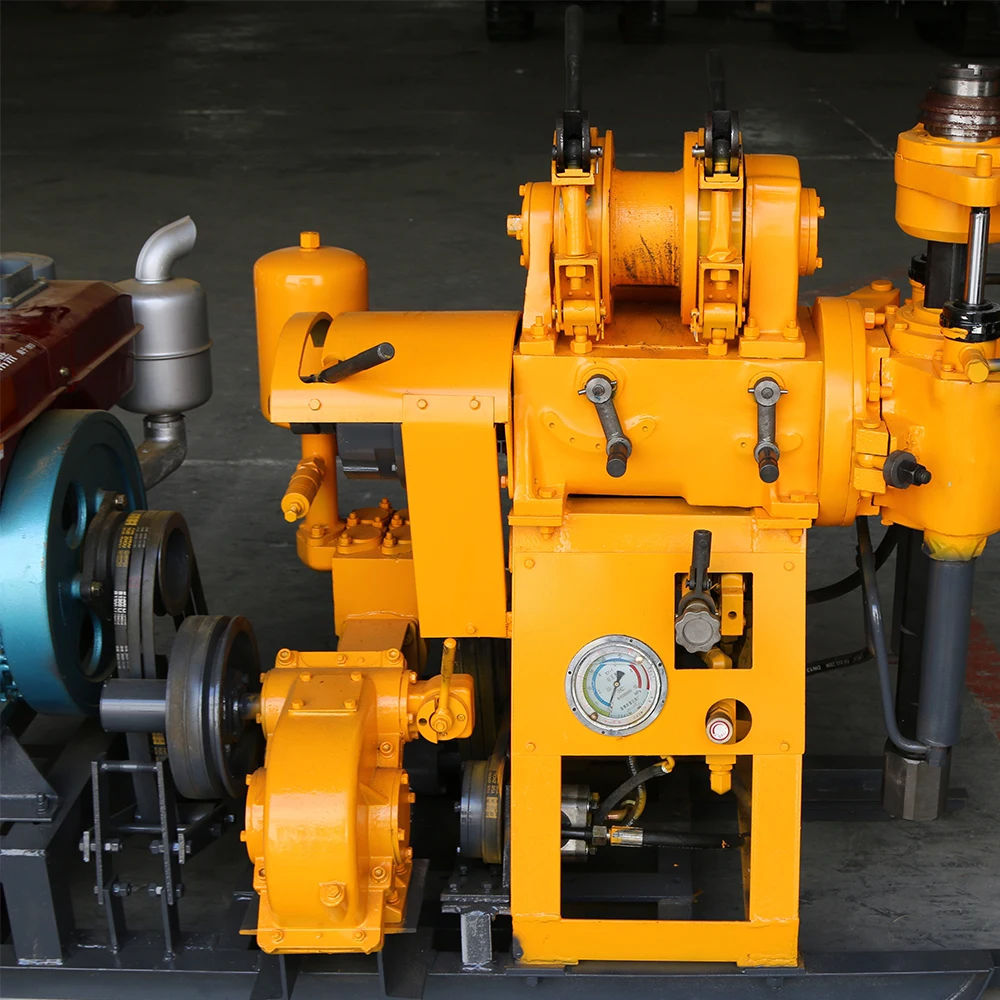

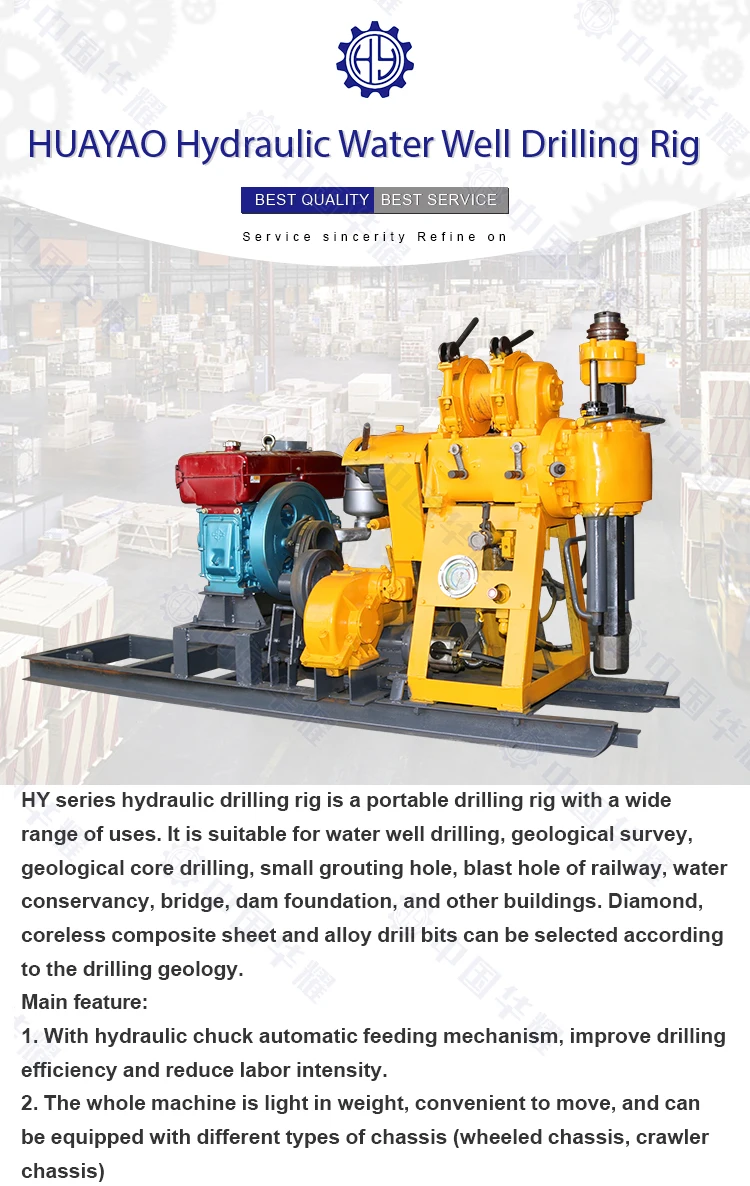

Huayao HY-160 Small Water Well Drilling Rig Machine Hydraulic Water Well Drill Rig Water Well Drilling Rig

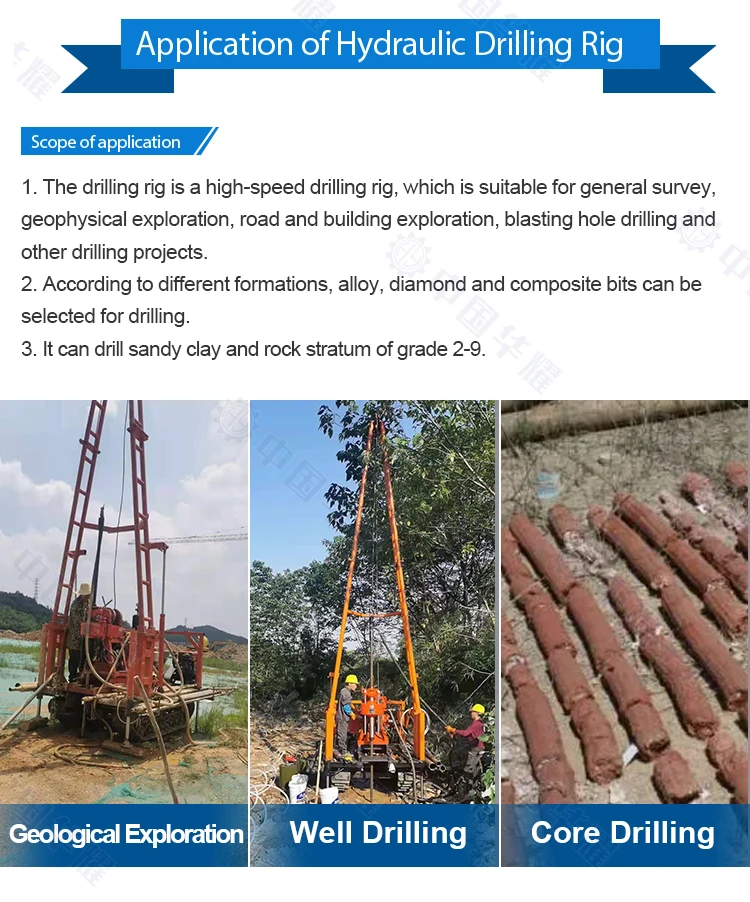

Scope of application:
1. The drilling rig is a high-speed drilling rig, which is suitable for general survey, geophysical exploration, road and building exploration, blasting hole drilling and other drilling projects.
2. According to different formations, alloy, diamond and composite bits can be selected for drilling.
3. It can drill sandy clay and rock stratum of grade 2-9.
1. The drilling rig is a high-speed drilling rig, which is suitable for general survey, geophysical exploration, road and building exploration, blasting hole drilling and other drilling projects.
2. According to different formations, alloy, diamond and composite bits can be selected for drilling.
3. It can drill sandy clay and rock stratum of grade 2-9.

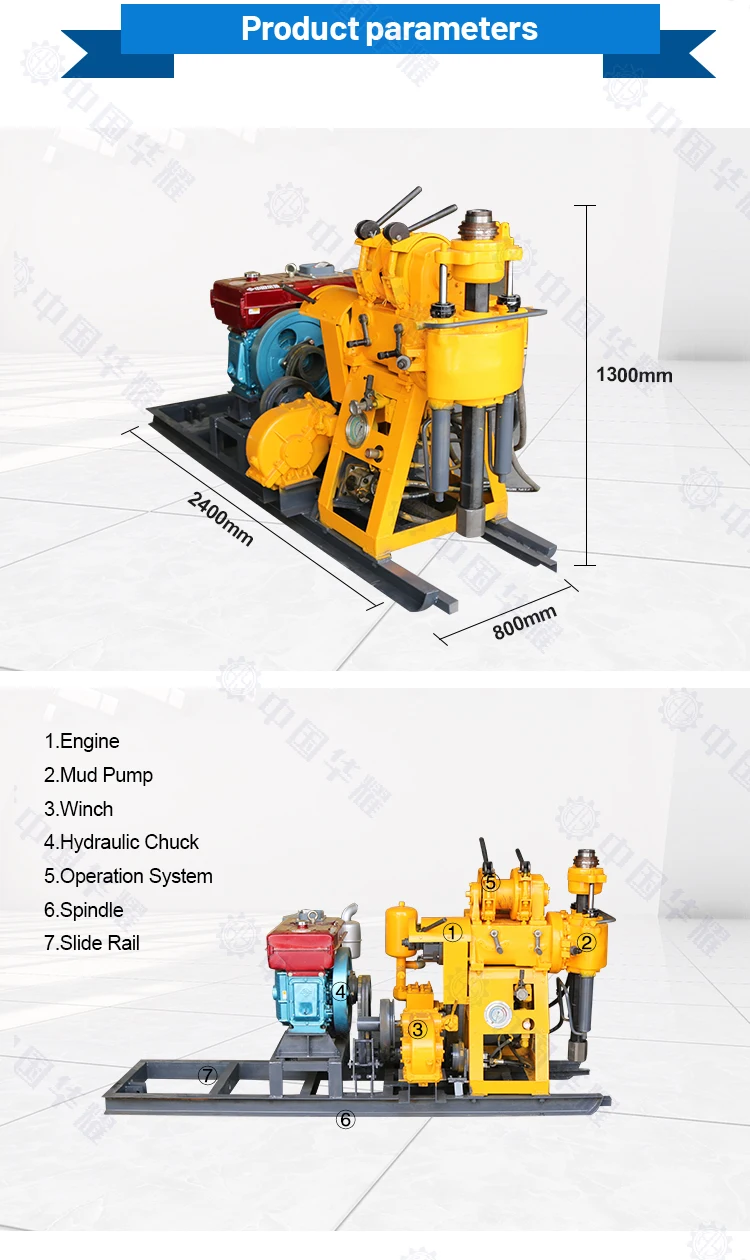

Specification
Product Name | Hydraulic Water Well Drilling Rig |
Model | HY-160 |
Drilling depth(m) | 160 |
open hole dia. (mm) | 500(Soil)/220(Rock) |
End hole dia. (mm) | 75 |
Drill rod dia. (mm) | 42, 50 |
drill angle (°) | 90-75 |
Matching engine power (kW) | 13.2 |
Machine Dimension L*W*H (m) | 2400*800*1300 |
Weight | 740KG |
Spindle speed (r/min) | 142/285/570 |
Spindle Stroke (mm) | 450 |
Walking Speed(km/h) | 10 |
Rated load (T) | 18 |
Effective height(m） | 6.5 |
Flow (L/Min) | 160 |
Max. pressure (MPa) | 1.3 |
back and forth times/min | 165 |
Inlet hose dia. (mm) | 51 |
Outlet hose dia. (mm) | 32 |
Huayao HY-160 Small Water Well Drilling Rig Machine Hydraulic Water Well Drill Rig Water Well Drilling Rig

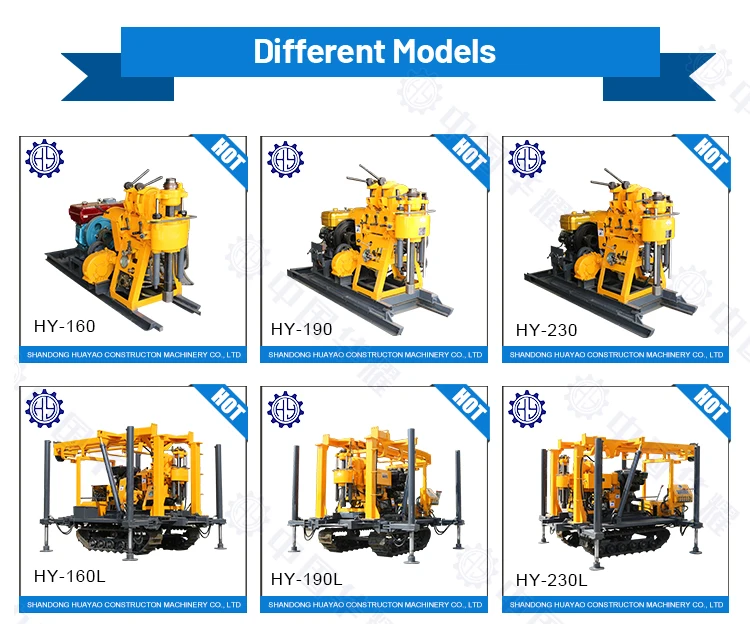

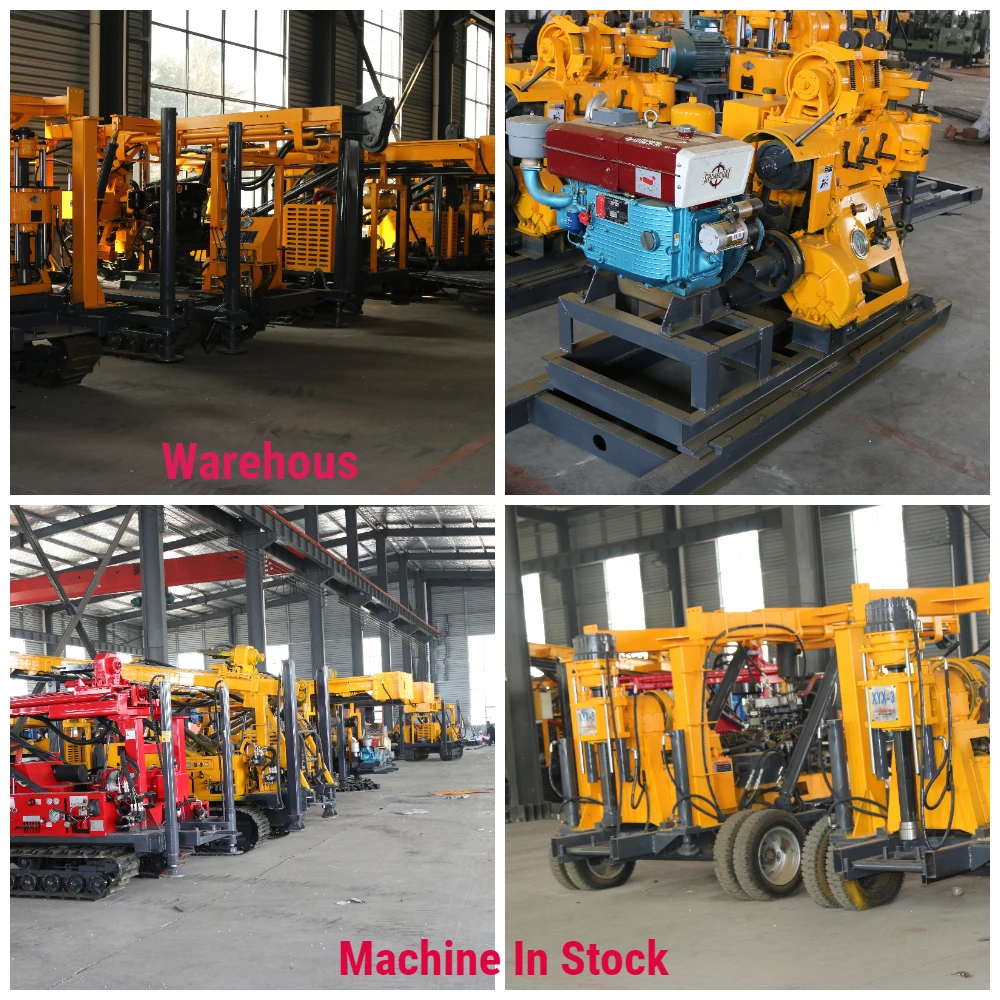

We have different types with many models for your choice.

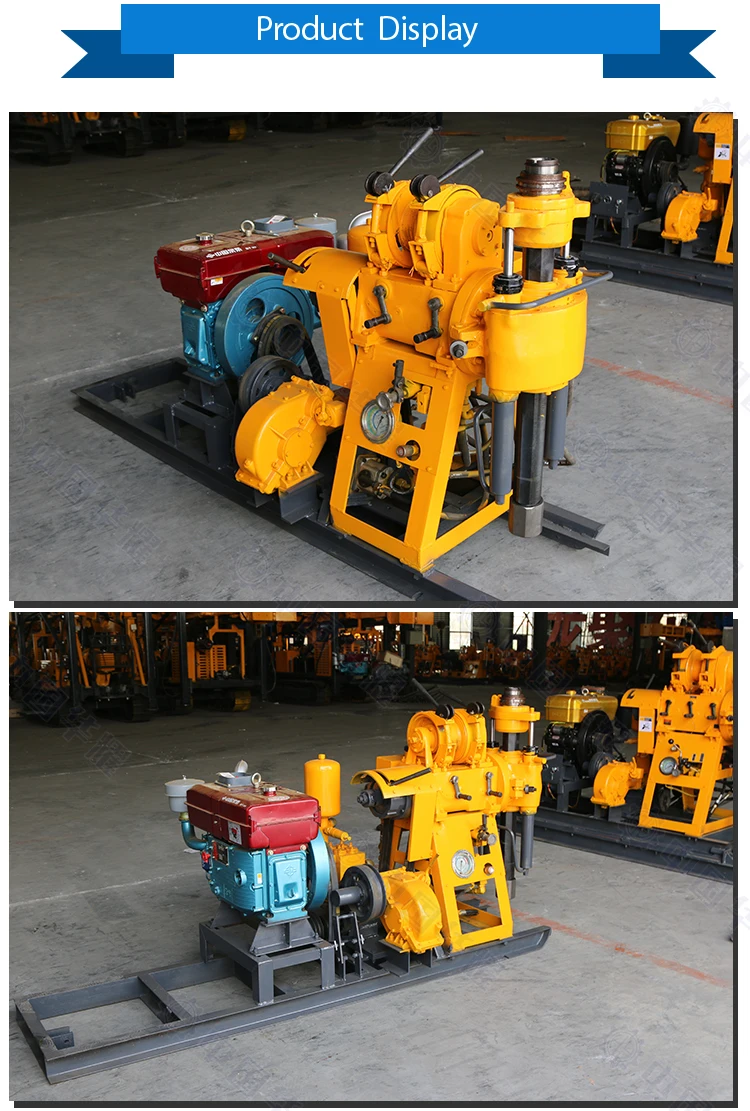

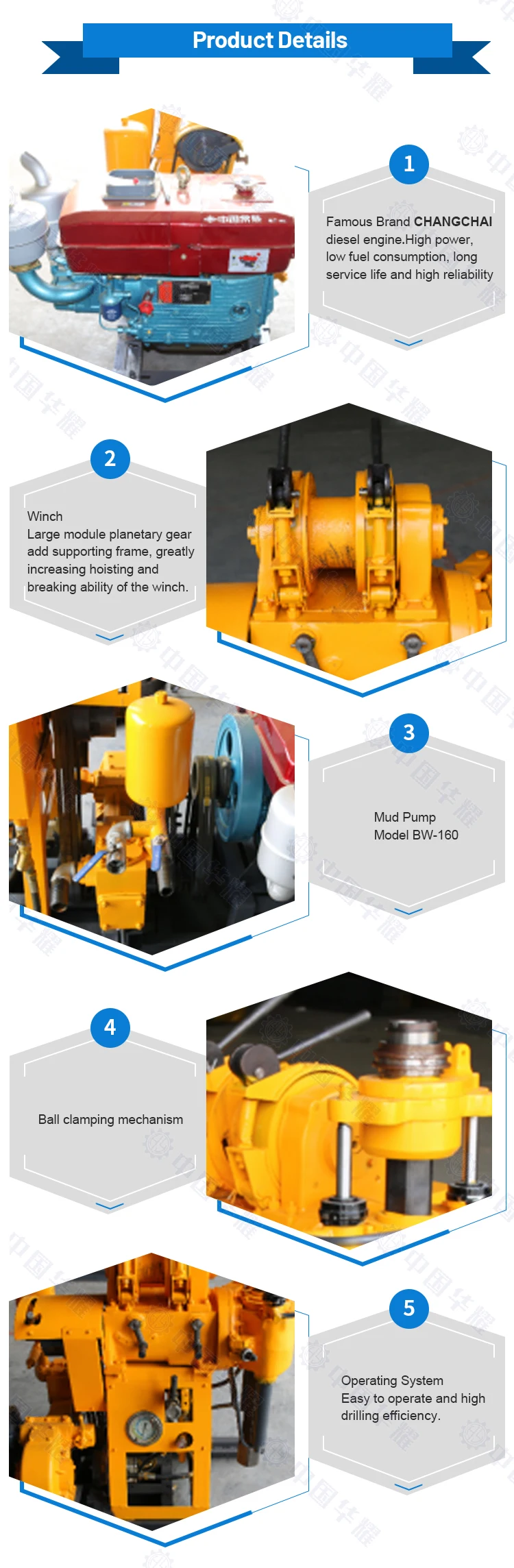

Product Details

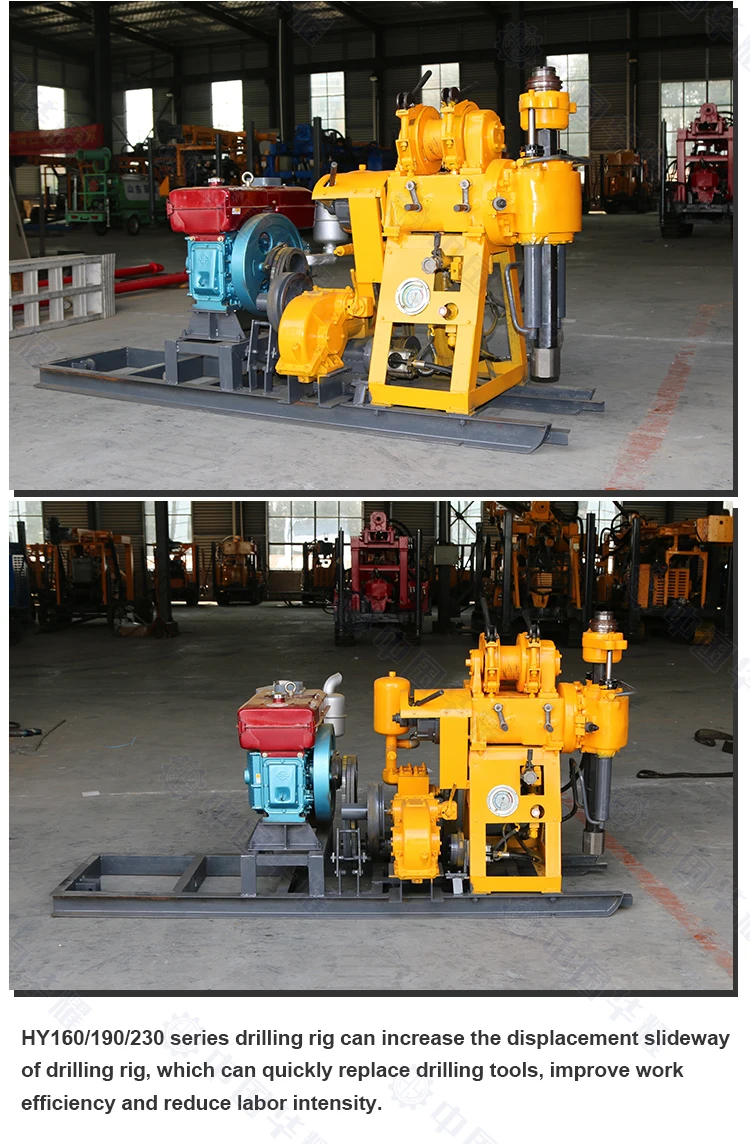

Huayao HY-160 Small Water Well Drilling Rig Machine Hydraulic Water Well Drill Rig Water Well Drilling Rig

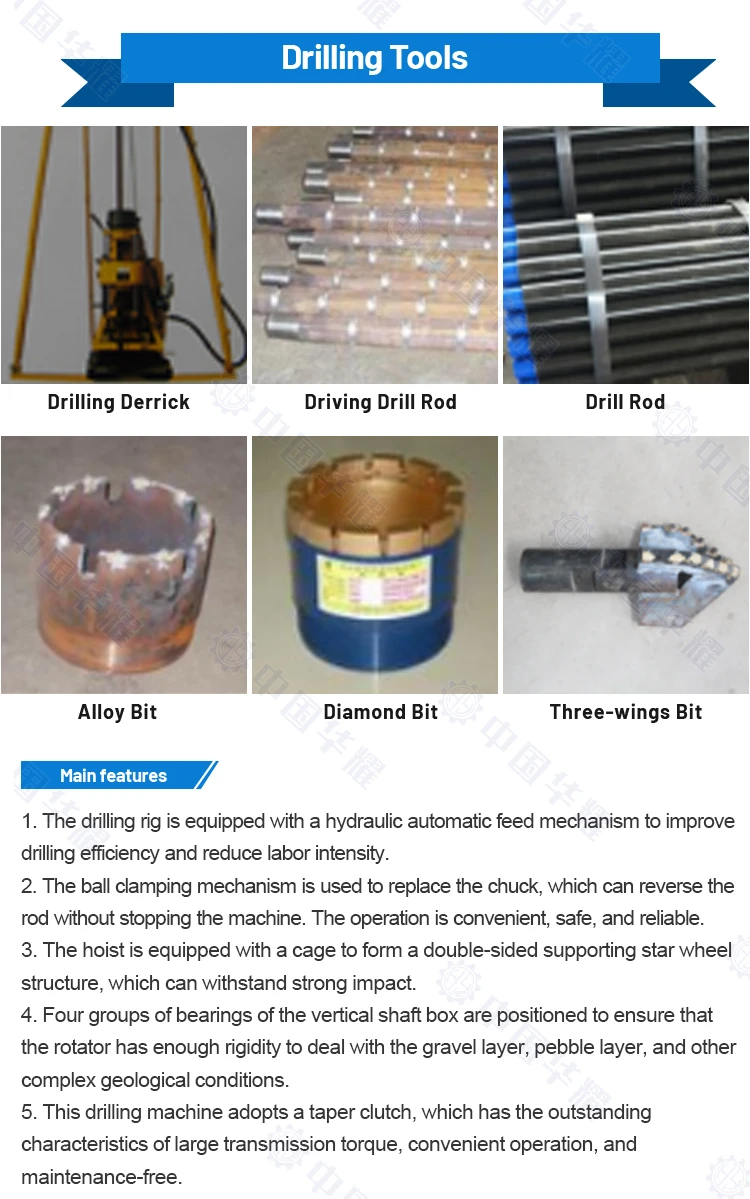

Drilling Machine Details.

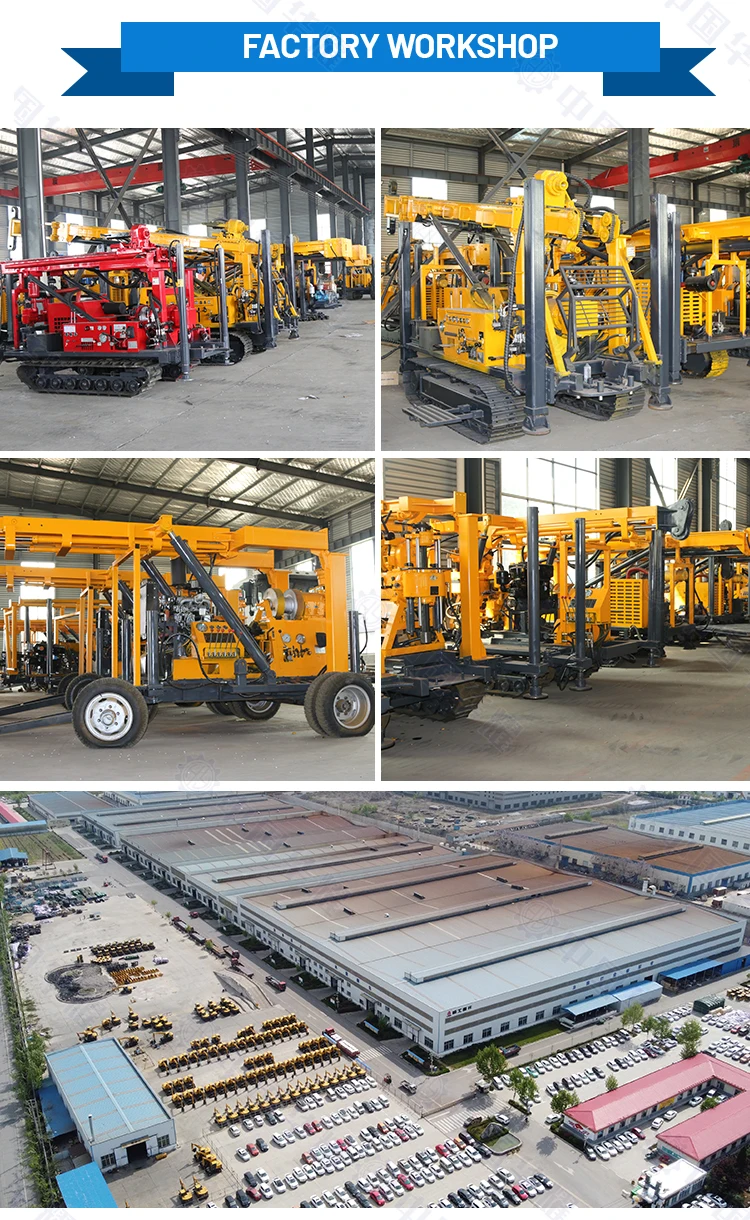

Company Profile
