Newest Universal Direction Automatic Threading and Tapping Machine with 3 arms SFN-1000-12T
Products Description
Model | SFN-1000-10T | SFN-1000-12T | SFN-1000-16T | ||
Tapping Range | M3-M10 | M3-M12 | M3-M16 | ||
Power | 220V/110V,50HZ,600W, | ||||
Highest Speed | 1000rpm | 625rpm | 312rpm | ||
Max Work Radius | 1000mm | ||||
Vertical Extension | 550mm | ||||
Gross Weight | 25kg | ||||
Tapping Direction | Vertical or Universal | ||||
Standard Chucks (ISO Standard) | GT12,M3-M10 | GT12,M3-M12 | GT12,M3-M16 | ||
DIN371/376,JIS or other standard chucks optional | |||||
Product Features

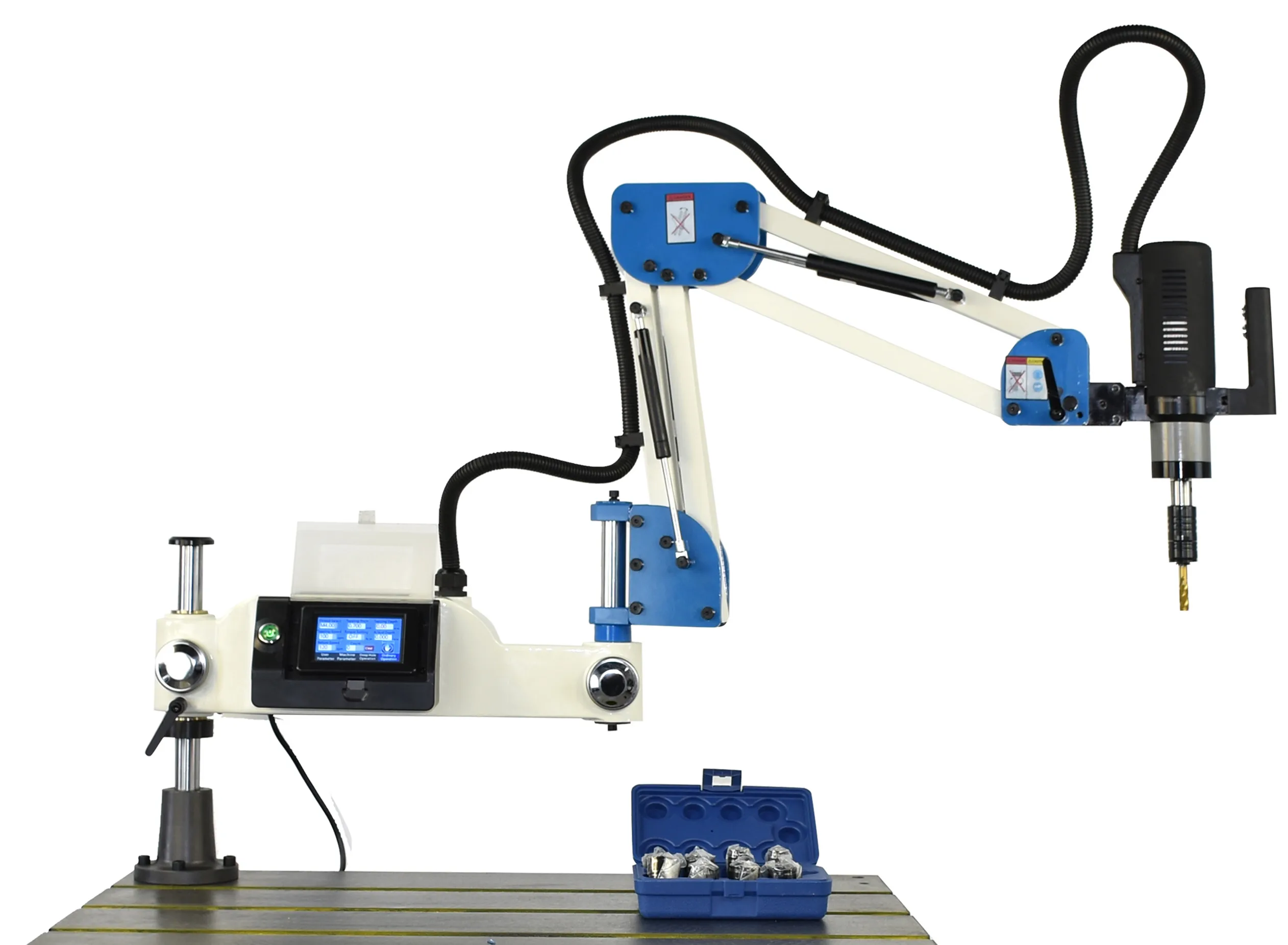

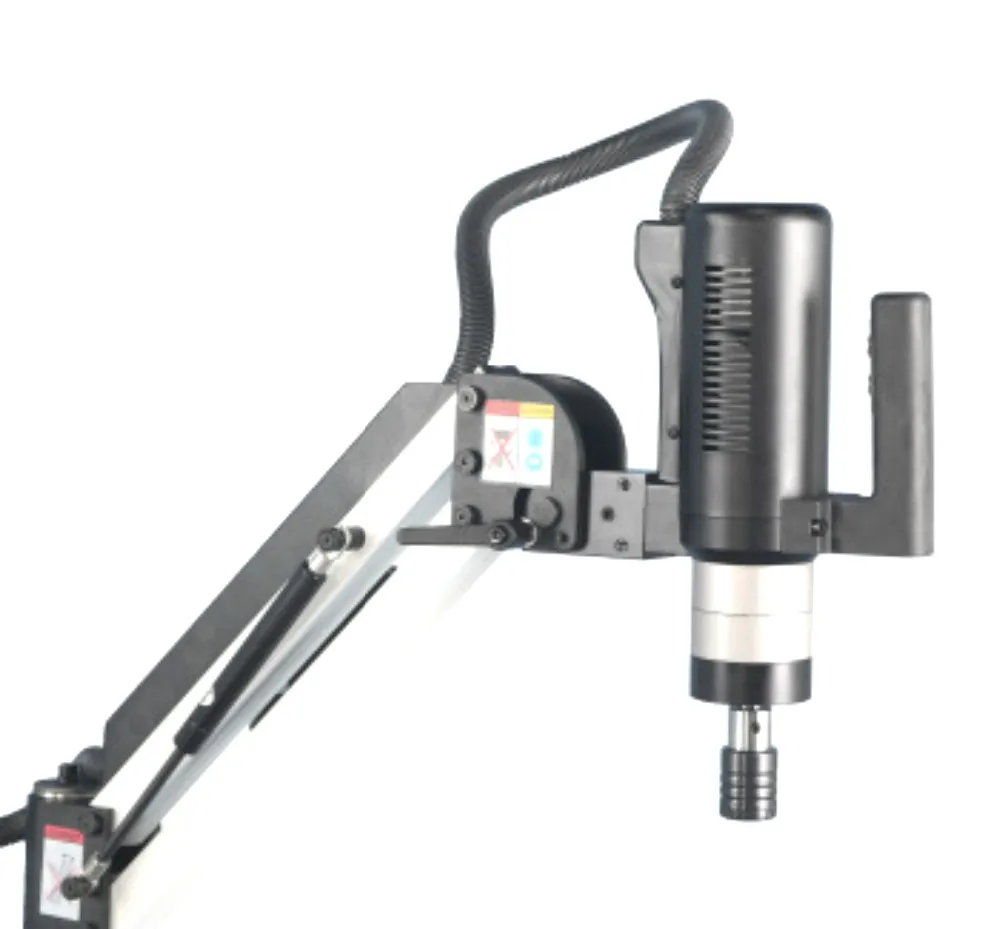

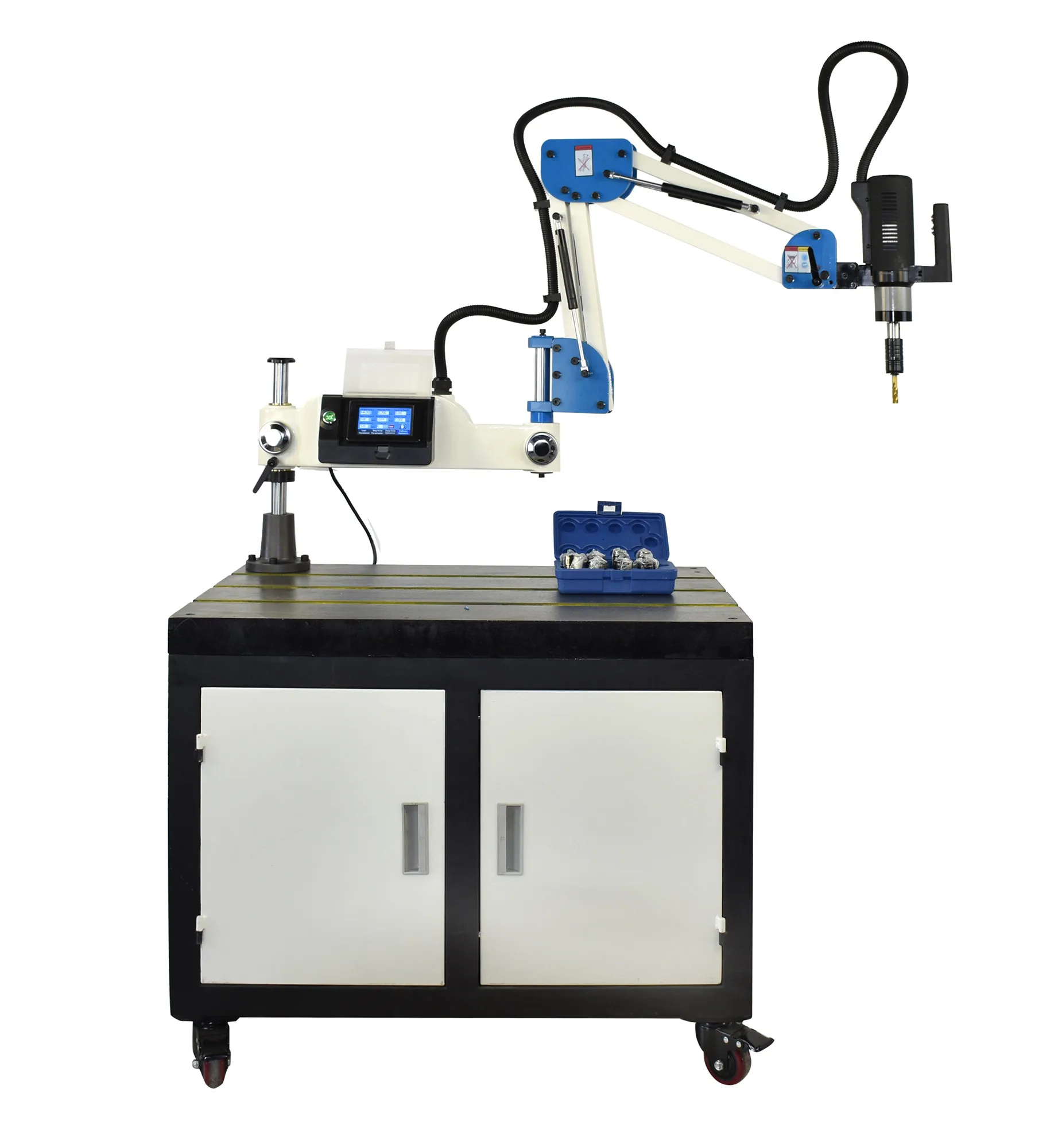

M3-M16 Servo Motor Automatic Tapping Machine Electric Tapping Machine
1. The machine adopt servo drive control, with intelligent torque protection, supersede traditional lathe and drilling machine, overcome limitation of manual tapping.

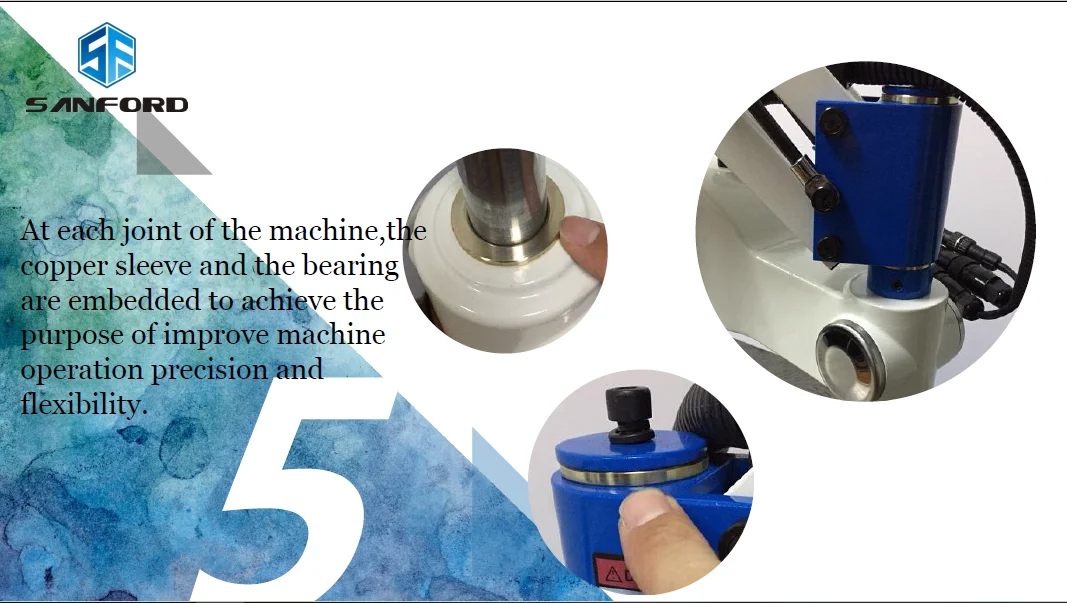

2. Advanced mechanical design, various of parts casted by mould, with very high rigidity, durable without deformation, attractive appearance.

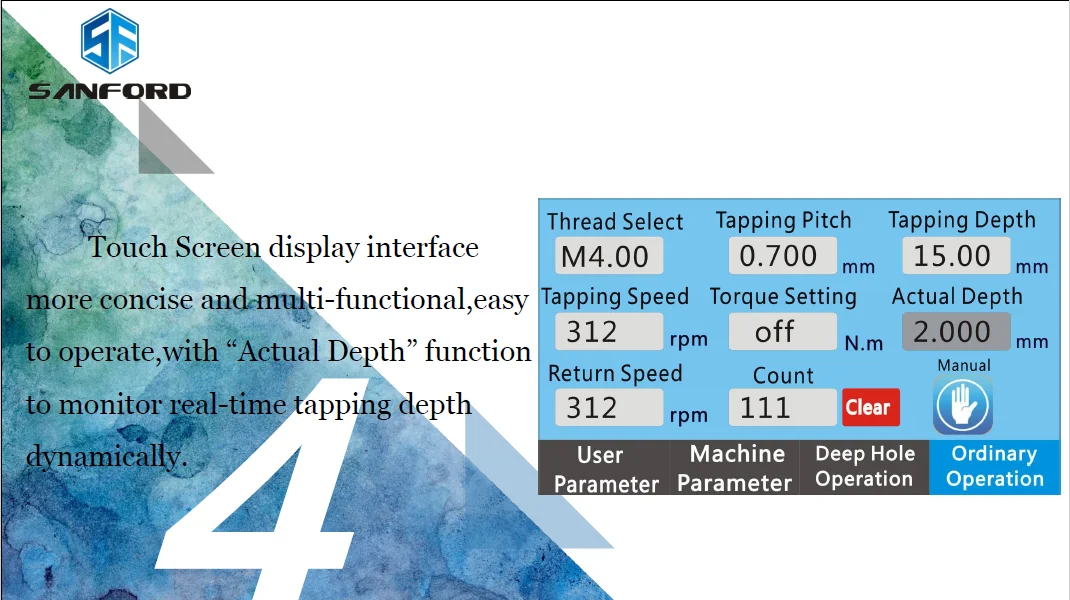

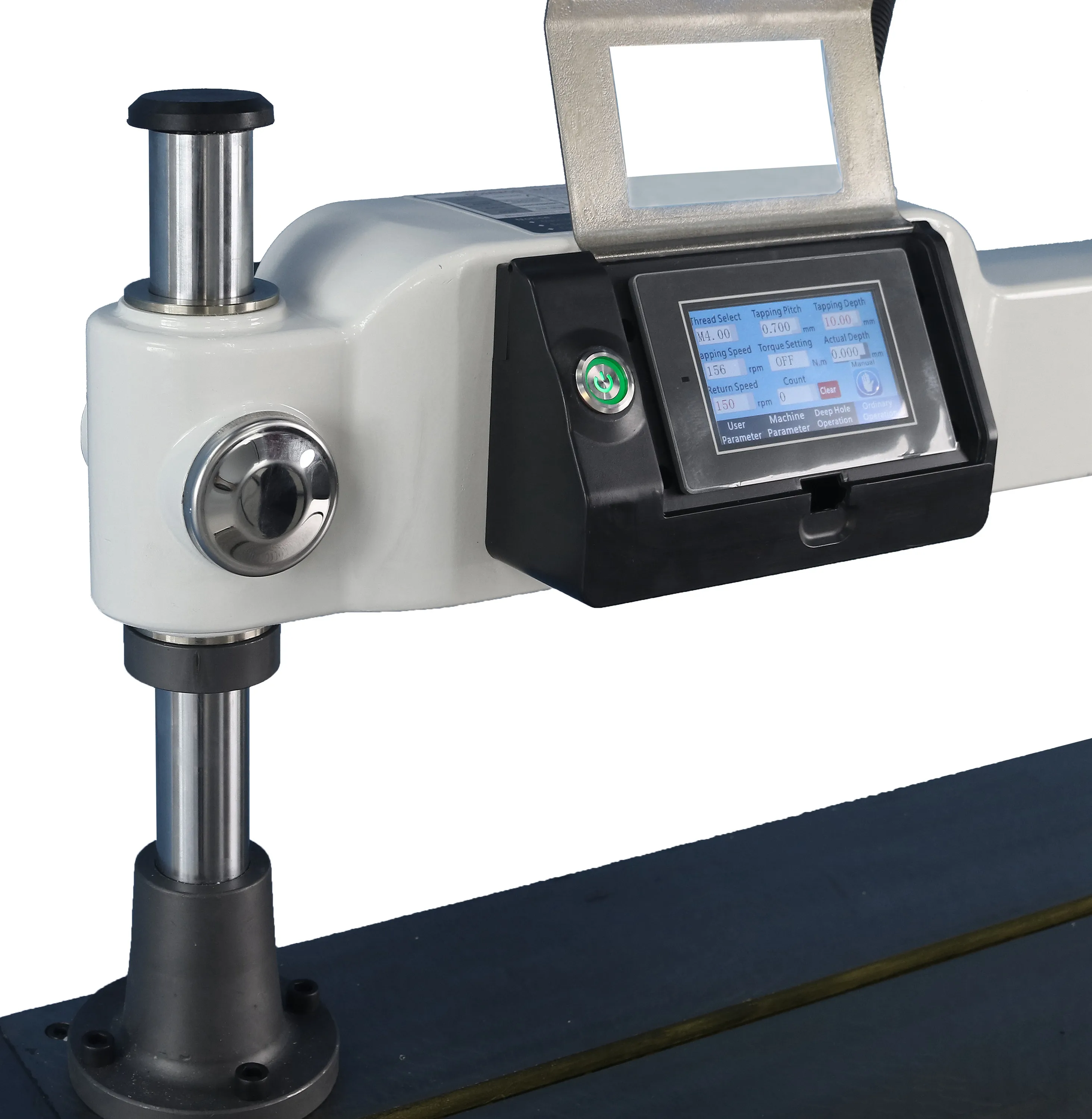

3. HD Touch Screen makes the operation much more convenient and flexible, can realize work vertical and universal direction to complicated and cumbersome work, positioning rapidly and process accurately.
4. Stepless speed changes, Manual Mode, Automatic Mode and Deep Hole Mode, three work mode optional.
5. Automatic Mode can control tapping depth precisely, no need button operation, controlled by depth controller automatically.
6. Repetitive positioning rapidly, fast tapping speed, high work efficiency.
7. Can tapping all kinds of lead, steel, iron, copper, aluminum, plastic and other materials.
2. Advanced mechanical design, various of parts casted by mould, with very high rigidity, durable without deformation, attractive appearance.
3. HD Touch Screen makes the operation much more convenient and flexible, can realize work vertical and universal direction to complicated and cumbersome work, positioning rapidly and process accurately.
4. Stepless speed changes, Manual Mode, Automatic Mode and Deep Hole Mode, three work mode optional.
5. Automatic Mode can control tapping depth precisely, no need button operation, controlled by depth controller automatically.
6. Repetitive positioning rapidly, fast tapping speed, high work efficiency.
7. Can tapping all kinds of lead, steel, iron, copper, aluminum, plastic and other materials.
Details Images
Packing & Delivery
Our Company
Bengbu Sanford Machinery Co.,Ltd is a professional enterprise specilized in developing, manufacturing and exporting of high quality Pneumatic & Electric Tapping Machines, Automatic Chamfering Machines, Grinding Machines, Bench Vises and related accessories. Varieties of machines are widely used in Machine Manufacturing, Mould and Hardware Processing, Auto Parts Manufacturing and other metals, plastics parts processing, greatly reduce processing time, improve work efficiency, save human resources.
Since established, Sanford Machine adhere the principle of " to provide high-quality products and service", we constantly adopt new technologies, new processes, new equipment, and new materials to improve product quality, concentrate all our efforts on developing products that meet the requirements of critical customers with the highest demands.
Today, our products are not only very popular in mainland China, also were exported to over 20 countries in West Europe, Middle East, Southeast Asia, South America and so on, get very good reputation and enjoying close partnership with our clients.
Since established, Sanford Machine adhere the principle of " to provide high-quality products and service", we constantly adopt new technologies, new processes, new equipment, and new materials to improve product quality, concentrate all our efforts on developing products that meet the requirements of critical customers with the highest demands.
Today, our products are not only very popular in mainland China, also were exported to over 20 countries in West Europe, Middle East, Southeast Asia, South America and so on, get very good reputation and enjoying close partnership with our clients.
Certifications
FAQ
1) Do you supply OEM service?
Yes,we can make touch screen in your language,print machine with your brand or sticker,make machines in your color or use your user manual.
2) What's the delivery time?
Our delivery is about 10days after receive payment.
3) What's the MOQ?
We accept the order at any quantity,one set is acceptable..
4) What's the payment terms?
We accept payment terms T/T,Paypal,Western Union,L/C.
5) Do you supply sample? Is it free or need pay for it?
Yes,we can supply sample if you need,will need you pay for it,but we will offer better price for sample order.
6) What's your warranty time?
We supply 1 year warranty time to our products,for any defective parts,we will send new parts or even a new machine free charge for replacement in warranty time,also only charge cost price after that.
7) How about your after-sales service?
We have excellent after sales service system,we will reply and give you solution in 24 hours for any quality issue.
Yes,we can make touch screen in your language,print machine with your brand or sticker,make machines in your color or use your user manual.
2) What's the delivery time?
Our delivery is about 10days after receive payment.
3) What's the MOQ?
We accept the order at any quantity,one set is acceptable..
4) What's the payment terms?
We accept payment terms T/T,Paypal,Western Union,L/C.
5) Do you supply sample? Is it free or need pay for it?
Yes,we can supply sample if you need,will need you pay for it,but we will offer better price for sample order.
6) What's your warranty time?
We supply 1 year warranty time to our products,for any defective parts,we will send new parts or even a new machine free charge for replacement in warranty time,also only charge cost price after that.
7) How about your after-sales service?
We have excellent after sales service system,we will reply and give you solution in 24 hours for any quality issue.
