Wholesale eye drops bottle unscrambler & filling machine eye drops bottle filling capping machine
- Category: >>>
- Supplier: Shanghai Ipanda Intelligent Machinery Co. Ltd.
Share on (1600280759099):
Product Overview
Description
Product Overview

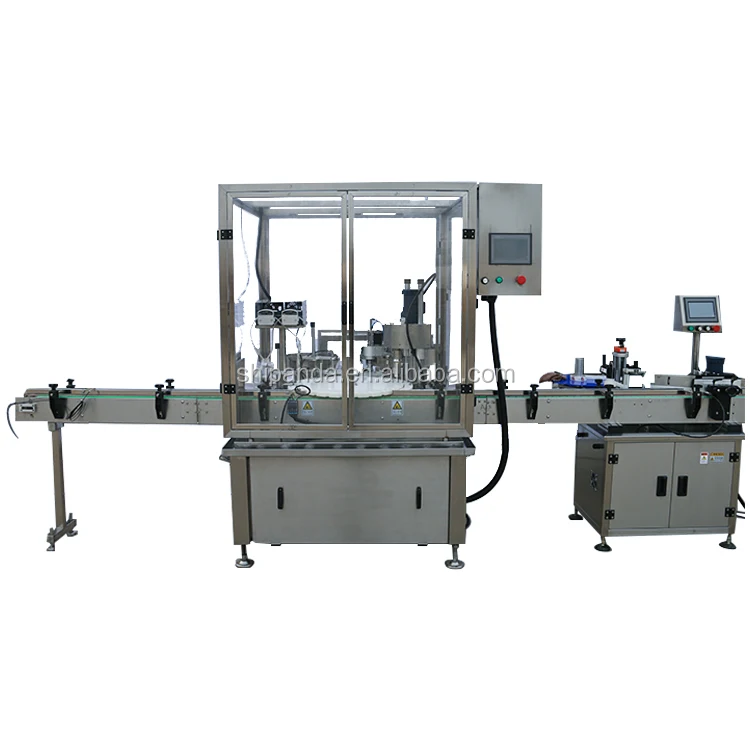

Automatic small bottle filling capping machine is widely applied for E-liquid, essential oil,nail polish, sprayer, eye
drop, oral liquid and so on.
drop, oral liquid and so on.
Automatic Liquid Filling and Capping Machine can automatically finish the bottle filling, bottle capping. With the no bottle no filling feature. The machine with scientific structure can be singly used, and also can be used with the production line. It is the ideal liquid filling production equipment, completely meet GMP requirements.
Please don't be hesitate! Contact us and get more Bottle Filling Machine details!
Please don't be hesitate! Contact us and get more Bottle Filling Machine details!
FEATURES AT A GLANCE
1. Small bottle filler and capper is suitable for different types of PET bottle or glass bottle like eyedropper liquid, oral liquid, aseptic drops and so on.
2. Small bottle filler and capper filling volume is 5-250ml and also can be customized; Filling speed 1000-3000 per hour,also can be customized.
3. Small bottle filler and capper use sus304 stainless steel that accord with the CE standard and GMP. There's no foam
and leak when fill the liquid.
4. Our machine can be customized.
5. Bottle clip fixtures, to avoid dislocation filling.
2. Small bottle filler and capper filling volume is 5-250ml and also can be customized; Filling speed 1000-3000 per hour,also can be customized.
3. Small bottle filler and capper use sus304 stainless steel that accord with the CE standard and GMP. There's no foam
and leak when fill the liquid.
4. Our machine can be customized.
5. Bottle clip fixtures, to avoid dislocation filling.

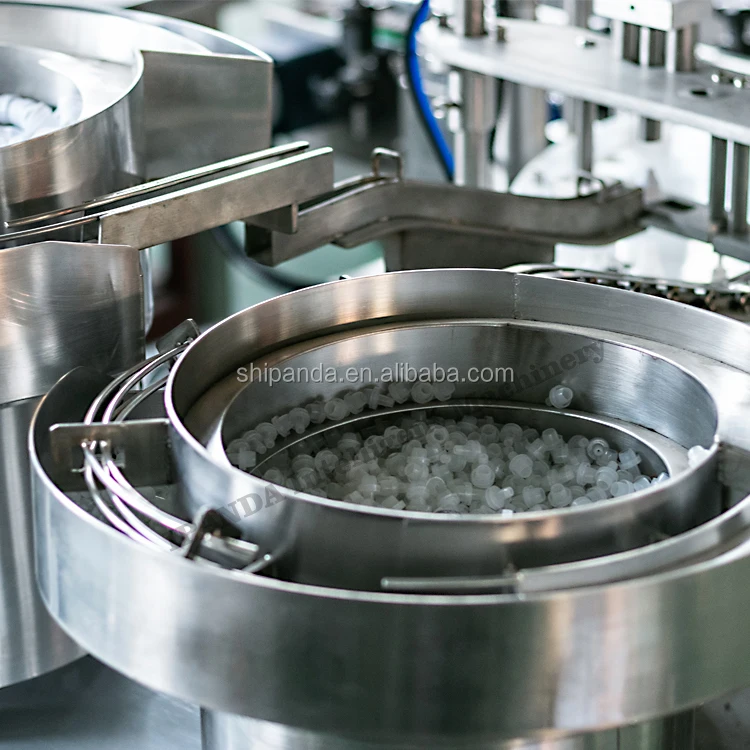

Cap/plug unscrambler

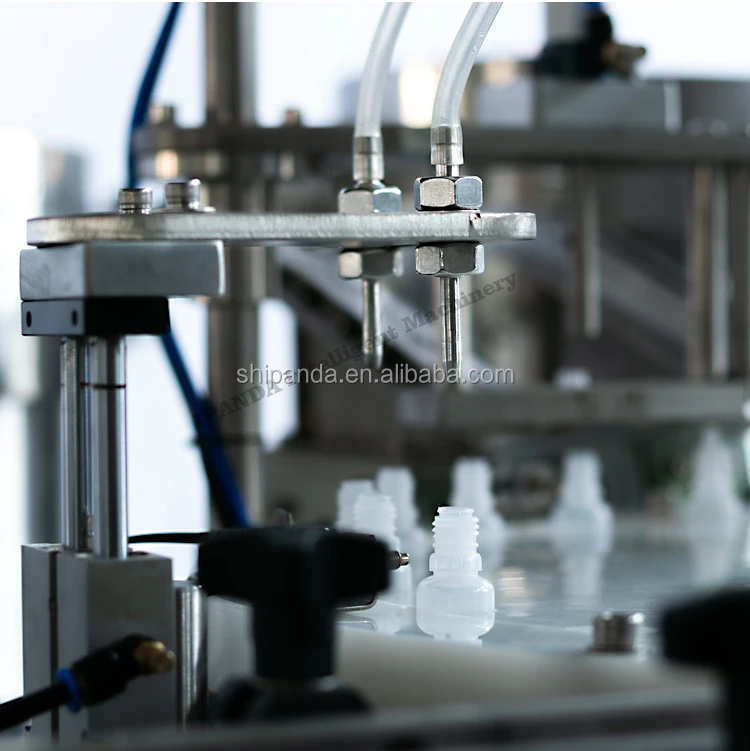

Filling head

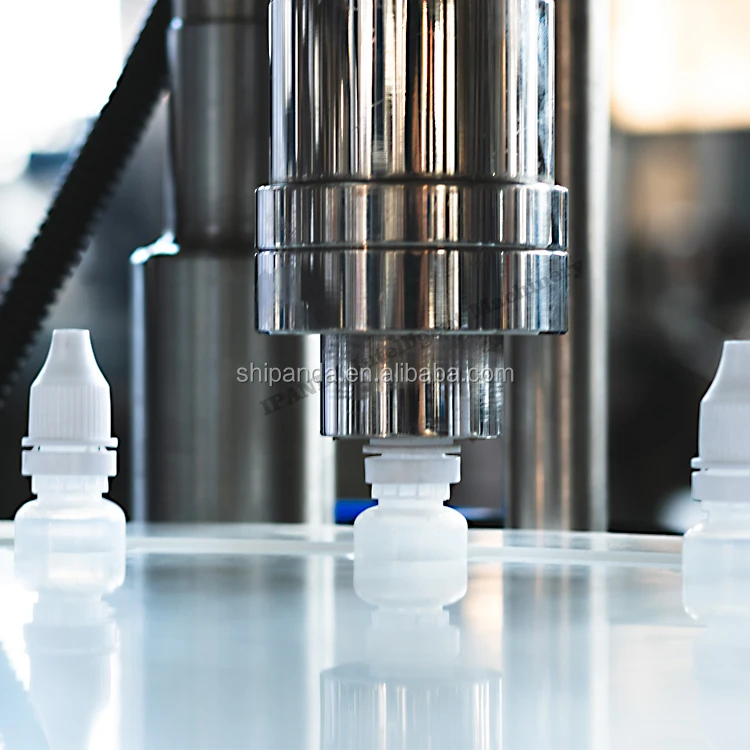

Capping part
PRODUCT SPECIFICATIONS
Main parameter of the machine | ||||||
Name | Filling capping machine | Filling volume | 5-250ml,can be customized | |||
Net weight | 550KG | Filling heads | 1-4 heads,can be customized | |||
Bottle diameter | Can be customized | Filling speed | 1000-2000BPH,can be customized | |||
Bottle height | Can be customized | Voltage | 220V,380V ,50/60GZ | |||
Filling accuracy | ±1ml | Power | 1.2KW | |||
Bottle material | Glass ,plastic bottle | Working pressure | 0.6-0.8MP | |||
Filling material | Eye drop,e-liquid,cbd oil | Air consumption | 700L per hour | |||
Main construction and configuration | ||||||
Object sensor | Keyence or Autonics or similar brand sensor | Cylinders | Airtac or similar china brand model | |||
PLC | Siemens | Display | Siemens or Samkoon | |||
Basic construction | SUS304 stainless steel | |||||
Contact material parts:Standard adopt SUS304 stainless steel, or upgrade into SUS316L stainless steel or plastic non-metal parts according order | Standard adopt SUS304 stainless steel, or upgrade into SUS316L stainless steel or plastic non-metal parts according order | |||||
Cap unscrambler ：
Can automatically cover and automatic feeding caps.
Filling part :
The filling part is made of 304 stainless steel,there is electric eye,there is no bottle no filling

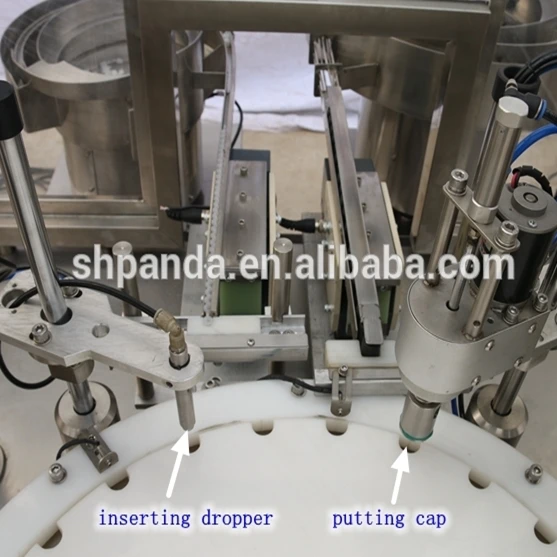

Capping part :
The capping device will designed according to the customer`s product

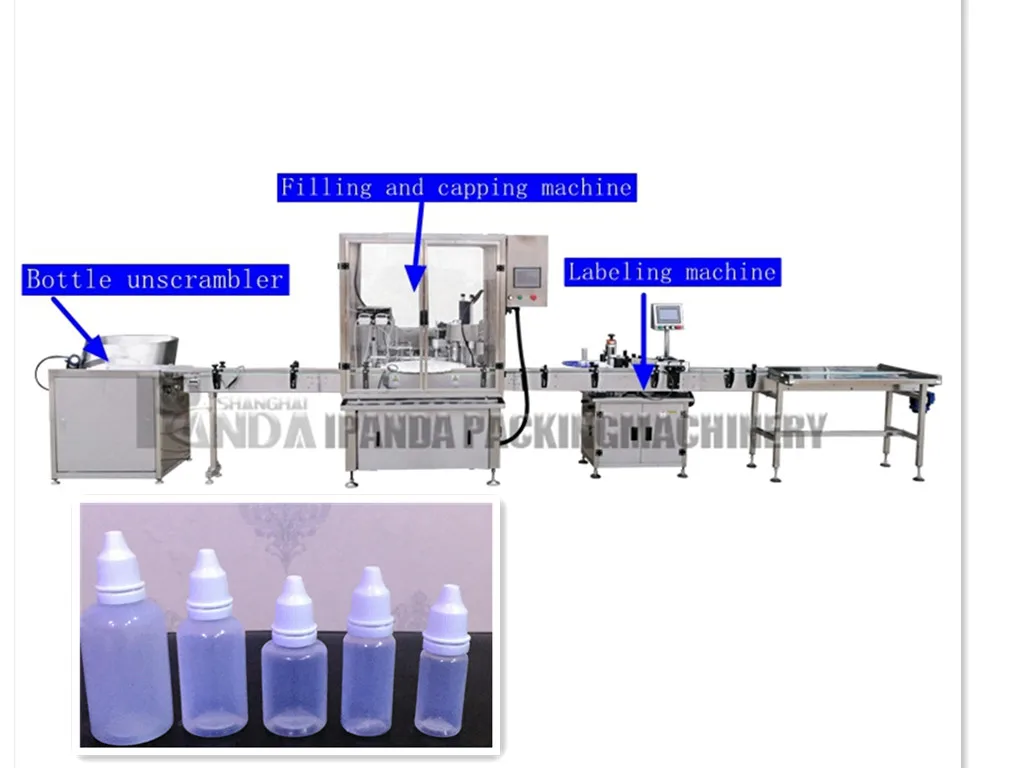

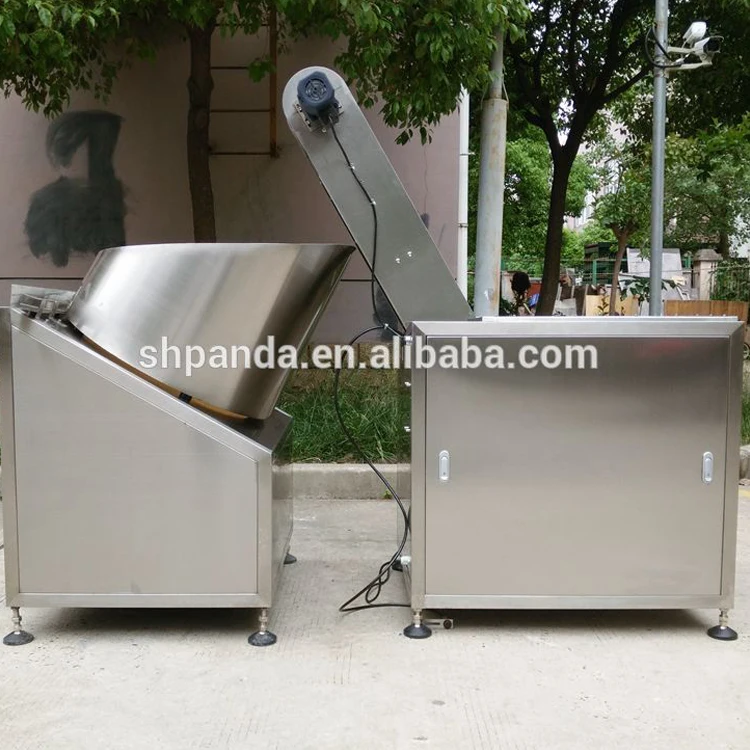

The bottle sorting machine can arrange the small bottles and transfer them to the conveyor belt of the filling machine.

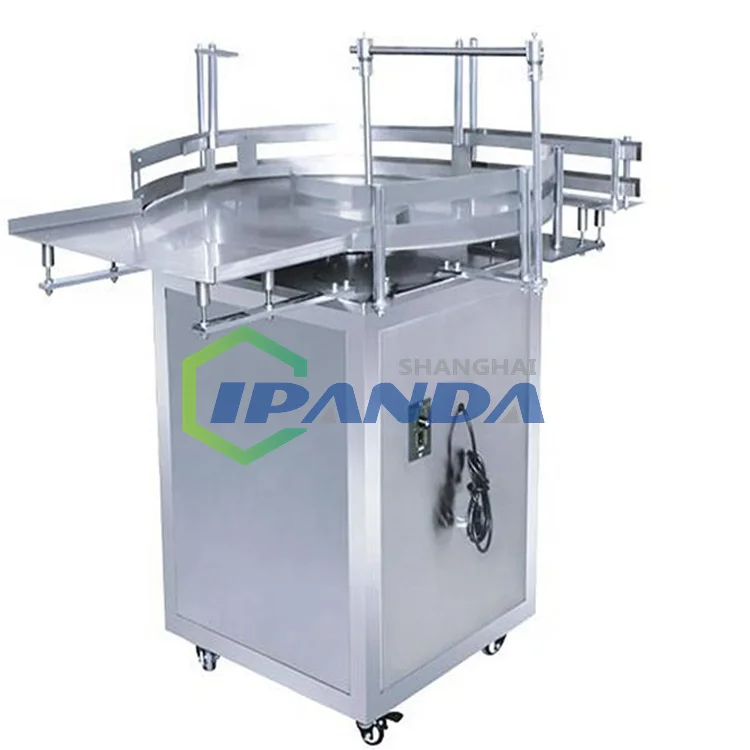

The round turn table is used for put empty bottles and feed the bottle automaticaly.
The packaging table can put the product bottle.
Our Advantages
Company Profile
Packing & Delivery
FAQ
Q1: What is vour company's main products?
Q2: What is delivery date of vour products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.
Q5:Where are you located?
Is it convenient to visit you? We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is conflrmed,and will always operate this process,
sovery experienced.
3. The electrical pneumatic components are from the world famous companies,such as Germany^ Siemens, Japanese Panasonic etc.
4. We will do strict test running after the machine is finished. 5.0ur machines are certified by SGS,ISO.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technicaldrawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your.
Palletizer, Conveyors, Filling Production line, Sealing machines, Capping
Machines,Packing Machines, and Labeling Machines.
Machines,Packing Machines, and Labeling Machines.
Q2: What is delivery date of vour products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.
Q5:Where are you located?
Is it convenient to visit you? We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is conflrmed,and will always operate this process,
sovery experienced.
3. The electrical pneumatic components are from the world famous companies,such as Germany^ Siemens, Japanese Panasonic etc.
4. We will do strict test running after the machine is finished. 5.0ur machines are certified by SGS,ISO.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technicaldrawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your.
