High Quality Wholesale Price Lab High Temperature 1700.C Crucible Furnace
- Category: >>>
- Supplier: Zhengzhou ZYlab Instruments Co. Ltd.
Share on (1600280759852):
Product Overview
Description

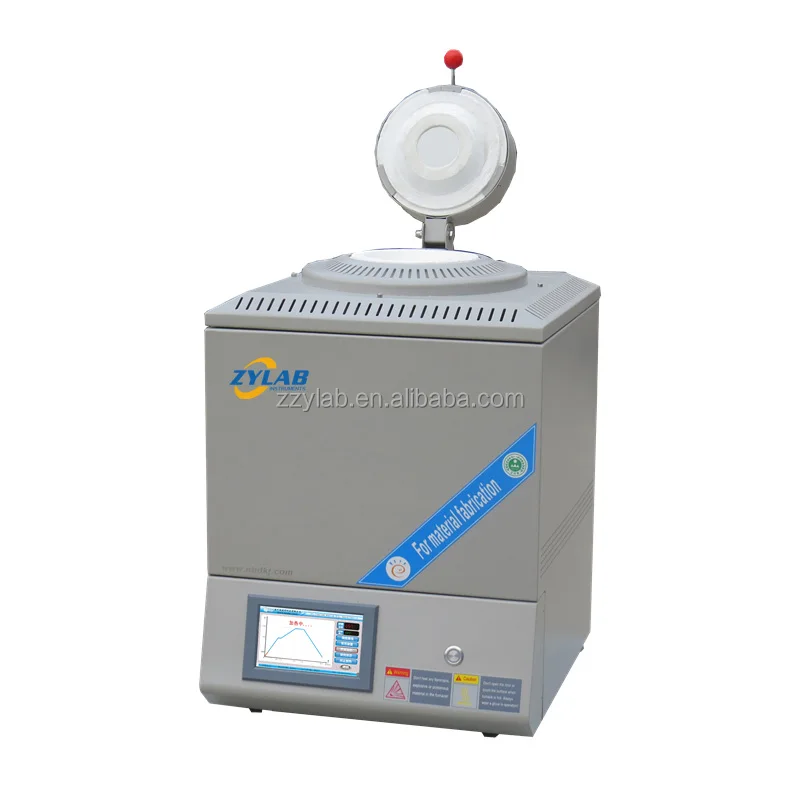

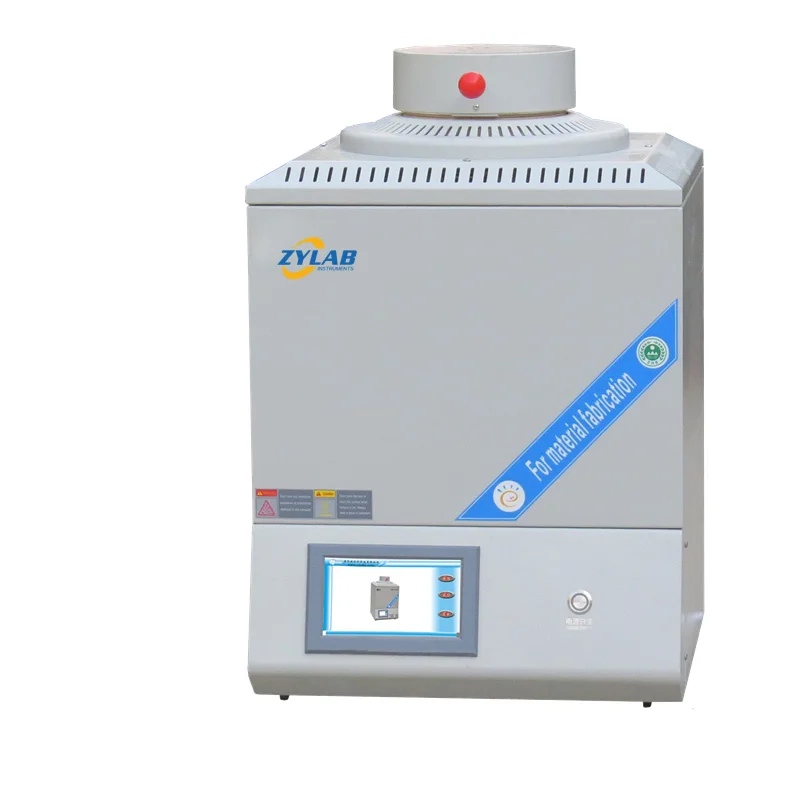

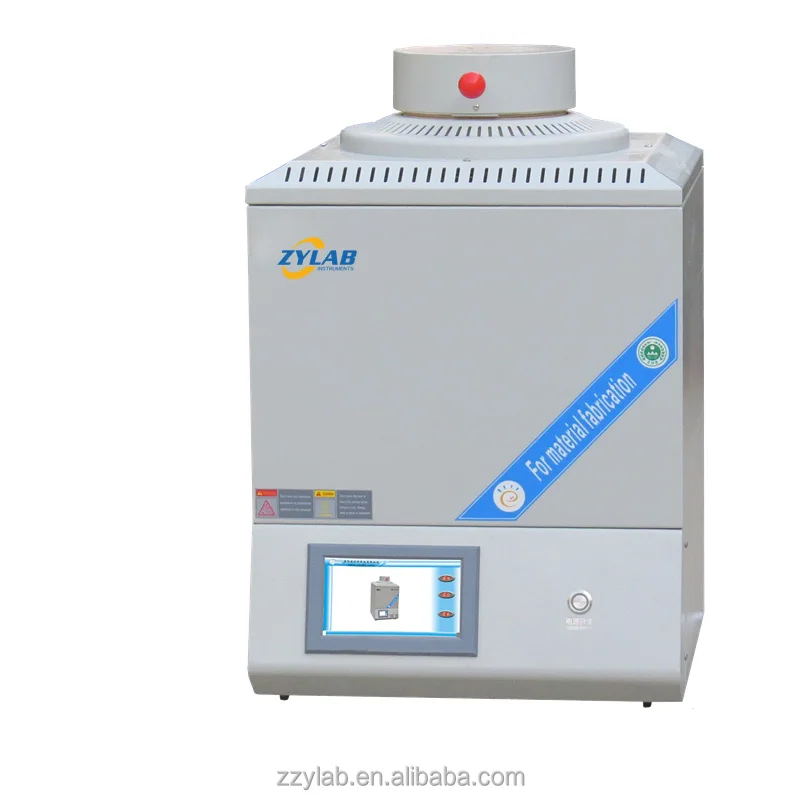

High Quality Wholesale Price Lab High Temperature 1700.C Crucible Furnace
Product Description
Introduction:
The upper open 1700.C crucible furnace is suitable for high or heavy samples, the heating elements are evenly arranged around the furnace cavity make the thermal field uniformity . It's suitable for scientific research institutes, university laboratories, enterprises for high-temperature sintering, melting, heat treatment of metals, non-metals, alloys, ceramics and other materials.
Main Features of 1700.C Crucible Furnace:
1. Max. Temperature 1700C, working temperature 800-1650C.

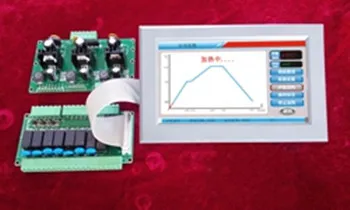

2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 51 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and heating elements made of pure type molydenum disilicide,products are protected against chemical contamination at the best and longer service life.

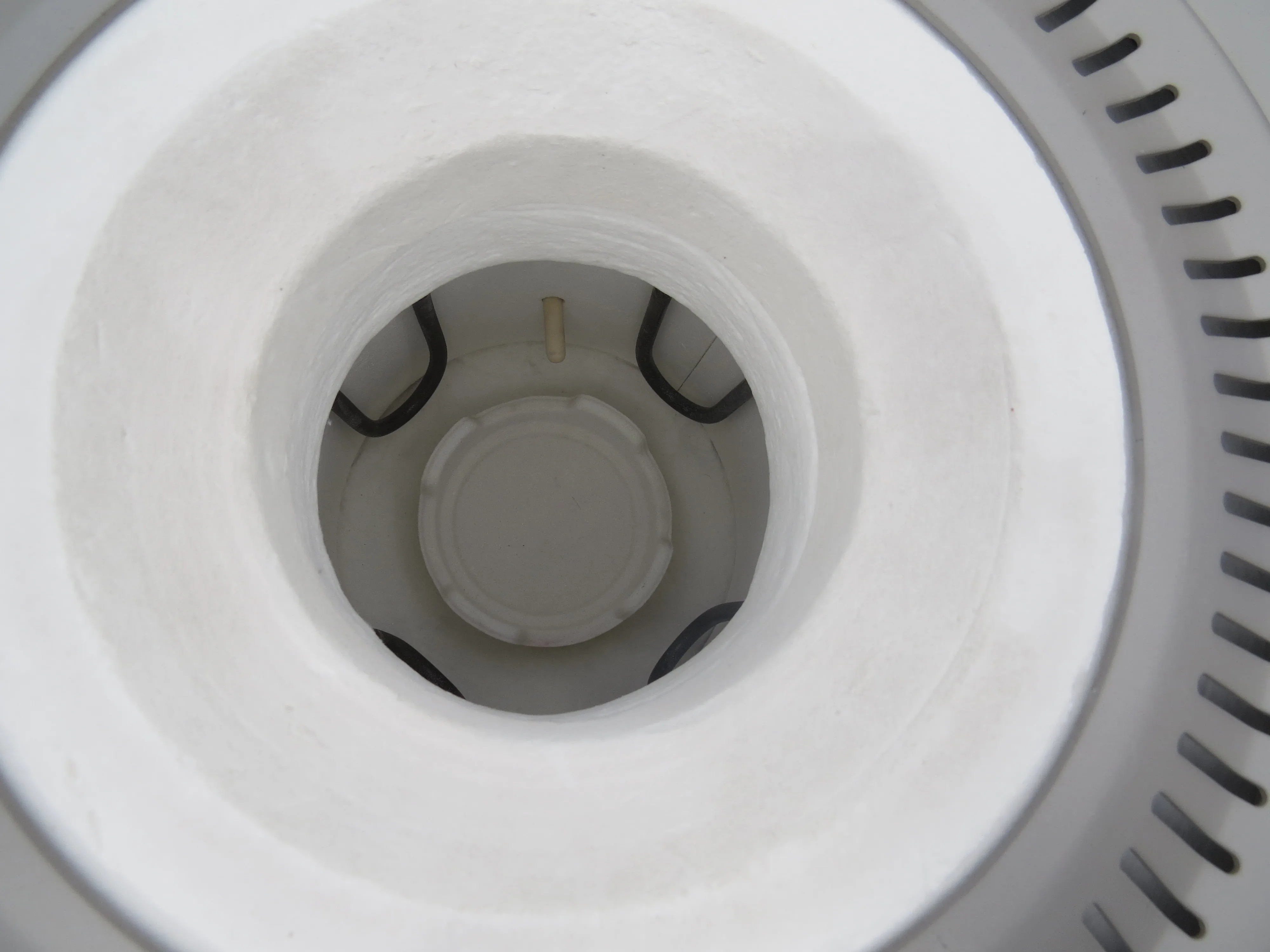

6. Heating elements ring distribution, the temperature is more uniform to obtain better effect.
7. Upturn door structure, pick and place materials convenient.
8. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
9.Low power consumable, exquisite structure and light weight, it is the ideal crucible furnace for material research labs, also used in factory production.
Technical Data
Technical Data of 1700.C Crucible Furnace:
Model | G1700-12IT |
Furnace structure | •1800 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); |
Chamber size (working space) | Dia120*160mm (also supply other sizes according to requirement) |
Max. temperature | 1700 ℃(<1hours) |
Working temperature | 800-1650 ℃(continuing) |
Intelligent Touch Screen Temperature controller | •PID automatic control and auto-tune function. •.Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
Heating rate | 0-20 ℃ /min(Suggest: 10°C/min) |
Thermocouple | B type |
Temperature accuracy | +/- 1 ℃ |
Heating element | M1800 high purity MoSi2 heating element |
Working voltage | AC 208 - 240V, 50/60 Hz (according to requirement) |
Max. Power | 2.8Kw |
Dimension | 550(W)*750(H)*500(D)mm |
Quantity / Net weight | 1set / 90kgs |
Warranty | 12 months |
Certificate | CE, ISO9001 |
Company Information

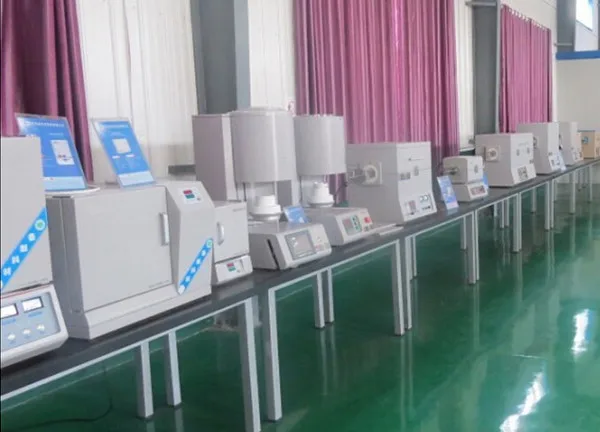

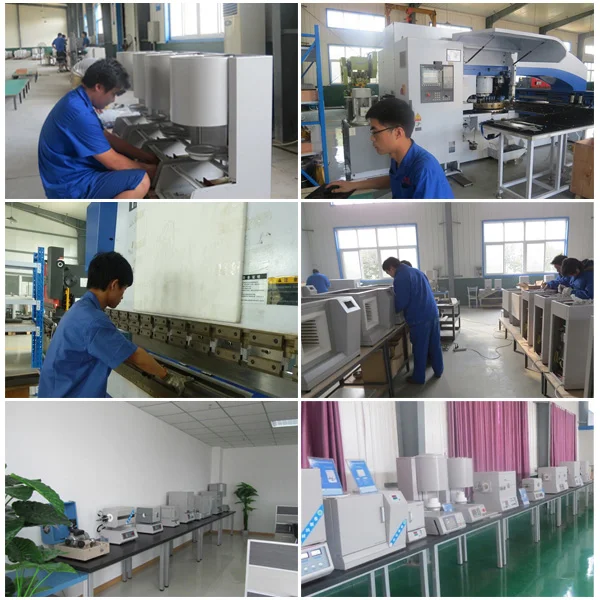

Our Professional Factory of 1700.C Crucible Furnace:
Note: We have enough in stock and a large number of semi-finished products, can delivery fast.
Welcome the customers and distributors to visit our factory for choosing and purchase.
Packaging & Shipping
Packaging:
Standard wooden box with bubble bag and pearl cotton inside.
Shipping:
By sea: big dimension or large quantity or not urgent products, low price with a little long arrive time.
Usually within 11-45 days arrive.
By air: more than 100kgs or urgent products. Usually 7-10 days arrive, direct flight can arrive within 3-5 days.
By international express: such as FedEx/UPS/DHL/TNT/EMS or others. To door service is convenient and fast.
Usually 5-7 days arrive.
Also can arrange global shipment as clients’ requirement.
Our Services
l Professional team 24 hours online for any consulting support.
l Quick response with suitable solution and detailed quotation as clients’ requirement.
l Customized design is available.
Warranty:
Our products are warranted to be free from defects in materials or workmanship for one year (12 months) from the date of purchase. Within this period, we will replace any components that fail in normal use.
Note:This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
FAQ
How to buy?
Inquiry -- Negotiate -- Make Order --Products Confirmed -- Make Payment -- Start to Produce -- Production Finished -- Package -- Delivery -- After-sale Service -- Welcome to recommend and repeat order
How to contact us?
1. Chat by “Trade manager” on line.
2. Send message by below inquiry form.
3. Send email or call us directly.
Our professional service team will give you reply at the first time.
Choose us, you will get best service and perfect products!
Welcome your any inquiry and trail order!!
