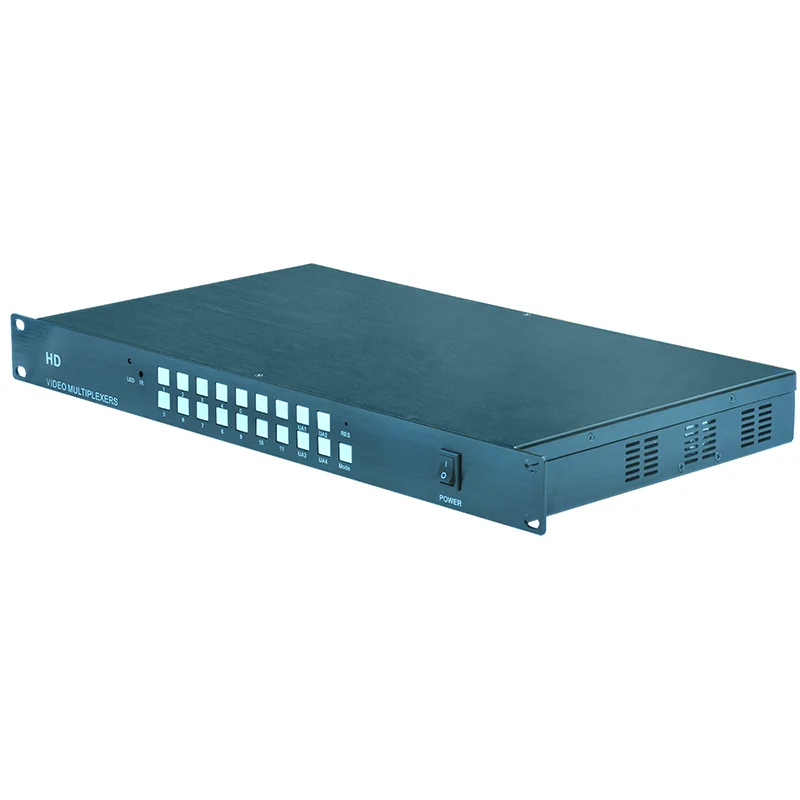

1080P/4K lcd video wall controller Multi screen processing on one screen Video Multiplexers HDI Screen splitter
- Category: >>>
- Supplier: Beijing Guangyu Xingzhou Communication Technology Co. Ltd.
Share on (1600280761573):
Product Overview
Description
Products Description
Product Overview
IT is a high-performance UHD 4K quad video multiplexers. It supports four 4K signals to be displayed on the same 4K display unit at the same time. It also supports KVM keyboard mouse switching, audio switching and other functions, you can switch between picture mode and audio through keyboard hotkeys.

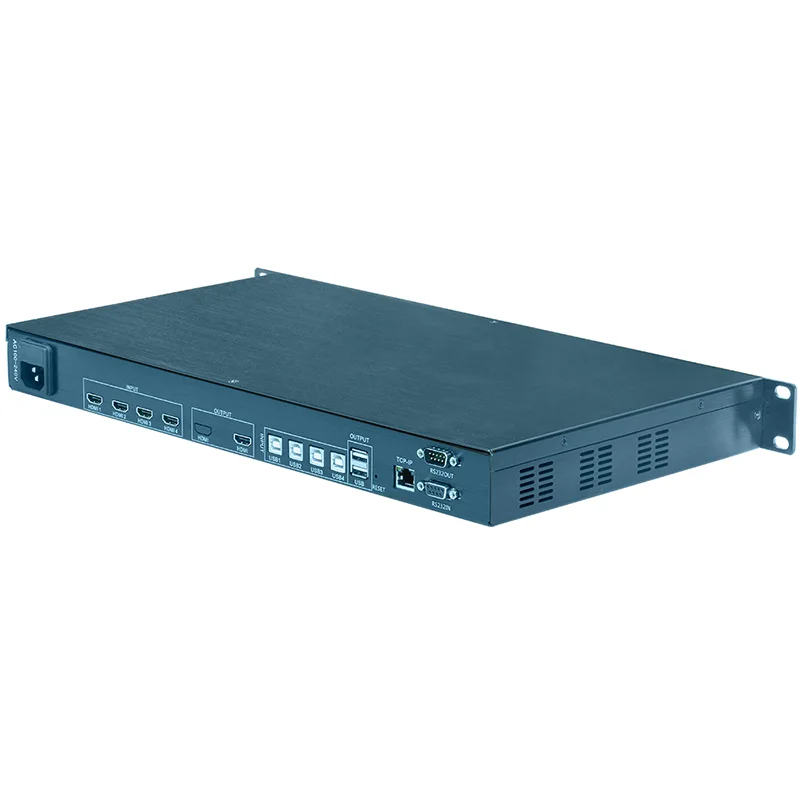

The product supports 4 HDMI 1.4 inputs with a maximum resolution of 3840x2160 @ 60HZ, or resolution lower than that; 1 HDMI 2.0 output with a maximum output resolution of 3840x2160 @ 60HZ. Supports 4 USB inputs to connect the computer and 2 USB outputs to connect the mouse and keyboard.
IT UHD video multiplexers is standard product, and is widely used in video conferencing, exhibitions etc., where multiple UHD signals need to be displayed in a single unit simultaneously.
IT is a high-performance UHD 4K quad video multiplexers. It supports four 4K signals to be displayed on the same 4K display unit at the same time. It also supports KVM keyboard mouse switching, audio switching and other functions, you can switch between picture mode and audio through keyboard hotkeys.
The product supports 4 HDMI 1.4 inputs with a maximum resolution of 3840x2160 @ 60HZ, or resolution lower than that; 1 HDMI 2.0 output with a maximum output resolution of 3840x2160 @ 60HZ. Supports 4 USB inputs to connect the computer and 2 USB outputs to connect the mouse and keyboard.
IT UHD video multiplexers is standard product, and is widely used in video conferencing, exhibitions etc., where multiple UHD signals need to be displayed in a single unit simultaneously.
Main Function
Four-screen split function, displaying 4 sources of signals on a single screen at the same time；
4 channels of HDMI1.4 signal input, input resolution up to 3840 * 2160 @ 30HZ, and compatible with resolution lower than that;
1 HDMI 2.0 output, the highest output resolution is 3840x2160 @ 60HZ, and the output resolution can be switched to 1920x1080 @ 60HZ, 2560x1440 @ 60HZ, 3840x2160 @ 30HZ, 1280x720 @ 60HZ;
Support KVM switch function, switch screen display mode through function by keyboard hotkey；

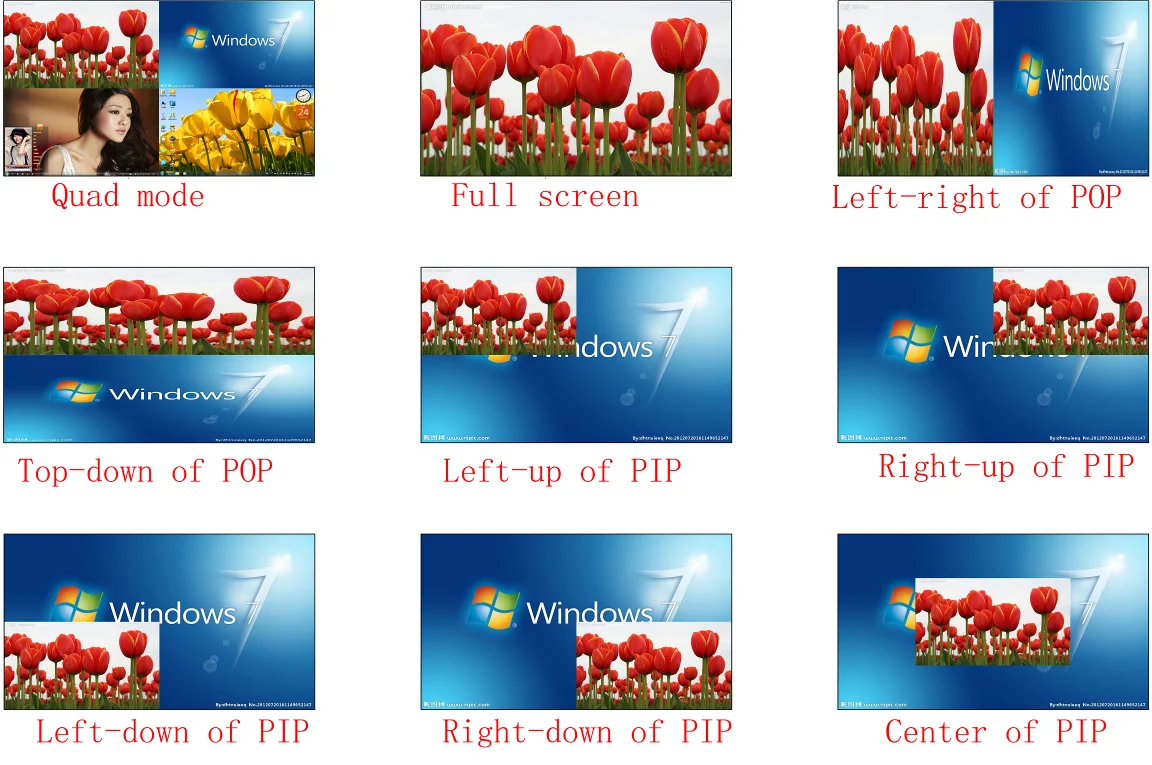

Support image fixed position、PIP、POP function
It also supports chassis keys, infrared remote control, and keyboard hotkey control functions;
Supports multiple modes such as non-deformation display, point-to-point display, etc.

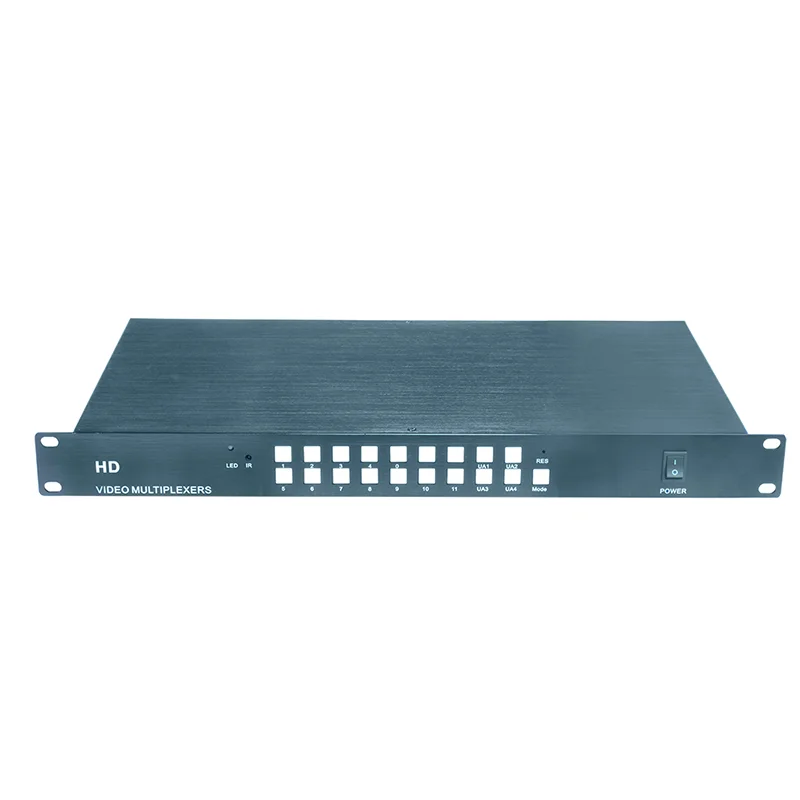

The standard 19-inch 1U chassis can be directly mounted on the standard cabinet;
Four-screen split function, displaying 4 sources of signals on a single screen at the same time；
4 channels of HDMI1.4 signal input, input resolution up to 3840 * 2160 @ 30HZ, and compatible with resolution lower than that;
1 HDMI 2.0 output, the highest output resolution is 3840x2160 @ 60HZ, and the output resolution can be switched to 1920x1080 @ 60HZ, 2560x1440 @ 60HZ, 3840x2160 @ 30HZ, 1280x720 @ 60HZ;
Support KVM switch function, switch screen display mode through function by keyboard hotkey；
Support image fixed position、PIP、POP function
It also supports chassis keys, infrared remote control, and keyboard hotkey control functions;
Supports multiple modes such as non-deformation display, point-to-point display, etc.
The standard 19-inch 1U chassis can be directly mounted on the standard cabinet;

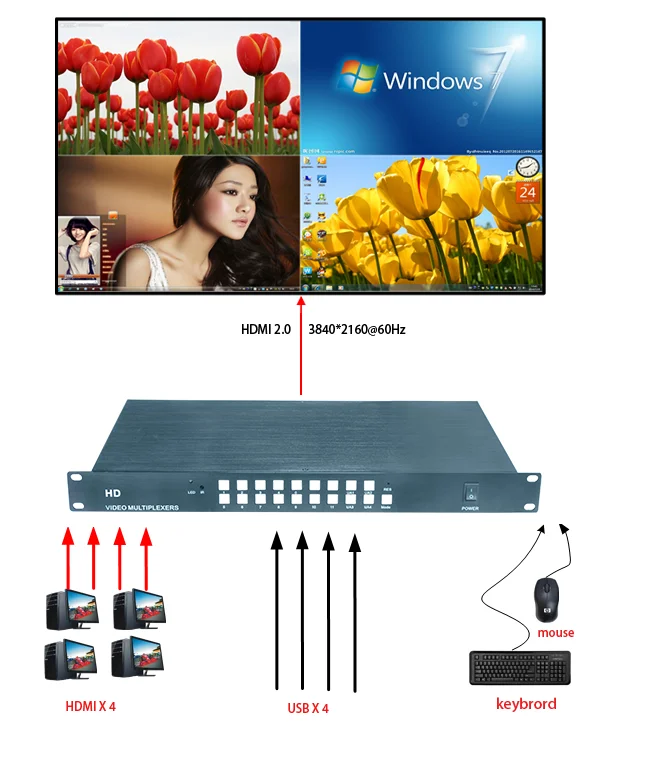

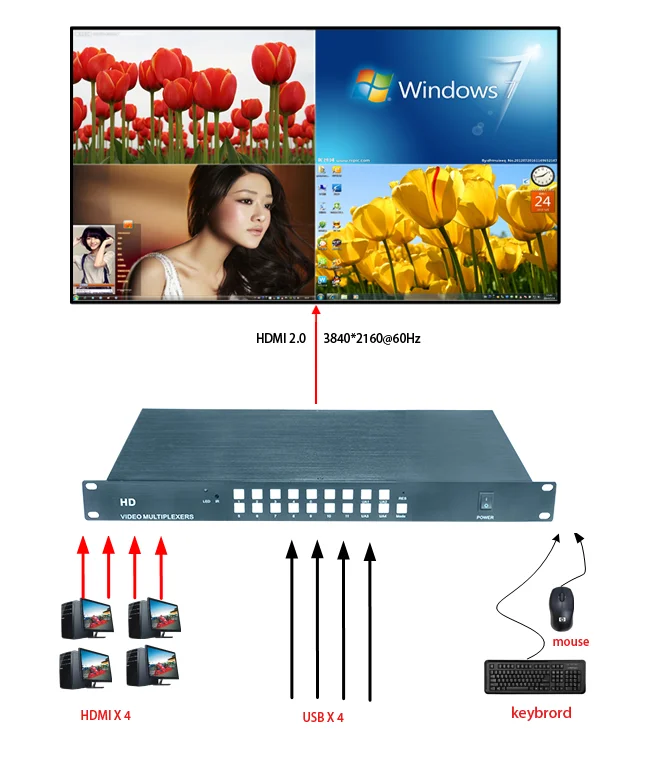

Connection diagram
Product Parameters
name | specification |
Input port | 4HDMI、4USB |
Resolution | HDMI support highest resolution of 3840*2160@30HZ and downward compatibility |
Color depth | 24bit,1677 ten thousand |
PIP、POP mode | Fixed model |
interface | 1 HDMI connect display device and support video、audio sync output; 2 USB 2.0,one connect mouse the other connect keyboard |
Resolution | Canchoose3840*2160/60HZ,3840*2160@30HZ,2560*1440@30HZ，1920*1080@60HZ,1280*720@60HZ |
Color depth | 24bit,1677 ten thousand |
Control mode | Keyboard hot keys, chassis keys, infrared remote control; |
voltage | Input voltage: 90～260V AC voltage |
dimension | 435mm(L)*45mm(H)*240mm(W) |
Weight | 1.45KG |
Power | No more than 15w |
