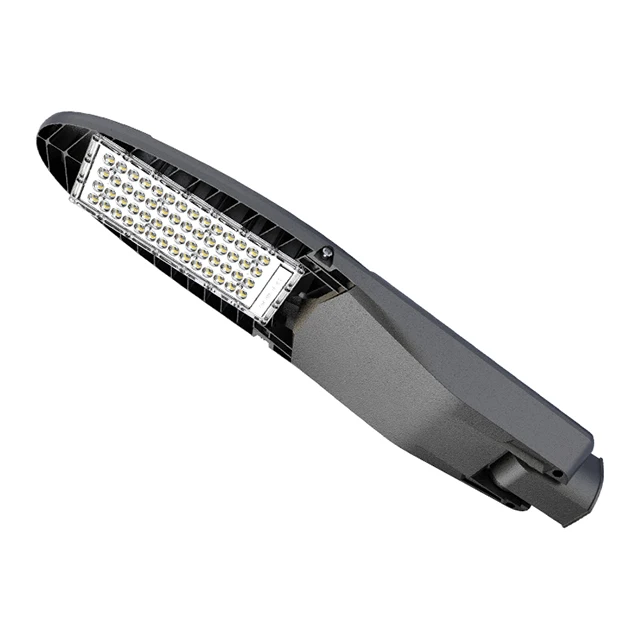

ENEC CB certified Leyond Petrel LED Street light 150W for 5 years warranty.
- Category: >>>
- Supplier: Shenzhen Leyond Lighting Co. Ltd.
Share on (1600280768585):
Product Overview
Description
Product Description
Product Drawing:

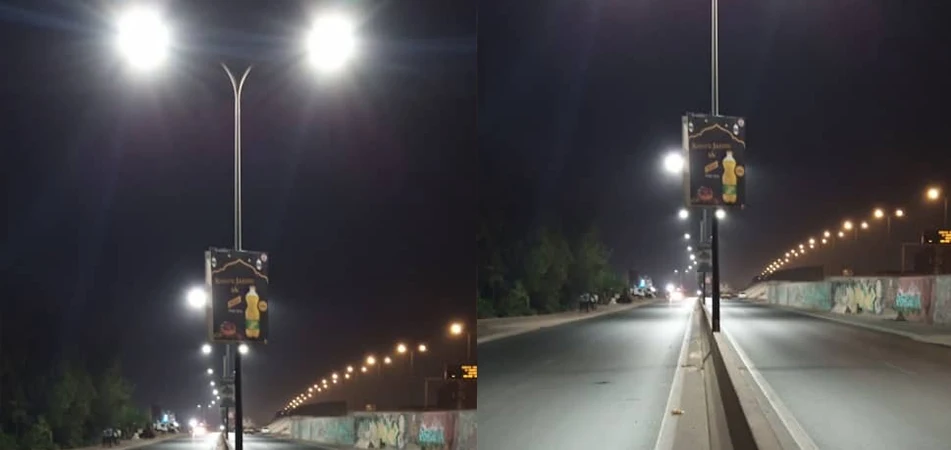

Project cases
Parts of the Installation cased of the Petrel Street light throughout the world
Installation Instructions
1. The ex-factory of the standard components of the LED street lights include a 3*1mm2 cable .The power supply
wire should suffer the voltage ≥300/500V,the copper cross-section ≥ 0.75 mm2 of 3 copper wires inside.The
installation and wiring connection should be carried out after turning the power off. Before wiring connection,the
operator must check the polarity of power supply to prevent the damage of controller fuse and lamp.The mode of
connection is shown by the picture as below:
wire should suffer the voltage ≥300/500V,the copper cross-section ≥ 0.75 mm2 of 3 copper wires inside.The
installation and wiring connection should be carried out after turning the power off. Before wiring connection,the
operator must check the polarity of power supply to prevent the damage of controller fuse and lamp.The mode of
connection is shown by the picture as below:
2. Insert the street light holder into the pole arm . The diameter of pole arm is 50 mm.The length of

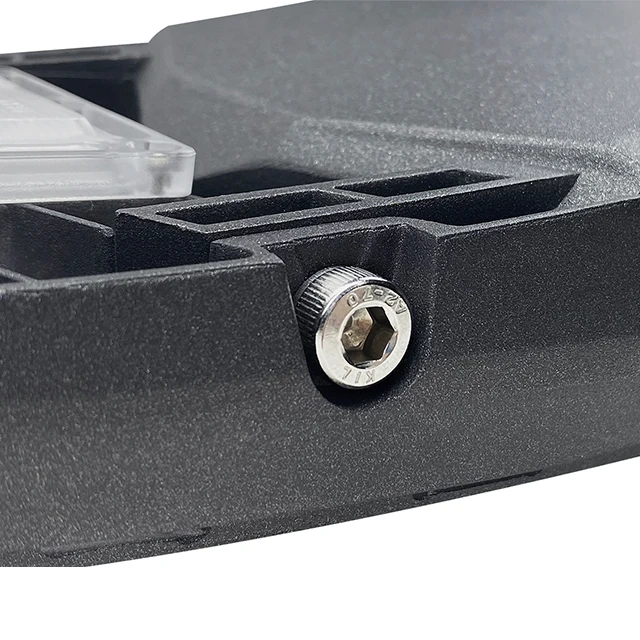

connective part is 60-65mm.Adjust lamp to desired level ,wrench the M8 secure screws until tightened.
connective part is 60-65mm.Adjust lamp to desired level ,wrench the M8 secure screws until tightened.
3. Switch on the power and make sure the light is on.Then the installation is done.
Detailed Images

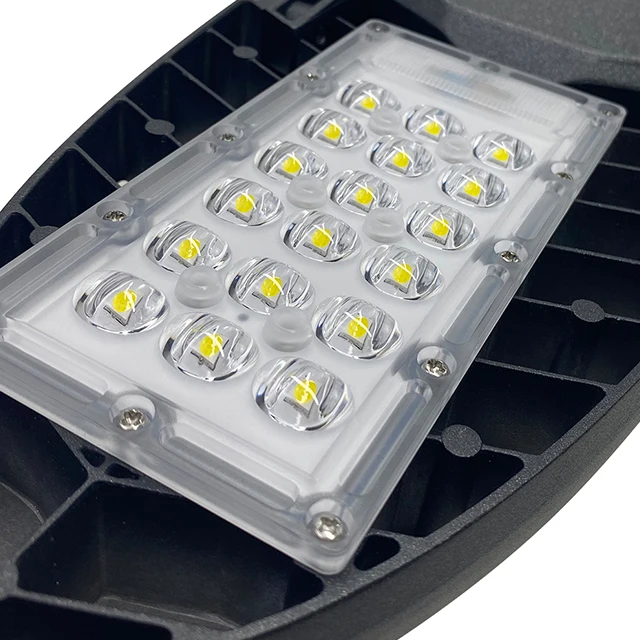

Adopting LUMILEDS 5050 led light sources and Tempered glass cover technology, high light transmittance up to 96%.

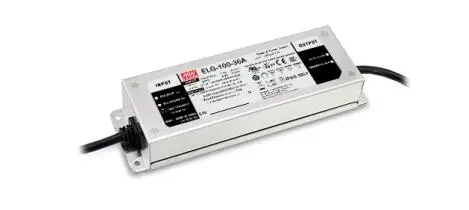

Very high quality MW power supply, input voltage AC 85-277V. The power efficiency is more than 90%, power factor greater than 0.98.
Absolutely unique DESIGN, nothing on the market like it. Make your lighting special and fantastic.
Connect to the pole when install the lamp
Lamp tail adopt 60mm diameter, fitness for all the market throughout the world.
Install angle adjustable from 90-30 degree.
AC electrical wiring length 90 mm for standard product, If special length sure its available, just negotiate more.

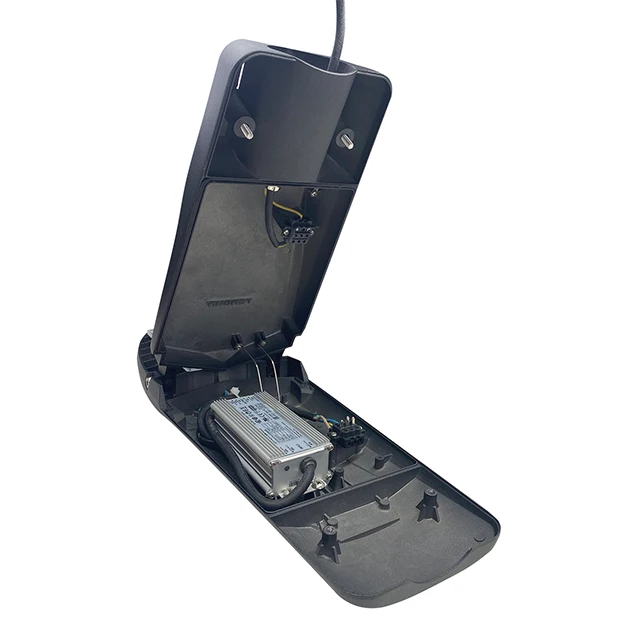

Back hood hole could be drilled, for extend function eg: NEMA 7 pin socket, daylight sensor socket.
NEMA 7 pin Socket
The most popular extend function of the smart dimming street light in this day and age.
Connect the 0-10v driver, Meanwell brand or Inventronics or Sosen optionable
By control the LORA gataway to control each LORA master on the NEMA socket.
The way of Smart lighting system
LORA Gateway dimming system diameter
In order to make it compatible with your market LORA gataway, we suggest you take the LORA knobs and LORA master from your local supplier.
Of course if you wanna take the system from us here is warmly welcomed. contact Pure for more details.
Optical daylight sensor 3 pin introduction
When the sunshine getting weak in dusk, when the ambient surround lux lower than 10 lux (or by customer special indirection), the light turn on automatically;
After a night's light up work, then the dawn comes, when the surround lux higher than 30 lux (or by customer special indirection), the light turn off automatically.
Product Presentation
Product Name | LED Street Light |
Material | Die Casting Aluminium |
Power | 20w - 30w - 40w- 50w- 60w - 70w - 80w - 90w - 100w - 120w 130w- 150w - 180w - 200w |
Voltage | AC Input 85-265V |
Type of Lamp-house | Die custing Aluminum housing |
Model | Small / Middle / Huge |
Color Tempreture | Pure White/Natural White/Warm white: |
Product weight & package info & installation tips
Power | Lamp module | lamp weight | lamp tail diameter | wire length | Install height |
50W | PCB + lens | 4.9 KG | 60mm | 60mm | 4-8m |
100W | PCB + lens | 5.9 KG | 60mm | 60mm | 6-10m |
150W | PCB + lens | 6.3 KG | 60mm | 60mm | 8-12m |
Product packaging
Name | Size | Quantity | N.G. | G.W. |
Inner box | L847*W242*H154mm (L33.35*W9.53*H6.06inch) | 1pcs | 4.8Kg | 5.6Kg |
Outer box | L865*W254*H332mm L34.06*W10.0*H13.07inch | 2pcs | 9.6Kg | 11.9Kg |
Certificate
All the LED street lights has passed Tuv CB CE RoHS GS SAA certificate.
Whilst we got bellow certificates & test reports if you need:
- IEC
- LM-79
- LM-80
- Salt Spray
- CIE-140-2000 (Dialux simulation)
- ISO
- IP66
- IK10

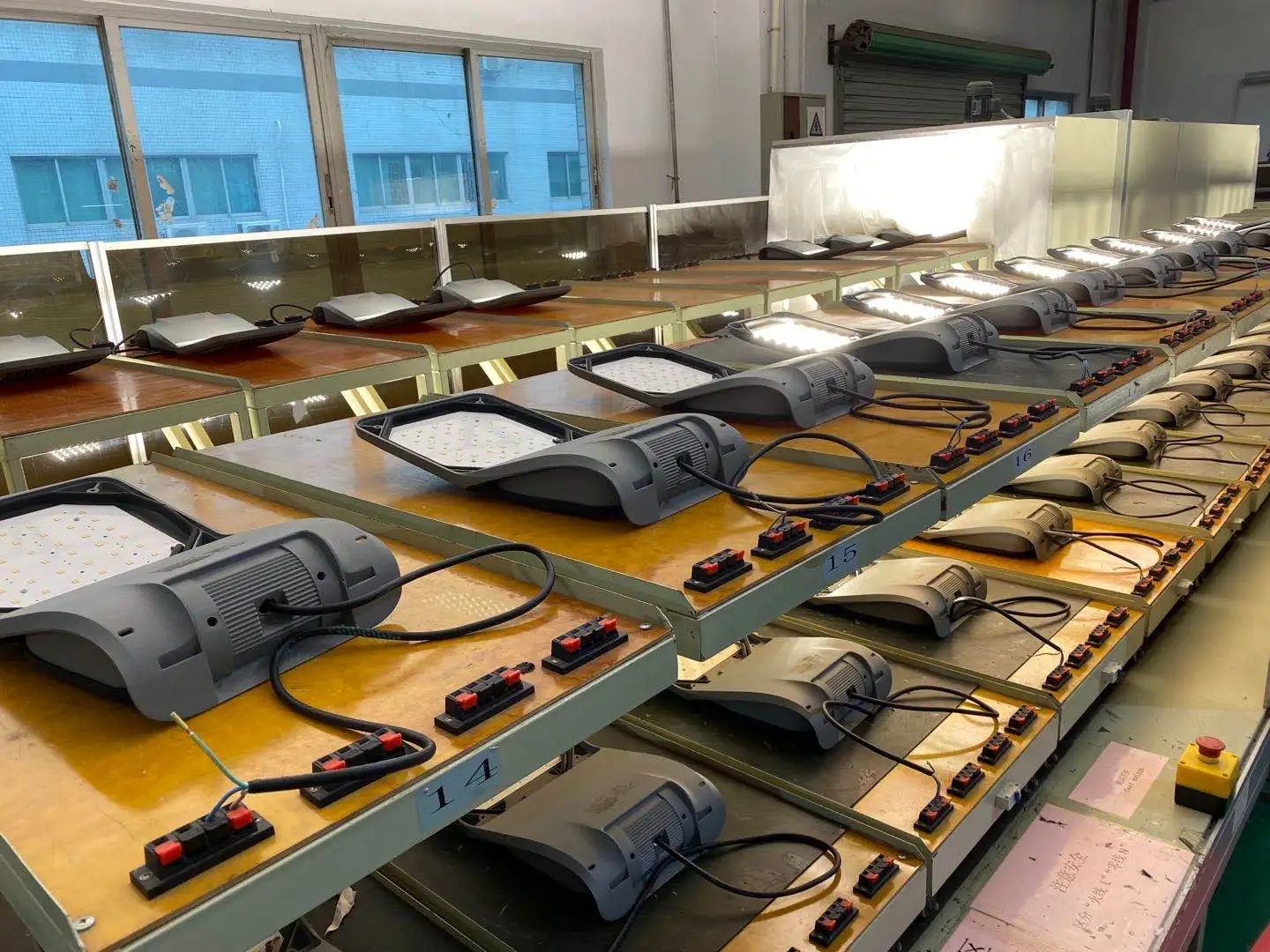

Company Introduction
Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005 which is the wholly-owned subsidiary of LiYang Electronic(Hongkong) Limited. We are High-Tech enterprise who concentrate and specialize in developing and producing Eco-friendly high power LED Lightings.
LEYOND is the Top 3 LED street light exporter from China,Our major products include Led Street lights, Led flood
light,Stadium&Large Area Lighting,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.
light,Stadium&Large Area Lighting,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.
Our products are exported to Europe, Americas, Africa and other Asian countries with ROHS,CE and CB international standard. Also we have flexible and timely after-sales services. We offer high quality products and sustainable service to our customers, establishing long-term cooperative relationship with them.
Feeling the charm of light, to find the value of the light. We carry out enterprise culture of the “To customer demand as the
guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline,
perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting
supplier” and to“ build Leyond brand”.
guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline,
perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting
supplier” and to“ build Leyond brand”.
Packing&Shipping
FAQ
- What about the lead time?
A:Sample needs 7 days, mass production time needs 1-2 weeks for order quantity more than
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
- How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
