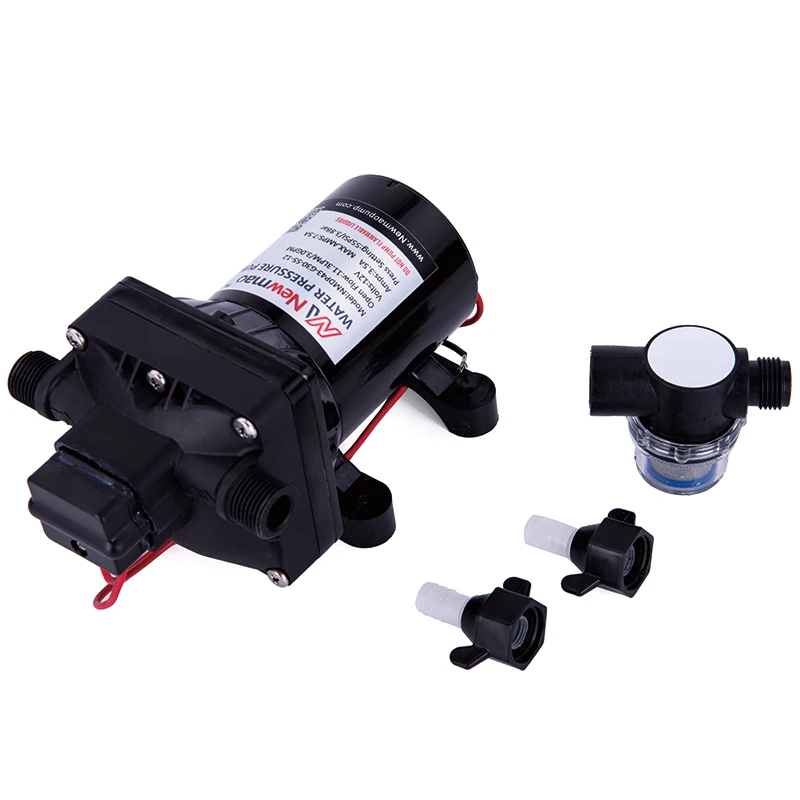

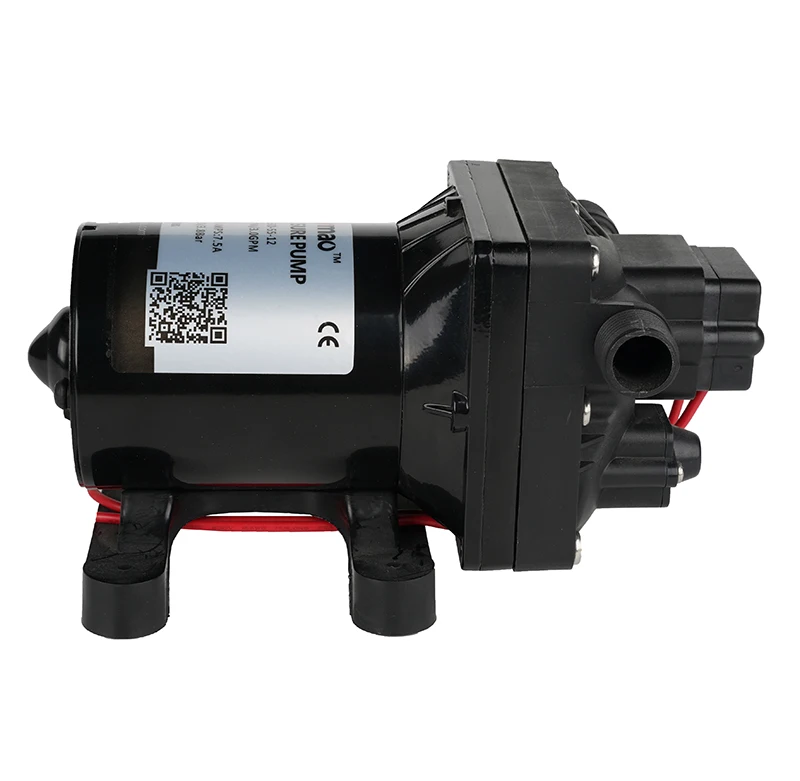

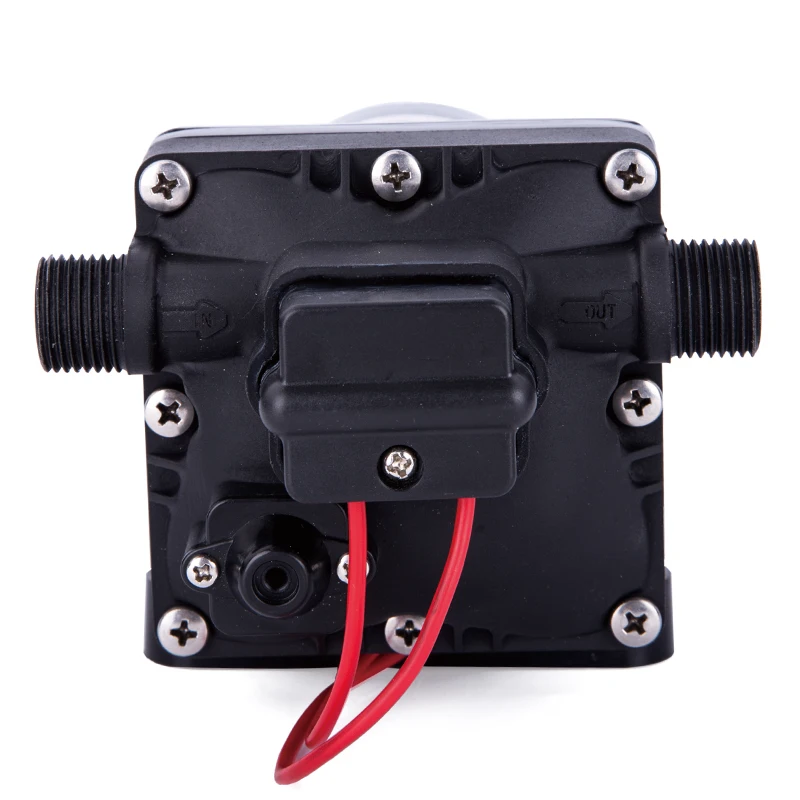

Newmao 55psi 3gpm caravan water pump with diaphragm for fresh water delivery in outdoor RV

Model

Voltage

Open Flow
(GPM/LPM)

Control Type

Max Draw

Shut-off Pressure
(PSI/BAR)

Valves

Diaphragm

Ports

Wire Connections

NMDP42-G30-55-12

12V

3.0 / 11.3

switch & By pass

7.5 A

55 / 3.8

EPDM

Santoprene

1/2"-14 MNPT

2-Pin/Leads

NMDP42-G30-55-24

24V

3.0 / 11.3

switch & By pass

4.0 A

55 / 3.8

EPDM

Santoprene

1/2"-14 MNPT

2-Pin/Leads

NMDP42-G40-55-12

12V

4.0 / 15.0

switch & By pass

10.0A

55 / 3.8

EPDM

Santoprene

1/2"-14 MNPT

2-Pin/Leads

NMDP42-G40-55-24

24V

4.0 / 15.0

switch & By pass

6.0 A

55 / 3.8

EPDM

Santoprene

1/2"-14 MNPT

2-Pin/Leads

NMDP42-G50-55-12

12V

5.0 / 18.9

switch & By pass

15.0A

55 / 3.8

EPDM

Santoprene

1/2"-14 MNPT

2-Pin/Leads

NMDP42-G50-55-24

24V

5.0 / 18.9

switch & By pass

7.0 A

55 / 3.8

EPDM

Santoprene

1/2"-14 MNPT

2-Pin/Leads
