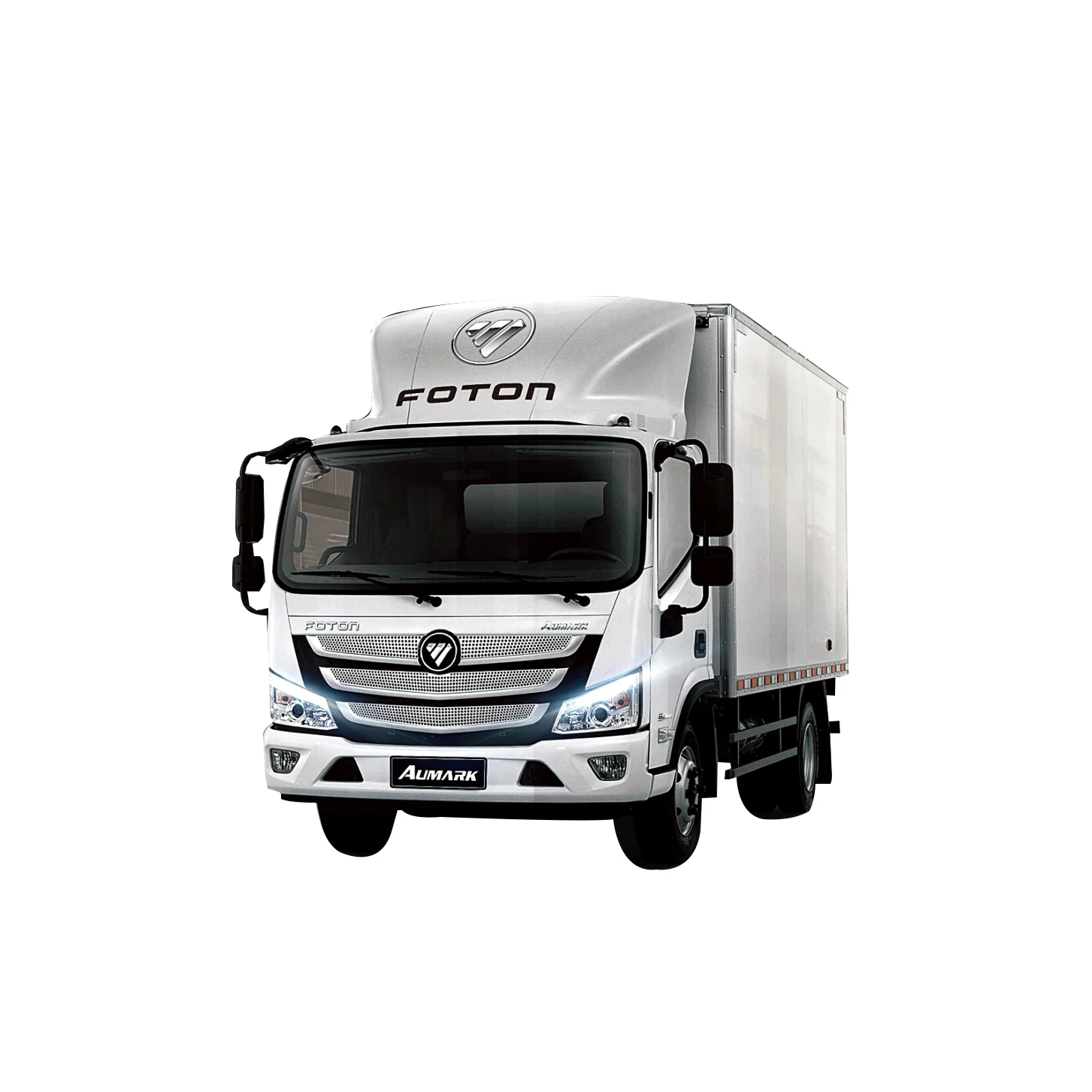

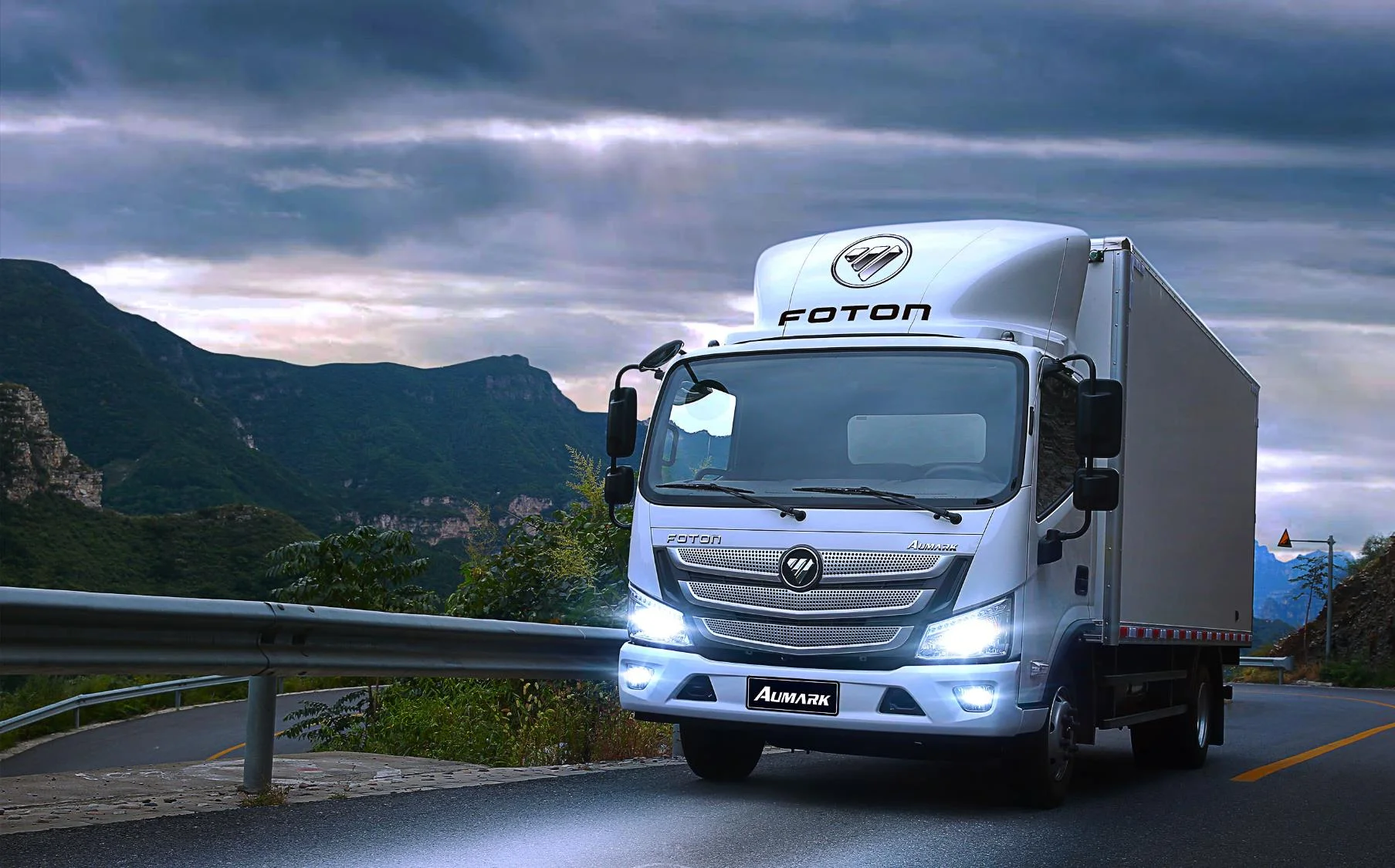

Foton 4x2 6 Ton Freezer Truck Cooling Box Van Cold Transportation Refrigerator Truck

Model

BJ1108VEJEA-FA

Drive style

4×2

Steering wheel position

Left hand

Whole vehicle overall dimension (L x W x H) (mm)

7100*2300*3375mm

Whole vehicle gross weight ( kg)

5430kg

Vehicle design parameters

Chassis dimension(mm)

6885×2195×2335

Wheelbase(mm)

3800

Wheelbase Front / Rear (mm)

1715/1680

Maximum speed (km/h)

110

Kerb weight (kg)

3430

Maximum total design mass (kg)

10000

Carrying number

3

Basic parameters

Engine

Model

ISF3.8s5154

Fuel

Diesel

Power (kw/PS/rpm)

115

Max torque (Nm/rpm)

500

Displacement (ML)

3760

Emission

Euro V

Clutch

Clutch Type

Single piece, dry type, diaphragm spring

Operating style

Pneumatic assist-hydraulic operation

Gearbox

Model

6s500

Operating style

Manual

Front axle

Type

Non-breaking I-beam

Rated load (T)

3.6

Rear axle

Type

Stamping and welding integral axle housing

Reduction ratio

4.778

Rated load (T)

6.5

Suspension

Front suspension

Type

Non-independent suspension of  leaf spring

leaf spring number

3

Rear suspension

Type

Non-independent suspension of  leaf spring

leaf spring number

4+3

Steering Gear

Steering Gear Type

Recirculating ball

Brake

Front brake

Disc pneumatic brake

Rear brake

Drum hydraulic brake

Parking brake

Air brake

Auxiliary brake

Exhaust brake

Tires and rims

Tubeless tire (metric) 235/75 R17.5

Main basic configuration

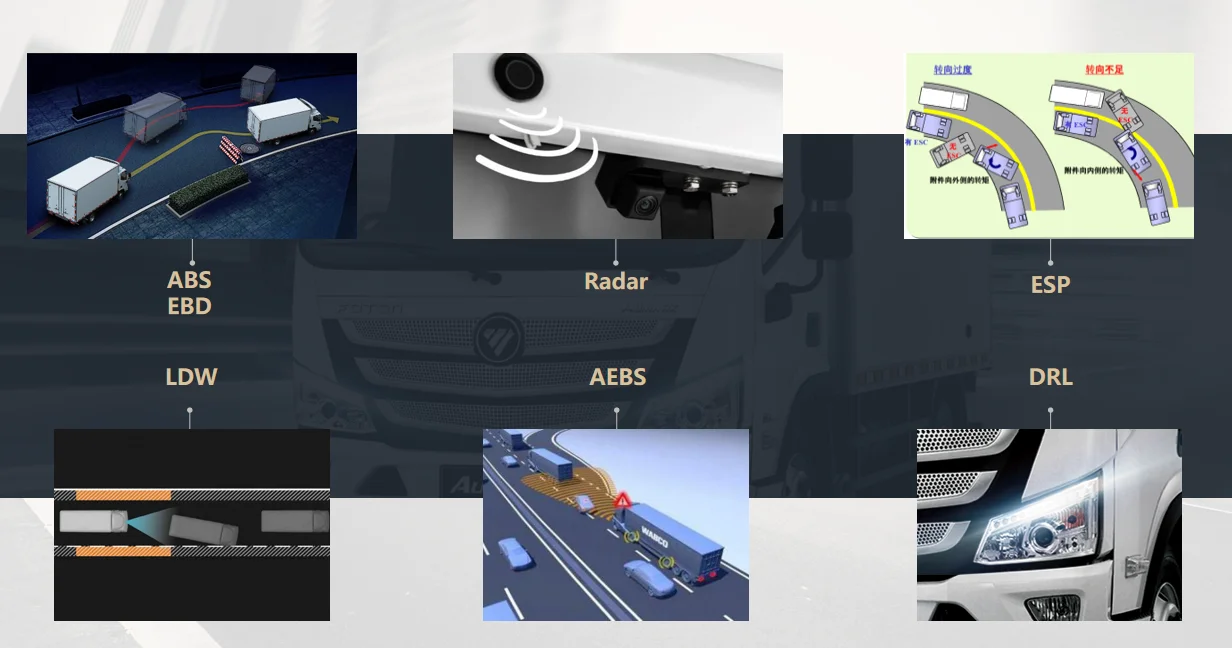

Basic speed ratio of front and rear drum (self-adjusting arm)/manual flip/no air deflector/reversing radar/manual air-conditioning/manual doors and windows and rearview mirror/no driving recorder/no stabilizer bar/MP3/ABS/power steering/ Fabric luxury seats

Specific parameters

Internal dimensions (mm)

5100*2000*2000

Volume (m3)

20.4

Material

Inside and outside: glass steel plate, sandwich: polyurethane plate (≥40kg/m3)

Board thickness

Front panel, rear panel, left and right side panels: above 80mm, top panel and bottom panel: above 100mm

Independent chiller

American Cold King/SV400

lowest temperature

-18℃
