Product Overview
Description

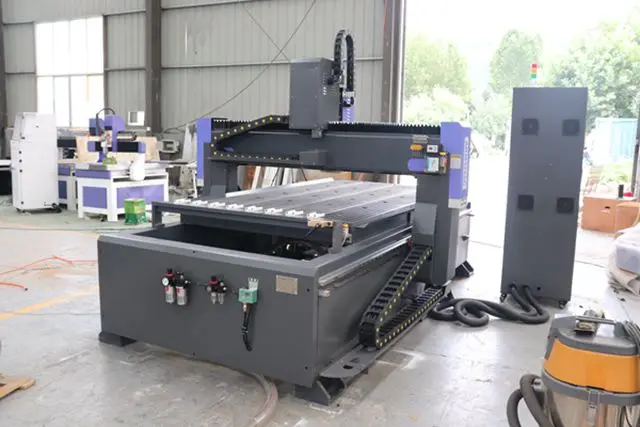

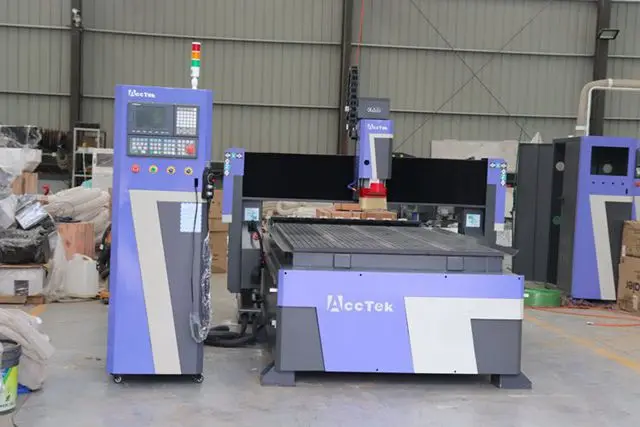

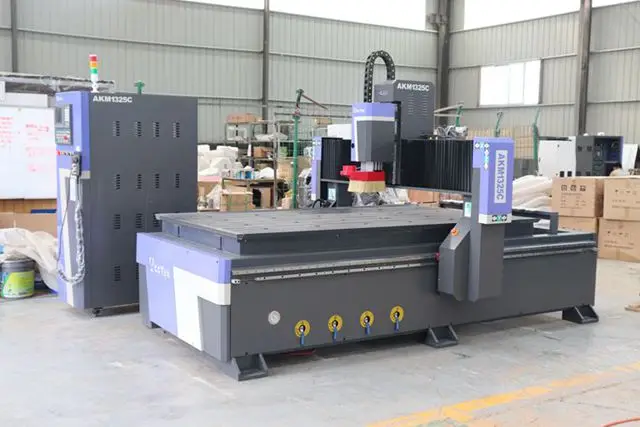

1325 3 Axis Carving 3D Atc CNC Router for Cabinet Kitchen Making
What Is ATC CNC Router
ATC CNC router is a type of smart CNC machine kit with automatic tool changer spindle for woodworking, stone carving, foam cutting, mold making, and metal fabrication, the spindle usually carries tools magazine of 6 cutters or 8 cutters or 10 cutters or 12 cutters. The CNC tools can automatically change according to the working requirements when the machine works, no need of manual operation, which will improve the working efficiency greatly. There are two types CNC ATC kits, which include linear ATC CNC routers and Disc ATC CNC routers.
ATC CNC router is a type of smart CNC machine kit with automatic tool changer spindle for woodworking, stone carving, foam cutting, mold making, and metal fabrication, the spindle usually carries tools magazine of 6 cutters or 8 cutters or 10 cutters or 12 cutters. The CNC tools can automatically change according to the working requirements when the machine works, no need of manual operation, which will improve the working efficiency greatly. There are two types CNC ATC kits, which include linear ATC CNC routers and Disc ATC CNC routers.
Product Description
Features & Advantages
The high-power automatic tool-changing spindle is adopted, with good starting performance and large torque, which can give full play to the advantages of the machine's high speed and higher efficiency. It adopts high-torque servo motor made in Japan, which has the advantages of low noise, high speed and high positioning accuracy. Equipped with a unique tool change device, you can exchange the required tools at will, and the special tool setting table can accurately compensate the tool length error. The tool change time only takes a few seconds. The standard tool magazine comes with 8 tools, and a larger capacity tool magazine can be customized.
Specification
NO | Item | Value |
1 | X,Y,Z Working Area | 1300x2500x250mm |
2 | Spindle Speed | 1rpm - 18000rpm |
3 | X,Y,Z Traveling Positioning Accuracy | 0.01/300mm |
4 | X,Y,Z Repositioning Accuracy | 0.03mm/300mm |
5 | Table Surface | T-slot and vacuum working table |
6 | Frame | Heavy Steel Tube Structure |
7 | X,Y Structure | Rack and pinion Drive,Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle)5.8KW |
10 | Max. Rapid travel Rate | 50000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 9.0KW air cooling spindle ,ATC spindle |
13 | Drive Motors | Drive Motors |
14 | Working Voltage | AC380V/50/60HZ,3PH(Option:220V) |
15 | Command Language | G Code |
16 | Operation System | Taiwan Syntec control system |
17 | Computer Interface | USB/ Ethernet |
18 | Flash Memory | 512M |
19 | Collet | ER32 |
20 | X,Y Resolution | <0.03mm |
21 | Software Conpatibility | Type3 / Artcam software |
22 | Running Environment Temperature | 0-45 Centigrade |
23 | Relative Humidity | 30%-75% |
24 | Packing Size | 3670x2270x2080mm |
25 | N.W. | 1300KG |
26 | G.W. | 1400KG |
More details
Syntec controller
The system stability is very good, powerful functions, the operating software is simple and easy to learn, the man-machine operation is friendly.
Professionally applied to high-end cnc router machines, the anti-interference ability and control accuracy of the control system are superior to other types.
The system stability is very good, powerful functions, the operating software is simple and easy to learn, the man-machine operation is friendly.
Professionally applied to high-end cnc router machines, the anti-interference ability and control accuracy of the control system are superior to other types.
Taiwan Delta servo motor
Faster speed with signal feedback. Low heat radiation.
Run smoothly at ultra-low speed. Reduce the vibration, avoid oscillation.
Efficient torque enhancement.
Faster speed with signal feedback. Low heat radiation.
Run smoothly at ultra-low speed. Reduce the vibration, avoid oscillation.
Efficient torque enhancement.
Auto tool magazine
8pcs linear type auto tool changers, ISO30.
Don’t need to change tools manually when machine works, which saves a lot of time and greatly improves the efficiency of material
processing.
It is very suitable for complex and large-scale engraving processing.
8pcs linear type auto tool changers, ISO30.
Don’t need to change tools manually when machine works, which saves a lot of time and greatly improves the efficiency of material
processing.
It is very suitable for complex and large-scale engraving processing.
9KW ATC air cooling spindle
9KW Chinese ATC air cooling spindle to ensure the machine can be vigorous cutting.
Smooth body, not easy to rust; powerful and longer lifetime. Independent research and development, rational design.
9KW Chinese ATC air cooling spindle to ensure the machine can be vigorous cutting.
Smooth body, not easy to rust; powerful and longer lifetime. Independent research and development, rational design.
HIWIN 25 Guide rails
Rail works with slider, drive the machine move, with good bearing capacity.
Rail works with slider, drive the machine move, with good bearing capacity.
5.5kw air vacuum pump
The air between the workpiece and the worktable surface is extracted to form a negative pressure, so as to achieve the purpose of
fixing on the worktable.
The vacuum adsorption technology is applied to the woodworking cnc router to greatly improve the work efficiency.
The air between the workpiece and the worktable surface is extracted to form a negative pressure, so as to achieve the purpose of
fixing on the worktable.
The vacuum adsorption technology is applied to the woodworking cnc router to greatly improve the work efficiency.
Samples
The automatic tool changer CNC router machine can be used in various industries, such as furniture and home improvement, wooden
crafts, cabinets, screens, advertising, musical instruments or precision instrument shell processing industries. And the materials that can be processed mainly include various non-metallic materials such as wood, glass, stone, plastic, acrylic, and insulating materials.
1. Woodworking: 3D wave board machining, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window making, shoe polishers, game machine cabinets and panels, computer tables and panel furniture making.
2. Advertising: Sign making, logo making, lettering, acrylic cutting, blister molding, and decorations.
3. Mold Making: It can make metal molds such as copper, aluminum, iron and more, as well as non-metal molds such as wood, stone, plastic, PVC, and more.
4. Other industries: It can make all kinds of shadow sculptures and relief sculptures, which are widely used in the craft and gift industry.
crafts, cabinets, screens, advertising, musical instruments or precision instrument shell processing industries. And the materials that can be processed mainly include various non-metallic materials such as wood, glass, stone, plastic, acrylic, and insulating materials.
1. Woodworking: 3D wave board machining, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window making, shoe polishers, game machine cabinets and panels, computer tables and panel furniture making.
2. Advertising: Sign making, logo making, lettering, acrylic cutting, blister molding, and decorations.
3. Mold Making: It can make metal molds such as copper, aluminum, iron and more, as well as non-metal molds such as wood, stone, plastic, PVC, and more.
4. Other industries: It can make all kinds of shadow sculptures and relief sculptures, which are widely used in the craft and gift industry.

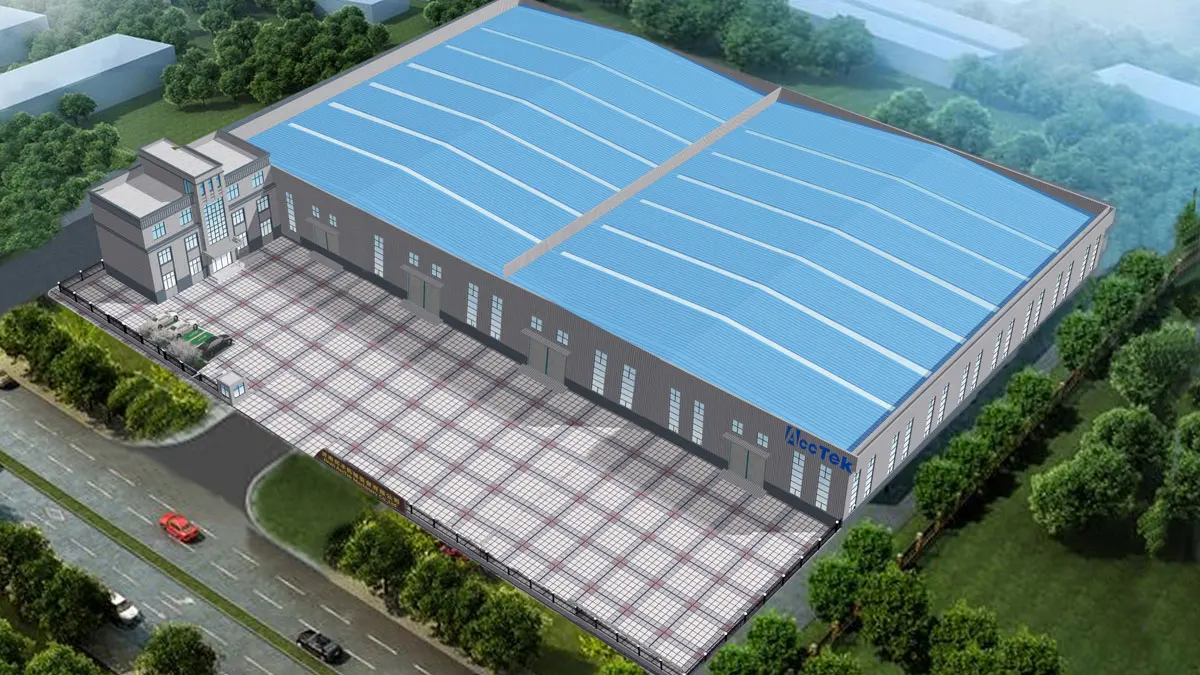

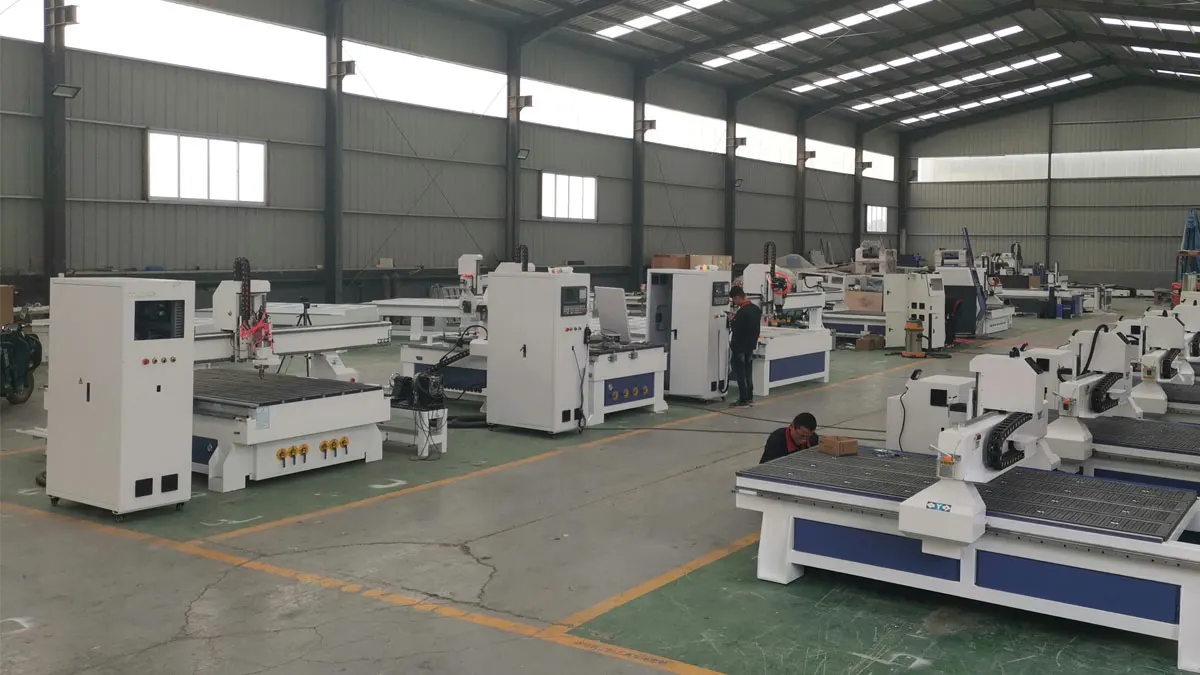

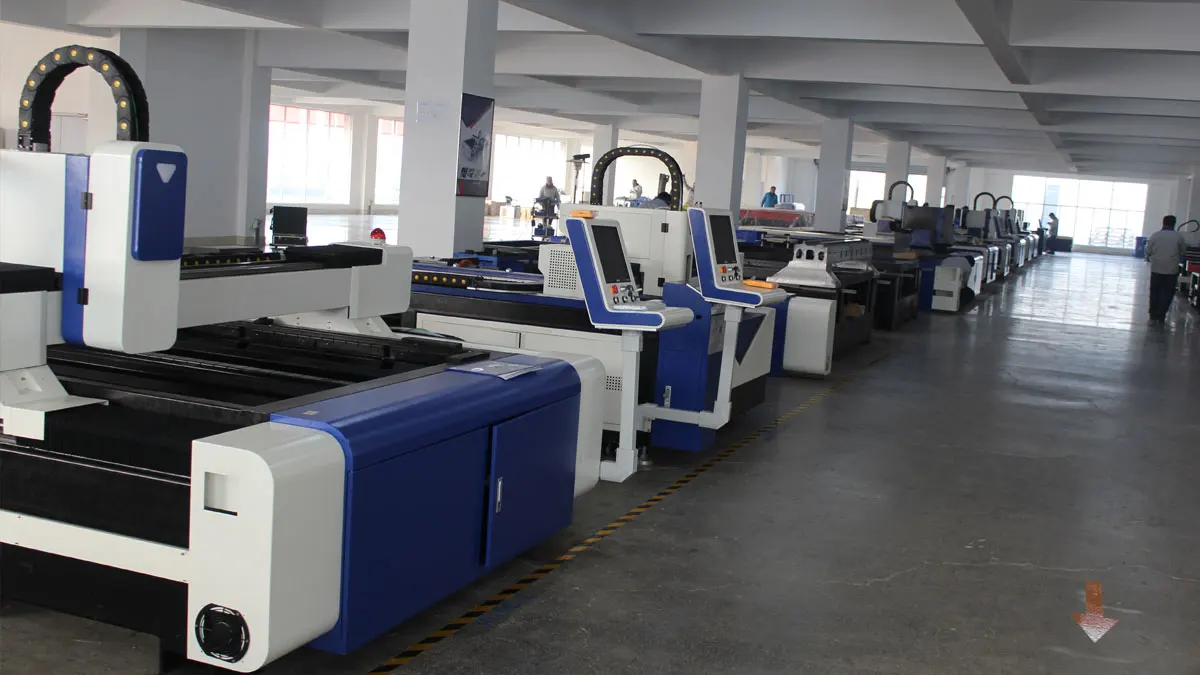

Company Profile
AccTek specializes in manufacturing CNC Router and Laser machines.Since 2005 we have been based in the Industrial Zone of Jinan City, Shandong Province south of Beijing. Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control. These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work, aluminum fabrication, boat building, shop fitting, mold making, to name a few. Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence. We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit. "Our business is to improve your business"
FAQ
1. who are we?
We are based in Shandong, China, start from 2020,sell to Domestic Market(40.00%),Northern Europe(9.00%),South America(8.00%),Eastern Europe(8.00%),North America(5.00%),Western Europe(5.00%),Central America(5.00%),Southern Europe(5.00%),Mid East(4.00%),South Asia(3.00%),Oceania(3.00%),Eastern Asia(2.00%),Africa(2.00%),Southeast Asia(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Router,Laser Cutting Machine,Laser Marking Machine,fiber laser cutting machine,co2 laser cutter
4. why should you buy from us not from other suppliers?
AccTek specializes in manufacturing CNC Router and Laser machines.Since 2005. Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,French,Russian
We are based in Shandong, China, start from 2020,sell to Domestic Market(40.00%),Northern Europe(9.00%),South America(8.00%),Eastern Europe(8.00%),North America(5.00%),Western Europe(5.00%),Central America(5.00%),Southern Europe(5.00%),Mid East(4.00%),South Asia(3.00%),Oceania(3.00%),Eastern Asia(2.00%),Africa(2.00%),Southeast Asia(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Router,Laser Cutting Machine,Laser Marking Machine,fiber laser cutting machine,co2 laser cutter
4. why should you buy from us not from other suppliers?
AccTek specializes in manufacturing CNC Router and Laser machines.Since 2005. Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,French,Russian
