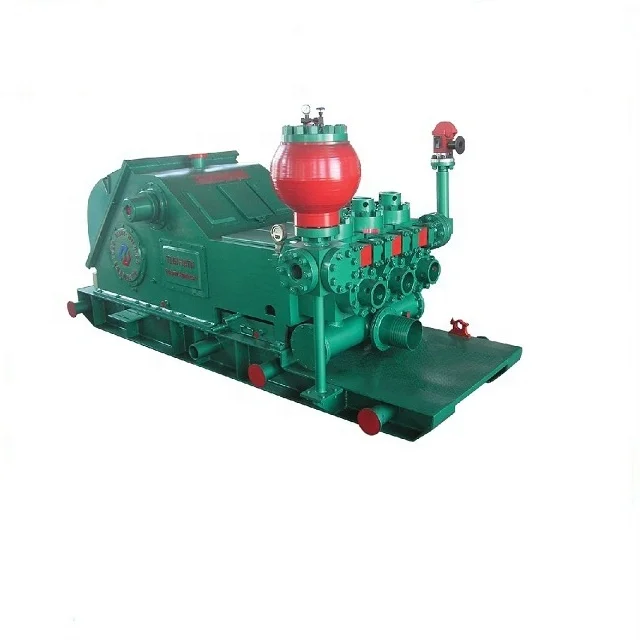

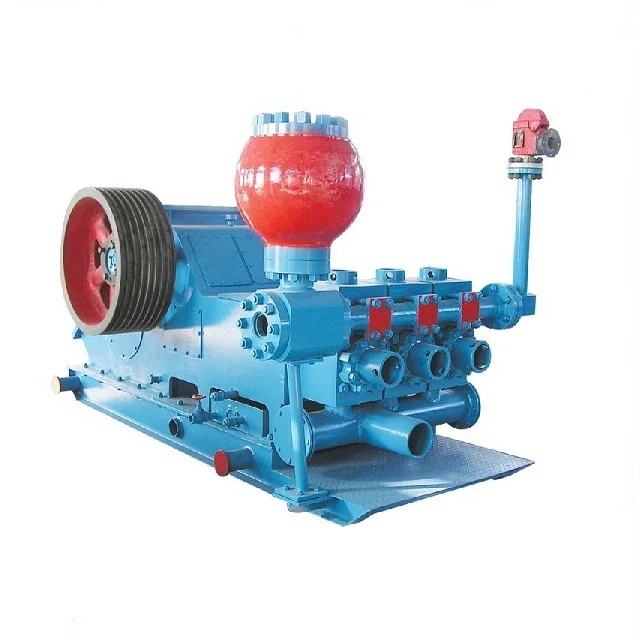

API 7K oil well drilling equipment F 1600 mud pump for sale
- Category: >>>
- Supplier: Shandong Jintan Machinery Equipment Co. Ltd.
Share on (1600281079994):
Product Overview
Description
Product Description

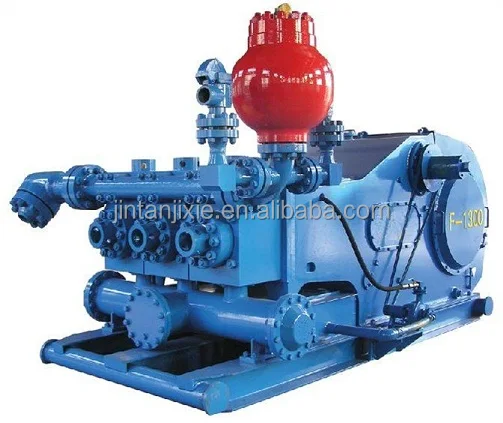

Drilling mud pump
The drilling mud pump is in the process of drilling with high pressure to the bottom of the transport of high viscosity, high
proportion of drilling fluid and low sand content, to cool the drill bit, bottom hole, broke rock, carrying out cuttings returning
from the bottom, it is one of the most important equipment of oil drilling process. The design and manufacture of the drilling mud pump meets the requirements of API Spec 7K specification.
The drilling mud pump is mostly horizontal type three cylinder single acting reciprocating piston pump. It consists of power end assembly, fluid end assembly and lubrication system and cooling system. The crankshaft of the pump is driven by a power machine to rotate, and the power is transferred from the crankshaft to the crosshead to move the piston in reciprocating motion in the pump cylinder. Under the alternating action of suction and discharge valve, the purpose of pressing and circulating mud fluid is realized.
The drilling mud pump is in the process of drilling with high pressure to the bottom of the transport of high viscosity, high
proportion of drilling fluid and low sand content, to cool the drill bit, bottom hole, broke rock, carrying out cuttings returning
from the bottom, it is one of the most important equipment of oil drilling process. The design and manufacture of the drilling mud pump meets the requirements of API Spec 7K specification.
The drilling mud pump is mostly horizontal type three cylinder single acting reciprocating piston pump. It consists of power end assembly, fluid end assembly and lubrication system and cooling system. The crankshaft of the pump is driven by a power machine to rotate, and the power is transferred from the crankshaft to the crosshead to move the piston in reciprocating motion in the pump cylinder. Under the alternating action of suction and discharge valve, the purpose of pressing and circulating mud fluid is realized.
Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 |
Type | Triplex single acting | Triplex single acting | Triplex single acting | Triplex single acting | Triplex single acting |
Rated Power | 373KW/500HP | 597KW/800HP | 746KW/1000HP | 969KW/1300HP | 1193KW/1600HP |
Rated Strokes | 165 SPM | 150 SPM | 140 SPM | 120 SPM | 120 SPM |
Stroke(mm/in) | 190.5/7 1/2" | 228.6/9" | 254/10" | 305/12" | 305/12" |
(mm/in) Max.Liner Dia | 170/6 3/4" | 170/6 3/4" | 170/6 3/4" | 180/7" | 180/7" |
Gear Type | Herringbone | Herringbone | Herringbone | Herringbone | Herringbone |
Valve Pot | API-5# | API-6# | API-6# | API-7# | API-7# |
Gear Ratio | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 | 4.206:1 |
Suction Inlet(mm/in) | 203/8" | 254/10" | 305/12" | 305/12" | 305/12" |
Discharge Inlet(in) | 4″Flange 5000 psi | 5″Flange 5000 psi | 5″Flange 5000 psi | 5″Flange 5000 psi | 5″Flange 5000 psi |
Max. Pressure | 27.2Mpa | 35Mpa | 35Mpa | 35Mpa | 35Mpa |
3945 psi | 5000 psi | 5000 psi | 5000 psi | 5000 psi | |
Overall Size(mm/in) | 3658*2709*2231 144"*106"*88" | 3963*3025*2410 156"*119"*95" | 4267*3167*2580 168"*125"*102" | 4617*3260*2600 182"*128"*102" | 4615*3276*2688 182"*129"*106" |
Weight(kg) | 9770 | 14500 | 18790 | 24572 | 24791 |
