SINOHERO SE1200lite Ce Ecg Electrocardiograph 12 Leads 12 Channel Digital Portable Ecg Machine
- Category: >>>
- Supplier: Sinohero Changsha Meditech Co. Ltd.
Share on (1600281117639):
Product Overview
Description
Product Description

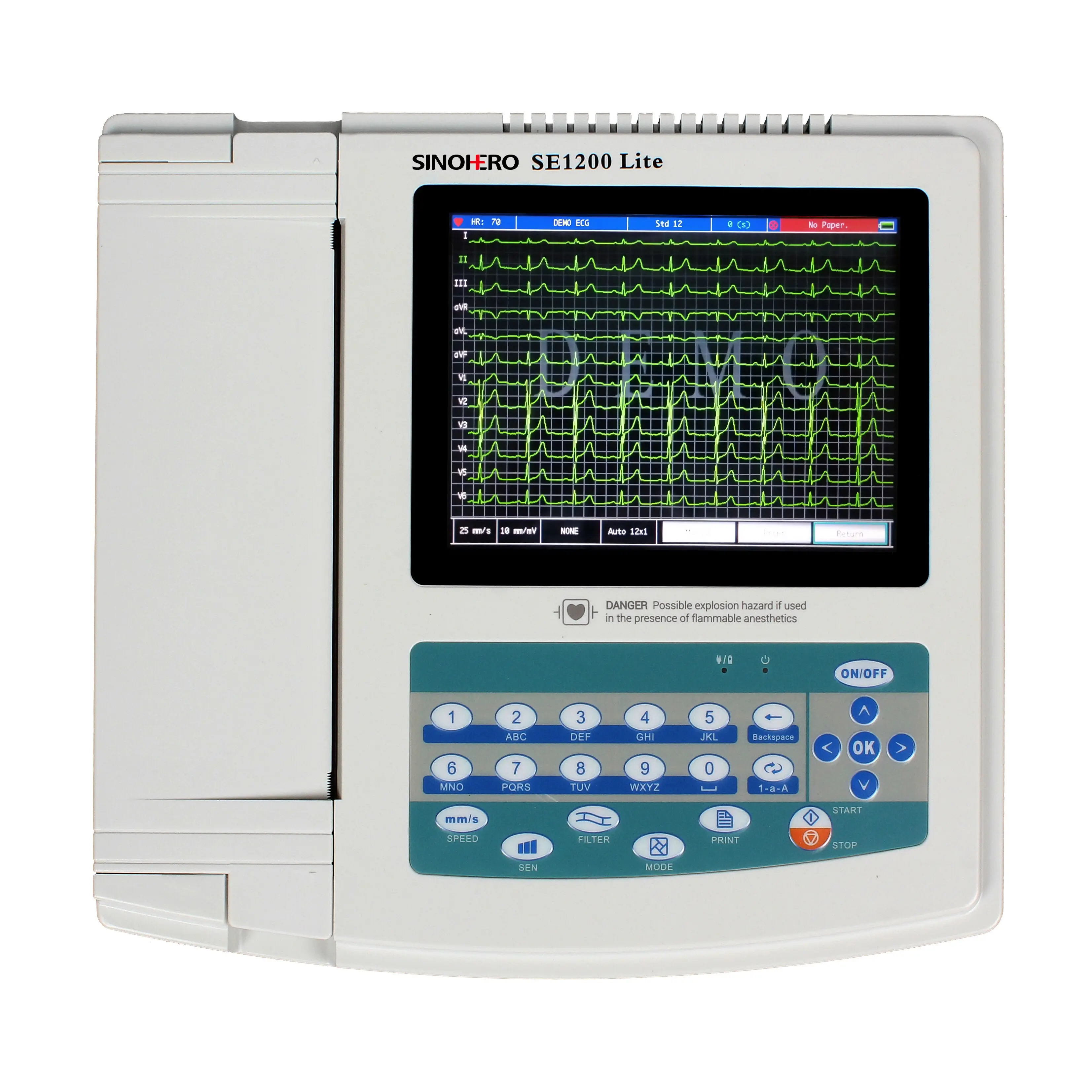

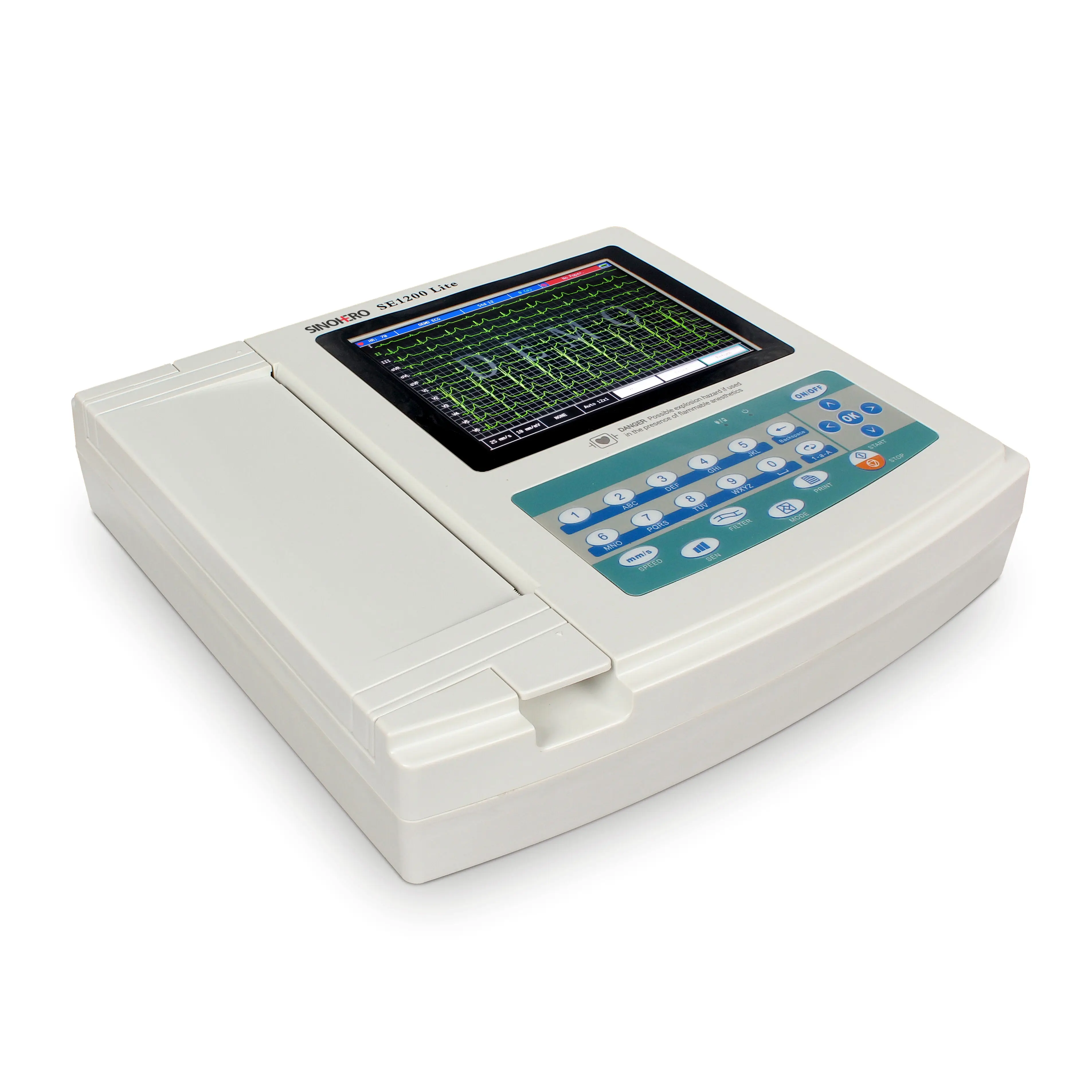

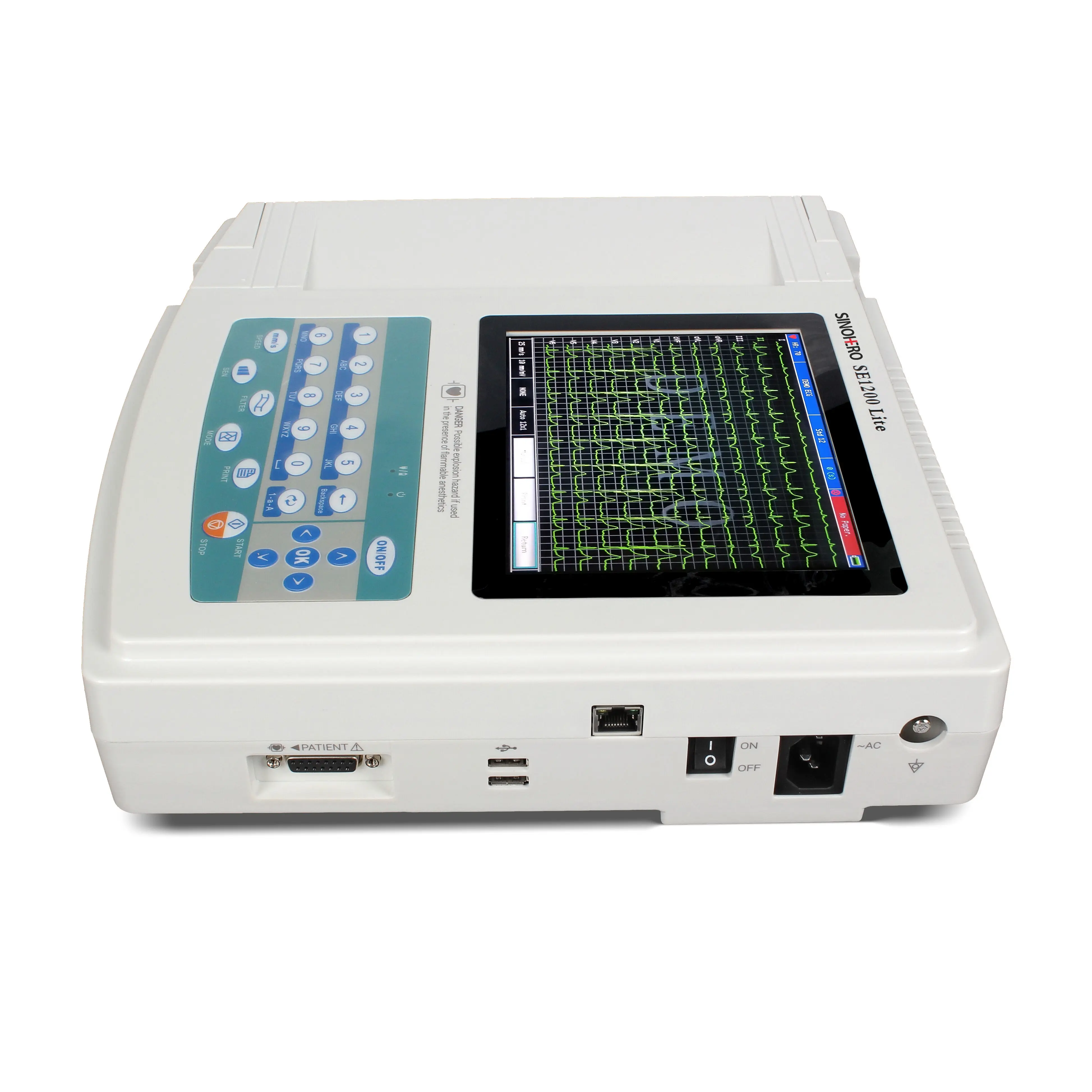

SINOHERO SE1200lite CE digital electrocardiograph automatic 12 lead ekg portable 12 channels ecg machine
12-Channel ECG Machine
8.4” color TFT full touch screen
Anti-defibrillation and Pacemaker detection
Auto measurement and auto diagnosis fuction
12-lead simultaneous acquisition,amplification and recording
Various display and print modes
Lead statue map to show ECG leads conductivity
Features:
- 8.4” color TFT full-touch screen
- Anti-defibrillation and pacemaker detection
- Auto measurement and auto diagnosis function
- 12-lead simultaneous acquisition, amplification and recording
- Various display and print modes
- Lead state map to show ECG leads conductivity
- Sketch of display and closing ECG leads, indication of leads off
Size and Weight
-Size: 340mm(L)*320mm(W)*85mm(H)
-Weight: 3.2kg
Power supply
-DC and AC power supply
-Safety class: Category I, CF type
Display
-8.4〞 Color TFT High-resolution Full Touch Screen
-Resolution:800×600 pixels or higher
Battery
-Type: 3700mA Rechargeable Lithium battery
-Operating time under the normal use and full charge:≧120minutes
Lead: Standard 12 leads
Filter
-AC Filter:
-EMC Filter:
-Drift Filter:
-Digital Signal Processing
Patient leak current: <10µA
Enduring Polarization voltage: ±300mV
Noise Level: < 15µ Vp-p
Frequency Response: 0.05Hz-150Hz(-3dB)
Time Constant: ≥3.2s
Input Impedance: 50MΩ
Input Circuit Current: < 50nA
Tolerance Voltage: ±650mV
RR: ≥60dB, ≥100dB ( Adding filter)
Input way: Floating and defibrillation protection
Memory
-Built-in MSF, can store more than 1000 cases.
-Digital filter Mode

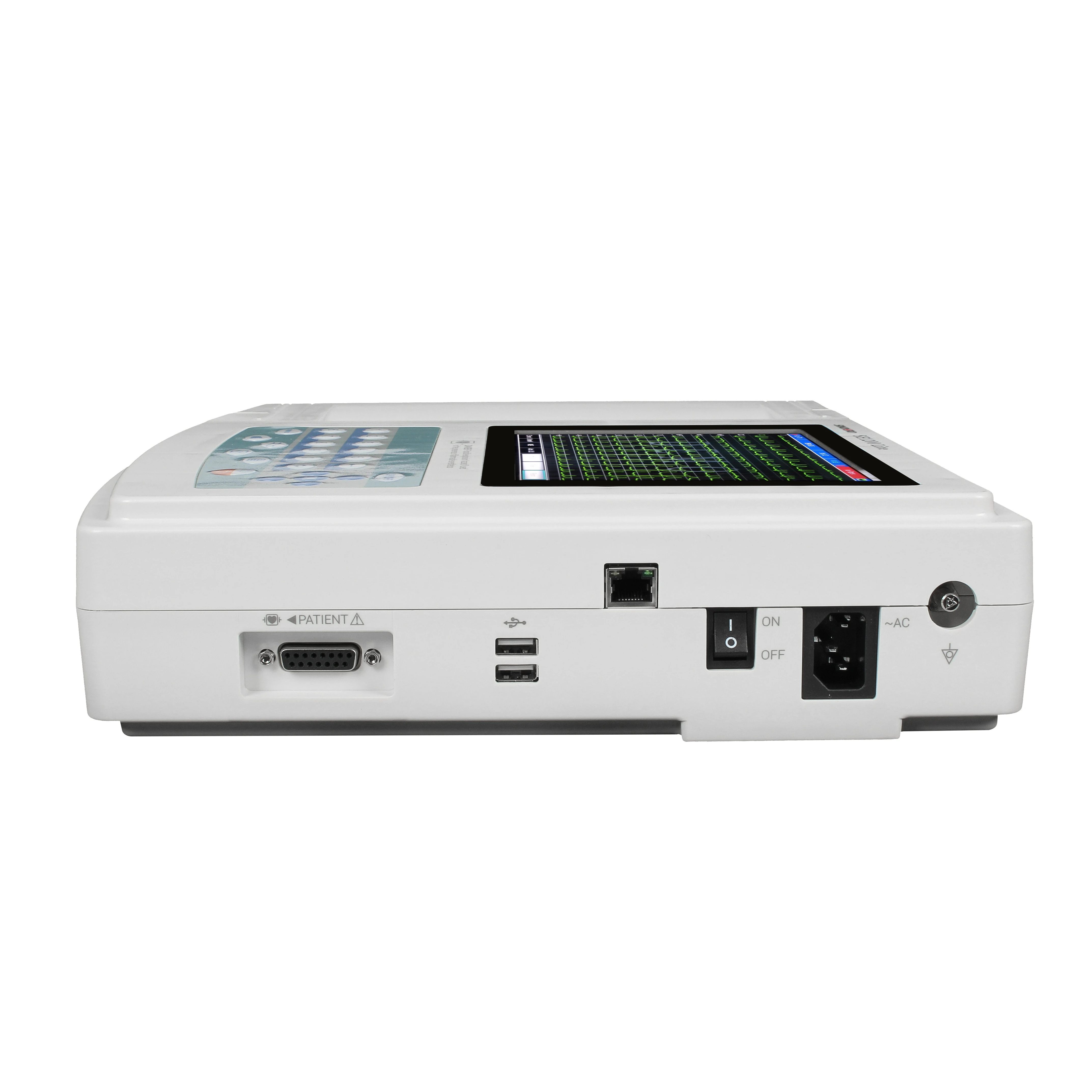

-Communication Interface: Ethernet, RS232, USB.
Recording way: Thermal printing system
Recording paper: 210mm(W)*20m(L) high-speed thermal paper
Record speed:
Auto record: 25mm/s, 50mm/s, error: ±5%
Rhythm record: 25mm/s, 50mm/s, error: ±5%
Manual record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error: ±5%
8.4” color TFT full touch screen
Anti-defibrillation and Pacemaker detection
Auto measurement and auto diagnosis fuction
12-lead simultaneous acquisition,amplification and recording
Various display and print modes
Lead statue map to show ECG leads conductivity
Features:
- 8.4” color TFT full-touch screen
- Anti-defibrillation and pacemaker detection
- Auto measurement and auto diagnosis function
- 12-lead simultaneous acquisition, amplification and recording
- Various display and print modes
- Lead state map to show ECG leads conductivity
- Sketch of display and closing ECG leads, indication of leads off
Size and Weight
-Size: 340mm(L)*320mm(W)*85mm(H)
-Weight: 3.2kg
Power supply
-DC and AC power supply
-Safety class: Category I, CF type
Display
-8.4〞 Color TFT High-resolution Full Touch Screen
-Resolution:800×600 pixels or higher
Battery
-Type: 3700mA Rechargeable Lithium battery
-Operating time under the normal use and full charge:≧120minutes
Lead: Standard 12 leads
Filter
-AC Filter:
-EMC Filter:
-Drift Filter:
-Digital Signal Processing
Patient leak current: <10µA
Enduring Polarization voltage: ±300mV
Noise Level: < 15µ Vp-p
Frequency Response: 0.05Hz-150Hz(-3dB)
Time Constant: ≥3.2s
Input Impedance: 50MΩ
Input Circuit Current: < 50nA
Tolerance Voltage: ±650mV
RR: ≥60dB, ≥100dB ( Adding filter)
Input way: Floating and defibrillation protection
Memory
-Built-in MSF, can store more than 1000 cases.
-Digital filter Mode
-Communication Interface: Ethernet, RS232, USB.
Recording way: Thermal printing system
Recording paper: 210mm(W)*20m(L) high-speed thermal paper
Record speed:
Auto record: 25mm/s, 50mm/s, error: ±5%
Rhythm record: 25mm/s, 50mm/s, error: ±5%
Manual record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error: ±5%
Sensitivity selections:
-2.5,5,10,20,40mm/mV,
-Error: ±5%.
-Standard sensitivity is 10mm/mV±0.2mm/mV.
Auto record:
-Record setup according to auto record format and mode,
-Automatically changing leads,
-Measuring and analyzing.
Rhythm record:
-Record setup according to rhythm record format and mode,
-Automatically measuring and analyzing.
Manual record:
-Record setup according to manual record format,
-Manually changing leads
-2.5,5,10,20,40mm/mV,
-Error: ±5%.
-Standard sensitivity is 10mm/mV±0.2mm/mV.
Auto record:
-Record setup according to auto record format and mode,
-Automatically changing leads,
-Measuring and analyzing.
Rhythm record:
-Record setup according to rhythm record format and mode,
-Automatically measuring and analyzing.
Manual record:
-Record setup according to manual record format,
-Manually changing leads
Measurement parameters:
HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Fuse specification:
2 pcs φ5*20mm
AC time lag. T1.6A/250V (Power Supply 220V)
Outstanding Features:
-Multi-language support. Chinese, English, Spanish, Polish, Italian, Turkish
-ECG Waveforms and auto-diagnosis results preview and editing before printing
-Support ECG work station. PC software can real display ECG waveform
-Anti-defibrillation and Pacemaker detection
-Auto measurement and auto diagnosis function
-12-lead simultaneous acquisition, amplification and recording
-Alphanumeric keyboard, individual capital and numeral key. (optional for touch screen input)
-Sleep/Wake Up. Mode for saving energy and extending LCD life
-Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter, ect.
-Multiply printing modes and formats, including auto 12x1, auto 6x2+1, auto 6x2+1_H, auto 6x2, auto 6x2_H, auto 3x4+1, auto 3x4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual and freeze, etc.
-Length of printed wave can be adjusted and simultaneity the function of periodic printing is offered to satisfy different applications.
-Auto-analysis and auto-diagnosis of regular ECG waveform parameters, provides measurement parameters such as HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1).etc.
-Lead statue map to show ECG leads conductivity
-Sketch of displaying and closing ECG leads. Indication of leads off
-Long-distance data transferred through network socket
HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Fuse specification:
2 pcs φ5*20mm
AC time lag. T1.6A/250V (Power Supply 220V)
Outstanding Features:
-Multi-language support. Chinese, English, Spanish, Polish, Italian, Turkish
-ECG Waveforms and auto-diagnosis results preview and editing before printing
-Support ECG work station. PC software can real display ECG waveform
-Anti-defibrillation and Pacemaker detection
-Auto measurement and auto diagnosis function
-12-lead simultaneous acquisition, amplification and recording
-Alphanumeric keyboard, individual capital and numeral key. (optional for touch screen input)
-Sleep/Wake Up. Mode for saving energy and extending LCD life
-Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter, ect.
-Multiply printing modes and formats, including auto 12x1, auto 6x2+1, auto 6x2+1_H, auto 6x2, auto 6x2_H, auto 3x4+1, auto 3x4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual and freeze, etc.
-Length of printed wave can be adjusted and simultaneity the function of periodic printing is offered to satisfy different applications.
-Auto-analysis and auto-diagnosis of regular ECG waveform parameters, provides measurement parameters such as HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1).etc.
-Lead statue map to show ECG leads conductivity
-Sketch of displaying and closing ECG leads. Indication of leads off
-Long-distance data transferred through network socket
Recommend Products
ECG SE508
3-Channel ECG Machine
Sharp and clear 3.5" inch TFT screen
* 12 lead ECG simultaneously display
* Built-in database and store more than 1000 pieces of ECG data
* Auto-measurement, auto-analysis and auto interpretation functions
* Both AC and DC power supply with built-in lithium rechargeable battery
Sharp and clear 3.5" inch TFT screen
* 12 lead ECG simultaneously display
* Built-in database and store more than 1000 pieces of ECG data
* Auto-measurement, auto-analysis and auto interpretation functions
* Both AC and DC power supply with built-in lithium rechargeable battery
ECG SE1208
12-Channel Electrocardiograph
* Splendid 10” color TFT with Alpha-numeric keyboard
*Simultaneous 12 leads of ECG printing(Roll or Z-fold)
*Multiple USB port for connecting PC-ECG software and external printer
* Excellent ECG auto-interpretation program and Pacemaker detection
* Reliable and fas Network Connectivity and data transmission
* Splendid 10” color TFT with Alpha-numeric keyboard
*Simultaneous 12 leads of ECG printing(Roll or Z-fold)
*Multiple USB port for connecting PC-ECG software and external printer
* Excellent ECG auto-interpretation program and Pacemaker detection
* Reliable and fas Network Connectivity and data transmission
ECG SE509
3-Channel ECG Machine
* 4.3” Vivid color Full Touch Screen
* 12 Leads ECG simultaneous acquisition and display
* Innovative digital
filters&anti-noise technology
* Built-in high resolution thermal printer with various 3-channel report printing
* Both SD and USB memory enlarge available
Packing & Delivery

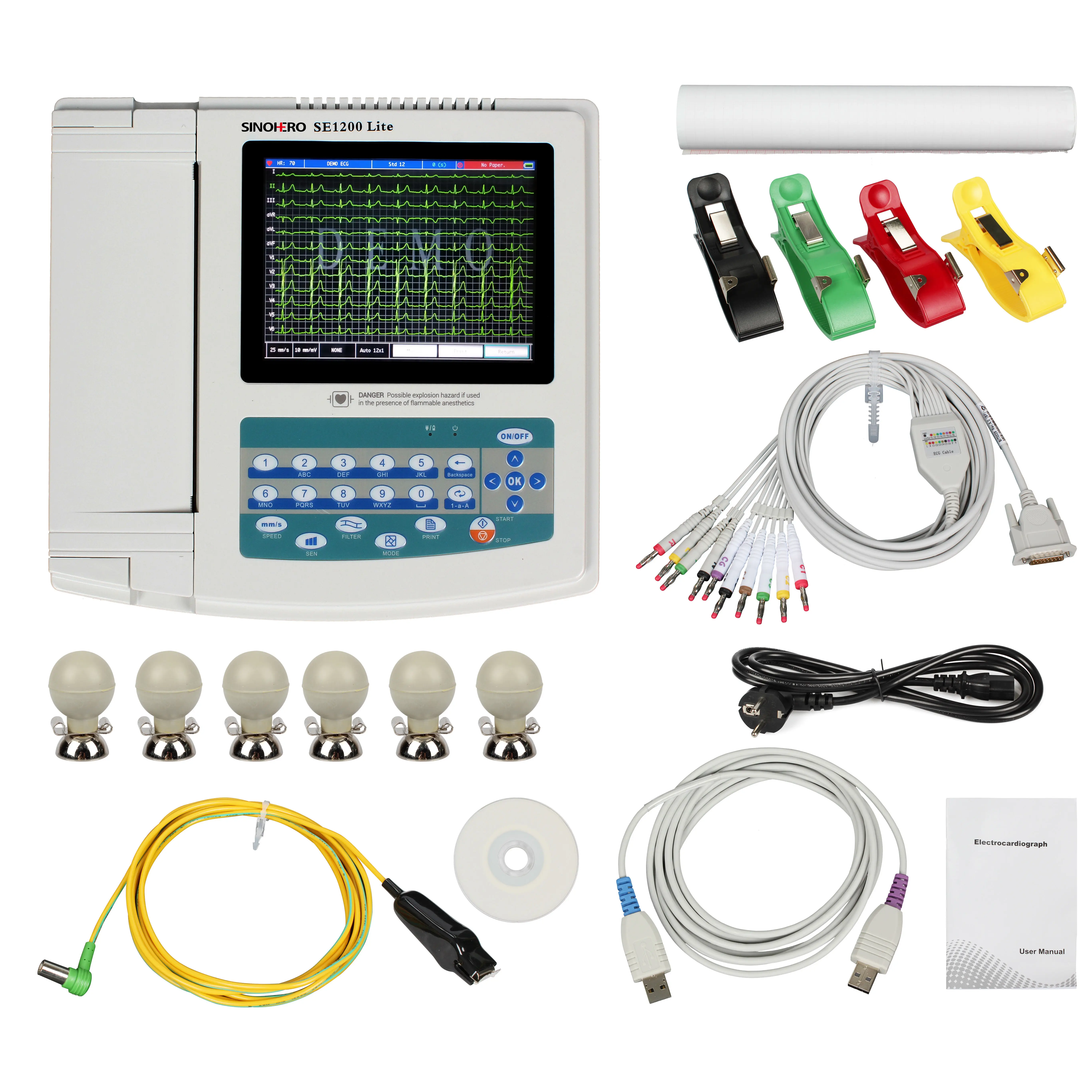

Accessories:
1 x power cable
1 x Patient Cable
6 x Chest Electrodes
4 x Limb Electrodes
1x Paper Roller
1 x Record Paper
1 xGround Line
2 x fuses
