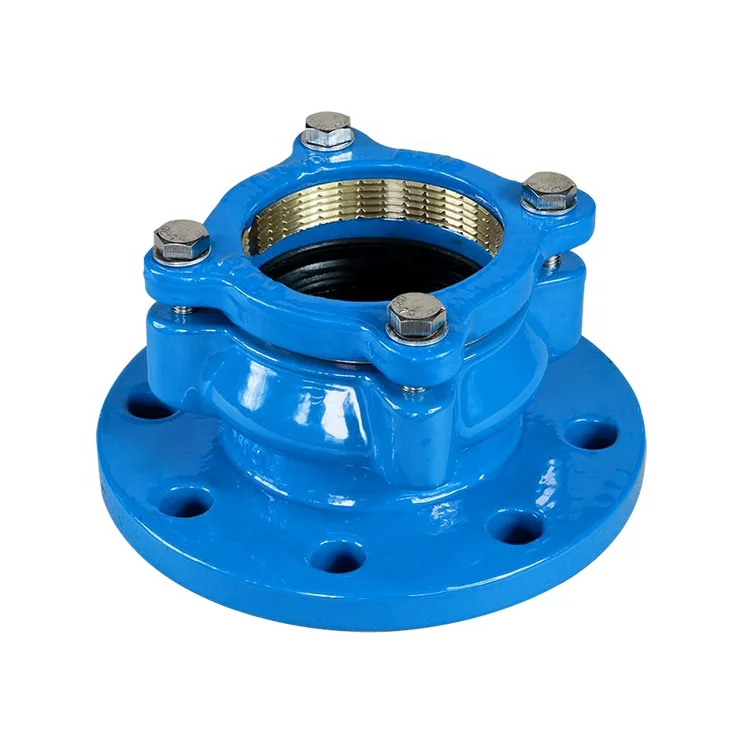

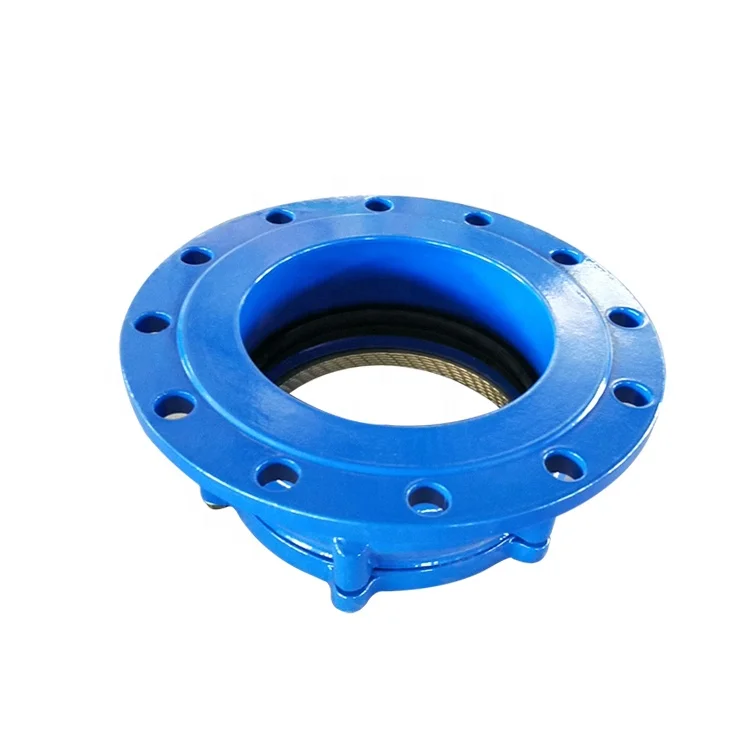

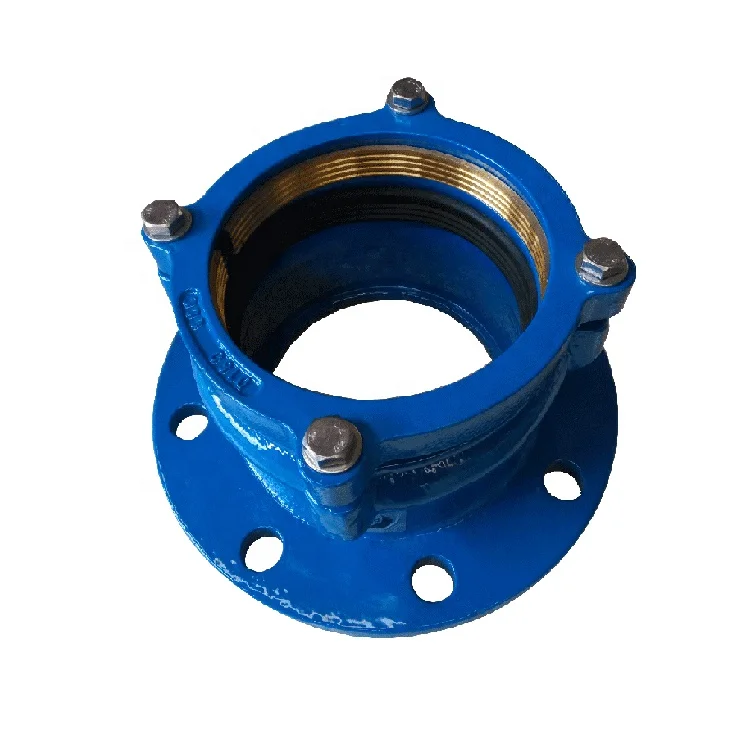

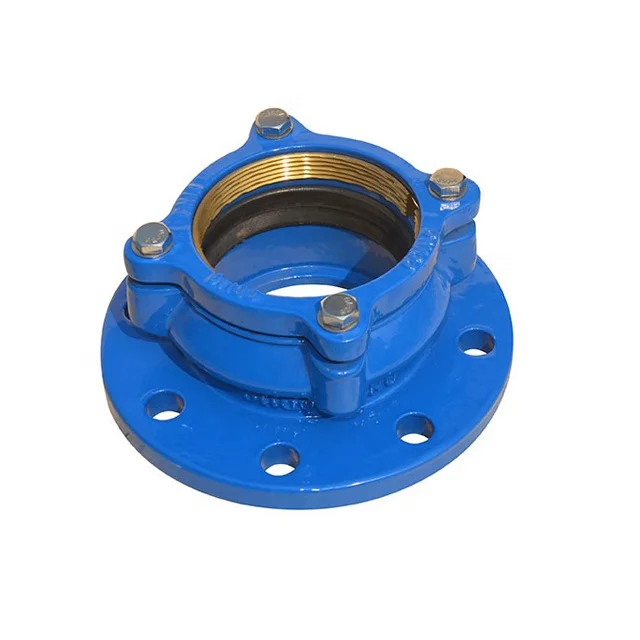

Ductile Iron PN 10/16 Grip DI Restrained Flange Adaptor with Brass Insert for PE Pipe
- Category: >>>
- Supplier: Tianyi Suns Pipe&fittings Co. Ltd.
Share on (1600281118303):
Product Overview
Description
EN545 EN598 Ductile Iron Brass Thrust Ring PE Restraint Flange Adaptor For PE Pipe
Products Description
Restrained Flange Adaptor for HDPE Pipe is designed as a simple, high performance end load resistant mechanism that grips and seals onto HDPE pipes to prevent the pipe pull off from the pipe system.
It's suitable for use with water, drainage, sewage... pipe systems.
The products could be coated with blue, black, red epoxy or according to customer requirements.
Package is polywood case with bubble film for each item or at customers' request.
Restrained Flange Adaptor for PE Pipes of EN12201/ISO4427
Features
1.The restraint system is effective independent of the pipe sealing and is achieved by tightening the lock ring.
2.The pipe end can be pushed into the sealing chamber without major effort.The flat gasket is already mounted on the flange.
3.For thin-walled PE-pipes (up to 3mm wall thickness) and low internal pressure as well as the use of support liners is required.
1.The restraint system is effective independent of the pipe sealing and is achieved by tightening the lock ring.
2.The pipe end can be pushed into the sealing chamber without major effort.The flat gasket is already mounted on the flange.
3.For thin-walled PE-pipes (up to 3mm wall thickness) and low internal pressure as well as the use of support liners is required.
Size | DN50-DN300 |
Standard | ISO2531/EN545/EN598/AWWA |
Pressure | PN10/PN16/PN25 |
Material | Ductile Iron GGG50 material with FBE coated |
Coating | Fusion bonded epoxy coating(250 micron) |
Color | Blue FBE / Epoxy Coating |
Connection Type | Flange Joint |
Gasket | EPDM, SBR/NBR also available |
bolt nut | Steel 8.8 zinced/Dacro |

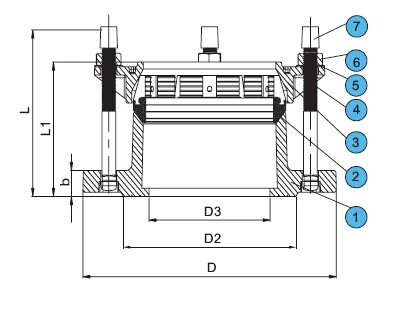

Item No. | Item Name | Material | Specification |
1 | Body | Ductile Iron | GGG50 |
2 | Sealing Ring | Rubber+Brass | EPDM+Brass |
3 | End Ring | Ductile Iron | GGG50 |
4 | Bolt | Galvanized Steel | ISO898-1:1999 |
5 | Washer | Galvanized Steel | |
6 | Nut | Galvanized Steel | ISO898-2:1992 |
7 | Cap | Plastic |
Please contact us for more detail , package,delivery time and shipment.
welcome your enquiry ,we will do our best to support.
Details Images

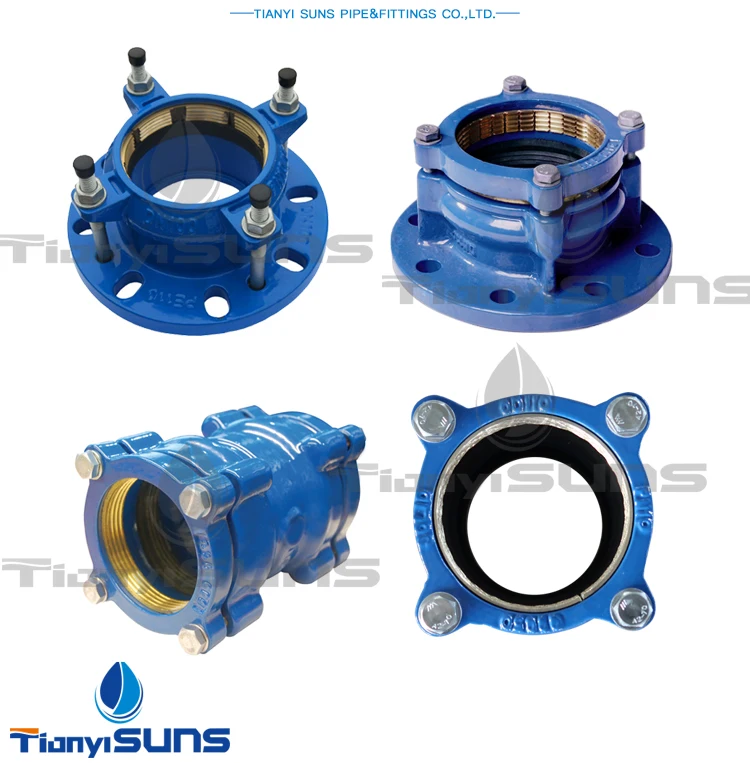

SEVERAL TYPES DISPLAY
Factory Display
Installation Instructions
Product packaging
Recommend Products
Company Profile
FAQ
Q. Do you accept OEM service?
A: Yes, we do.
Q. Can I get free samples?
A: Yes, And you only need to bear the delivery costs, if the samples are not too big.
Q. Can I have my own Logo on the product?
A: Yes, we're the professional manufacturer, so the OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc...
Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accepte EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea.
Airline shipping is also optional.
A: Yes, we do.
Q. Can I get free samples?
A: Yes, And you only need to bear the delivery costs, if the samples are not too big.
Q. Can I have my own Logo on the product?
A: Yes, we're the professional manufacturer, so the OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc...
Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accepte EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea.
Airline shipping is also optional.
