Product Overview
Description
Products Feature and Advantage

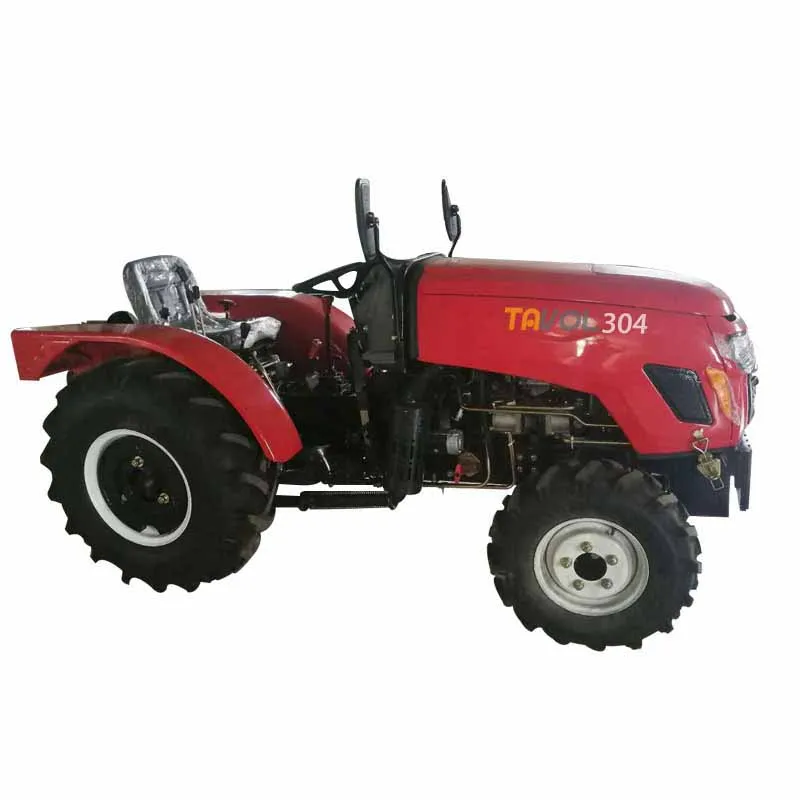

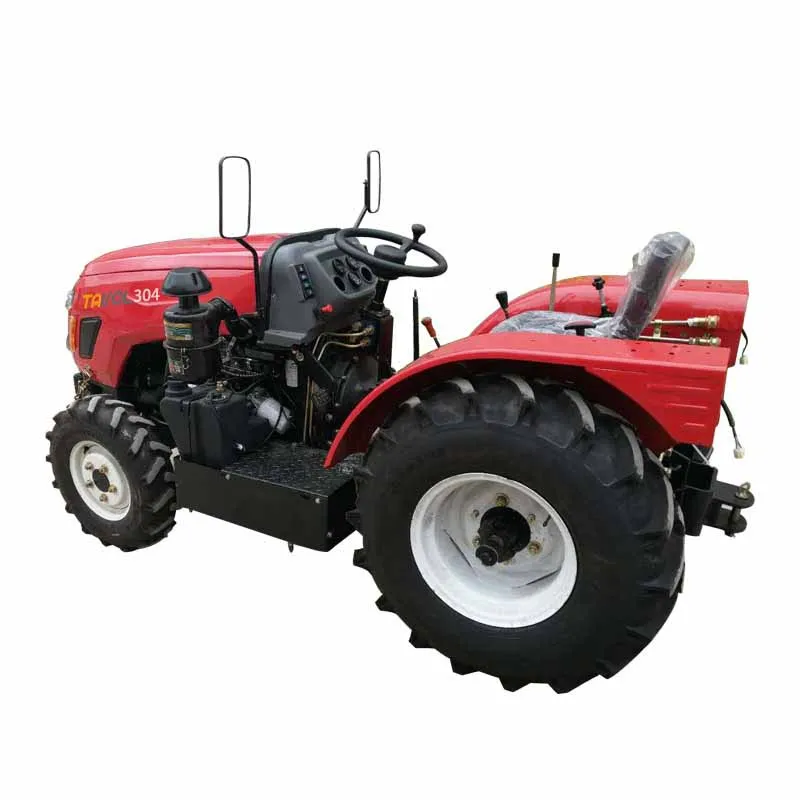

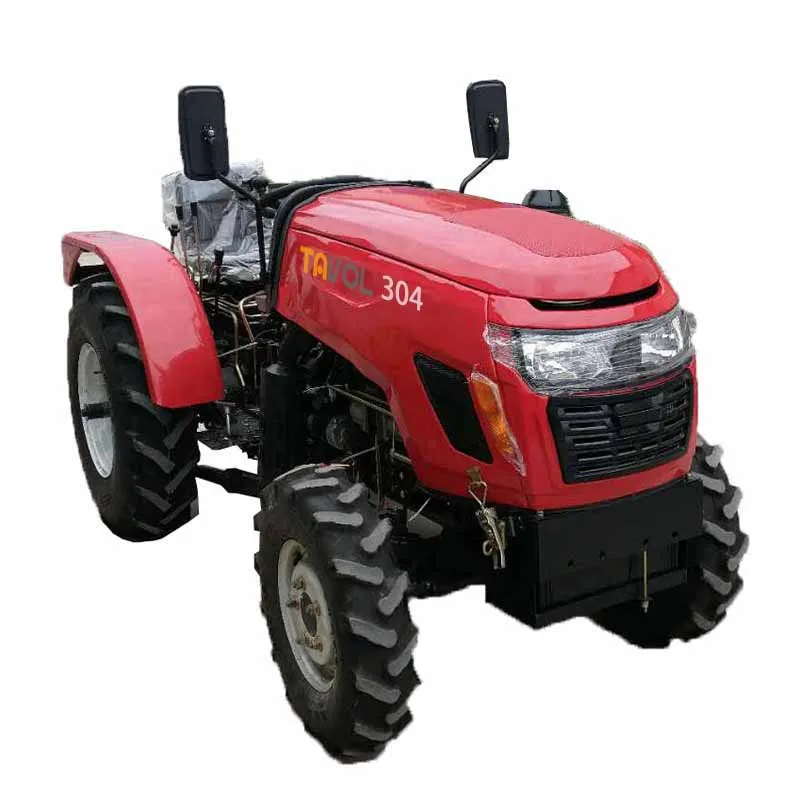

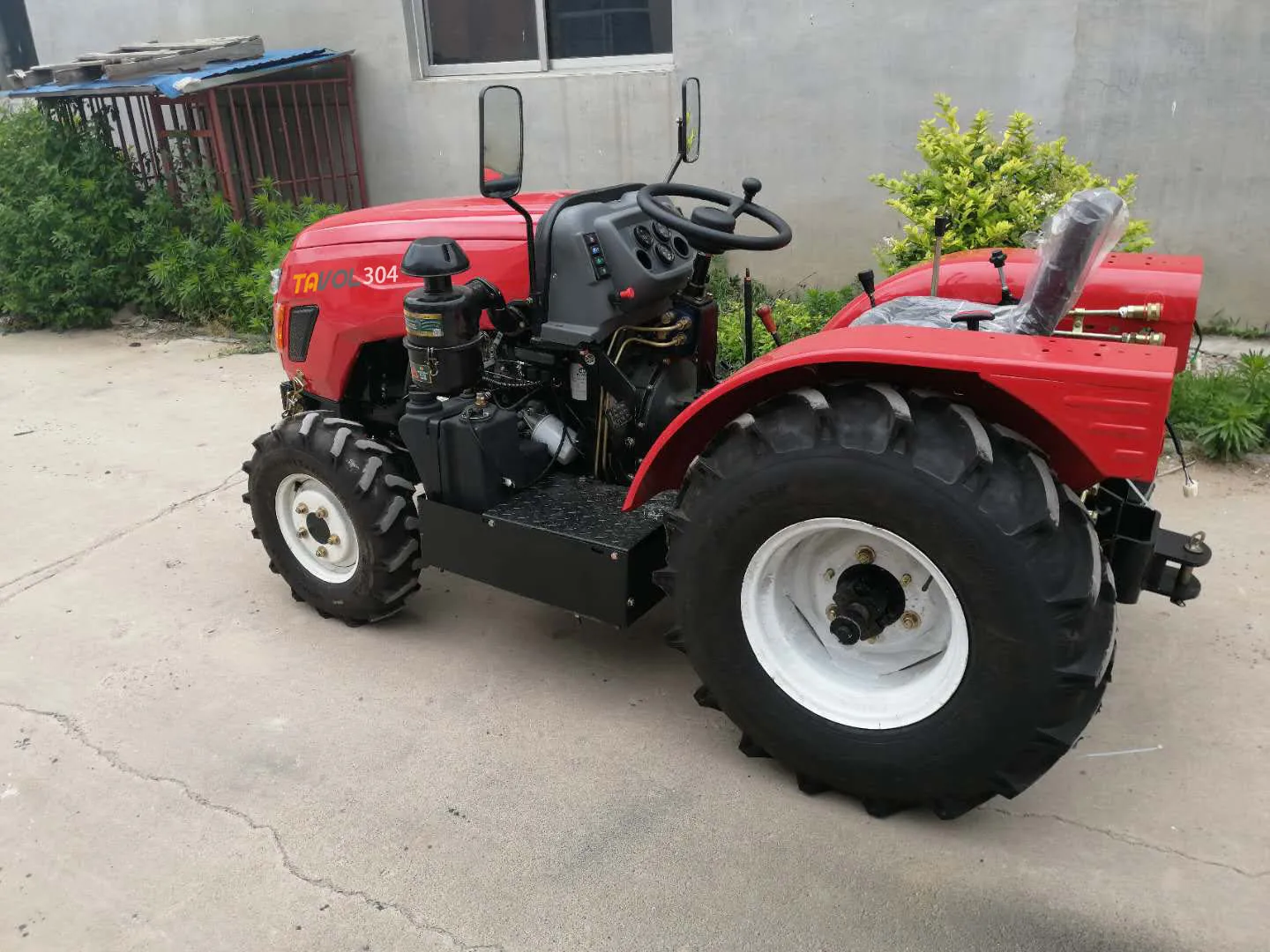

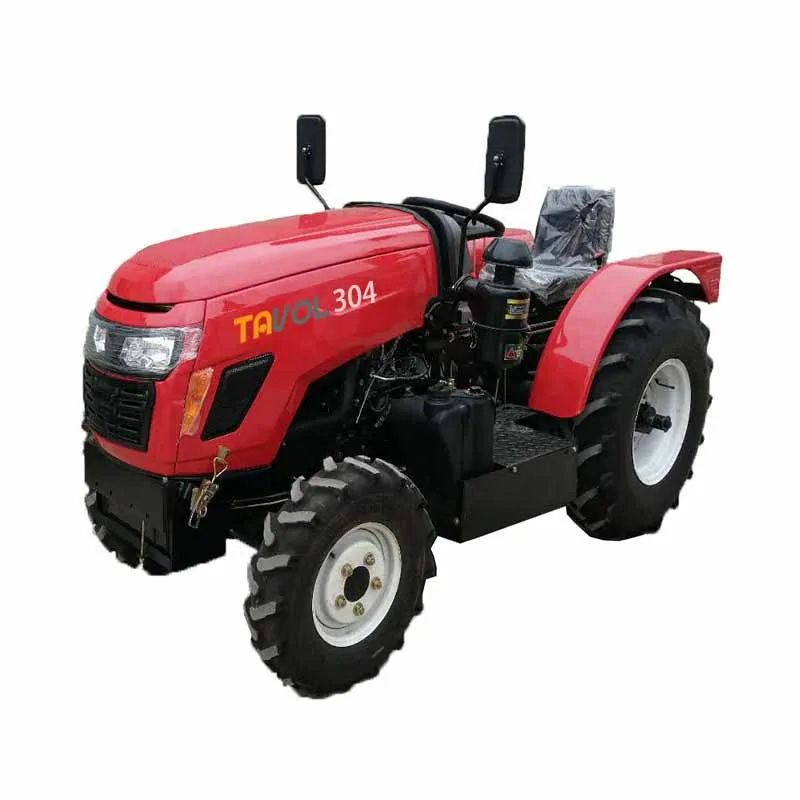

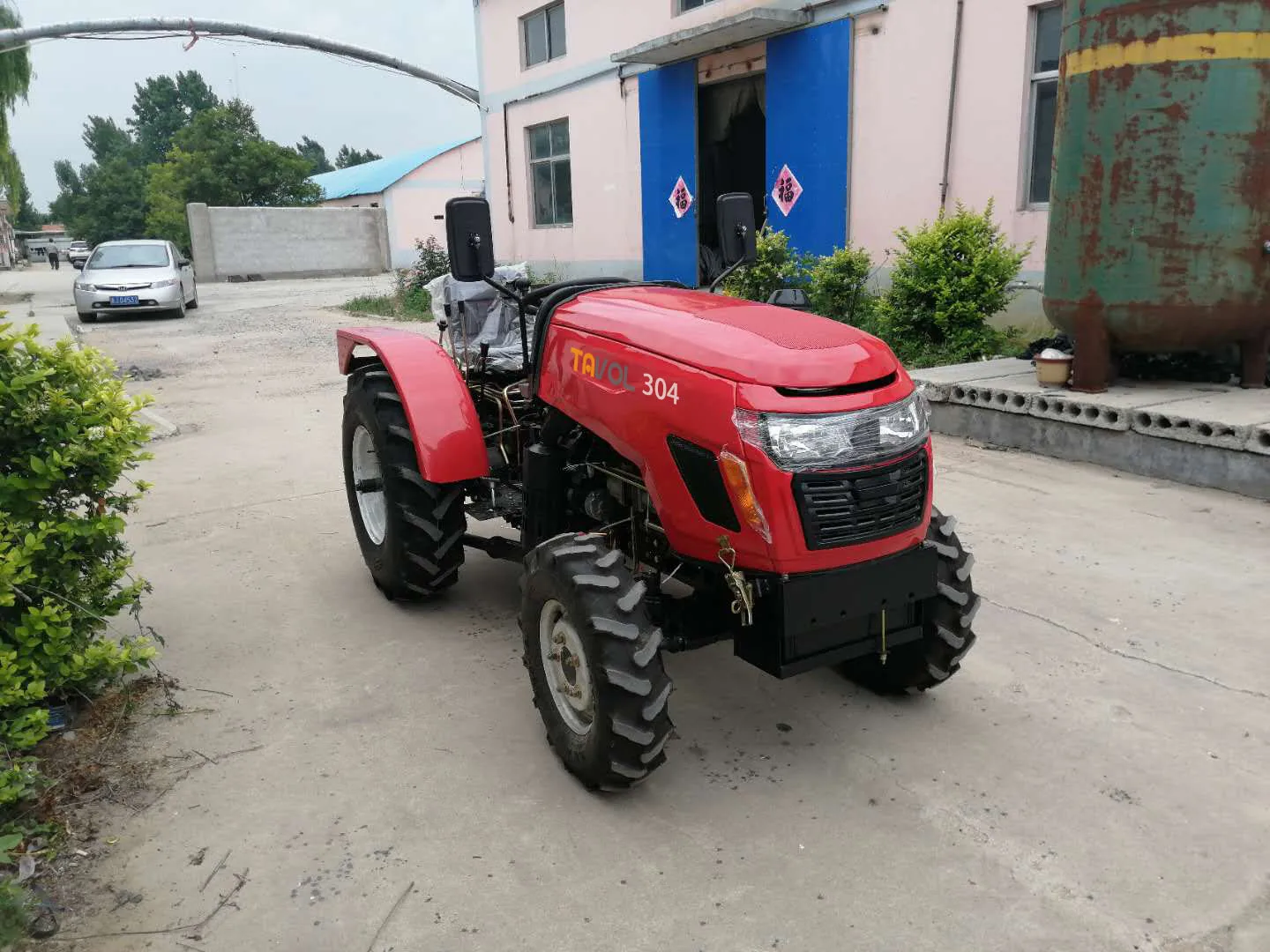

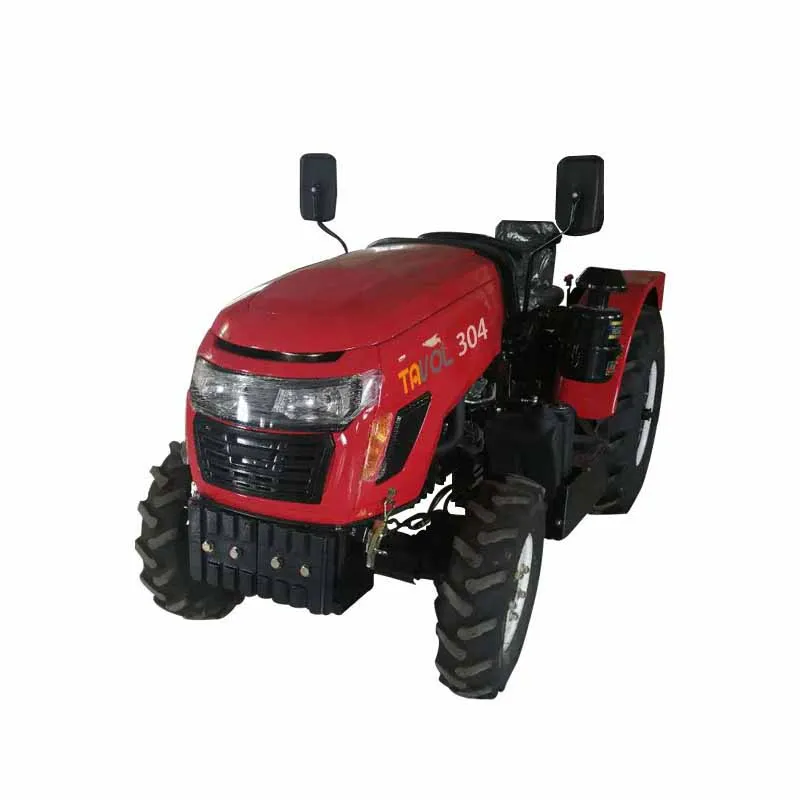

New Designed Tavol 304 30HP 4wd Agriculture Mini Tractor
Tavol 30hp Tactor Main Parameters | ||||||
Model | TL304 | |||||
Type | 4x4 | |||||
Machine parameters | PTO power (KN) | 18.79 | ||||
Rated Traction( KN) | 5.9 | |||||
Dimensions(mm) | 3220×1455×2025 | |||||
Wheelbase(mm) | 1730 | |||||
Track(mm) | Front wheel | 1225-1425 | ||||
Rear wheel | 1160-1300 | |||||
Minimum ground clearance(mm) | 290 | |||||
Turning circle radius | Unilateral braking | 2.3 | ||||
Not unilateral braking | 3 | |||||
Weight (KG) | 1402 | |||||
Drive Train | Clutch | Single stage cluth | ||||
Gearbox | 8+2 shift | |||||
Walking steering | Tire | Front wheel | 6.00-16 | |||
Rear wheel | 9.4-24 | |||||
Working equipment | Maximum lifting force at 610mm(KN) | 4.96 | ||||
Suspension mechanism | Three-point suspension type 1 | |||||
PTO shaft | PTO speed r/min | 540/760 | ||||
Engine | Engine brand | LAIDONG | ||||
Engine type | Diesel engine | |||||
Engine cylinder | 3 | |||||
Start | Start method | Electric | ||||
Main fill volume | Radiater | 10 | ||||
Fuel tank | 29 | |||||
Engine oil pan(L) | 5 | |||||
Driveline oil (L) | 20 | |||||
Lifter(L) | 9.5 | |||||
This parameter table is for reference only, everything is based on actual products | ||||||
TAVOL Brand VS Most Other Brand
Hydraulic pipe and hydraulic parts
1.Branded hydraulic parts, with
Optimization of piping layout .
2. Stable hydraulic work with long service life
3. Optimized design of pipeline, beautiful&
Reasonable.
Optimization of piping layout .
2. Stable hydraulic work with long service life
3. Optimized design of pipeline, beautiful&
Reasonable.
1.The pipeline layout is messy and easy to generate heat.
2.Non-branded accessories, parts are easy to wear, short
service life
3.The cleanliness of the hydraulic system is poor, easy to
block, and cause early wear of hydraulic parts (gears,
cylinders, distributors).
2.Non-branded accessories, parts are easy to wear, short
service life
3.The cleanliness of the hydraulic system is poor, easy to
block, and cause early wear of hydraulic parts (gears,
cylinders, distributors).
Sheet metal spraying
1.External sheet metal parts such as hood adopt electrophoresis technology.
2.The coating has Better adhesion, beautiful, durable, and not easy to rust.
3.Design features; top-notch concepts, innovative settings
Meet the performance requirements of safety, dust proof, noise reduction, heat dissipation, etc. A new generation of streamlined hood, beautiful Exterior
2.The coating has Better adhesion, beautiful, durable, and not easy to rust.
3.Design features; top-notch concepts, innovative settings
Meet the performance requirements of safety, dust proof, noise reduction, heat dissipation, etc. A new generation of streamlined hood, beautiful Exterior
The coating quality of sheet metal parts such as the hood is poor, and rust will appear in a short time
Driving comfort
1.Clutch pedal is easy to operate.
2.Smooth shifting control.
3.The cabin has good sealing and high comfort.
4.Panoramic skylight design, car quality, luxurious interior, car spraying, beautiful appearance.
2.Smooth shifting control.
3.The cabin has good sealing and high comfort.
4.Panoramic skylight design, car quality, luxurious interior, car spraying, beautiful appearance.
1. Cutch pedal is heavy and the control experience is poor.
2. Space is small, the gear shifting is not smooth, and it is easy to fatigue after long time working.
3. Cabin has poor sealing and is not dustproof.
4. Seat material is poor, the shock absorption effect is poor.
2. Space is small, the gear shifting is not smooth, and it is easy to fatigue after long time working.
3. Cabin has poor sealing and is not dustproof.
4. Seat material is poor, the shock absorption effect is poor.

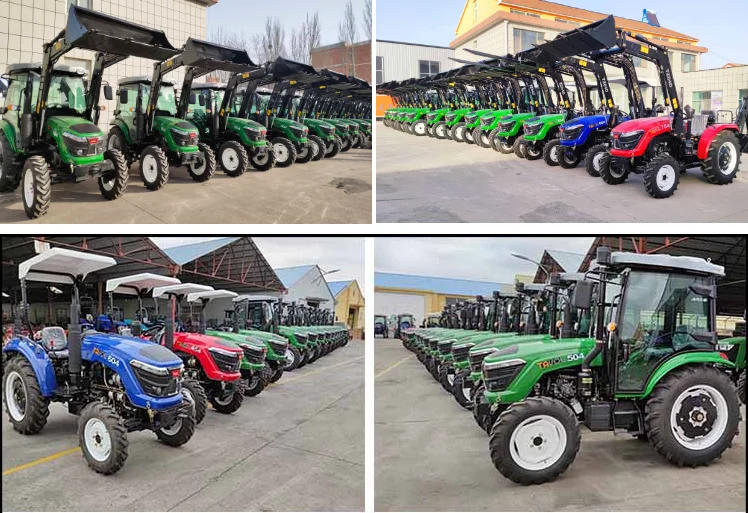

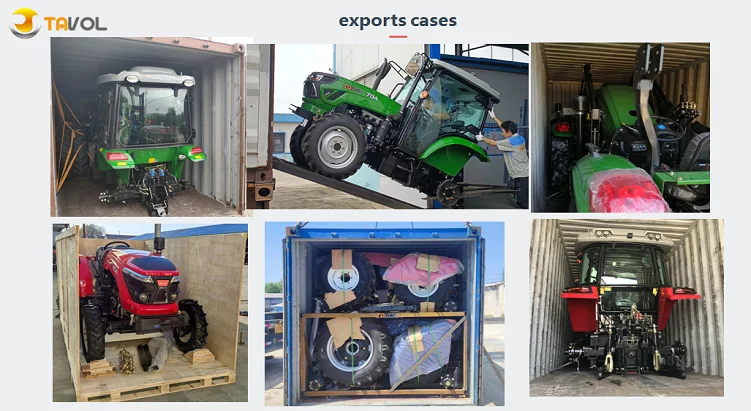

Packing photo
Optional CKD&SKD Package/ Full containers
Main application
Customer site application:
It is widely used for ploughing, rotary-cultivating, sowing, irrigation, spraying, harvesting and transportation etc. In paddy
fields, dry land, arid land, orchard and plastic greenhouse.
It is widely used for ploughing, rotary-cultivating, sowing, irrigation, spraying, harvesting and transportation etc. In paddy
fields, dry land, arid land, orchard and plastic greenhouse.
Company information
Office Building
Workshop
Shandong Tavol Agricultural Machinery Co., Ltd. are Focused on Development Of the Characteristic Agricultural Machinery, Like Paddy Fields, Mountains, Hills etc; High-end Intelligence, Like Unmanned Driving and Beidou Precision Agriculture; also Automation like CVT and Power Gear Shift etc. Products range: 15hp-200hp Farm Tractors and Other Farm Machines.
The Mission of Tavol Group is to Assemble the Best Tractors With the Best of Heart, and Strive for the Smiles of One billion Farmers; With the Values of Tolerance, Openness and Win-Win, Adopt Strict Production Technology and Inspection Standards, Select the Best Quality Brand Tractor Parts. To ensure a 100% Quality Standard, We will Independent Development and Production the Core Tractor Parts, Continue to Increase Investment in New Models and Technologies.
The Mission of Tavol Group is to Assemble the Best Tractors With the Best of Heart, and Strive for the Smiles of One billion Farmers; With the Values of Tolerance, Openness and Win-Win, Adopt Strict Production Technology and Inspection Standards, Select the Best Quality Brand Tractor Parts. To ensure a 100% Quality Standard, We will Independent Development and Production the Core Tractor Parts, Continue to Increase Investment in New Models and Technologies.
FAQ
If you want to inquire about our tractor, please confirm with us the details as below.
Then we will quote you a suitable price.
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Taian City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2We can provide technical support and on-site installation support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:5-15 days according to the different quantity.
Then we will quote you a suitable price.
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Taian City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2We can provide technical support and on-site installation support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:5-15 days according to the different quantity.
