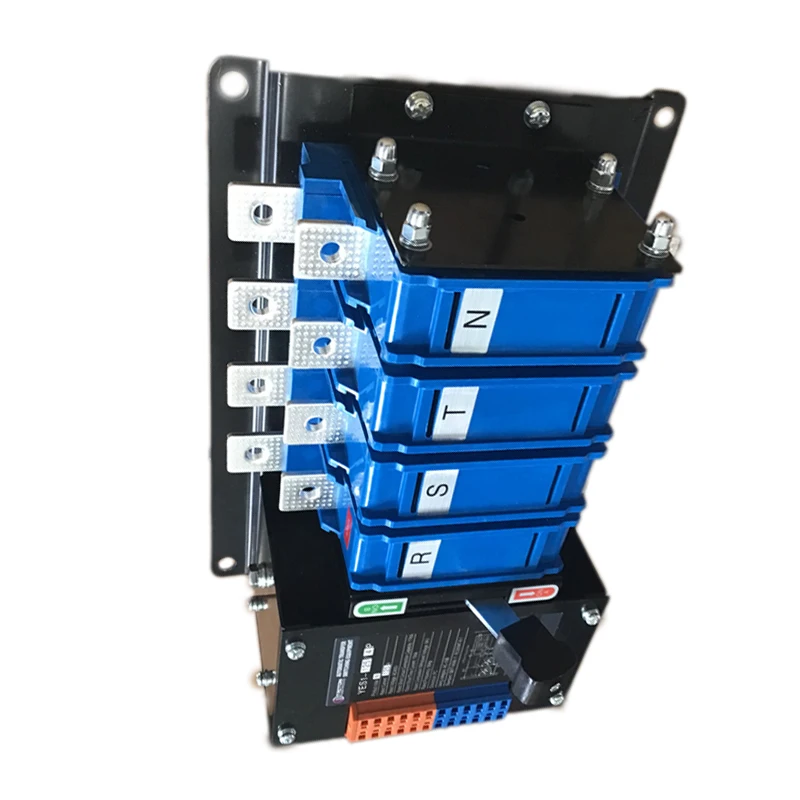

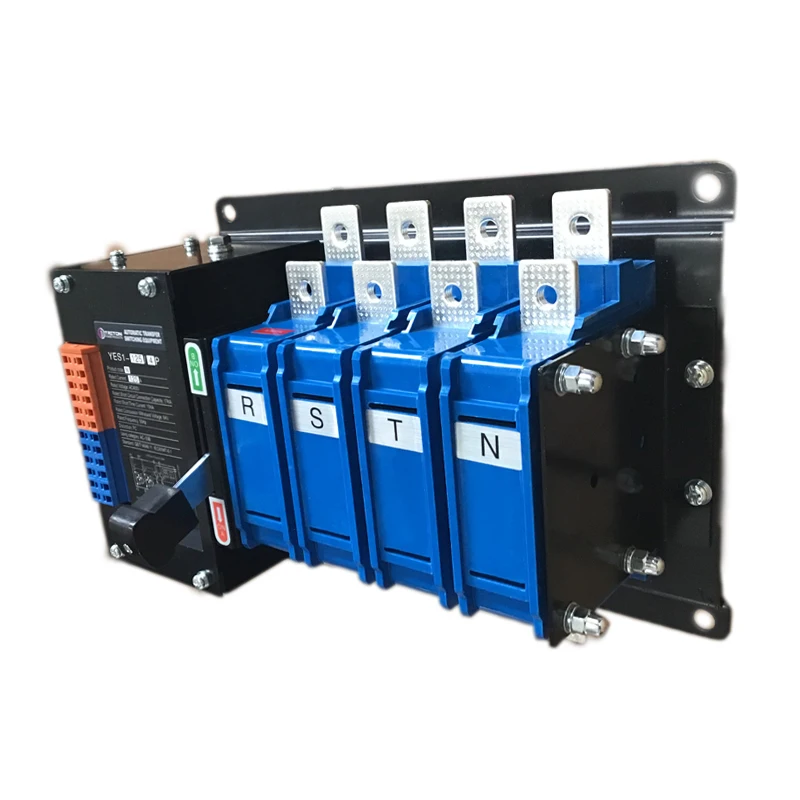

Fast Transfer Speed Small Size Mini ATS Switch 100amp 2 pole 3p 4p High Quality YUYE Other Switches
- Category: >>>
- Supplier: One Two Three Electric Co. Ltd.
Share on (1600281145452):
Product Overview
Description
Products Description

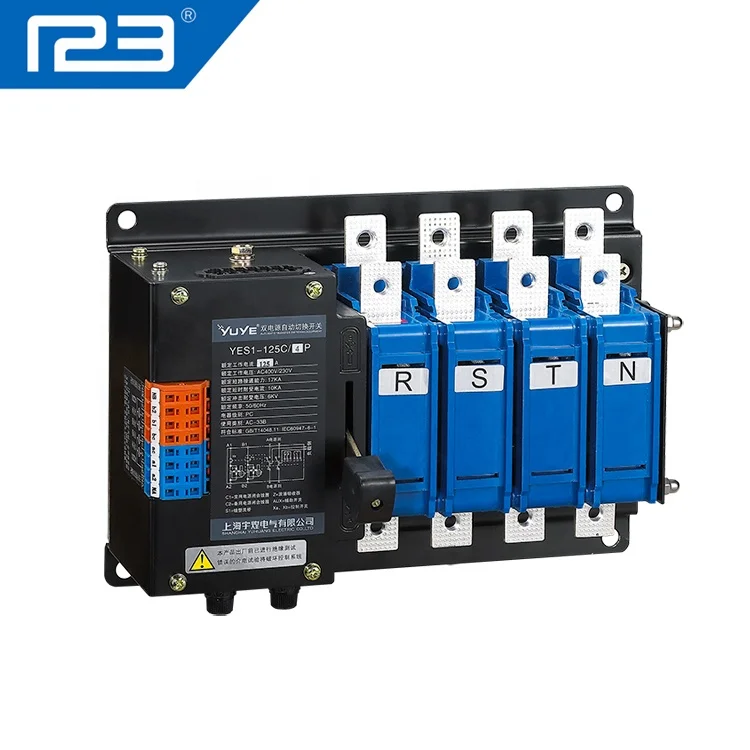

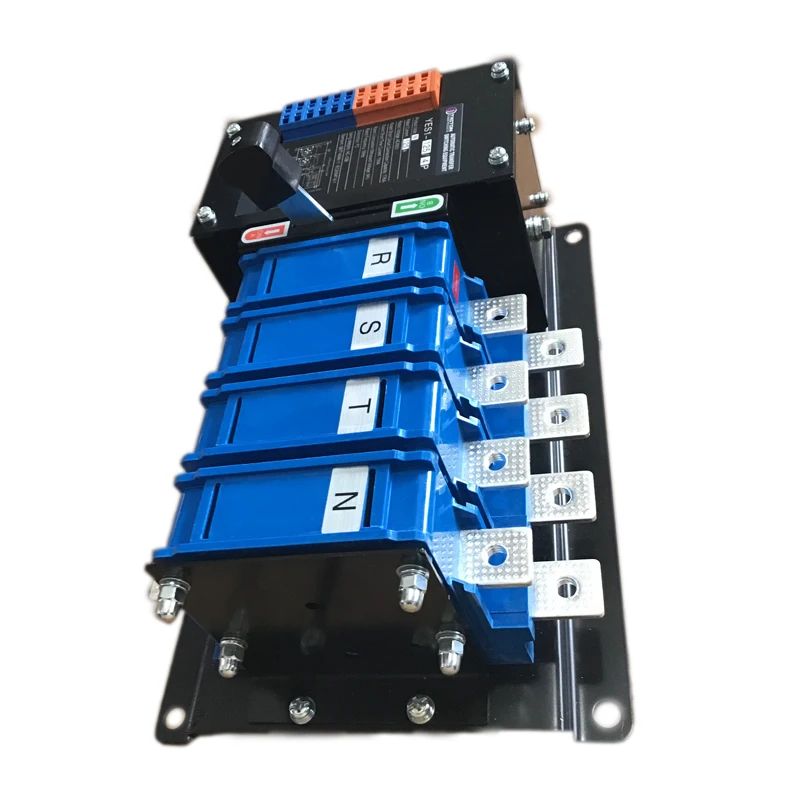

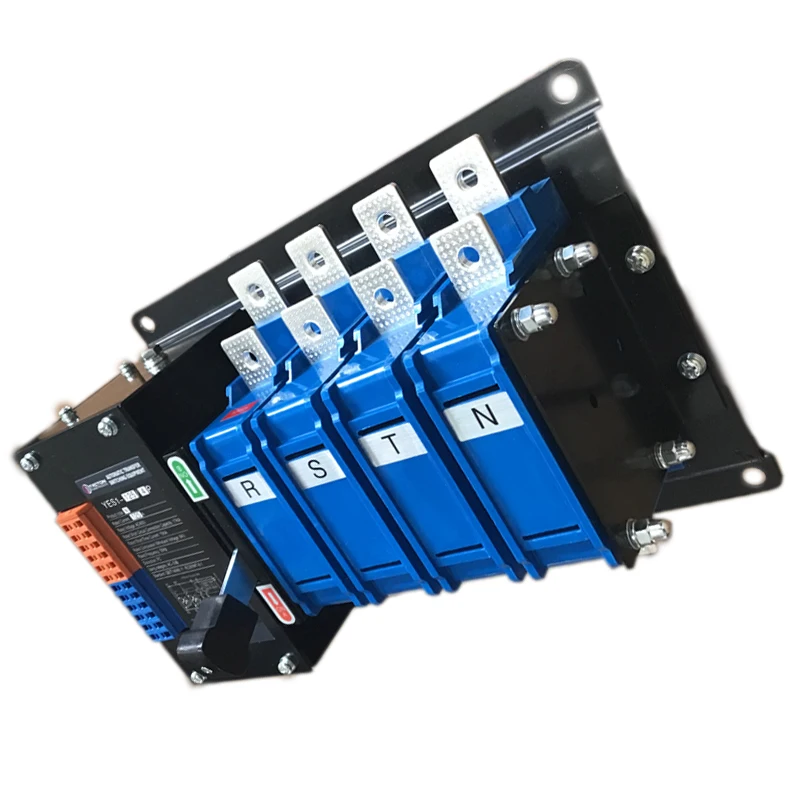

YES1 series ATSE is made up of switch body and transfer controller. The switch is driven by electromagnetic coil, so the transfer
speed is very fast. The power source of controller takes main power or emergency power AC220V as working voltage.

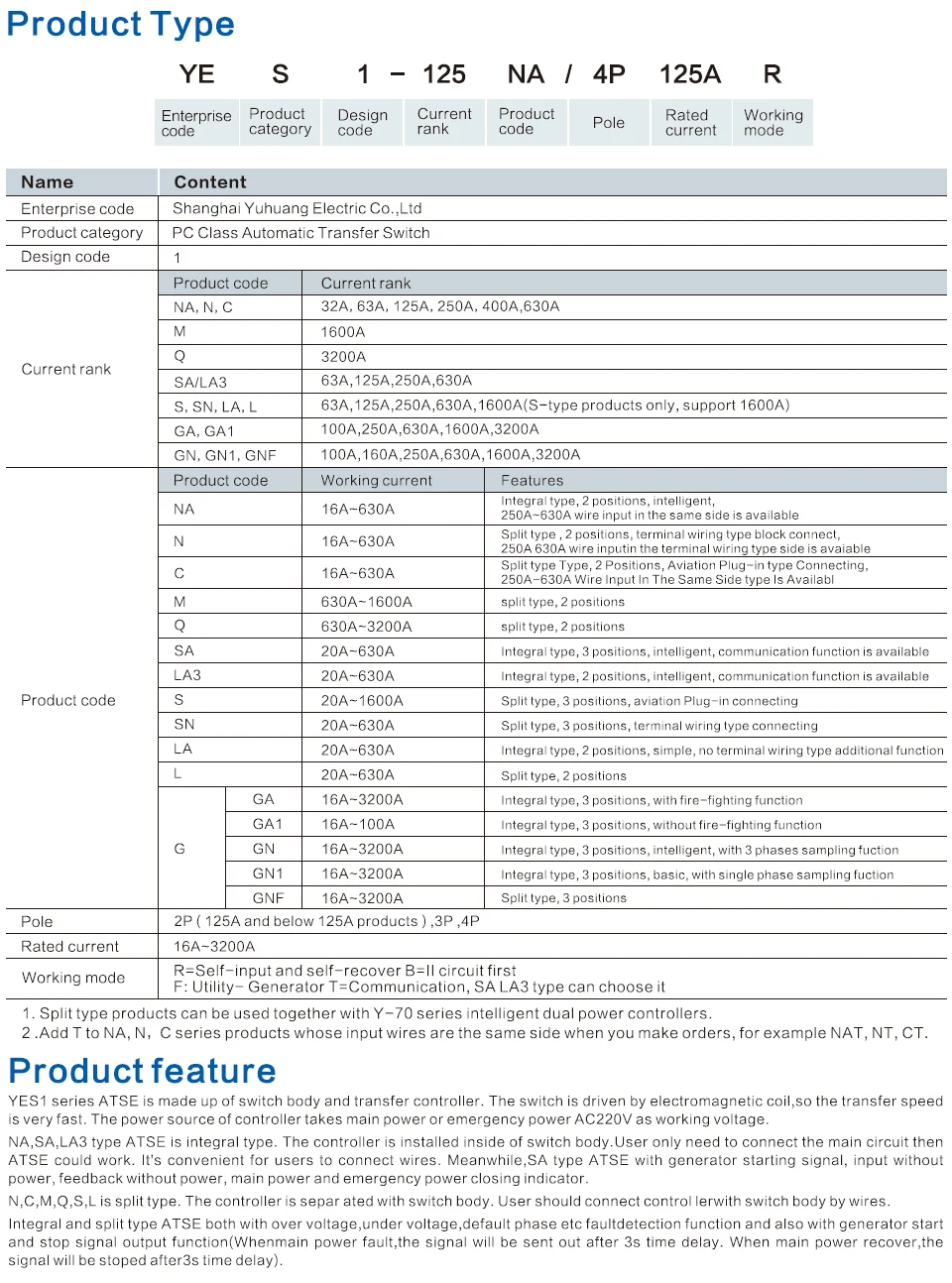

NA,SA,LA3 type ATSE is integral type. The controller is installed inside of switch body. User only need to connect the main
circuit then ATSE could work. It's convenient for users to connect wires. Meanwhile, SA type ATSE with generator starting signal,
input without power, feedback without power, main power and emergency power closing indicator.
speed is very fast. The power source of controller takes main power or emergency power AC220V as working voltage.
NA,SA,LA3 type ATSE is integral type. The controller is installed inside of switch body. User only need to connect the main
circuit then ATSE could work. It's convenient for users to connect wires. Meanwhile, SA type ATSE with generator starting signal,
input without power, feedback without power, main power and emergency power closing indicator.
Summary
N, C, M, Q, S, L is split type. The controller is separated with switch body. User should connect controller with switch body by wires Integral and split type ATS both with over voltage, under voltage, default phase etc. fault detection function and also with generator start and stop signal output function (When main power fault, the signal will be sent out after 3s time delay. Whenmain power recovers, the signal will be stopped after 3s time delay).

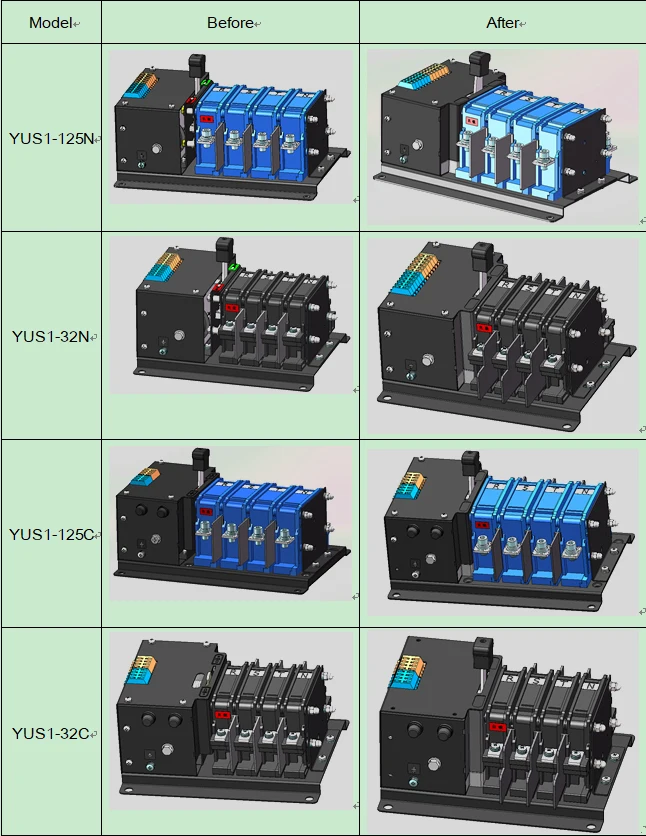

Model | YUS1-32N | YUS1-63N | YUS1-125N |
Rated Working Current In(A) | 16/20/25/32 | 40/50/63 | 80/100/125 |
Rated Control Power Current (A) | 5 | 5 | 5 |
Rated Short-time Withstand Current (kA) | 10 | 10 | 10 |
Rated Impulse Withstand Voltage (kV) | 8 | 8 | 8 |
Mechanical Life | 20000 | 20000 | 20000 |
A typical transfer sequence includes:
1. The normal utility power source fails.
2. The transfer switch shifts the load to the emergency power source when power from the generator or backup utility feed is stable and within prescribed voltage and frequency tolerances. Depending on a facility’s needs and preferences, the transfer process is self-acting or manually-initiated.
3. The transfer switch returns the load from the emergency power source to the normal power source when utility power is restored. The re-transfer process is self-acting or manually-initiated.
2. The transfer switch shifts the load to the emergency power source when power from the generator or backup utility feed is stable and within prescribed voltage and frequency tolerances. Depending on a facility’s needs and preferences, the transfer process is self-acting or manually-initiated.
3. The transfer switch returns the load from the emergency power source to the normal power source when utility power is restored. The re-transfer process is self-acting or manually-initiated.
Company Profile
Through the British Lloyd's IS09001 system certification, all products have passed the most stringent testing requirements

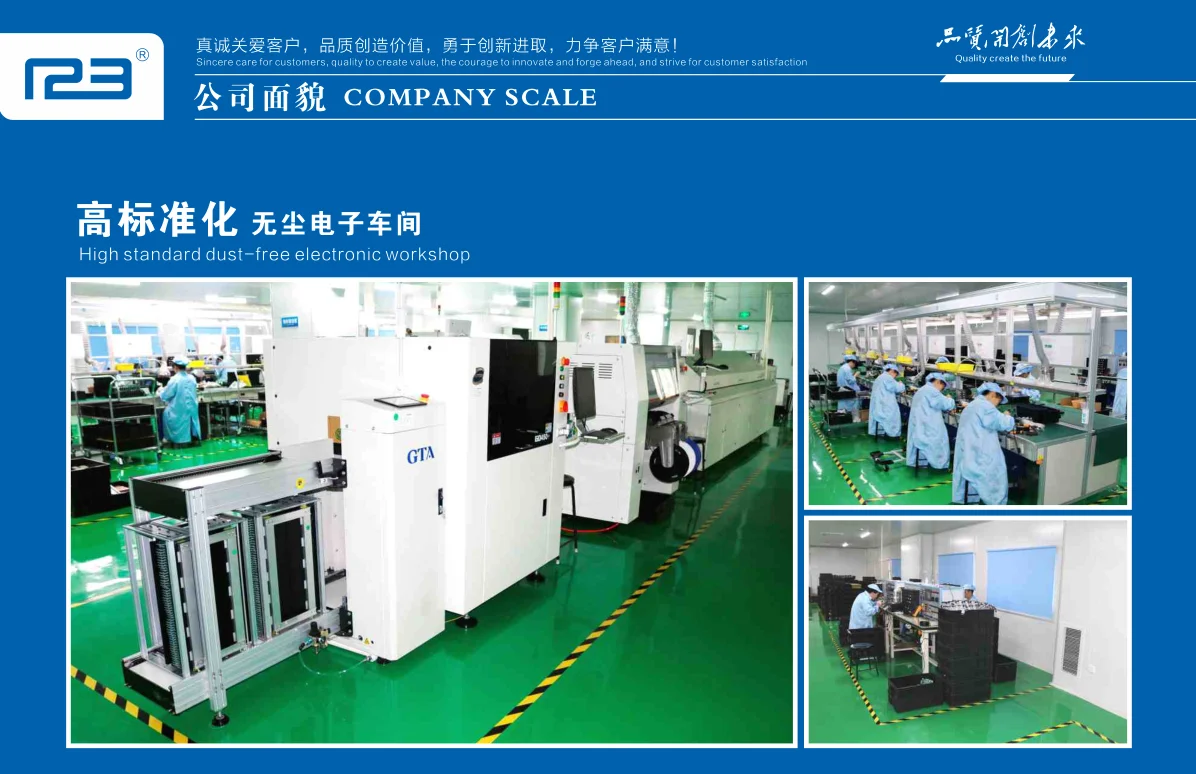

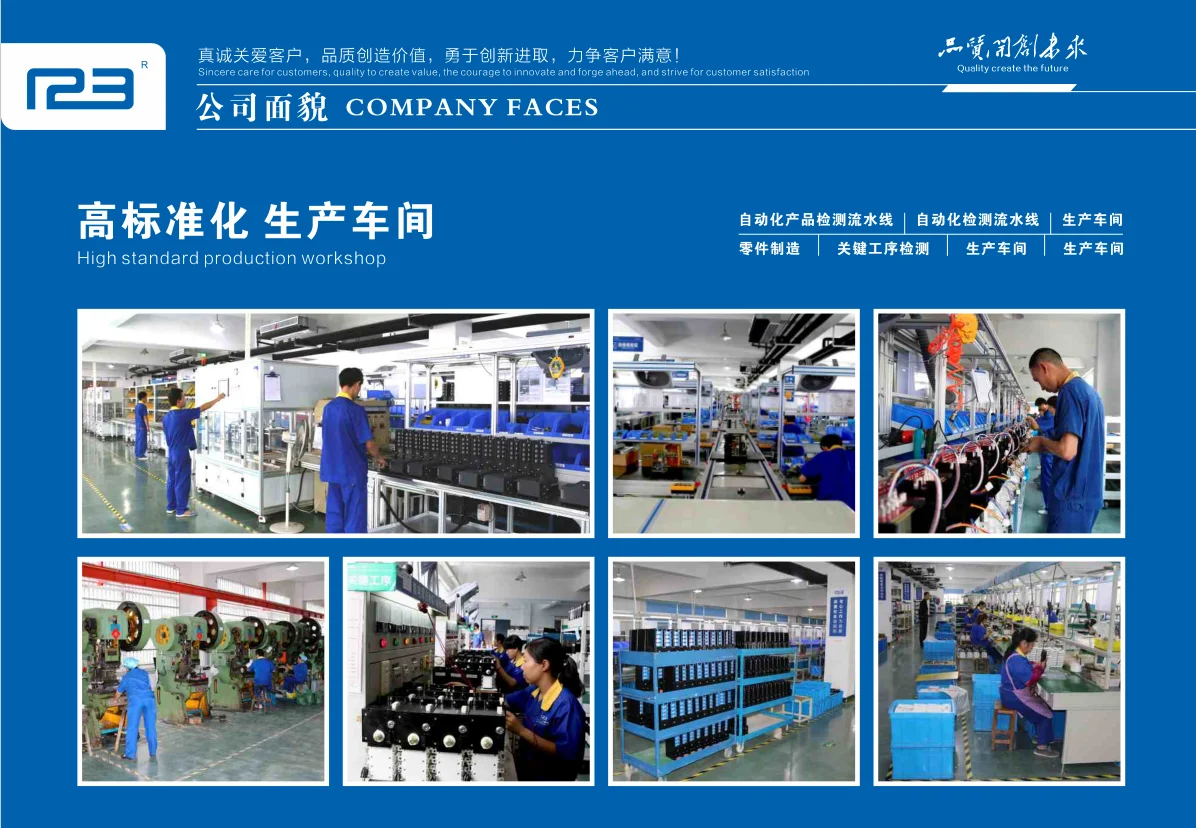

stipulated by GB and I EC standards, and the reliability reaches the international advanced level. With the international leading manufacturing technology, tooling and fixture and testing equipment, we adopt efficient and energy-saving production lines to ensure the precision and reliability of our products.
stipulated by GB and I EC standards, and the reliability reaches the international advanced level. With the international leading manufacturing technology, tooling and fixture and testing equipment, we adopt efficient and energy-saving production lines to ensure the precision and reliability of our products.
Why Choose Us

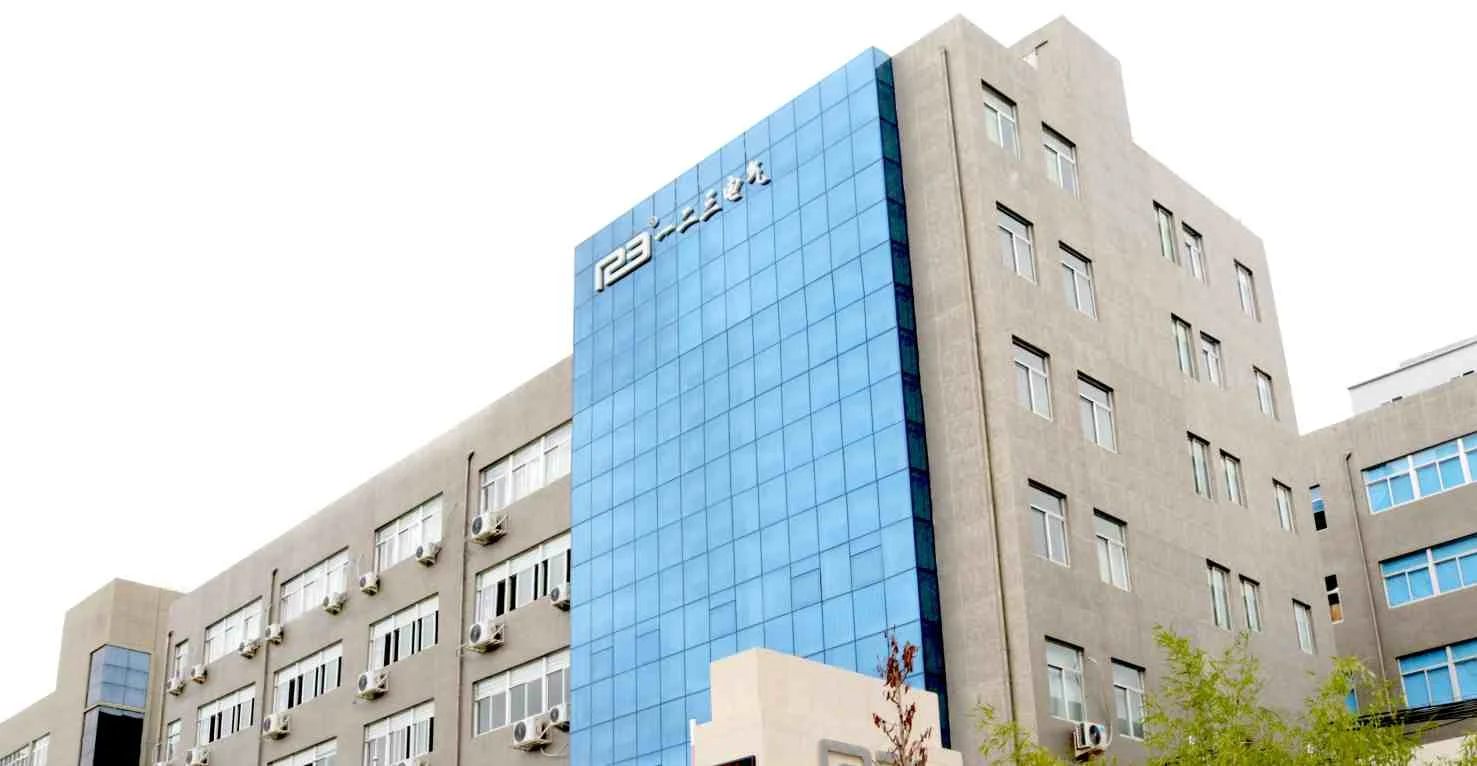

One Two Three Electric Co., Ltd was established in 2004. Our production lines cover every small parts. You can buy from us directly with very competitive price.
High quality products.
Vast industry experience.
Good after-sale service.
Customized experience.
