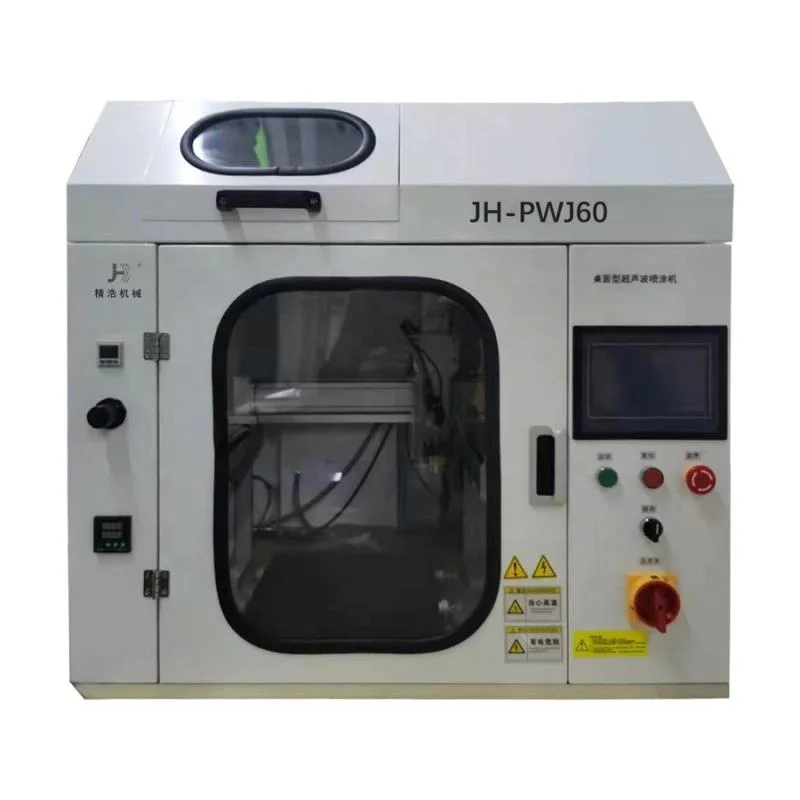

factory price benchtop ultrasonic spray coating equipment for fuel cell nano particles thin film coating
- Category: >>>
- Supplier: Hangzhou Precision Machinery Co. Ltd.
Share on (1600281674075):
Product Overview
Description
Product Description
Ultrasonic nozzles operate by converting high frequency sound waves into mechanical energy that is transferred into a liquid, creating standing waves. As the liquid exits the atomizing surface of the nozzle, it is broken into a fine mist of uniform micron sized droplets.
Unlike pressure nozzles, ultrasonic nozzles do not force liquids through a small orifice using high pressure in order to produce a spray. Liquid is fed through the center of a nozzle with a relatively large orifice, without pressure, and is atomized due to ultrasonic vibrations in the nozzle.
Every ultrasonic nozzle operates at a specific resonant frequency, which dictates the median droplet size. For example, a 60 kHz nozzle produces ,a median drop size of 20 microns (when spraying water). The higher the frequency, the smaller the median drop size.
Specification
Model | JH-PWJ6 |
Frequency | 60Khz |
Max. spray power | 30W |
Spray uniformity | ＜3% |
Material viscosity size | ＜30cps |
The maximum width of spray | 80mm |
Max. flow | 30ml/min |
Ultrasonic nozzle | Can be equipped with a variety of patented ultrasonic nozzle |
Coating film thickness | 20nm-100um |
Solution conversion rate | ＞95% |
Atomization particle size | 20~30um（distilled water） |
Whether to add gas | Yes |
Max. air pressure | ≤0.05mPa |
Input voltage | 220V, 50Hz |

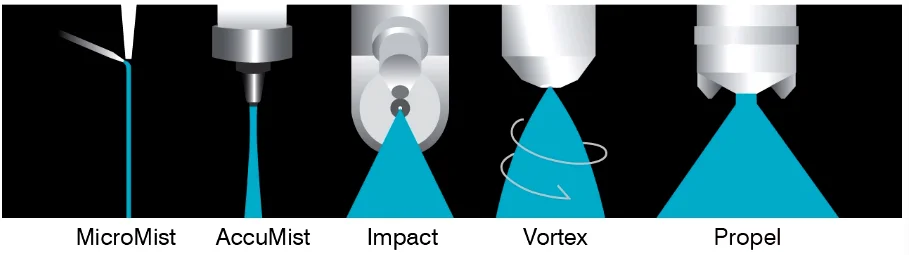

Spray type

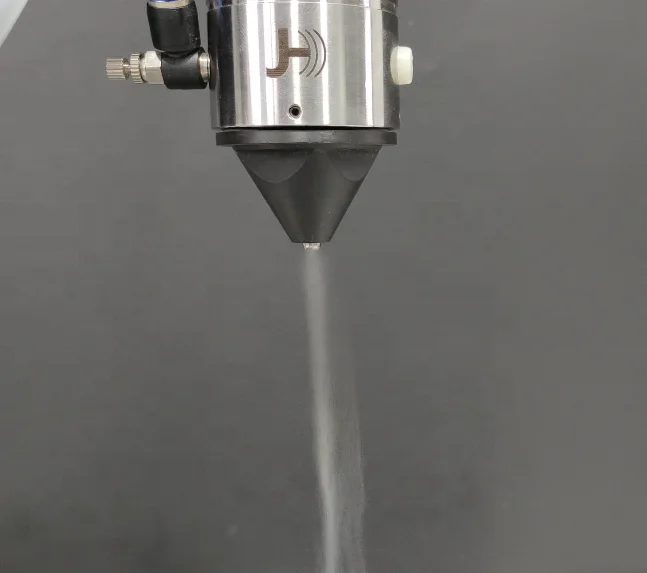

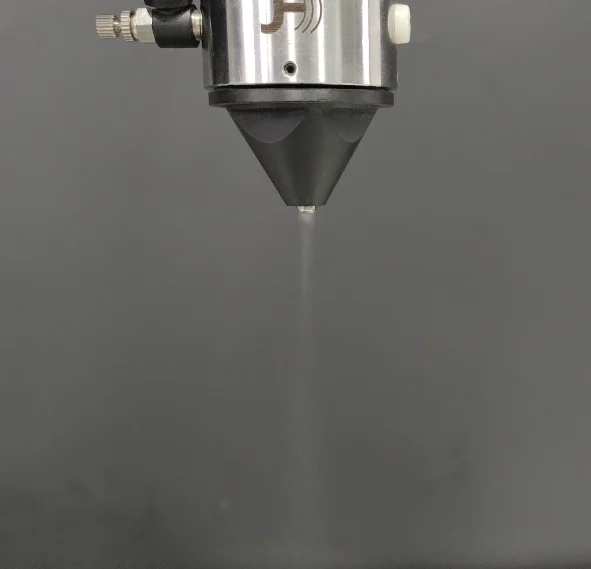

Spray effect
ADVANTAGES:
* Uniform spraying: ultrasonic can make particles to micron or even nanometer level, smaller particles ensure more uniform spraying effect.
* Layer thickness controllable: ultrasonic spraying can accurately control the flow rate, so as to control the thickness of the layer.
* Saving materials and environmental protection: ultrasonic low flow rate spraying can reduce 80% of the use of spraying materials, workers do not need to directly contact the spraying materials, more environmental protection.
* High efficiency and energy saving: the liquid is transmitted to the spray head through self gravity or low pressure pump and continuous or intermittent atomization, no blockage, no wear, no noise, no pressure, no moving parts, no need for cooling water in atomization, little energy consumption, simple equipment, low failure rate, ultrasonic sprinkler has self-cleaning function and maintenance free.
* High efficiency and energy saving: the liquid is transmitted to the spray head through self gravity or low pressure pump and continuous or intermittent atomization, no blockage, no wear, no noise, no pressure, no moving parts, no need for cooling water in atomization, little energy consumption, simple equipment, low failure rate, ultrasonic sprinkler has self-cleaning function and maintenance free.
APPLICATIONS:
*Fuel cells
*Thin film photovoltaic cells
*Thin film solar coatings
* Perovskite solar cells
* Graphene coating
* Silicon photovoltaic cells
* Glass coating
* Electronic circuits
* The spray head can be applied to various solutions, sewage, chemical liquid and oil mucus can also be atomized.
*Thin film photovoltaic cells
*Thin film solar coatings
* Perovskite solar cells
* Graphene coating
* Silicon photovoltaic cells
* Glass coating
* Electronic circuits
* The spray head can be applied to various solutions, sewage, chemical liquid and oil mucus can also be atomized.
