Product Overview
Description
factory mini portable concrete pump with high quality
diesel trailer concrete pump for construction
WhatsApp: 008615066732025
trailer concrete pump with diesel engine, it is portable concrete pump, its main function for conveying concrete, usually mounted on the trailer with tires, which is powered by a diesel engine or electric motor, and with the high pressure to continuously pumping the concrete which along the steel delivery pipe to the construciton place.
Specification
Max Theoretical Concrete Output (m³/h) | 30 |
Max Concrete outlet Pressure (Mpa) | 10 |
Concrete slump (mm) | 120—230 |
Aggregate Size (mm) | ≤30 |
Powder (KW) | 68 |
Speed (r/min) | 2300 |
Concrete Cylinder Diameter (mm) | Ø 160/1000 |
Hydraulic pressure(Mpa) | 31 |
Oil Tank Capacity (L) | 200 |
Hopper Capacity (m³) | 0.3 |
Filling Height (mm) | 1100 |
Maximum Theoretical Conveying Distance (vertical Height/Horizontal (m) | 150/500 |
Pipe Cleaning Mode | Washing |
Overall Dimension (mm) | 4000×1850×2200 |
Total Weight (kg) | 3000 |

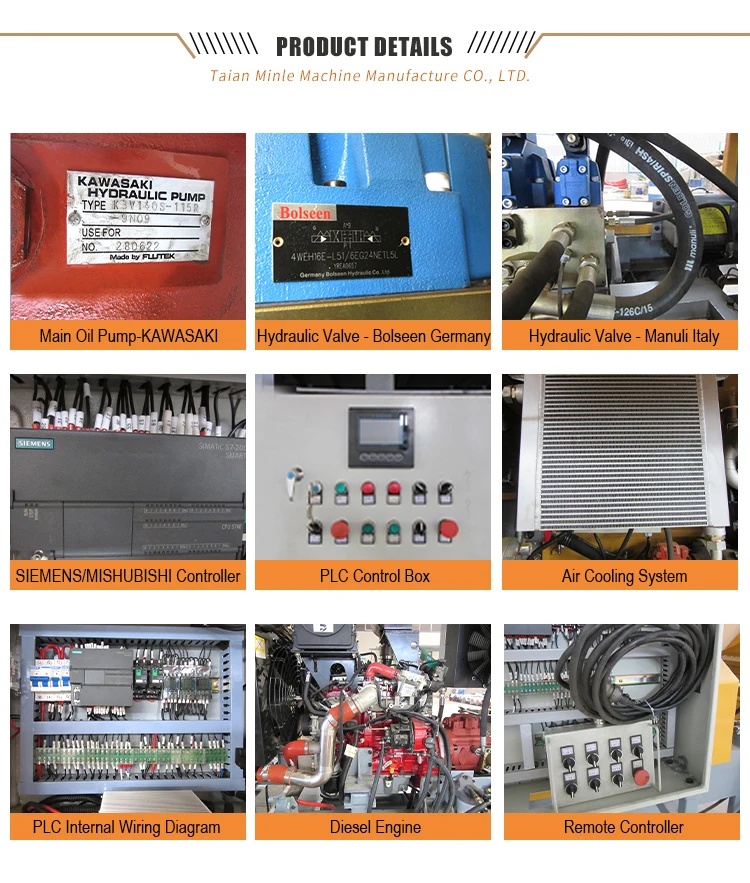

1.Power system trailer concrete pump
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted. Diesel power: Germany Deutz, Weichai, Schneider, Japan Siemens, Mitsubishi are adjusted. The main power could be adjusted by the user
2.Electronic control system mini diesel concrete pump
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system. Main electric elements are imported original Schneider, Siemens, OMRON, LG etc. The control mode: manual operation and wireless remote control Humanity and intelligent electronic control system optimizes the person-machine interface.
3.Hydraulic system portable concrete pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
4.Pumping system concrete diesel pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition. Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service life of the S pipe outlet.
5.Lubrication System diesel oncrete pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.
6.Cooling System concrete trailer pump
Compulsory air cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.
