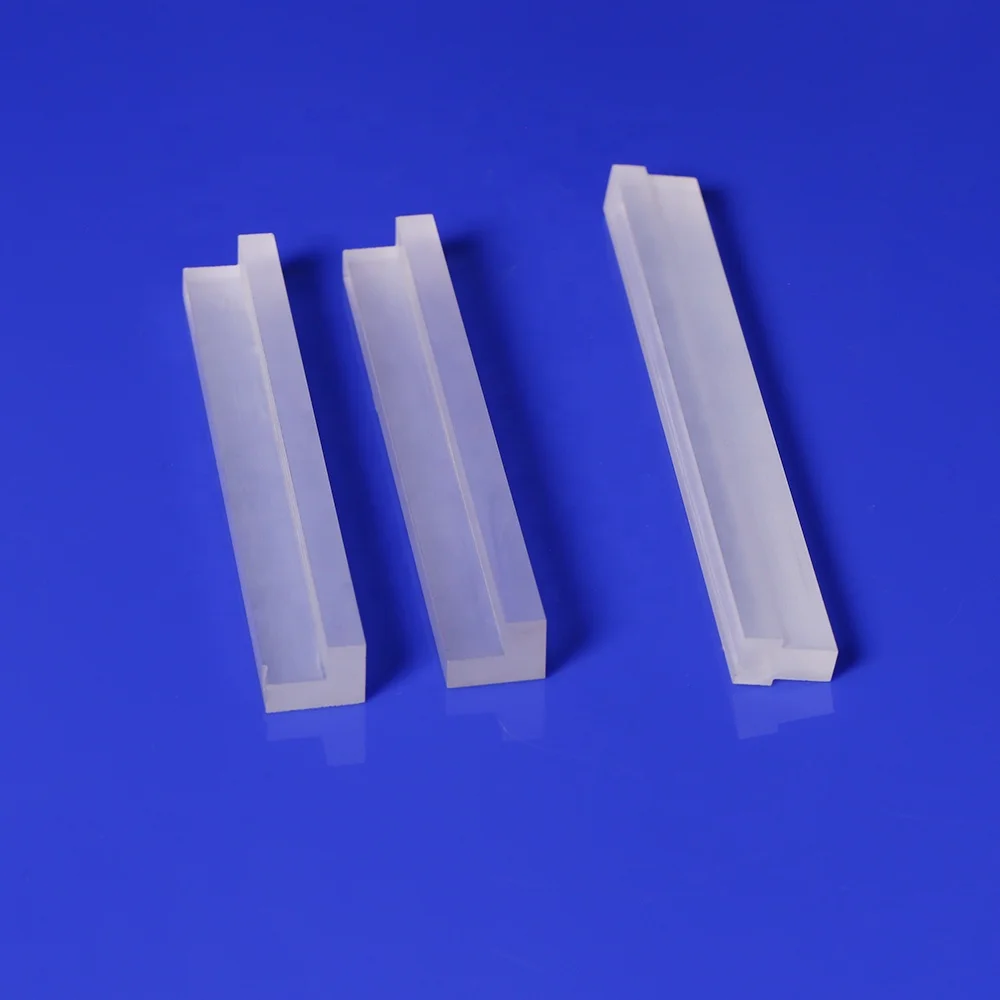

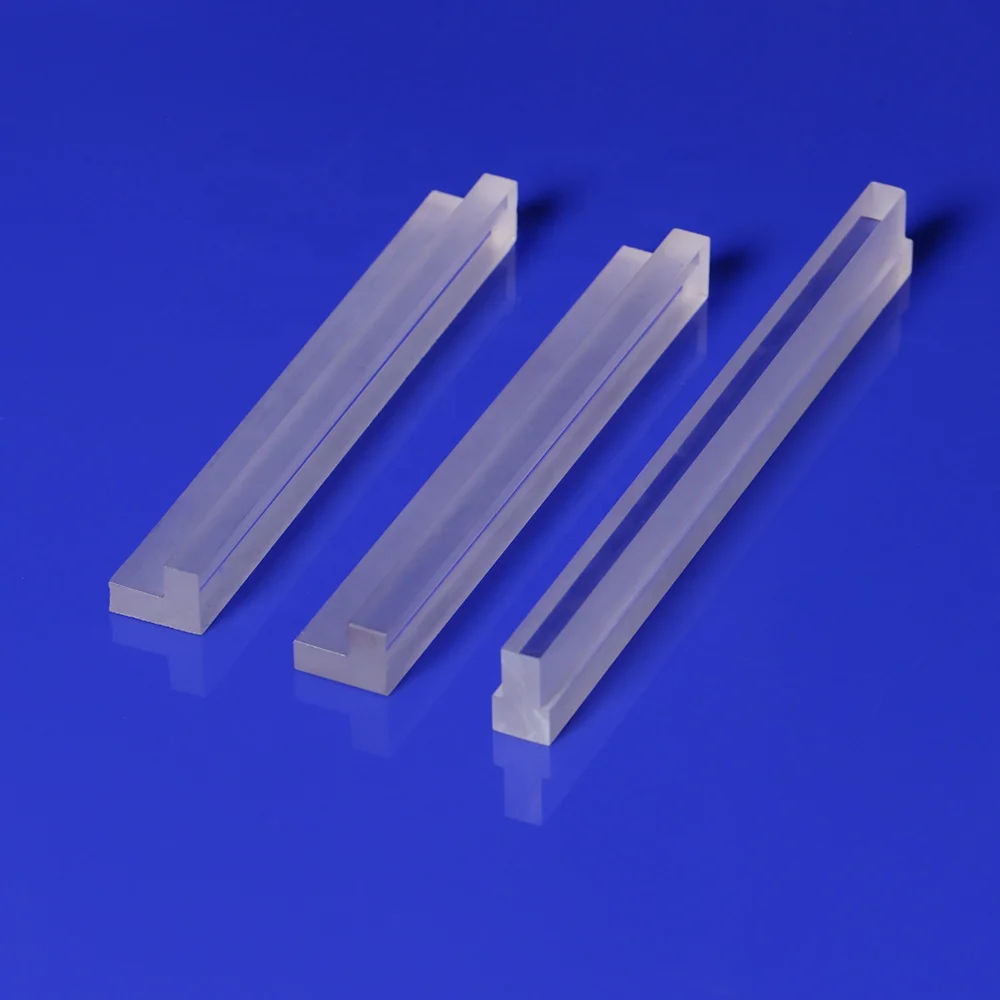

Customize Quartz Glass Bar Crystal Quartz Strip Base Spare Parts for TAB COF ACF Bonding Machine Parts

Share on:

Price:RUB 743.28 - RUB 2,601.45
Price in USD:Details


Product Overview


Customize Quartz Glass Bar Crystal Quartz Strip Base Spare Parts for TAB COF ACF Bonding Machine Parts
Material:99.99% Pure Quartz Glass Color :Transparent Size: 1. Diameter: 1.5-450mm, 2. Thickness: 0.5-10mm. 3. Length: 10-3500mm. 4. OEM: All different sizes can be done according to customer's demand. Application:Widely used in electric light source, electrical appliances (electric), semiconductor, Solar, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other.
Outstanding Properties of Quartz Glass Materials
*High purity quartz with silica content 99.99%
*very low thermal couductivity, excellent thermal vibration resistance
*Very high deformation temperature and softening temperature
* High dielectric electric field strength, low dielectric loss, and low conductivity * Optical transmittance in an extremely wide spectral range from ultraviolet to infrared * Very good chemical stability, does not react with water, salt solutions and most acids. * Excellent radiation resistance.
Product Paramenters
Property Content
Property Values
2.2×103 kg/cm³
5.5 - 6.5 Mohs' Scale 570 KHN 100
Tensile Strength
4.8x107 Pa (N/mm2) (7000 psi)
Compression Strength
>1.1×109 Pa (160,000 psi)
Coefficient of Thermal Expansion
5.5x10-7 cm/cm·°C (20°C-320°C)
Thermal Conductivity
1.4 W/m·°C
Specific Heat
670 J/kg·°C
Softening Point
1730°C (3146°F)
Annealing Point
1180°C (2156°F)
Strain Point
1075°C (1967°F)
Electrical Resistivity
7x107 ohm cm (350°C)
Recommend Products
Why Choose Us
With the help of high Production technology,we can achieve precise and difficult machining of the arc, slope, slot, sphere, cylinder, cambered and curved surface, and angle of the product. The minimum aperture can reach 0.8 mm and the minimum geometric tolerance can reach±0.01 mm. Finish, surface, roughness and raw materials can be customized according to customer requirement. Product has high precision and long service.
Our Service
1, OEM service. 2, The customer's own design.such as design & package & printing logo etc. 3, Special package for fragile products to make sure no broken in transportation. 4, The Trade Assurance Service is ready for you. 5, 0% compain feedback.
Company Profile
Lianyungang Qudao Quartz Products CO.,Ltd is a quartz glass products’ deep processing enterprise integrating R&D, production and sales . We have a number of cold processing and hot processing production lines for quartz glass products, and hot processing customized products are our unique advantage. Combing with our Continuous innovation in production technology, advanced production and testing Facilities &Equipment,fine workmanship and quality guarantee system , we can help you solve any problems you encounter when using quartz glass products.
Since Qudao Quartz established from 2013, with the cultural philosophy of “Take the right way and inexhaustible use” and the cornerstone of "Market-oriented, truth-seeking and mutual benefit, honesty and common development" to seek development,which make us successively become a long-term supplier of many well-known universities, major research institutes, environmental protection, medical and other famous enterprises at home and abroad. Our products are exported to Europe, America, Southeast Asia, Japan, South Korea and many other countries.
Packing & Delivery
1. Inner: 1piece / Bubble paper. Plastic air cushion film. Foam material
2. Outer: Shipping Carton Wooden case/ According to
customers' requirement.
1. By Air (China Post Air Mail, ePacket, DHL, UPS, TNT, FEDEX)
2. By Sea (FOB Qingdao,Shanghai etc.)
3. Both air and sea shipment is available, it's depend on your request.
1.Q:What is the material of your products? A: The material is natural quartz and glass. 2.Q:Are you a factory or trading company? A: We are a factory. 3.Q:How does your factory do regarding quality control? A: Quality is priority. We have our professional quality control team to guard every step of the manufacturing. 4.Q:How can I pay for you? A: T/T, West Union and Alibaba credit guarantee order. 5.Q:How do you ship the goods and how long does it take to arrive? A: We usually ship by ePacket, DHL, TNT, UPS or FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
