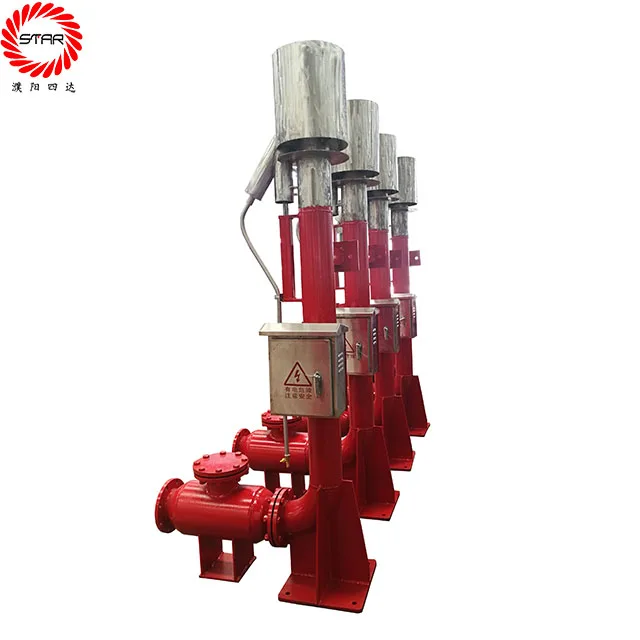

2024 Best Price Environmental Protection Equipment Flare Ignition Device Used In Oil Gas Drilling
- Category: >>>
- Supplier: Puyang Star Petroleum Machinery Co. Ltd.
Share on (1600281864540):
Product Overview
Description
Product Description
Product Application
Flare Ignition Device is an environmentally-friendly discharge torch that is exclusively produced by our company. It is suitable for ignition of long distances and air and toxic gas burning places that cannot be reached by humans.It is especially suitable for oil production(gas) overflow of gas or oil, natural gas, and drilling operation in station gathering pipelines, and long-distance ignition of natural gas separated by liquid-gas separators during killing operations eliminate the unsafe factors of manual ignition. Avoid explosions that may occur when natural gas is mixed with air and H2S-containing gases that can harm humans and equipment.
Horizontal Igniter for burn the gas from well drilling discharged pipelines(Type:SDKX)

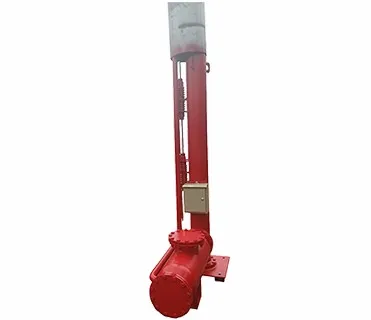

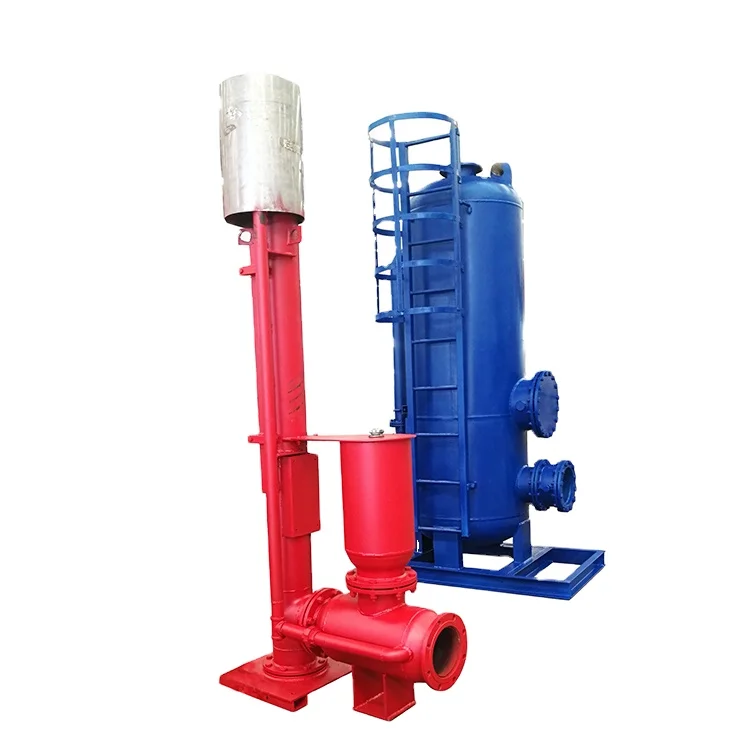

Verrical Igniter for Burn the gas from liquid-gas separator.(Type:YPD)
Flare Ignition Device Tehnical Parameters | ||||||
Fuel Tank | 40L | Burner(Torch) Path: | DN200MM | |||
Burner Height: | About 2m | Burner Height: | 3m | |||
Pressure Regulator Valve Set Outlet Pressure | ≥0.5 Mpa | Electronic Ignitor Power: | DC | |||
Remote Control Distance | 30m | Electronic Ignitor Voltage: | 16kW | |||
Ignition Medium | Diesel | Electronic Ignitor Frequency: | 100-1000beats/Min | |||
Charging Voltage | ~220V,50HZ | |||||
Ambinent Temperature: | -30℃~40℃ | |||||
Ignition Frequency | ≤10 Times/Second | |||||
Main Configuration | ||||||
Combustion Cylinder | 1 | Fire Torch | 1 | |||
Ignition Rod | 1 | Fire Tube | 1 | |||
Control Box | 1Set | Windshield | 1 | |||
Fuel Injection Gun | 1 | Electrical Control Box | 1 | |||
Oil Pipeline | 1 | Ignition Device Body | 1(Including Torch,High-Energy Package) | |||
Gas Pipeline | 1 | Ignition Control Box | 1(There is a remote control,electronic control box key) | |||
High Voltage Cable | 30m | Cable Tray | 1 | |||
Gas Hose | 30m | Liquefied Gas Connection Pipeline | 1(with 2 tube clip) | |||
Remote Control | 1 | Pressure Reducing Valve | 1 | |||

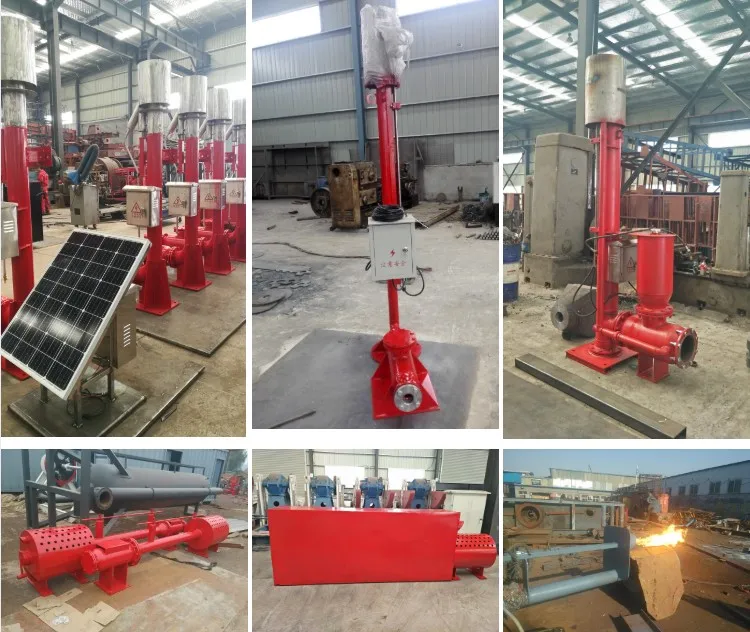

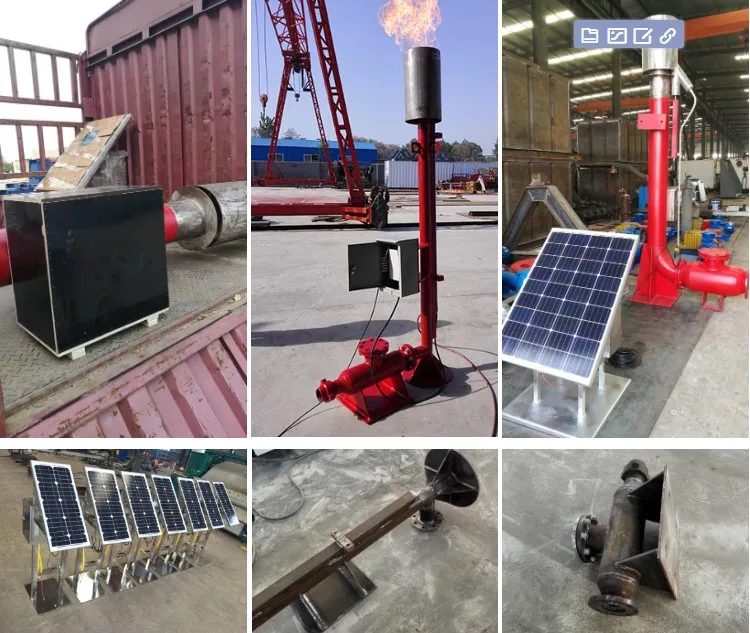

Products Display

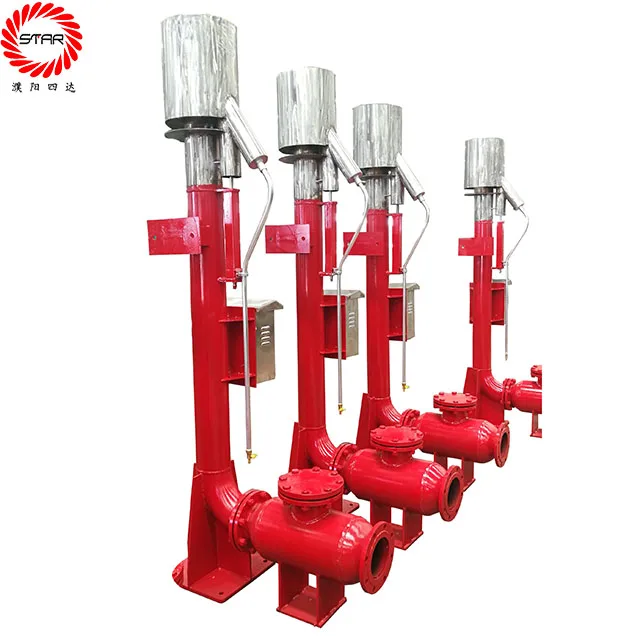

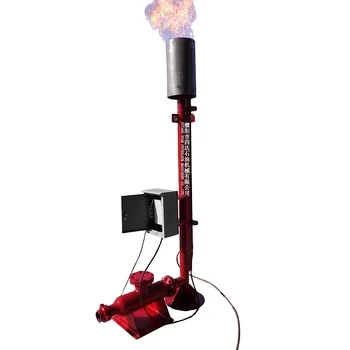

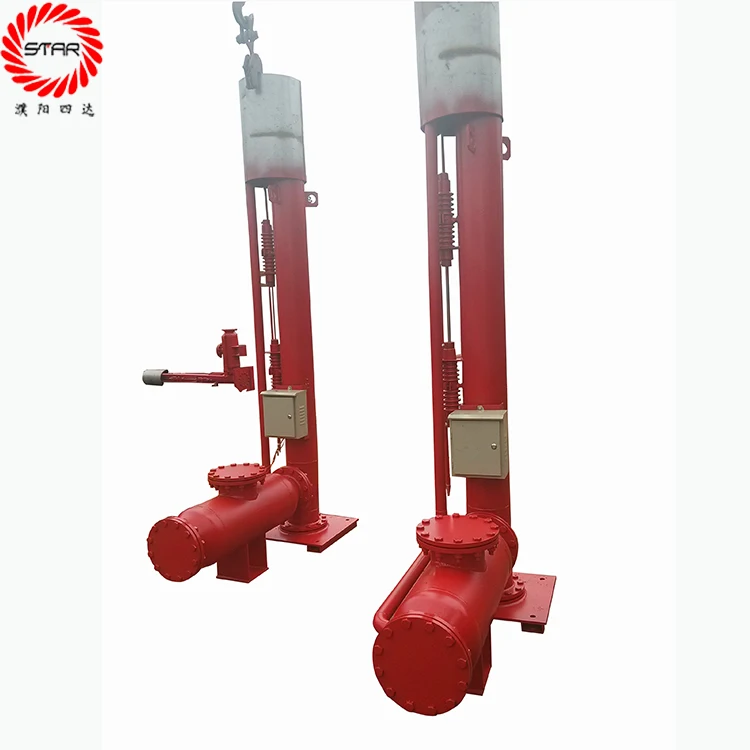

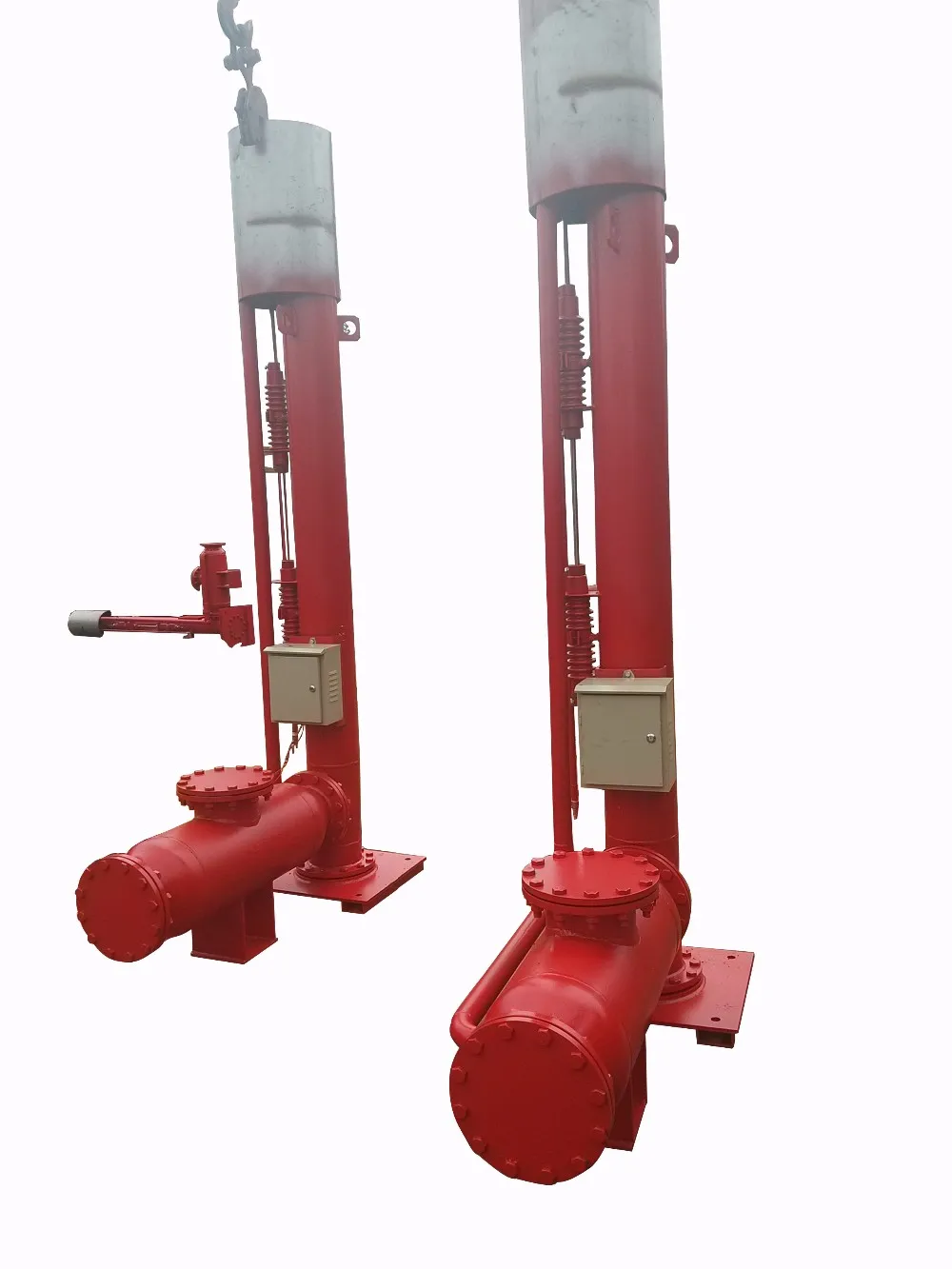

Vertical Flare Ignition Device Display

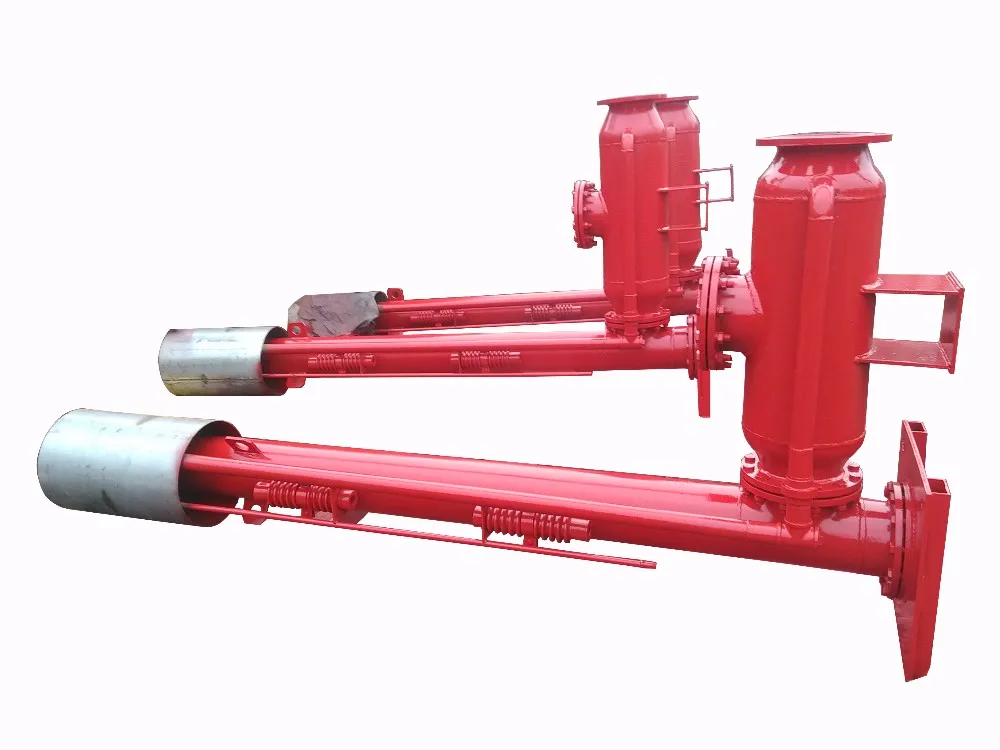

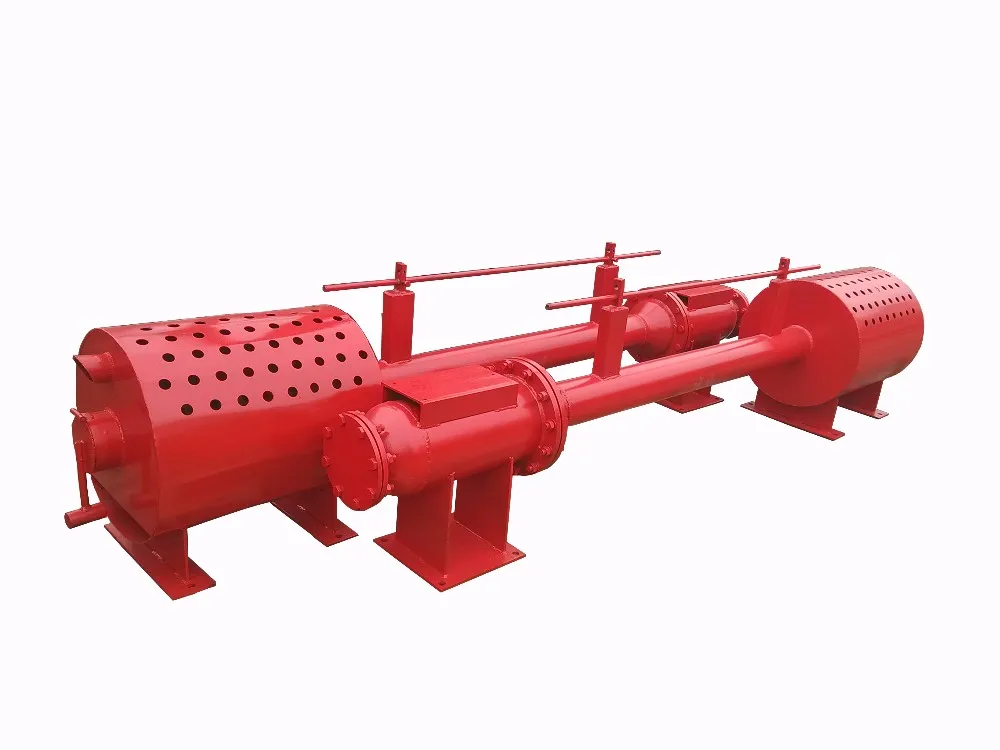

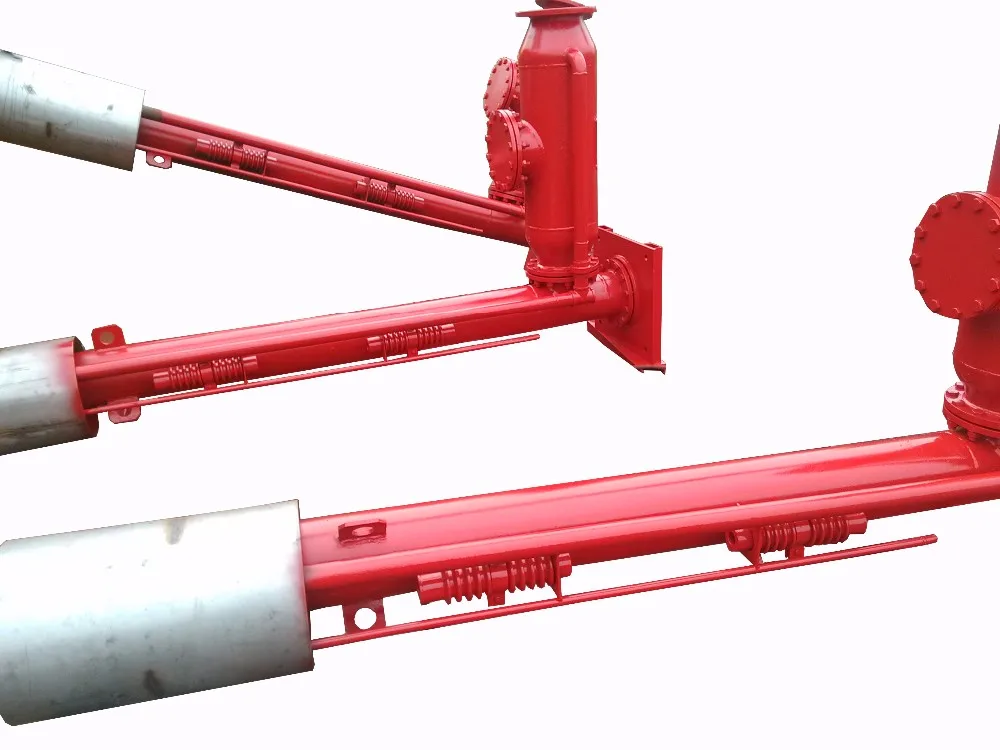

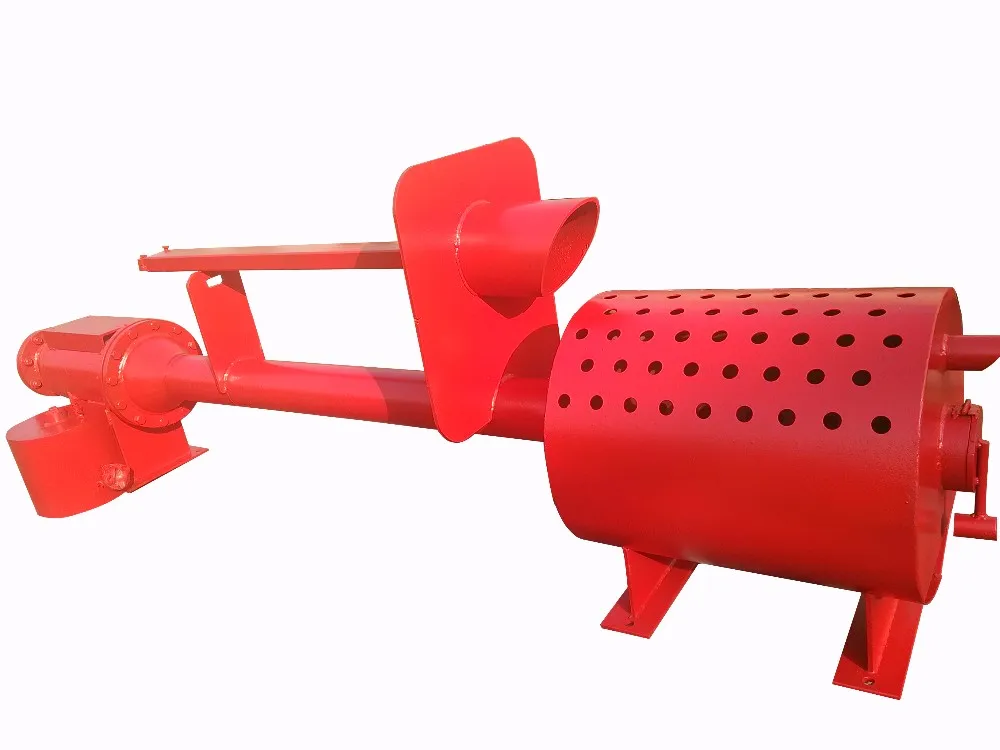

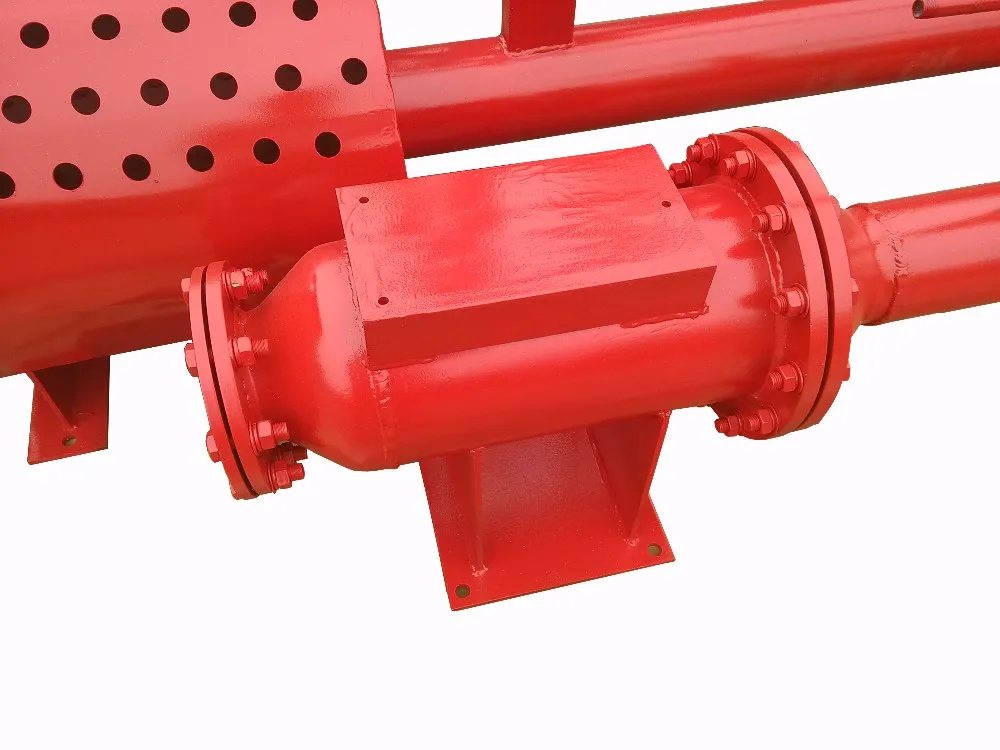

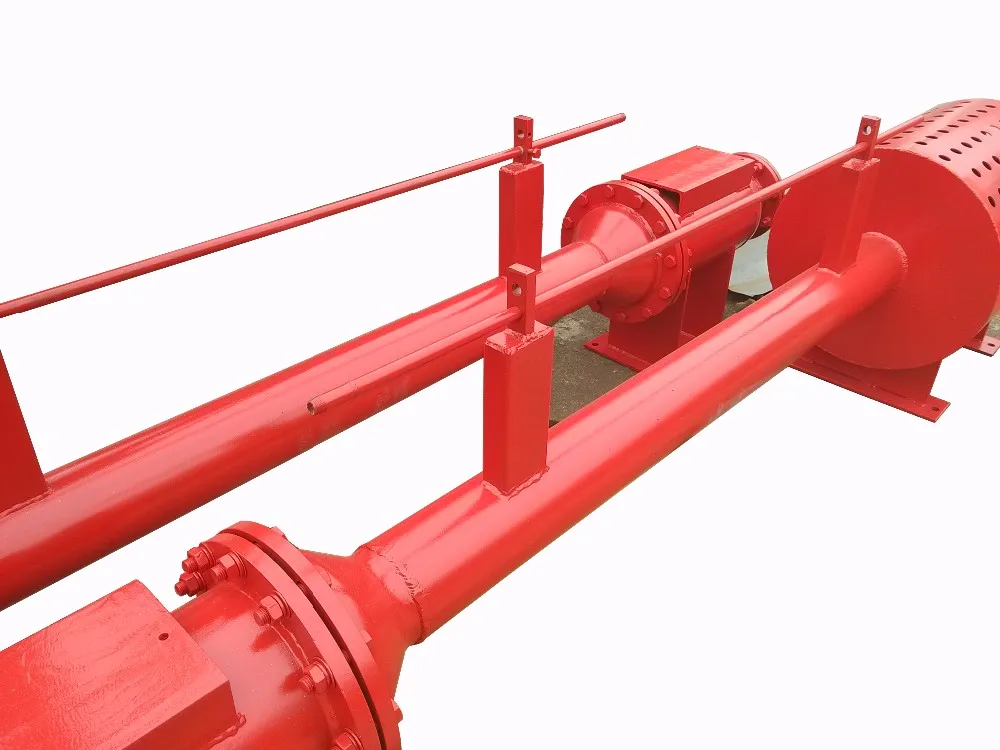

Horizontal Flare Ignition Device Torch
Want to know more,please be free to contact Lillian----
1.By Trademanager
2.By Following information
Remark:please supply more detail require specification ,that I can back the quotation to you soon.
Certifications
Our Company was established in 2007,Obtained a business license,ISO,API and so on.
Packing & Delivery
Waiting for delivery
Flare Ignition Device ready well, waitiing to be transport to the port.
Transport to the port
Container is transported to the port.
Sea Shipping
Container loaded on board, travel across to sea to the port of destination.
Our Company
Workshop Show
Factory Show
Welcome friends from all over the world to come to visit our factory and guidance our work.
FAQ
Problem | Reason | Solutions |
1.After the controller is turned on, Ignition device does not ignite | 1.Loss of battery 2.Output insurance blown 3.Cable and ignition cable broken 4.Possible ignition device is broken 5.Ignition conductive rod is damaged 6.High energy cable connector is not connected fastened | 1.After charging, use again 2.Replace the same type of insurance 3.Check the connection wire and ignition wire 4.Contact after-sales service or repair 5.Check whether it is broken or replaced. 6.Close the ignition controller, check, check it ,then tighten the connection. |
2.When the ignitor works, the front end of the conductive rod emits a sound of "pa,pa,pa...." | Ignition electric shock sound | Ignition electric shock sound |
3.Igniter sparks at each connection | The connector is not tightened | Tighten(note that porcelain cannot be used too much) |
4.Ignition controller output votage is too low | Maybe the voltage converter in the controller is faulty | Contact after-sale service or repair |
5.Ignition controller charging deficiency | Maybe the controller charging system is faulty | Contact after-sale service or repair |
