70GSM Black Nylon 66 Ripstop Fabric with TPU Coated Waterproof ultra Light Weight

Product Overview

Description

TPU:Thermoplastic Polyurethanes

The first application of TPU is as an environmental friendly replacement of PVC and performs better in low temperature properties, abrasion resistance, flex properties, plasticizer migration.























Specification	Basic Fabric	Material	100% Microfiber nylon 66 ripstop fabric
		Yarn Count	30D
		Width	155CM
		Color	white, black, as per customers' demand
		Technics	Woven
		Style	Double lines Ripstop
	TPU	Color	Transparent
		Type
	Total Weight		70G/m²
	Total Thickness
	Width of End Fabric		147CM
	Pattern		Water repellent on one side, TPU coating/laminated on the other side
	Delivery Detail		The delivery time will be within 25 days after received deposit.
	Packaging Details		Hard paper pipe+PE foam+PE bag+woven bags+pallet, as per customers' demand
Characteristics	1) Completely waterproof
	2) Super airtightness for inflatable products
	3) Lightweight, soft and smooth hand feeling
	4) Excellent low temperature flexibility, could be doubled up under -55℃ without causing cracks.
	5) High tensile strength and tearing strength
	6)  Easy to Weld, our TPU coated fabric & TPU laminated fabric are easy to be welded by high frequency machines, heat machines, hot air machines, they are even could be welded by iron and PE bag sealing machines.
	7) TPU is Environmentally friendly and non-toxic, biodegradable, it could be decomposed by microorganism within 3-5 years when buried.
Our Services	1) If you are new in this field, we could offer you professional advices based on our over 15 years experience. What’s more, we could recommend high quality accessory and machine manufacturers to you.
	2) The specifications could be made according to the clients' requirements, including the basic fabric, color of basic fabric, total thickness, thickness & color of TPU film, ,width and packaging.
	3) Sample order and small order are acceptable
	4) Free samples could be sent to you to check the quality, and you would only need to pay for the postage
If you are interested in our products or have any questions, please contact us without hesitation

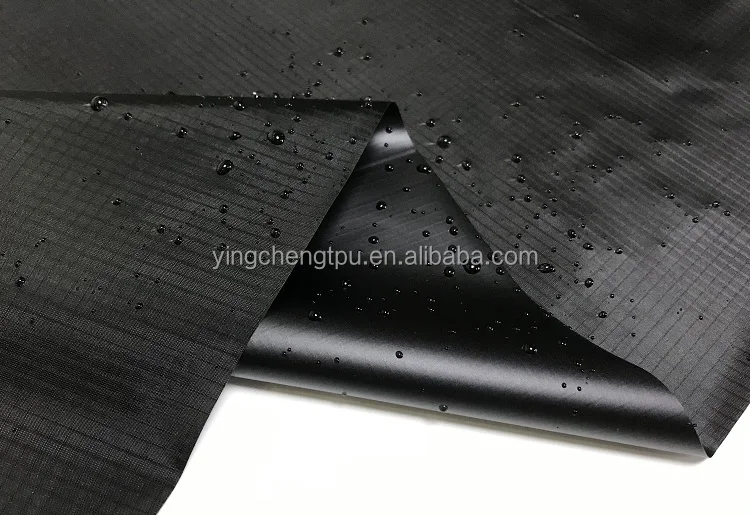

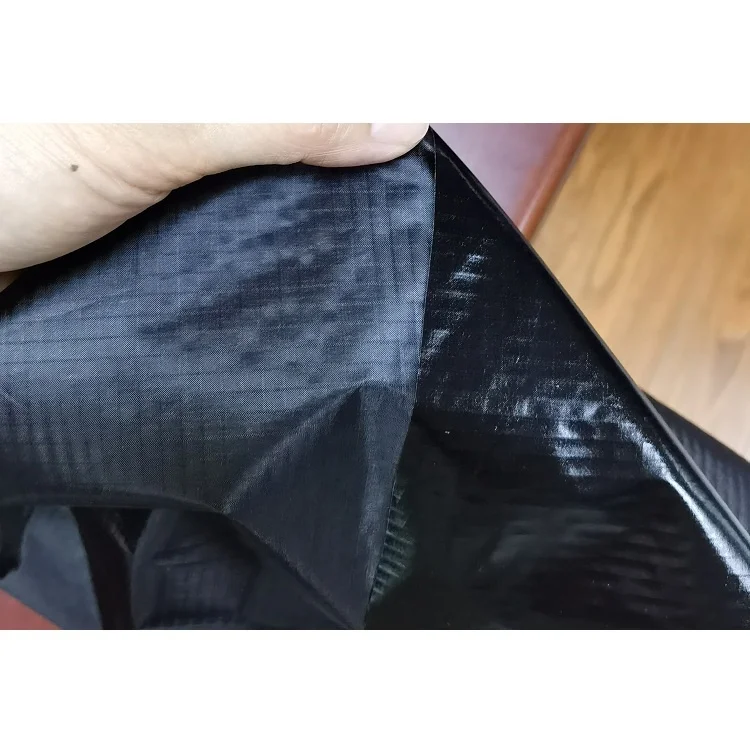

There are 3 layers in this TPU waterproof fabric.

The first layer is water repellent.

The middle one is basic fabric. It’s 30D nylon66 fabric with 3MM ripstop  with good tearing strength and tensile strength.

The bottom layer is TPU Film. It makes the fabric to be completely waterproof and airtight. The soft and elastic TPU layer are easy to weld.













Production Process

Step1) Raw material inspection. All the basic fabric will be checked by quality inspector before manufacturing.

Step2) TPU laminated. During the mass production, our workers would pay attention to the product quality control all the time.

Step3) Package. When the workers package the finished fabric , they inspect every meter of the mass production.

Step4)Delivery.
