Портативный ювелирный Золотой паяльный Газовый Генератор оксигидроген Золотая Серебряная паяльная машина
- Category: Laser Welders >>>
- Supplier: Okay,Energy,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

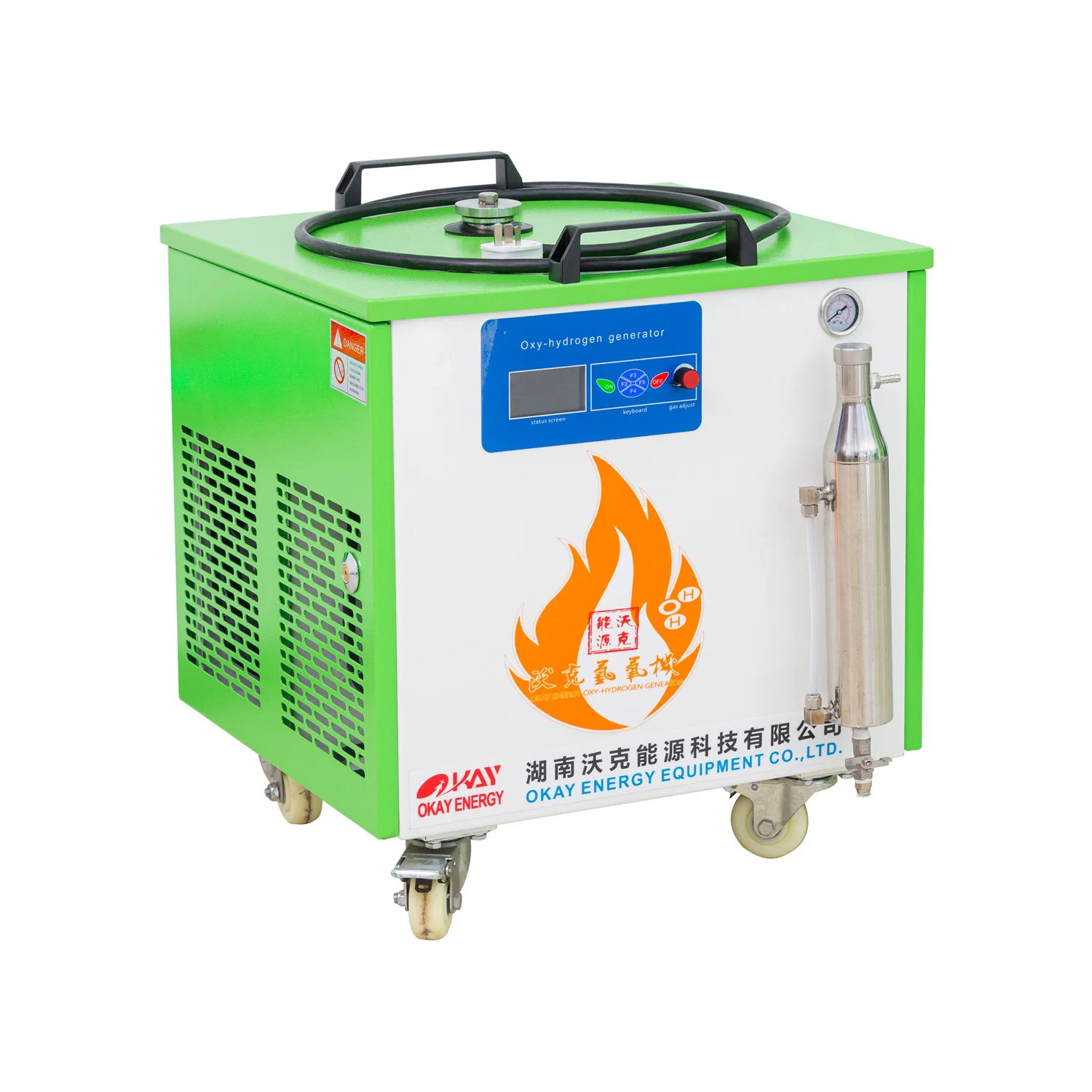

Portable Jewelry Gold Soldering Gas Generator Oxyhydrogen Gold Silver Soldering Machine
Oxyhydrogen generator is able to separate clean soft water (H2O) into hydrogen and oxygen gases,using a small amount of electricity through water electrolysis process.These gases are then mixed and applied in wax investment assemblying process,jewelry welding,acrylic polishing.
Technical Data
Model | OH200 | OH300 | OH400 | OH600 | OH800 | OH1000 |
AC Voltage(V) | 220/110 | 220/110 | 220/110 | 220/110 | 220/110 | 220/110 |
Rated Power(KW) | 0.8 | 1.2 | 1.4 | 2 | 3 | 3.5 |
Max.Gas Output(L/h) | 200 | 300 | 400 | 600 | 800 | 1000 |
Max.Working Pressure(kg/cm2) | 2 | 2 | 2 | 2 | 2 | 2 |
Max.Water Consumption(L/h) | 0.11 | 0.17 | 0.23 | 0.35 | 0.43 | 0.53 |
Water Feed | manual | manual | manual | manual | manual | manual |
Dimension-L*W*H(mm) | 450*246*470 | 575*246*470 | 695*246*470 | 945*246*470 | 660*550*800 | 700*600*890 |
Gross Weight(kg) | 17 | 23 | 26 | 45 | 60 | 70 |
Ventilation Space Requirement(mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Applications
