8mm Pin 35mm2 Power Cable High Current Dc Voltage Plug With Jack Energy Storage Connector
- Category: >>>
- Supplier: Zhengzhou Saichuan Electronic Technology Co. Ltd.
Share on (1600282830740):
Product Overview
Description
Product Introduction
8mm Pin 35mm2 Power Cable High Current Dc Voltage Plug With Jack Energy Storage Connector

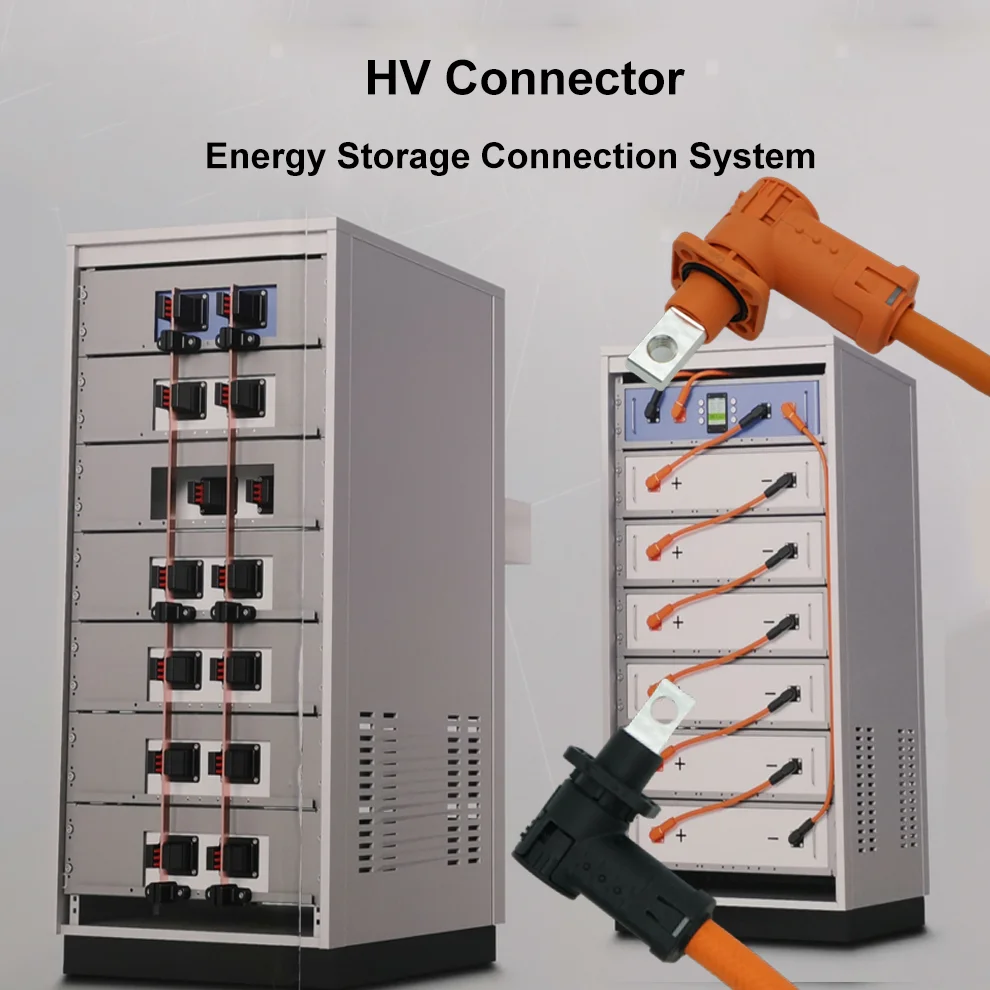

SS1 series products are connectors for energy storage systems. are widely used in energy storage, electric vehicles, rail transit, process control, and automation and heavy equipment. with functions such as key position error prevention, positive and negative electrode color error prevention, and 360° rotation.
Product Features:

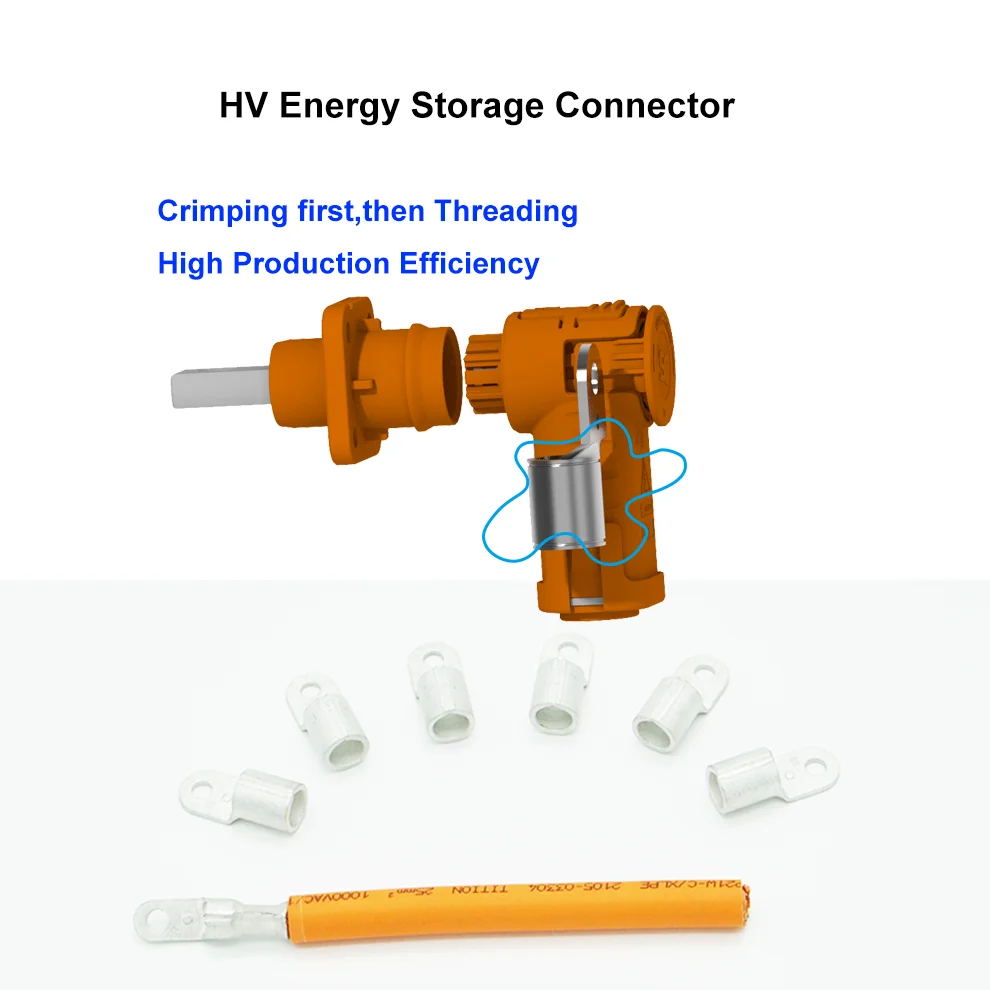

1. The product supports crimping first and then threading, and the wiring harness production efficiency is high.
2. The product socket is individually sealed IP67 (optional), and the header can meet IP67 (optional) after being inserted.
3. The separation state of the headstock meets IPXXB.
4. With key position error prevention, color error prevention function.

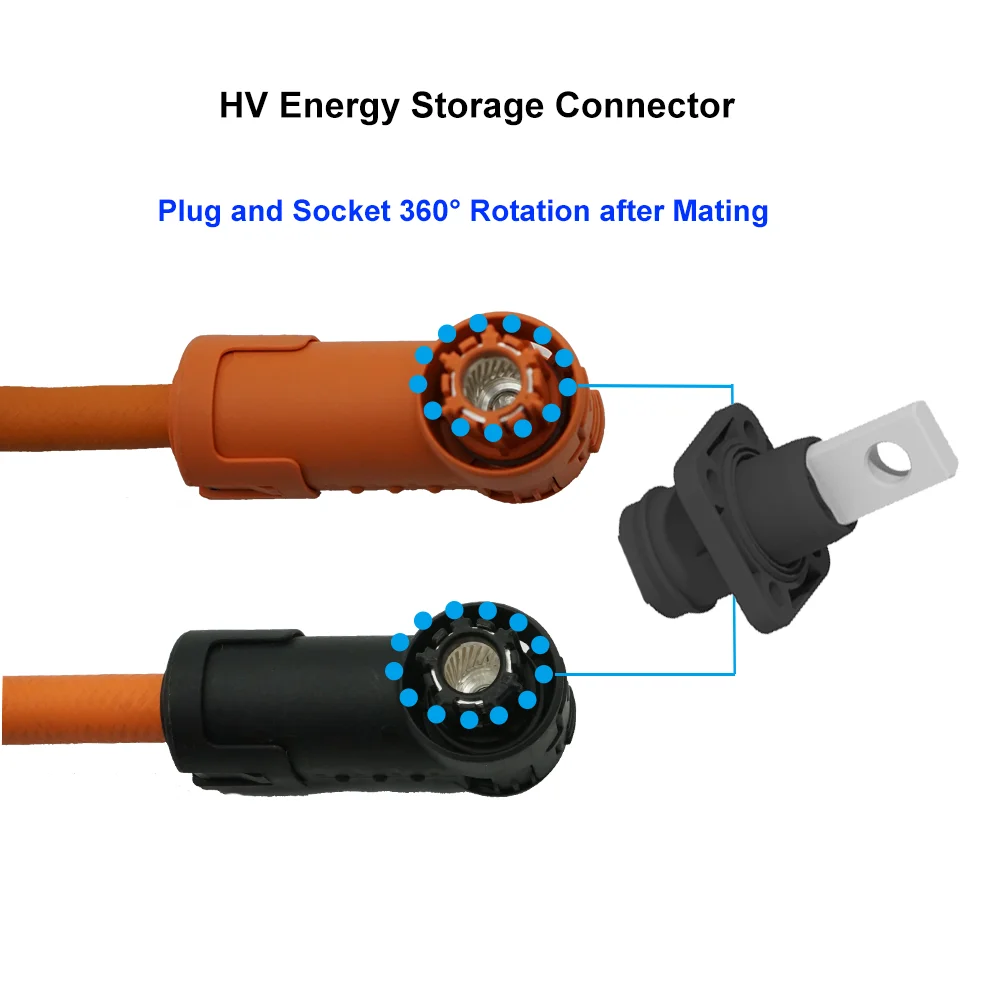

5. It can be inserted at any angle of 360°, and 360° rotation can be realized after insertion.

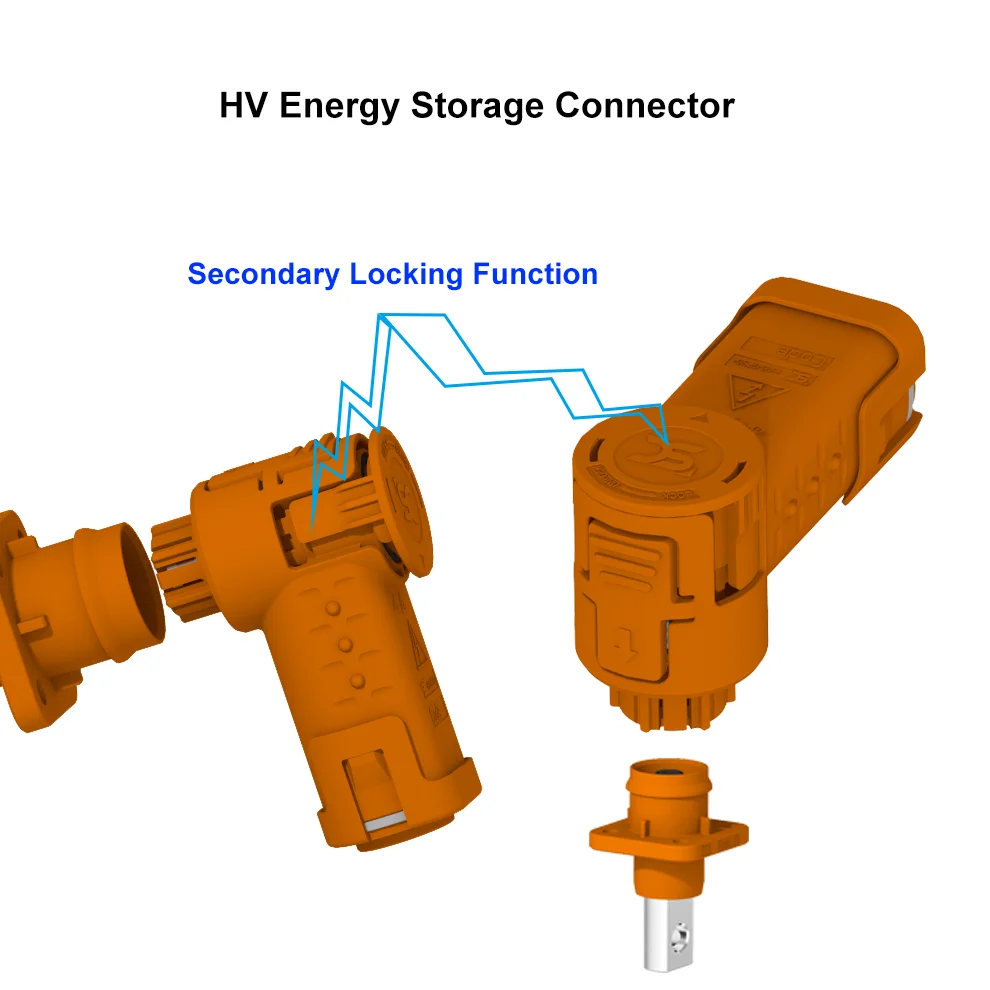

6. With secondary locking function.
Details Images
Specifications | ||
Vibration | QC/T 1067.1-2017 V1 vibration level | |
Rated current | 400A max | |
Rated voltage | 1500V | |
Withstand voltage | 4000V | |
Insulation resistance | 5000MΩ | |
Protection grade | IP67 (optional), IP69K, socket separately sealed (optional) | |
Working temperature | -40℃~125℃ | |
Shell | nylon | |
Seal silicone | rubber | |
To ensure that the product is fully adapted, please confirm the connector voltage, current, contacts positions , and the related technical parameters before placing the order !!!
Application
SS1 series products are connectors for energy storage systems. are widely used in energy storage, electric vehicles, rail transit, process control, and automation and heavy equipment.
Products Categories
Certifications
Company Profile
Product packaging
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. Carton size: 43*34*30(CM)
3. OEM package available
FAQ
Q1.Are you a factory or trading company?
A: We are a professional manufacturer specialized in HV cables/harness, electrical connection system, Various electrical connectors, Saichuan Technology is the main supplier of Yutong Bus Group, Located in the High-tech Zone of Zhengzhou City, Henan Province.
Q2.How could I know if this product is suitable for me?
A: Before ordering, we will provide every details of the product for your reference, or you could tell us your detailed requirements, our technician will recommend the most suitable product for you.
Q3.Is it possible to provide after-sales service?
A: We have a team of professional after-sales engineers, can provide full after-sales service online or on-site.
Q4.Can I visit your factory?
A: Welcome to visit our factory. We build business relationship with many well-known factory. We can visit the cooperative factories if you need, and you could know more thing about Saichuan technology according that.
Q5.I haven't done business with you guys before,how can i trust your company?
A: We would trade on Alibaba online to make sure your money is safely; we has rich experience of EV electrical connection solutions. Saichuan had established business relationship with so many famous brands, Quality is reliable.
Q6.What's the shipment terms and delivery time of your company?
A: It depends on the quantity of your order. Meanwhile,our board attach importance to foreign orders ,thus the orders aboard will have priority over it at home.
