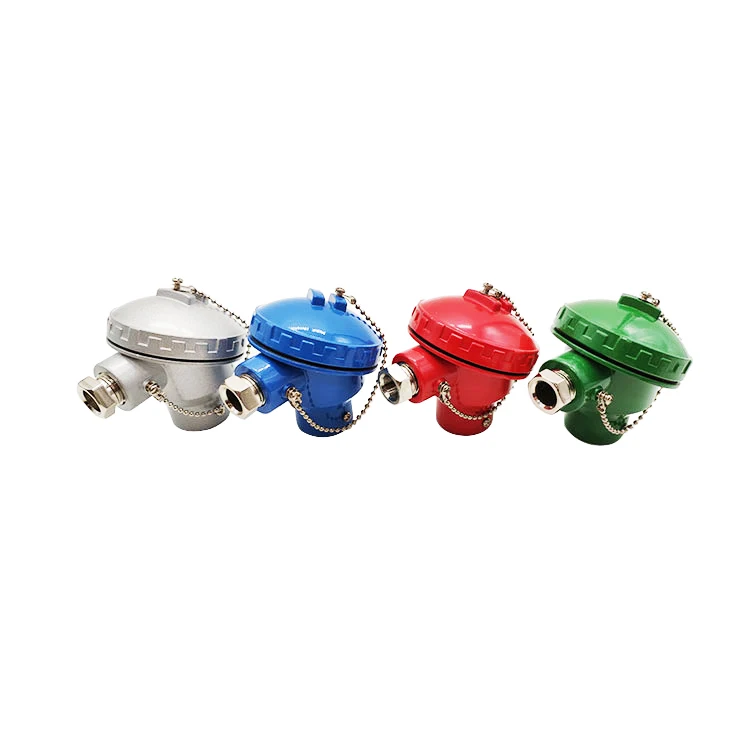

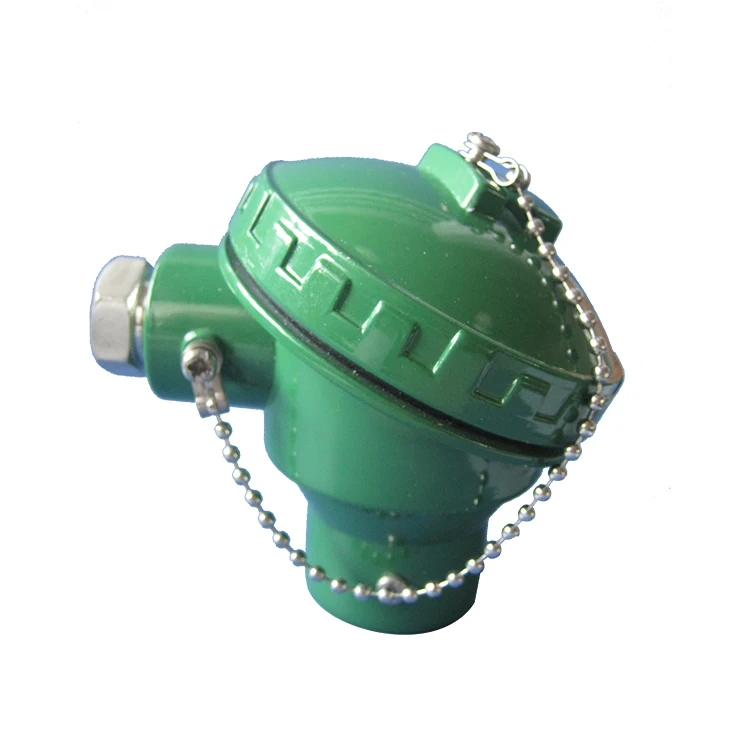

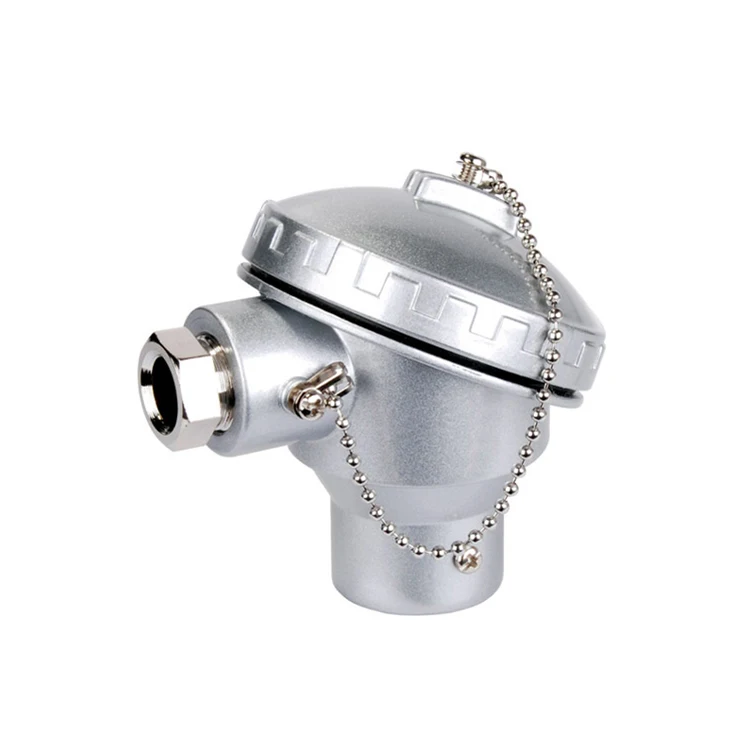

SS304 KNE Thermocouple Connection Head
- Category: >>>
- Supplier: Yueqing Zonzen Imp. & Exp. Co. Ltd.
Share on (1600282910524):
Product Overview
Description
Features:
Material: Alloy-Aluminum, SS304, SS316
Protection tube entry: PF1/2", PF3/4", NPT3/4", BSP1/2", BSP3/4", M20*1.5
Extension wire entry: PF1/2", PF3/4", NPT3/4", BSP1/2", BSP3/4", M20*1.5
Material of terminal block: Ceramic, Bakelite
Form of terminal block: 2 poles, 3 poles, 4 poles and 6 poles

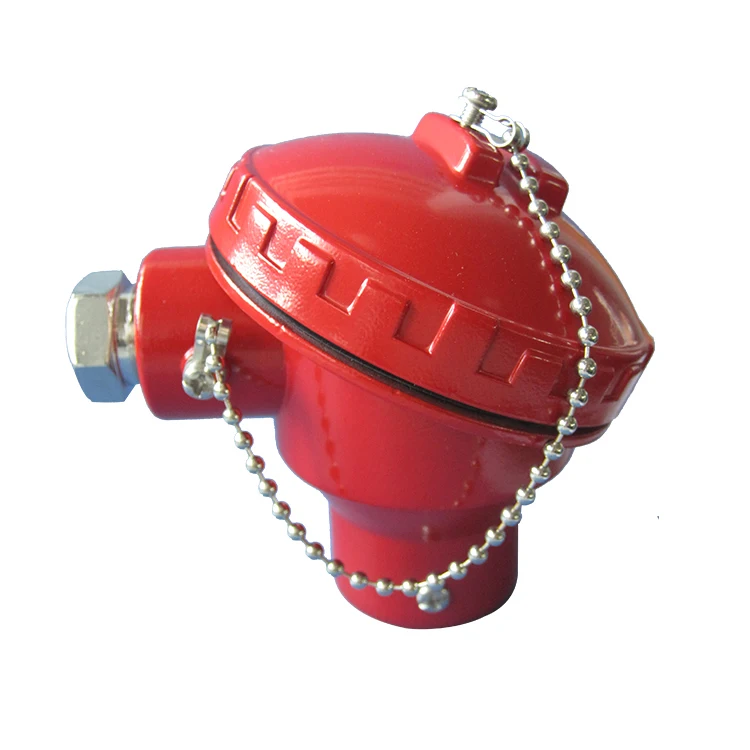

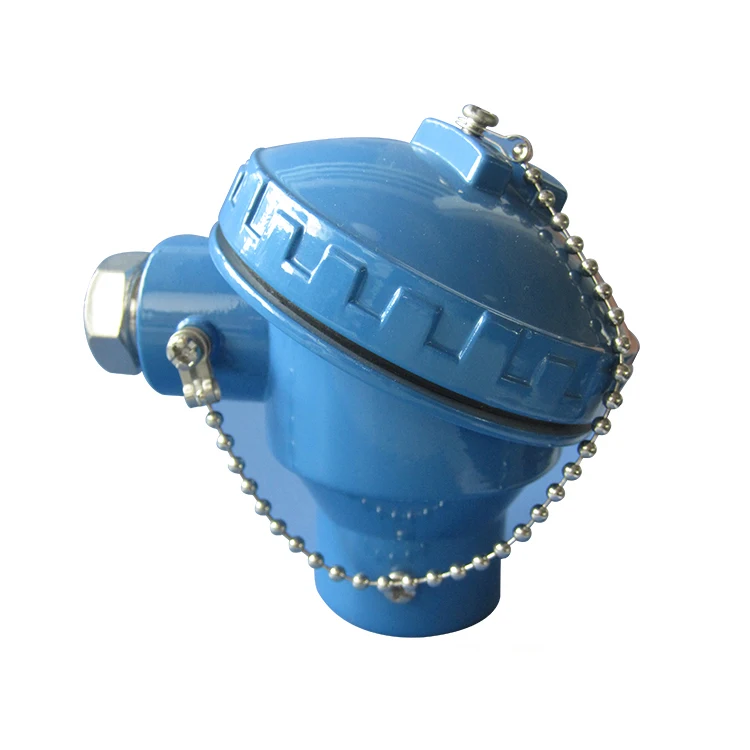

Available Color: Silvery, Yellow, Red, Blue, Purple, Black
Approval IEC529: IP65
Material: Alloy-Aluminum, SS304, SS316
Protection tube entry: PF1/2", PF3/4", NPT3/4", BSP1/2", BSP3/4", M20*1.5
Extension wire entry: PF1/2", PF3/4", NPT3/4", BSP1/2", BSP3/4", M20*1.5
Material of terminal block: Ceramic, Bakelite
Form of terminal block: 2 poles, 3 poles, 4 poles and 6 poles
Available Color: Silvery, Yellow, Red, Blue, Purple, Black
Approval IEC529: IP65

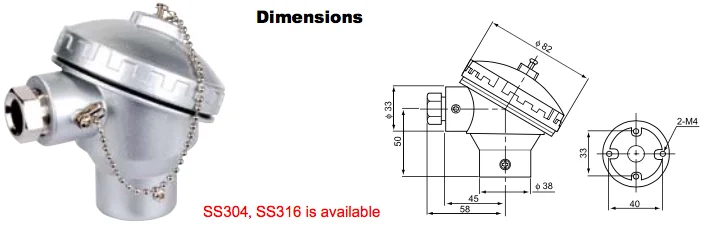

Specifications:
Order No. | Description | Terminal block | Weight | ||
Poles | Material | ||||
KNE-0 | Head | Without | 274g | ||
KNE+2P-C | Head & terminal block | 2 poles | Ceramic | 342g | |
KNE+3P-C | Head & terminal block | 3 poles | Ceramic | 356g | |
KNE+4P-C | Head & terminal block | 4 poles | Ceramic | 374g | |
KNE+6P-C | Head & terminal block | 6 poles | Cermic | 394g | |
KNE+2P-B | Head & terminal block | 2 poles | Bakelite | 330g | |
KNE+3P-B | Head & terminal block | 3 poles | Bakelite | 344g | |
KNE+4P-B | Head & terminal block | 4 poles | Bakelite | 358g | |
KNE+6P-B | Head & terminal block | 6 poles | Bakelite | 374g | |
N-2P-C | Terminal block | 2 poles | Ceramic | 68g | |
N-3P-C | Terminal block | 3 poles | Ceramic | 82g | |
N-4P-C | Terminal block | 4 poles | Ceramic | 100g | |
N-6P-C | Terminal block | 6 poles | Ceramic | 120g | |
N-2P-B | Terminal block | 2 poles | Bakelite | 56g | |
N-3P-B | Terminal block | 3 poles | Bakelite | 70g | |
N-4P-B | Terminal block | 4 poles | Bakelite | 84g | |
N-6P-B | Terminal block | 6 poles | Bakelite | 100g | |
