Одноструйный Сухой Тип латунный умный мини счетчик воды

Product Overview

Description

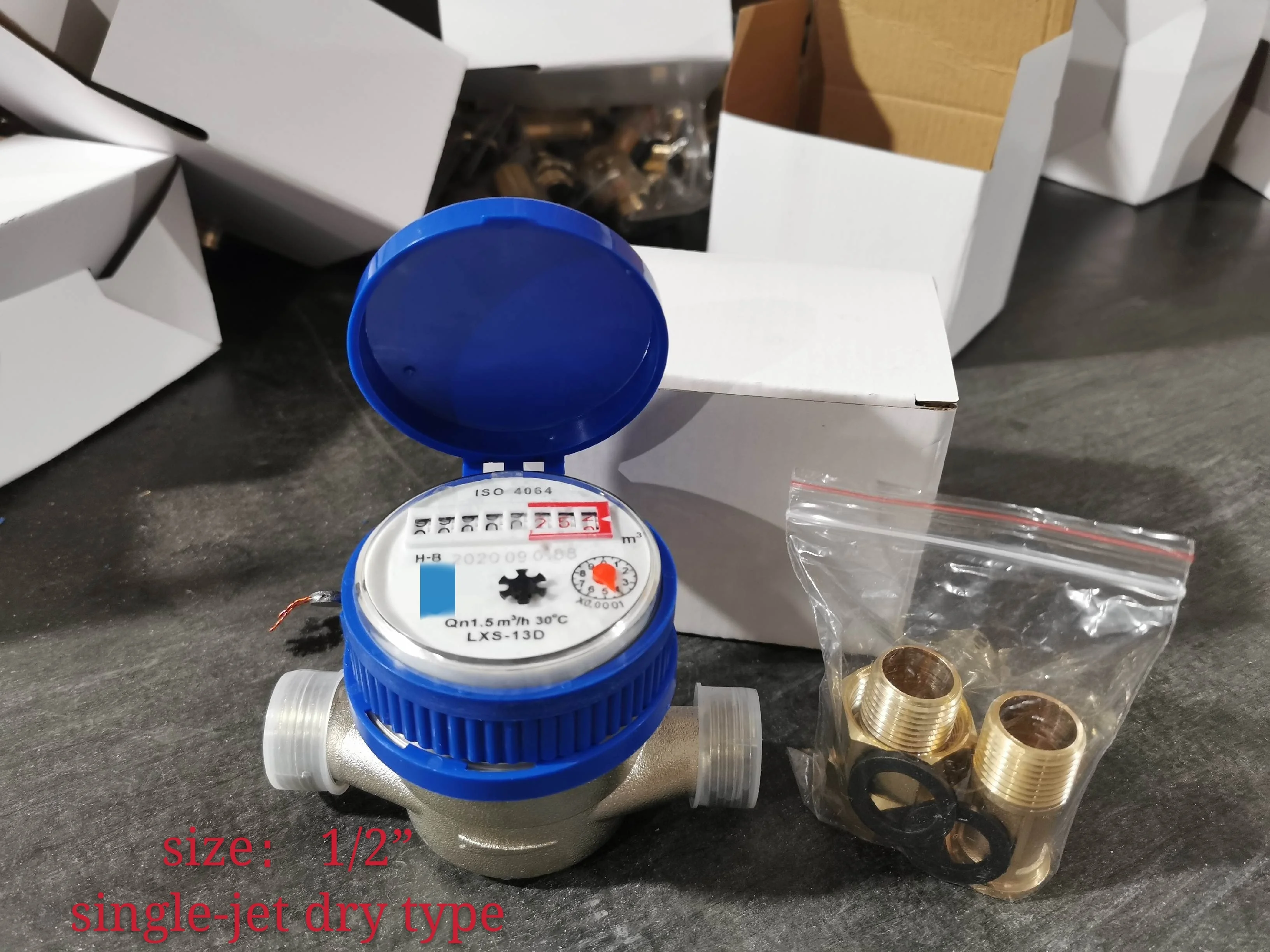

Single-jet Dry type Brass  mini  Water Meter

The series of water meter is used to measure the total quantity of potable water, consumed in household or a resident unit, passing through the pipeline.







FEATURES

1. Dry-dial/ Single-jet / Magnetic drive

2. Measuring accuracy : ISO4064 Standard Class B

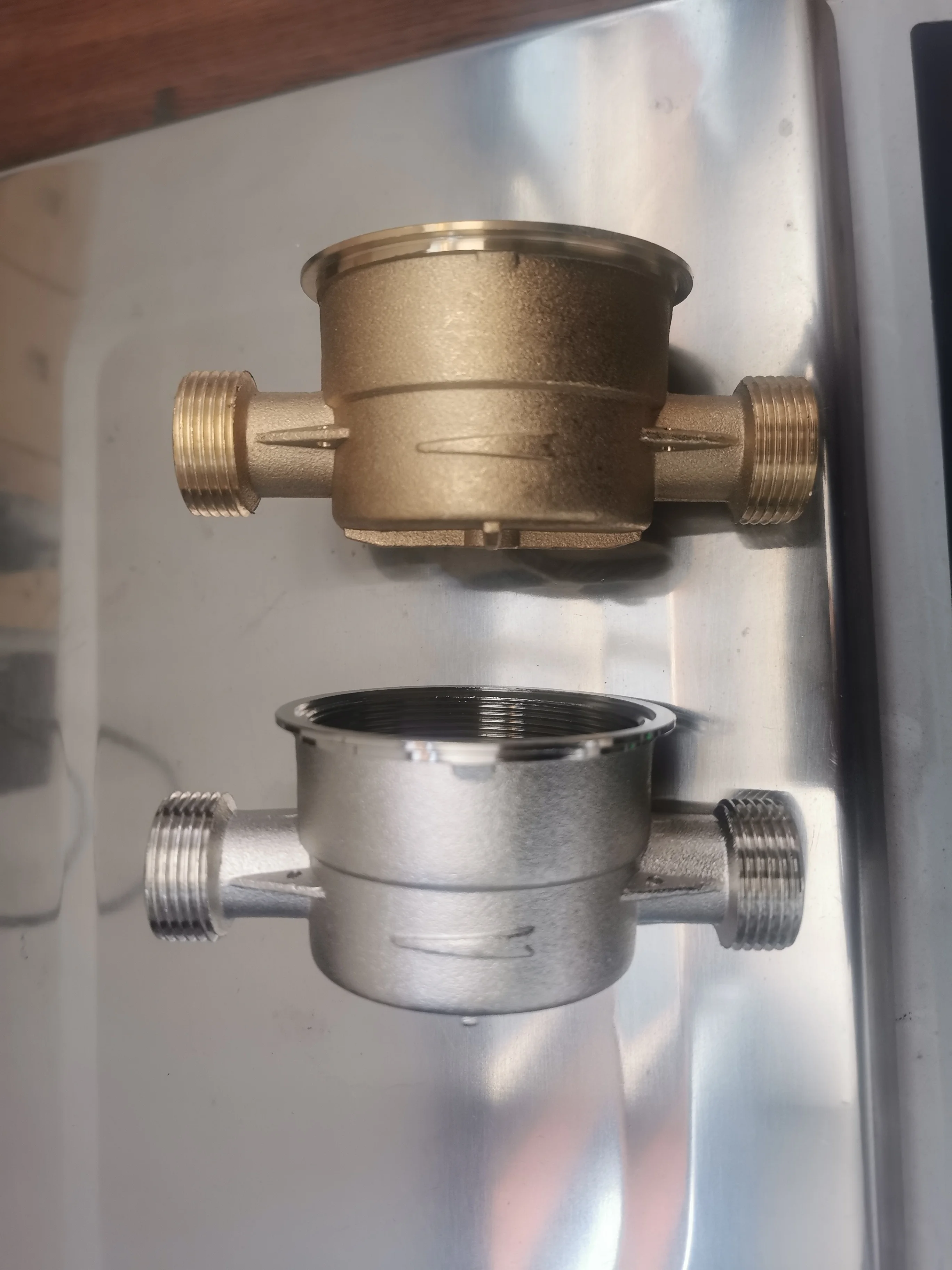

3. Selected high quality materials: brass

4. Series universal use. Easy interchange & maintenance

5. Small in Sizes, Light in weight,Good in quality.



MAIN TECHNICAL DATA

TYPE	SIZE	CLASS	FLOW				READING
			Qmax	Qn	Qt	Qmin	Min	Max
	mm		m3/h		L/h		M3
LXSG-13D	13	B	3	1.5	120	30	0.001	99999
LXSG-20D	20	B	5	2.5	200	50	0.001	99999





 DIMENSIONS AND WEIGHT

TYPE	SIZE	LENGTY	WIDNTH	WEIGHT	CONNECTING THREAD	WEIGHT
	mm	mm	mm	mm		KG
LXSG-13D	13	110	75	80	G3/4	0.9
LXSG-20D	20	130	94	83	G1	1.1









ERROR CURVE:



a. at low Zone is ±5 %from Qmin to Qt( not contain boundary)



b. at high zone is ±2 % from transitional flow(Qt)to maximum flow ( Qmax)







Working conditions:

 water temperatures≤35°c( for cold water)

water temperatures ≤90°c( for  hot water)

 water pressures  ≤ 1 Mpa
