Rotary punching machine
US $55900
Automatic Tube Hole Punching Flanging Machine, Metal Round Square Pipes Hydraulic Piercing Press for Making Guardrail
- Category: Punching Machines >>>
- Supplier: Suzhou SLS Machinery Co. Ltd.
Share on (1600282948425):
Product Overview
Description

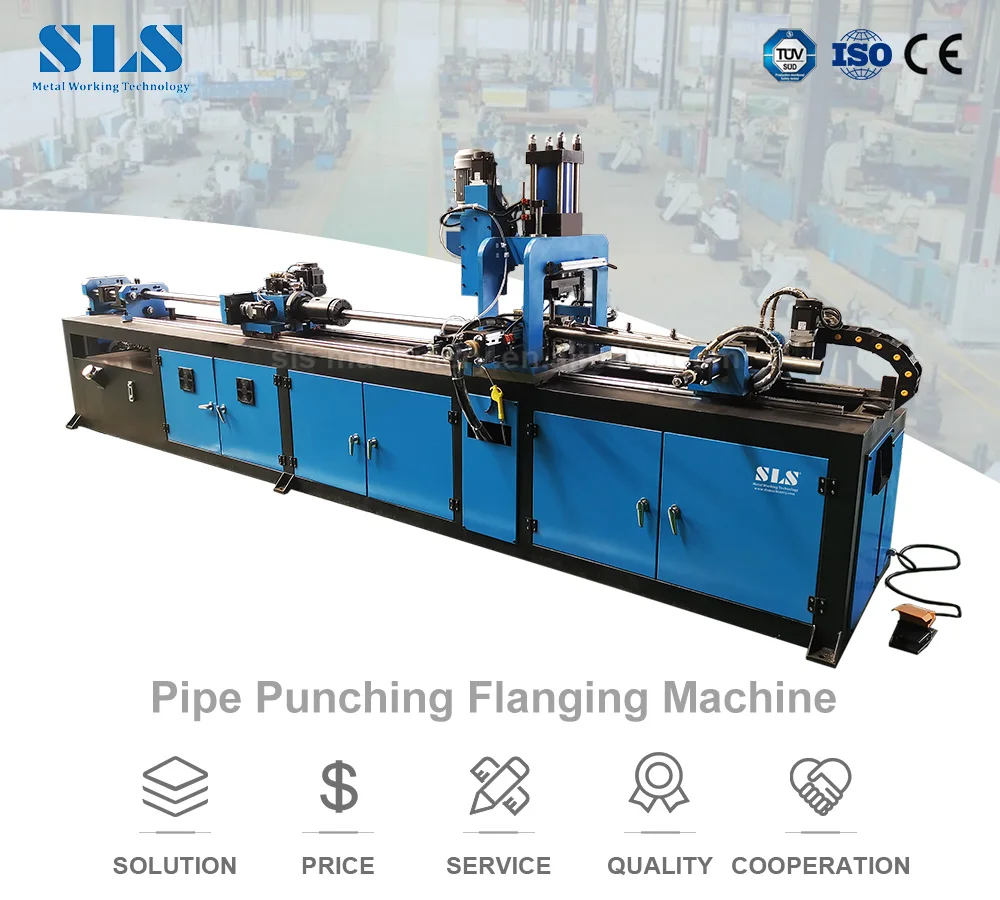

Automatic Tube Hole Punching Flanging Machine, Metal Round Square Pipes Hydraulic Piercing Press for Making Guardrail
Product Introduction
Brief Introduction on Tube Hole Punching Flanging Machine

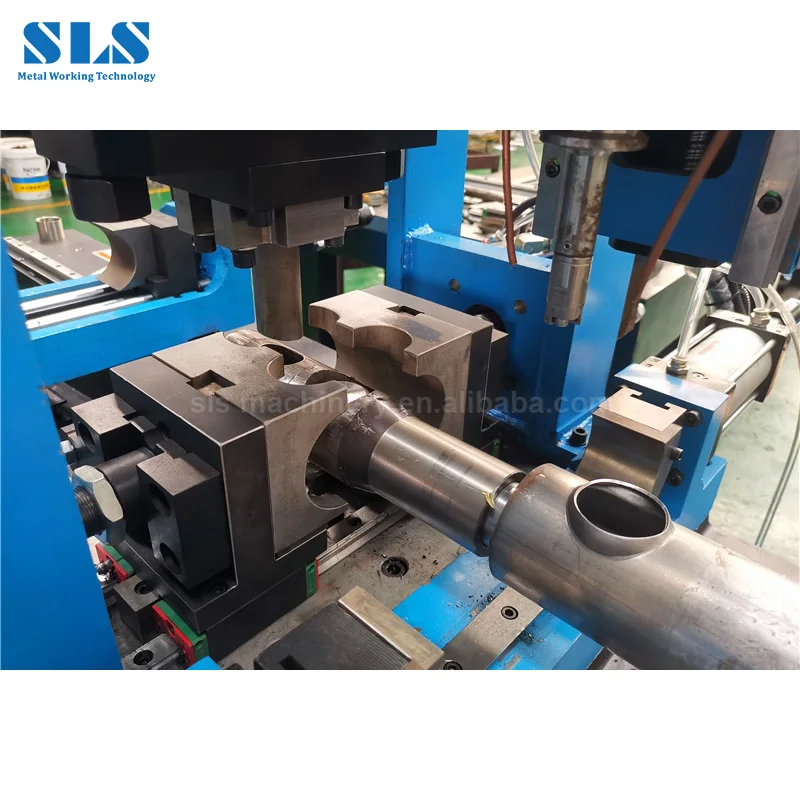

SZ-SLS Tube Hole Punching Flanging Machine is specially designed for punching collar holes on metal tubes as MS,SS,Copper and Aluminum which widely used in air conditioner,refrigerator,heat exchanger,Oil Tubes,Medical Water Separating System,Water Solutions…Etc. machine adopts "extruder system", forming collars by pushing-out from tube inside which is different to T-drill technology. the main procedure as hole punching,hole flanging and hole chamfering(smoothing) to meet good quality collar holes and convenient for tube branches connection. machine controlling by both hydraulic and servo motor which guarantee both on economical price and high precision.
Features on Tube Hole Punching Flanging Machine
- Interactive PLC touch screen offers easy access to auto and manual operating modes.
- System diagnostics and multiple language capability.

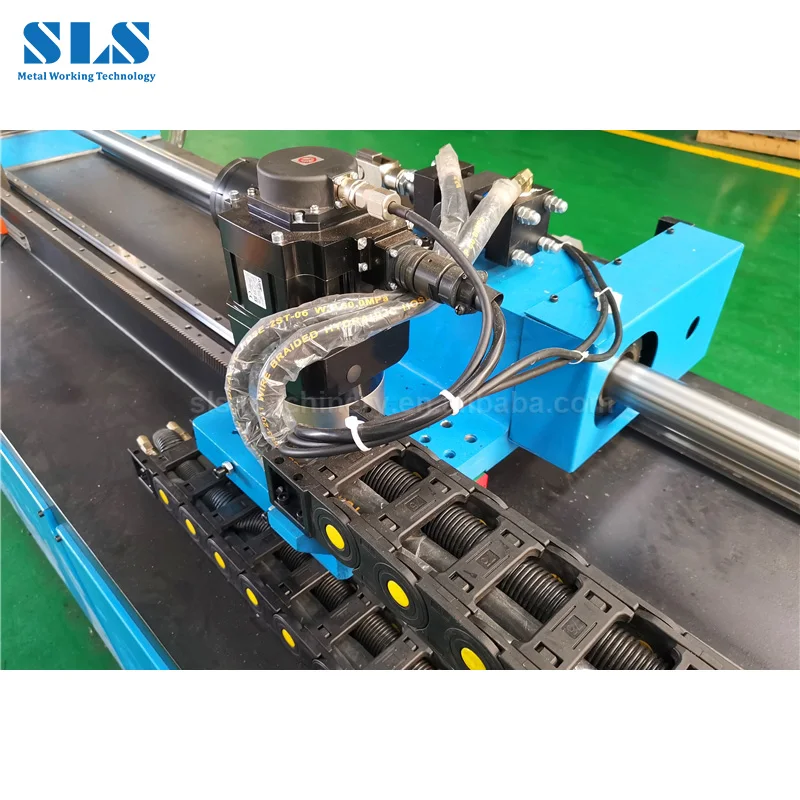

- Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor
- Tube Drawing Feeding- Driven by Servo Motor,Hole Chamfering- Driven by Servo Motor
- High automation and efficiency makesthe collar hole made in one time.

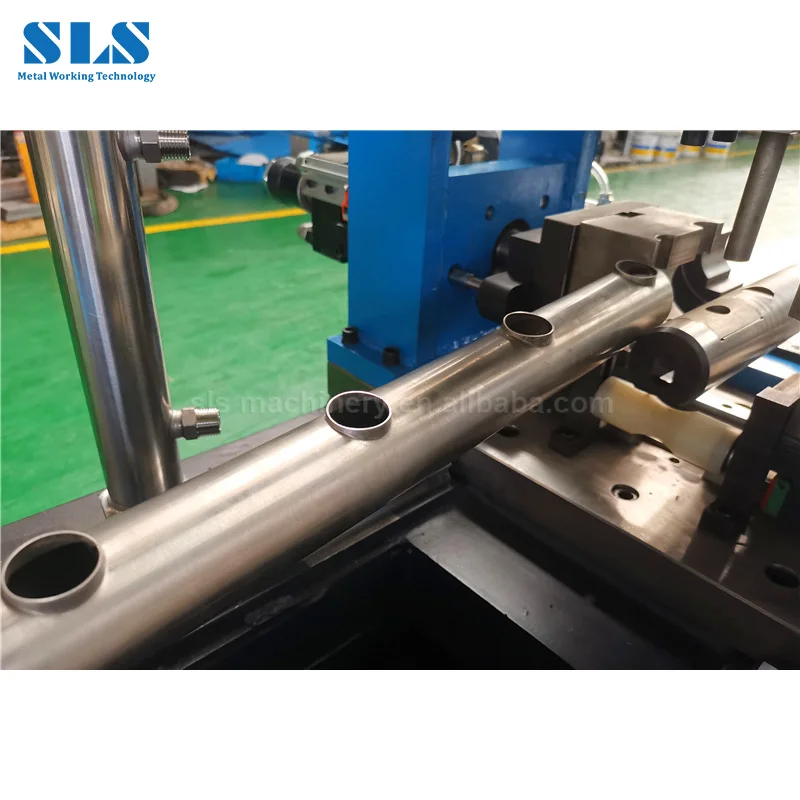

- The collar hole finished in chipless and clean.
- Long-life punching die.
- Air cooling system or water cooling system ensures the equipment long-time work stably under the high temperature.
- CE&ISO 9001:2000.
- Interactive PLC touch screen offers easy access to auto and manual operating modes.
Main Technical Parameters Sheet
| Model | BP-60CNC | BP-89CNC | BP-114CNC | BP-140CNC | BP-325CNC |
| Pipe Diameter | 12.7-60mm | 16-89mm | 16-114mm | 16-140mm | 16-325mm |
| Pipe Thickness | 0.5-1.6mm | 1.2-2mm | 1.5-2.5mm | 1.5-2.5mm | 1.5-3mm |
| Hole Height | 1.5-2.5mm | 2.3-2.8mm | 2.3-2.8mm | 2.3-2.8mm | 2.3-3mm |
| Tube Length | 200-1500mm | 100-2000mm | 100-2000mm | 100-2000mm | 100-2000mm |
| Process Way | Punching + Flanging + Edge Smoothing | ||||

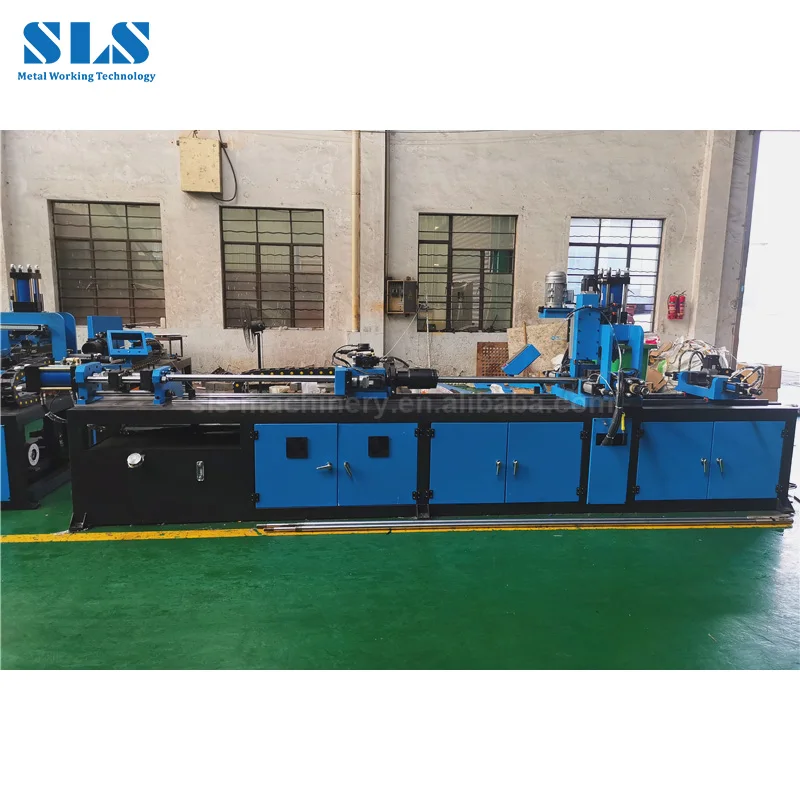

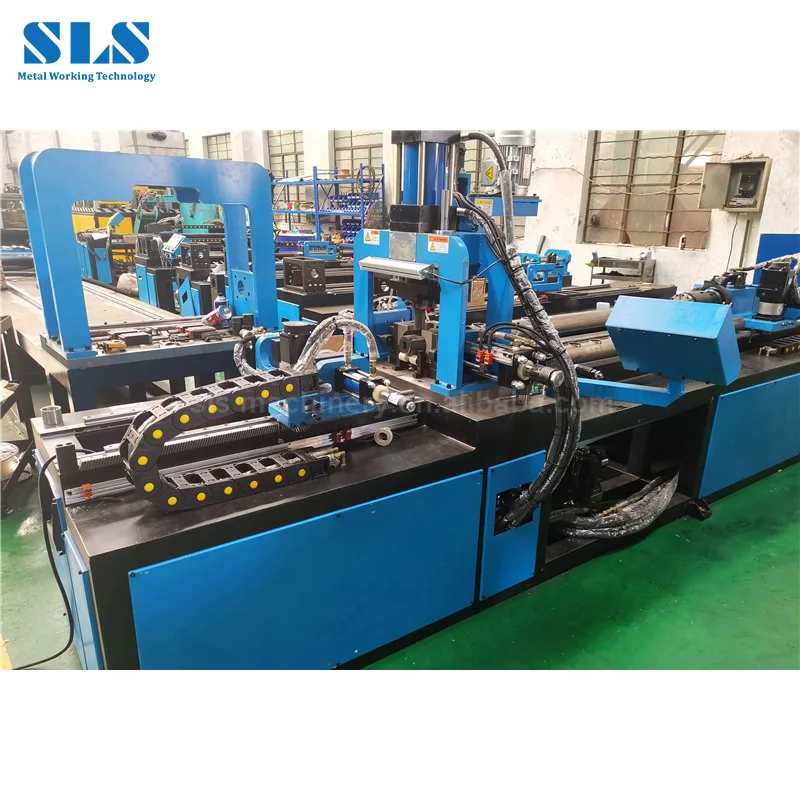

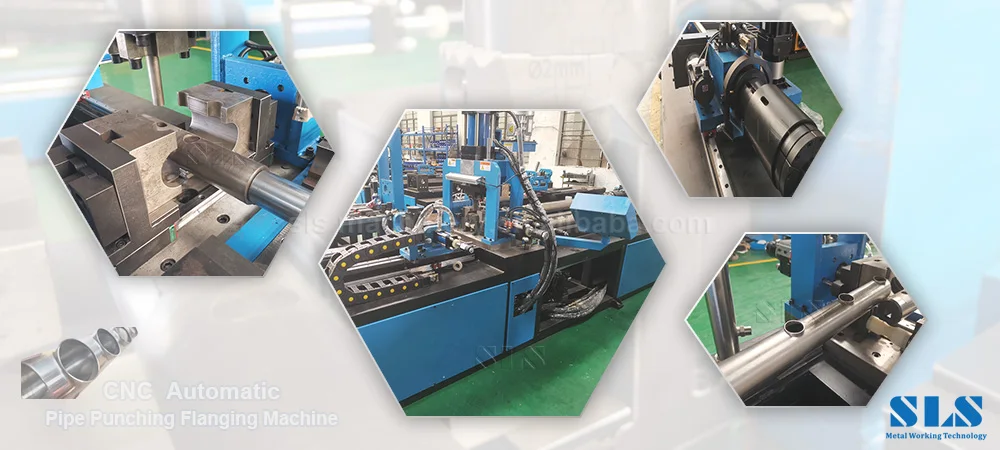

Product Details
Main Application

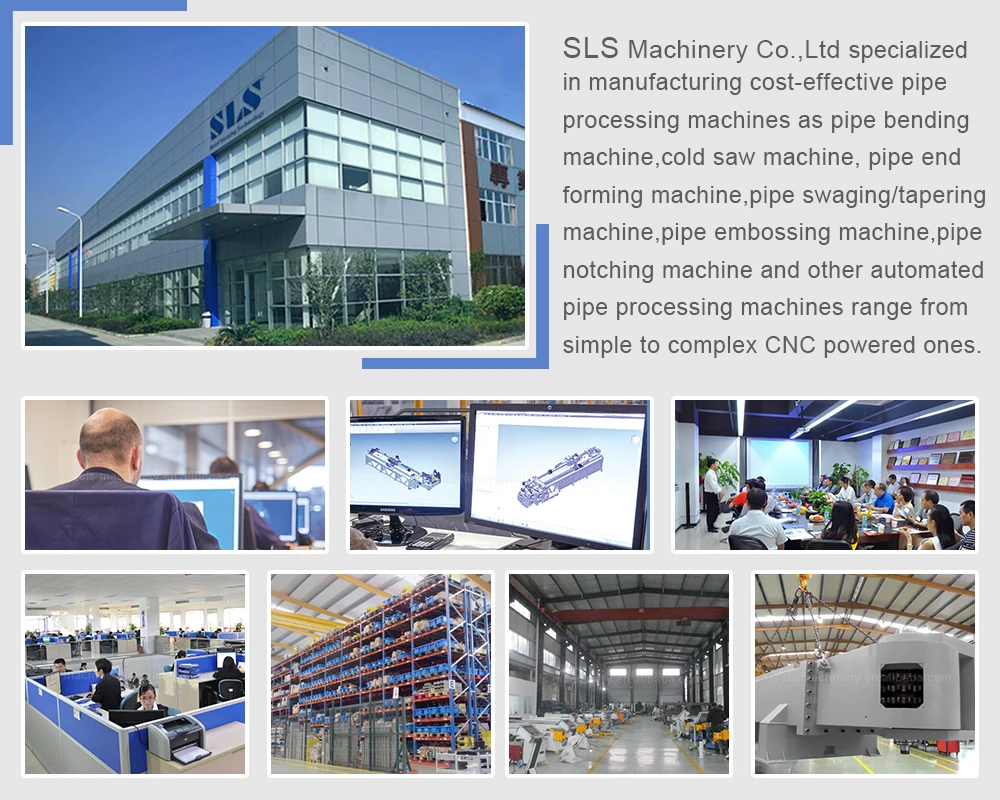

Company Information
Product Certificate
Packaging & Shipping
FAQ
1.Q: Are you a manufacturer or trading company? | A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production. |
| 2.Q:Where is the nearest airport to your company? | A: Wuxi Airport or Shanghai Airport. |
| 3.Q: How to choose the pipe/tube hole punching and flanging machines? | A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - Punching Diameter - Flange Height - Hole Distance |
| 4. Q: Do you have CE certificate? | A: We have CE certificate. |
| 5. Q:How about your service? | A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours. |
