8CH CCTV System 5MP Indoor Audio AHD Camera 8CH DVR Recorder Coaxial Security CCTV Camera Surveillance System Kit Built in Mic
8CH CCTV System 5MP Indoor Audio AHD Camera 8CH DVR Recorder Coaxial Security CCTV Camera Surveillance System Kit Built in Mic
8CH CCTV System 5MP Indoor Audio AHD Camera 8CH DVR Recorder Coaxial Security CCTV Camera Surveillance System Kit Built in Mic
8CH CCTV System 5MP Indoor Audio AHD Camera 8CH DVR Recorder Coaxial Security CCTV Camera Surveillance System Kit Built in Mic
8CH CCTV System 5MP Indoor Audio AHD Camera 8CH DVR Recorder Coaxial Security CCTV Camera Surveillance System Kit Built in Mic
8CH CCTV System 5MP Indoor Audio AHD Camera 8CH DVR Recorder Coaxial Security CCTV Camera Surveillance System Kit Built in Mic
8CH CCTV System 5MP Indoor Audio AHD Camera 8CH DVR Recorder Coaxial Security CCTV Camera Surveillance System Kit Built in Mic

8CH CCTV System 5MP Indoor Audio AHD Camera 8CH DVR Recorder Coaxial Security CCTV Camera Surveillance System Kit Built in Mic

Share on:


Price:$147.69 - $150.00
Price in USD:Details

Quantity:


Product Overview

Description



Product parameter

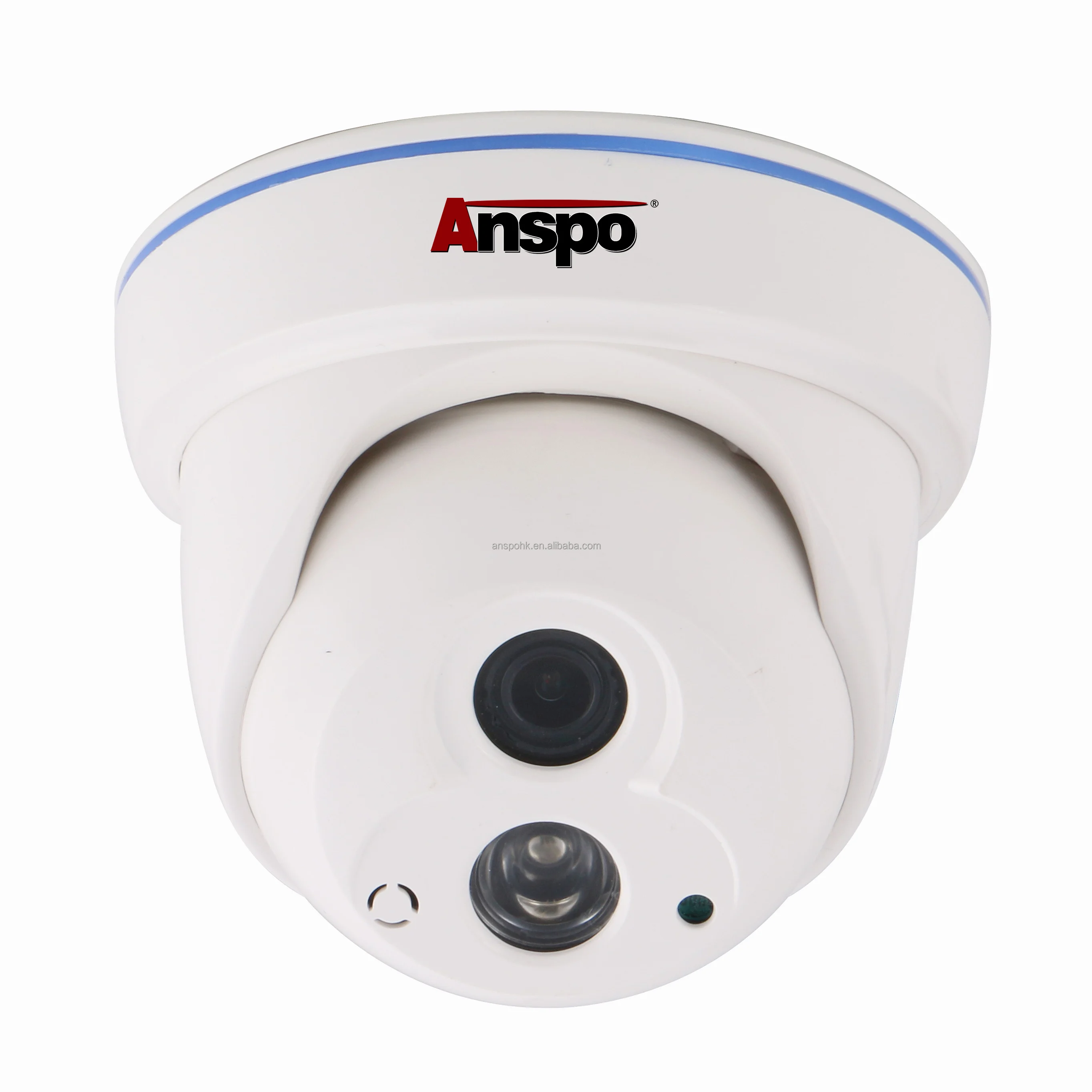

AHD Camera Specification
Product name
AHD Dome Camera
Image Resolution
5MP( 2592*1944)
Image Sensor
5MP CMOS image sensor
Signal System
PAL & NTSC Optional ( Pls leave a note to inform which system you need )
Lens
3.6mm/6mm optional Fixed lens
LED
1pcs infrared LEDs
Infrared distance
10-15m
Day & Night
IR cut filter
Data Storage Options
DVR
Audio
Built in Mic
Noise Reduction
3D NR
Image Compression
H.264
Frame rate
20fps
Min. Illumination
0.01 Lux@(F1.2,AGC ON),0 Lux with IR
Sync System
Internal
Interface
Power interface + BNC video output interface
S/N Ratio
≥52dB
Material
Plastic
Power Supply
DC12V
Operating temperature
-20℃~+55℃,RH 95% Max
Storage Temperature
-20℃~+60℃,RH 95% Max
Weight
115g

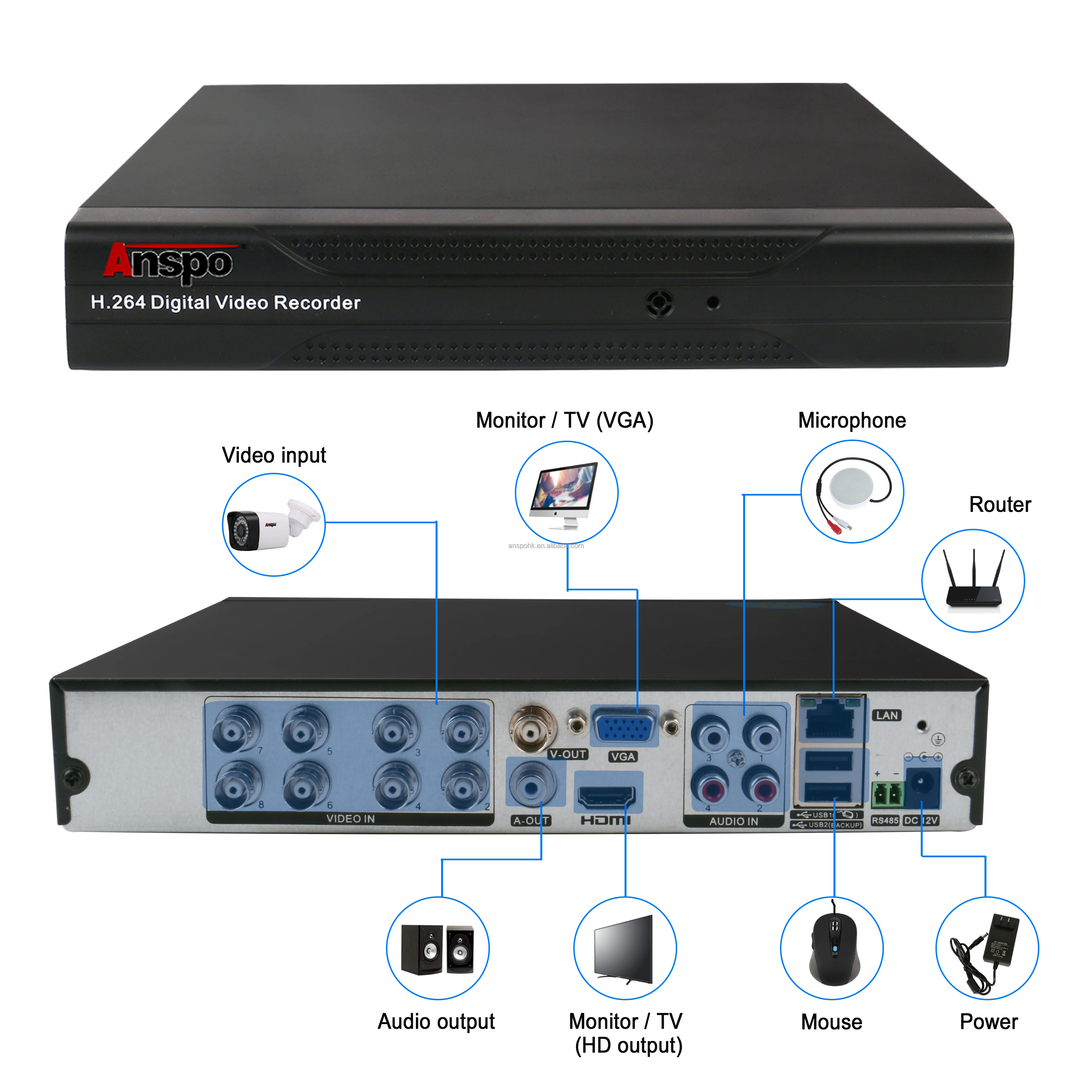

AHD DVR Specification
Model
5MP 8CH DVR
Main processor
Hi3521D
Video output
1 HDMI high-definition output, 1 VGA output
Video input
8CH BNC interface
Network interface
RJ45 10M/100M Adaptive Ethernet port
USB interface
2 USB 2.0 ports
Hard disk interface
1 SATA interface (each supports up to 8TB)
Video compression
H.264/H.265
Encode
8*5M-N@15fps(5 in 1)/8*4M-N@18fps(5 in 1);8*1080P@18fps(5 in 1)
Video mode
Manual>Alarm>Motion Detection>Timing
Video query
Time point search, calendar search, event search, channel search
Backup method
Network backup, USB mobile hard disk, USB burning, SATA burning
Power supply
DC 12V 2A
Power consumption
<10W (without hard disk)
Working temperature
-10℃-＋55℃
Size
217*255*43mm




HD 5.0MP High Definition Display
* High-Definition： HD 5.0MP Resolution.By using the high performance sensor, image is more clear. Support for online playback,Mobile remote.
* Simple Installation： HD analog is as simple to install as standard analog CCTV cameras, DVRs and video surveillance systems.
* Zero Latency： HD analog delivers high-definition video in real-time, with smooth motion and without the transmission delays
* Low Cabling Requirements： Transmit HD video fast – and with high signal quality –over standard coaxial cable (RG59), twisted pair (Cat5/6), or most standard shielded CCTV cabling.
* Longer Transmission： Transmit HD video up to 1600’ over standard coaxial cable (RG59) – up to 2X the distance of Analog solutions, and 3X the distance of IP systems.
* Transition Friendly:：HD Analog solutions are compatible with existing analog CCTV cameras and can leverage existing
coaxial cabling, dramatically reducing the time and cost associated with a transition.
* Cost-Effective： HD Analog technology is competitively prices vs. less-powerful traditional Analog gear, and a fraction of the cost of a comparable megapixel IP solution.


Details Images

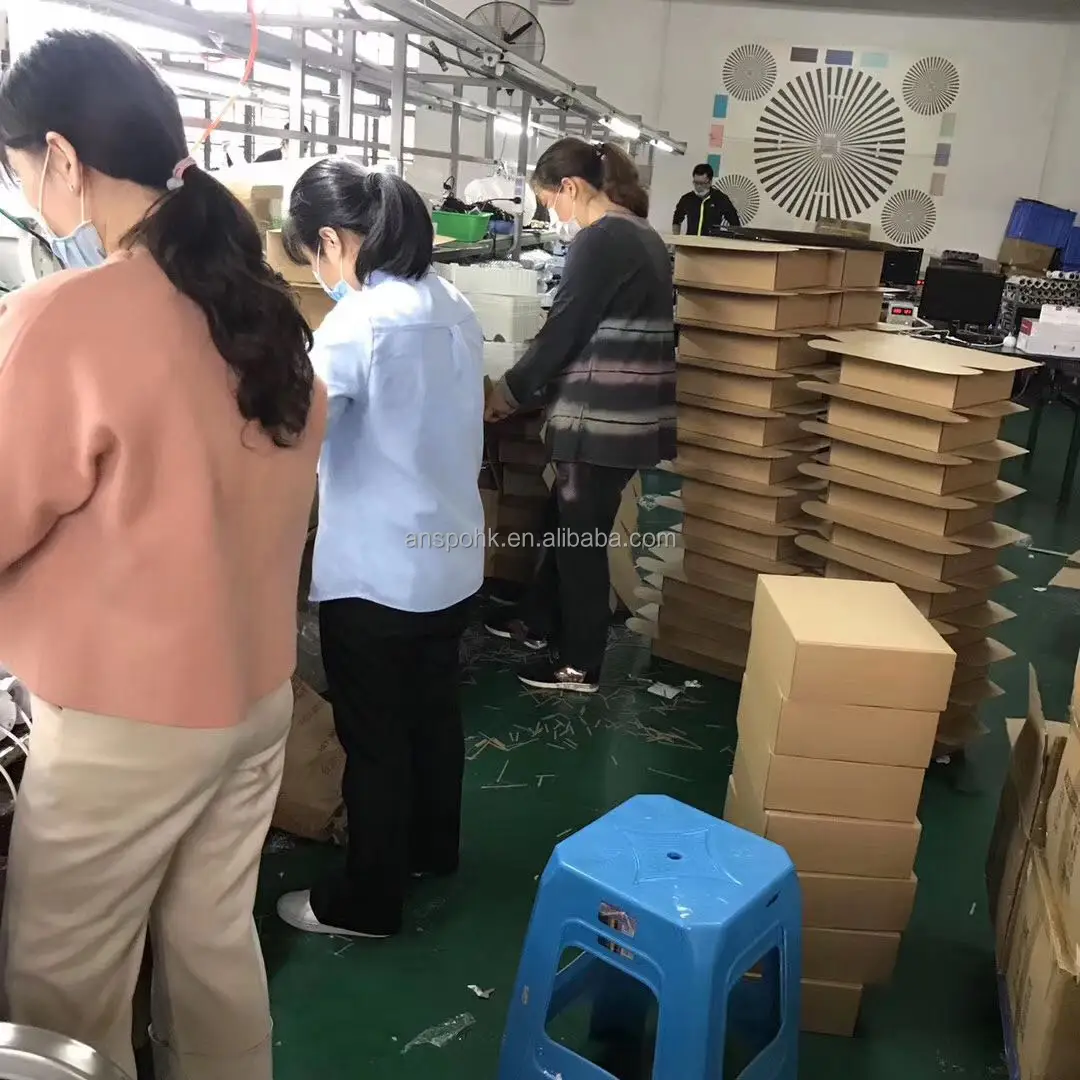

Product packaging




Recommend Products




Company Information










FAQ


Q1: Who are we?
A1: We are based in Guangdong, China, start from 2006,sell to North America(16.00%),South America(16.00%),Eastern
Europe(16.00%),Southeast Asia(16.00%),Africa(16.00%),Mid East(16.00%). There are total about 101-200 people in our office.

Q2: Are you a factory or a trade company?
A2:We are factory . And we have been reaching and producing CCTV Security Camera for more than 17years.

Q3:What can you buy from us?
A3: High clarity CCTV camera,Digital video recorder,Network video recorder,Solar Camera,IP Camera,AHD Camera,Wifi Camera,Smart Home Camera,PTZ Camera,4G Camera,Wifi Kit,NVR Kit

Q4: Do you offer guarantee for the products?
A4:Yes, we offer Full 1-Year Warranty for the products ,Lifetime Technical Support Provided by email,online,telephone etc.

Q5:Can I have a sample to check quality before bulk order?
A5: Yes, you can. And we will return the samples fee to your account after you have ordered $1000 goods value.

Q6: Can I design the packing for the products and print my logo on product?
A6: Yes, we can support customized package/User Manual/Print logo.

Q7: What about the delivery terms?
A7: We can offer free shipping to your cargo agent in Guangzhou,China,when you goods value is more than $2000.
Beside,we can support shipping by Sea,by air,by express.

Q8:How about the lead time?
A8: It will take about 5 days working days if your quantity is less than 500pcs after getting deposit.
