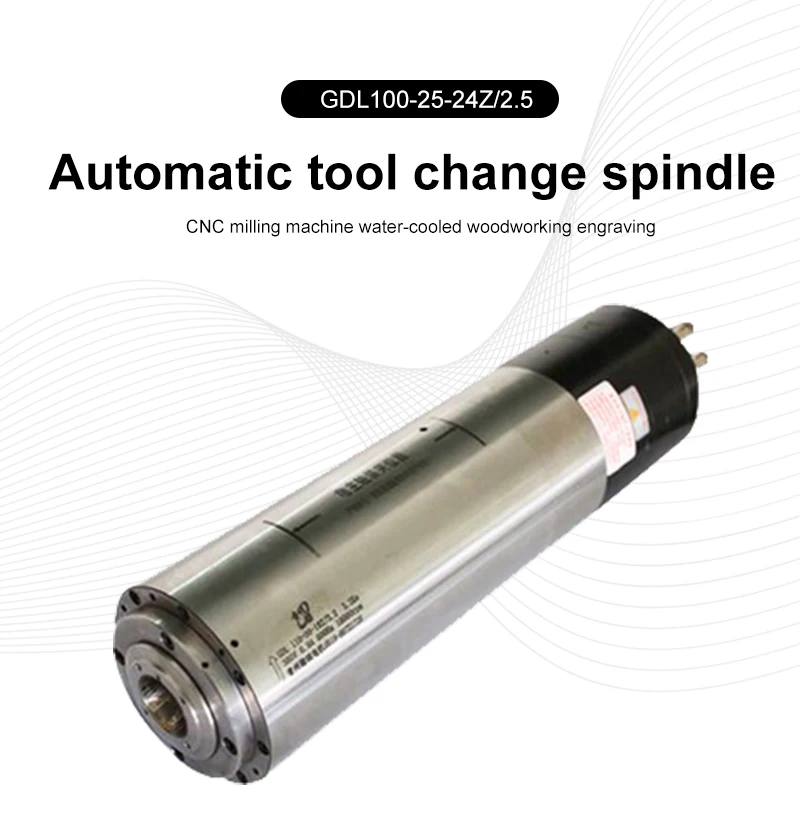

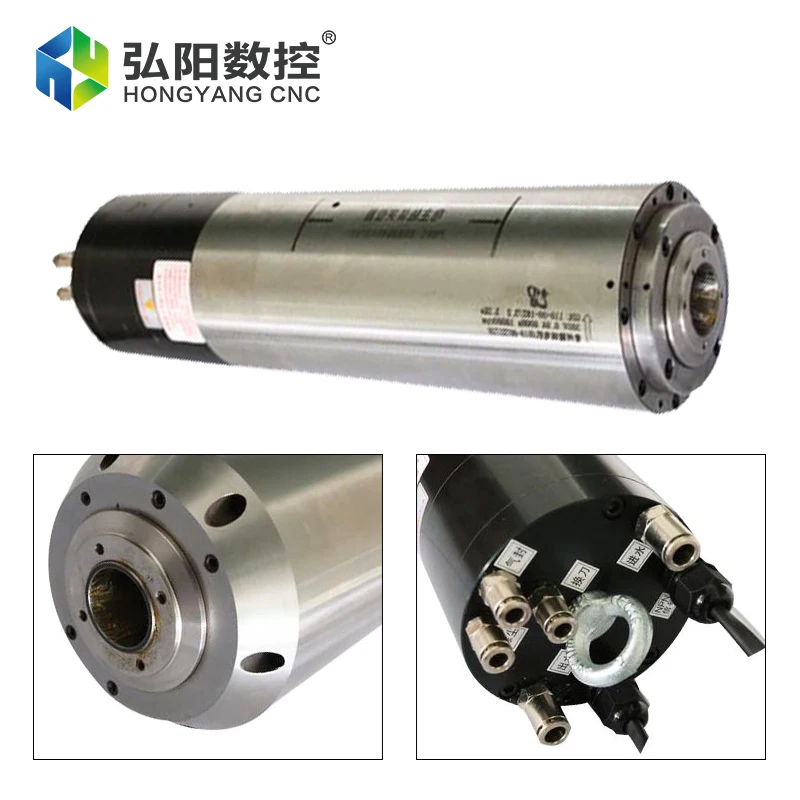

HQD 2.5KW ATC Spindle Motor 220V 380V ISO25 Automatic Tool Change Water Cooled Spindle For CNC Milling Machine Cutting
- Category: >>>
- Supplier: Jinan Hongyang Cnc Machinery Co. Ltd.
Share on (1600282975649):
Product Overview
Description

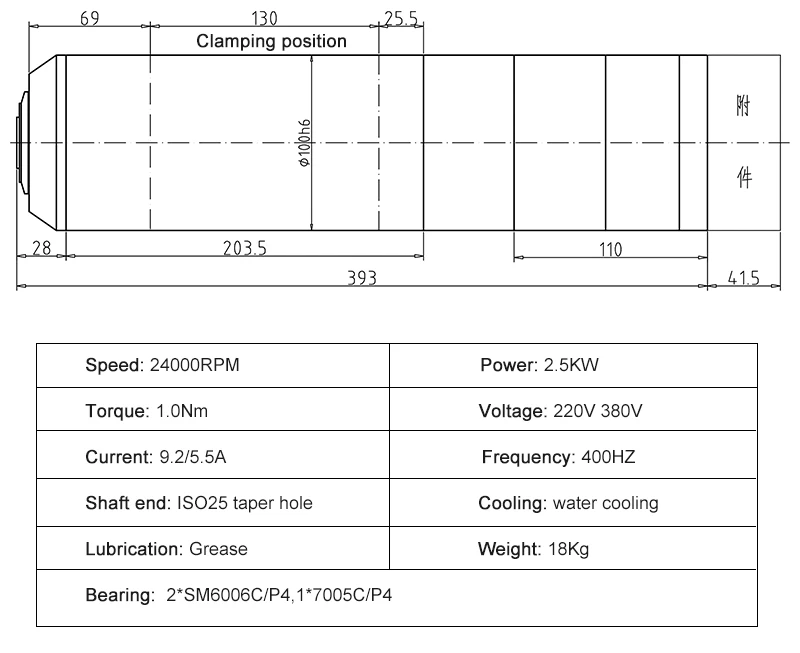

Model: GDL100-25-24Z/2.5

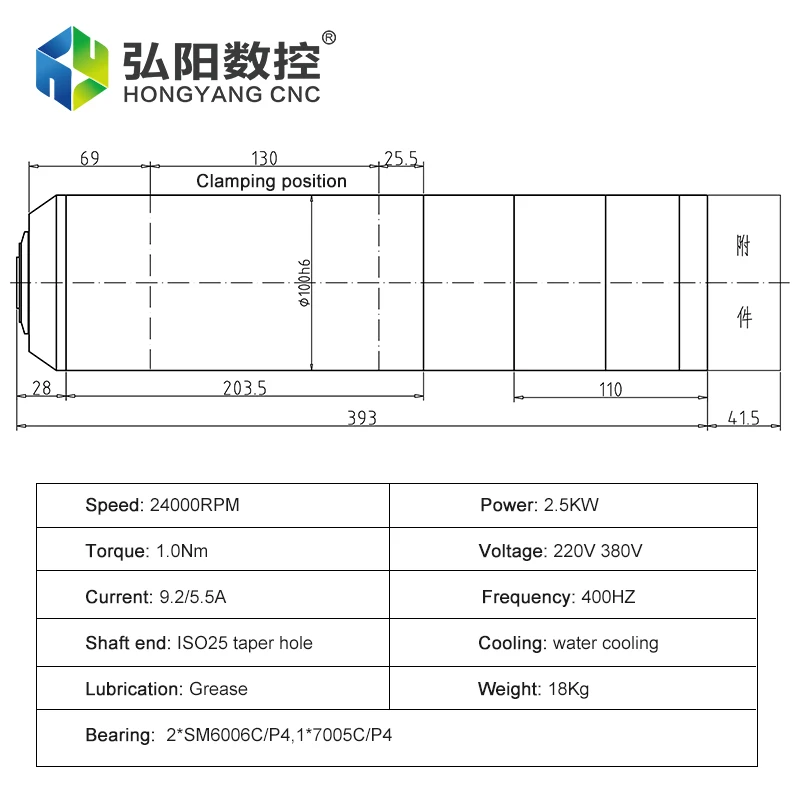

Size: 100x434.5mm (body diameter: 100mm x length: 434.5mm)

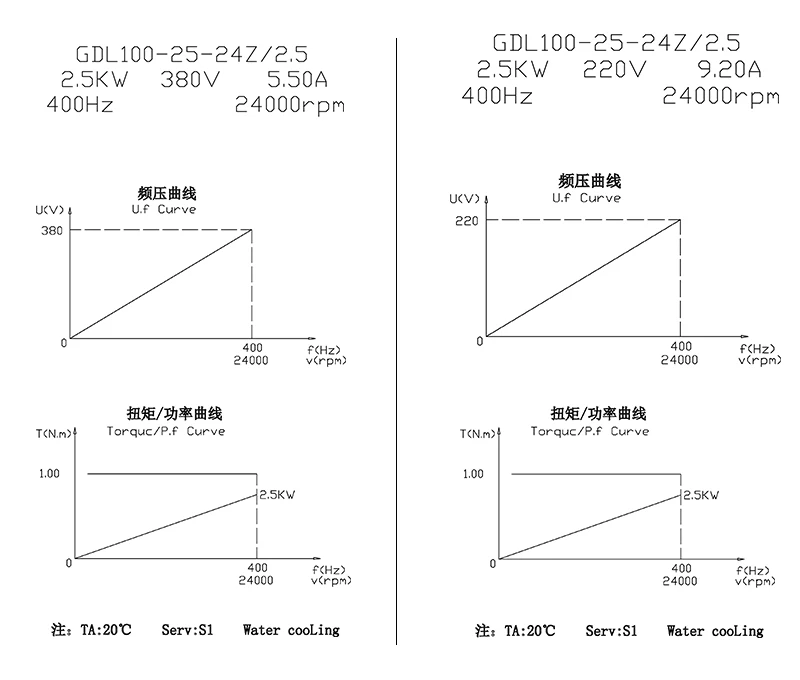

Speed regulation mode: The three-phase output inverter can change the spindle speed by changing the frequency of the inverter.
Cooling method: water cooling
Power: 2.5kw
Voltage: 220V 380V
Current: 9.2A 5.5A
Frequency:400Hz
Speed: 24000RPM
Diameter (mm): 100
Number of poles: 2P
Phase： 3 phase asynchronous driver
Rotation: Seen from the shaft end, it rotates counterclockwise
Tool handle: IS025
Pull stud: IS020-15°
Grease lubrication
Main use: Carving wood, bamboo, ordinary PCB, PVC, PMMA, plastic, two-color board (ABS) and other non-metals.
Size: 100x434.5mm (body diameter: 100mm x length: 434.5mm)
Speed regulation mode: The three-phase output inverter can change the spindle speed by changing the frequency of the inverter.
Cooling method: water cooling
Power: 2.5kw
Voltage: 220V 380V
Current: 9.2A 5.5A
Frequency:400Hz
Speed: 24000RPM
Diameter (mm): 100
Number of poles: 2P
Phase： 3 phase asynchronous driver
Rotation: Seen from the shaft end, it rotates counterclockwise
Tool handle: IS025
Pull stud: IS020-15°
Grease lubrication
Main use: Carving wood, bamboo, ordinary PCB, PVC, PMMA, plastic, two-color board (ABS) and other non-metals.

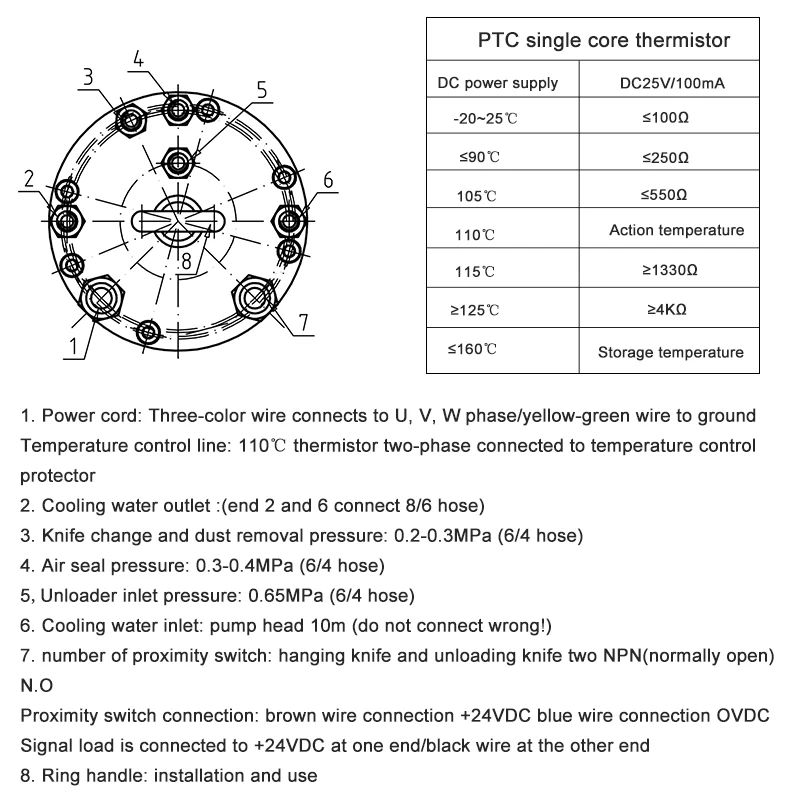

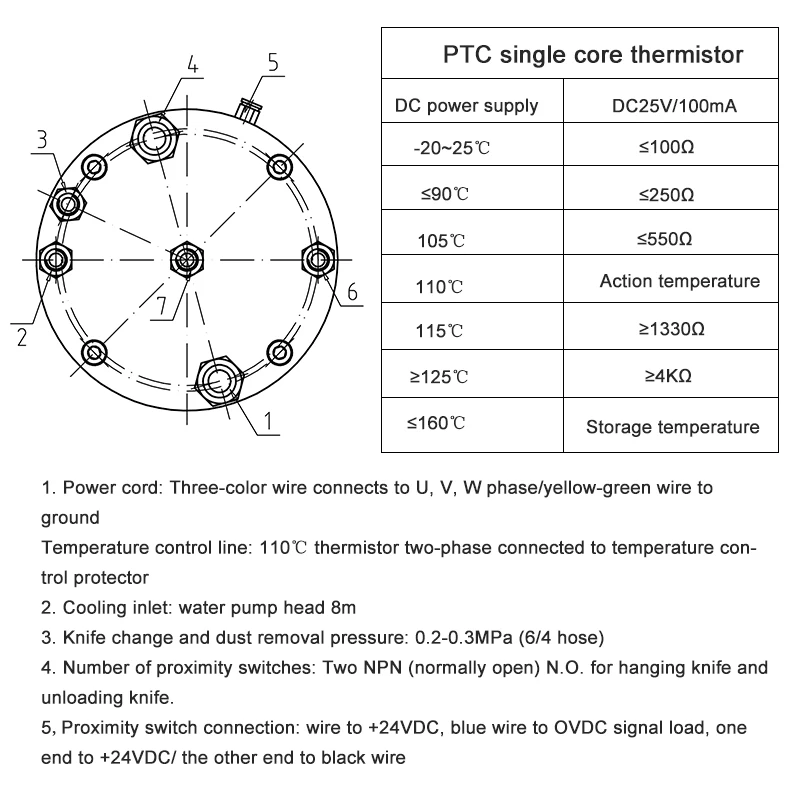

1. Power cord: Three-color wire connects to U, V, W phase/yellow-green wire to ground
Temperature control line: 110℃ thermistor two-phase connected to temperature control protector
2. Cooling water outlet :(end 2 and 6 connect 8/6 hose)
3. Knife change and dust removal pressure: 0.2-0.3MPa (6/4 hose)
4. Air seal pressure: 0.3-0.4MPa (6/4 hose)
5,Unloader inlet pressure: 0.65MPa (6/4 hose)
6. Cooling water inlet: pump head 10m (do not connect wrong!)
7. number of proximity switch: hanging knife and unloading knife two NPN(normally open) N.O
Proximity switch connection: brown wire connection +24VDC blue wire connection OVDC
Signal load is connected to +24VDC at one end/black wire at the other end
8. Ring handle: installation and use
Temperature control line: 110℃ thermistor two-phase connected to temperature control protector
2. Cooling water outlet :(end 2 and 6 connect 8/6 hose)
3. Knife change and dust removal pressure: 0.2-0.3MPa (6/4 hose)
4. Air seal pressure: 0.3-0.4MPa (6/4 hose)
5,Unloader inlet pressure: 0.65MPa (6/4 hose)
6. Cooling water inlet: pump head 10m (do not connect wrong!)
7. number of proximity switch: hanging knife and unloading knife two NPN(normally open) N.O
Proximity switch connection: brown wire connection +24VDC blue wire connection OVDC
Signal load is connected to +24VDC at one end/black wire at the other end
8. Ring handle: installation and use

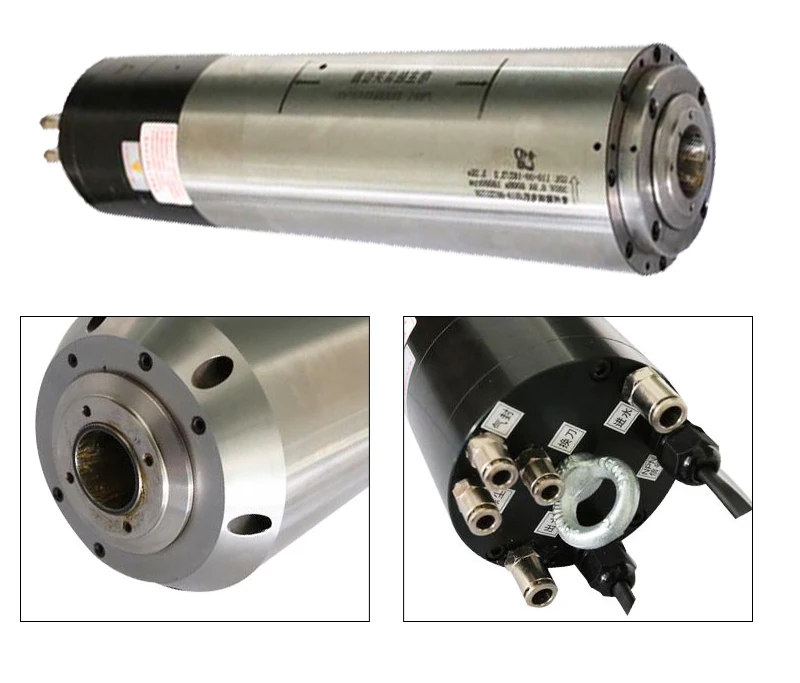

1.Double sealing and air sealing structure
Unique double sealing air seal structure greatly improves the dustproof and waterproof performance, widely used in copper, aluminum, steel and other gold is a carving and cutting and stone and CNC fine carving processing center field
2.Equipped with standard ISO25 taper holes
The shaft ends are connected with standard ISO25 taper holes. The spindle adopts 4 imported high-precision P4 bearings, which effectively ensures the operation and machining accuracy of the spindle
●The working environment temperature of the spindle is usually -10~40.
●Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
●Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.

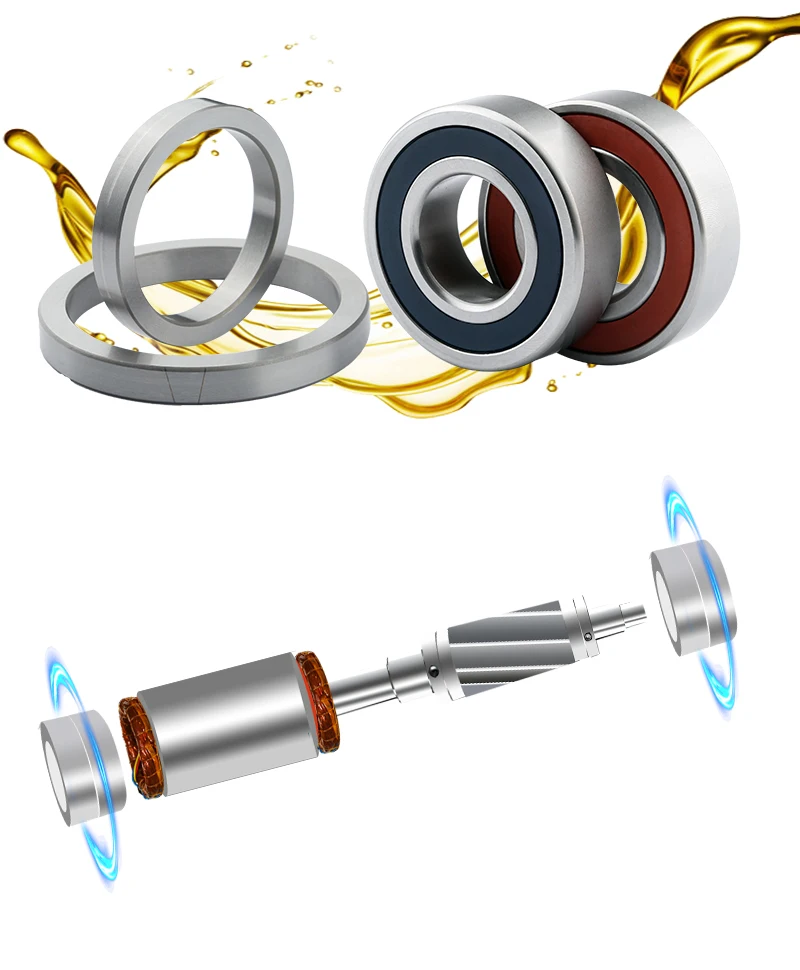

P4 fully sealed angular contact ceramic bearings can extend the service life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. Ceramic ball bearings have low friction, low noise and long service life.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. Ceramic ball bearings have low friction, low noise and long service life.

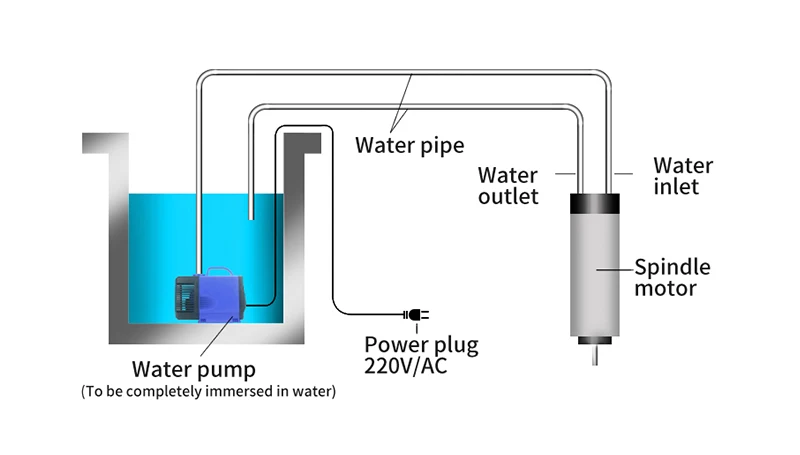

●The water-cooled spindle must be used together with the water pump. Otherwise, the spindle will quickly break.
●The AC spindle motor must be used together with the inverter. The power of the inverter needs to be equal to or greater than the power of the spindle. Before use, please set the inverter parameters suitable for the spindle. Otherwise, the spindle and inverter will break immediately.
●When using the spindle, the noise is different from before, so please stop the spindle immediately. You need to replace the spindle bearing.
●The AC spindle motor must be used together with the inverter. The power of the inverter needs to be equal to or greater than the power of the spindle. Before use, please set the inverter parameters suitable for the spindle. Otherwise, the spindle and inverter will break immediately.
●When using the spindle, the noise is different from before, so please stop the spindle immediately. You need to replace the spindle bearing.
1. The electric spindle must be installed in the clamping position, otherwise it is easy to cause damage to the bearing!
2. The spindle must be completely stopped to change the tool, and the manual tool change button must not work when the spindle is rotating, otherwise it is easy to cause the spindle to jam!
3. The compressed air must be clean and dry, with a filtration accuracy of 0.1 micron! The air seal is normally open. It is recommended to use two-stage filtration. The filtration accuracy is 0.5 micron/0.1 micron, and the air filter is equipped with a self-draining device.
2. The spindle must be completely stopped to change the tool, and the manual tool change button must not work when the spindle is rotating, otherwise it is easy to cause the spindle to jam!
3. The compressed air must be clean and dry, with a filtration accuracy of 0.1 micron! The air seal is normally open. It is recommended to use two-stage filtration. The filtration accuracy is 0.5 micron/0.1 micron, and the air filter is equipped with a self-draining device.
