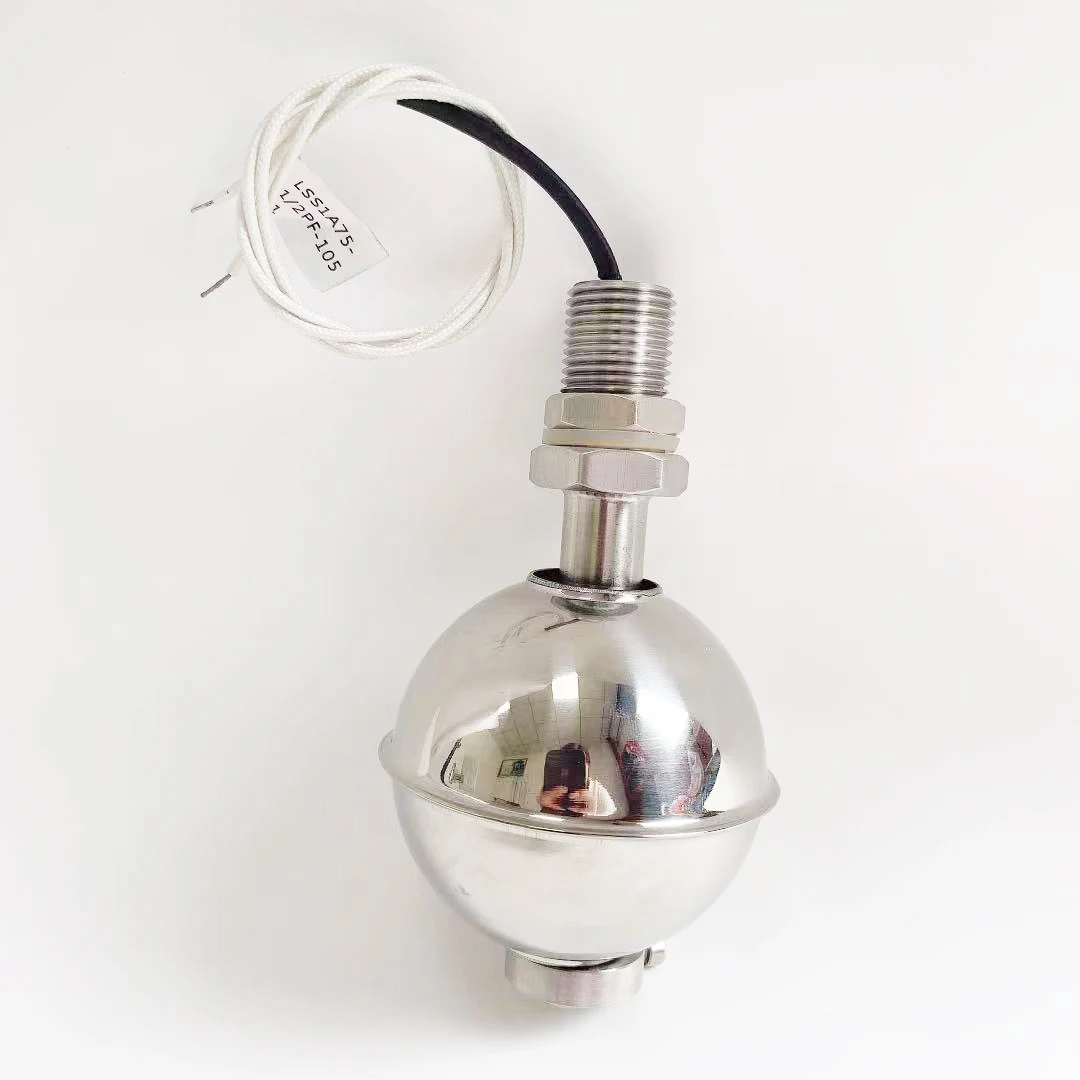

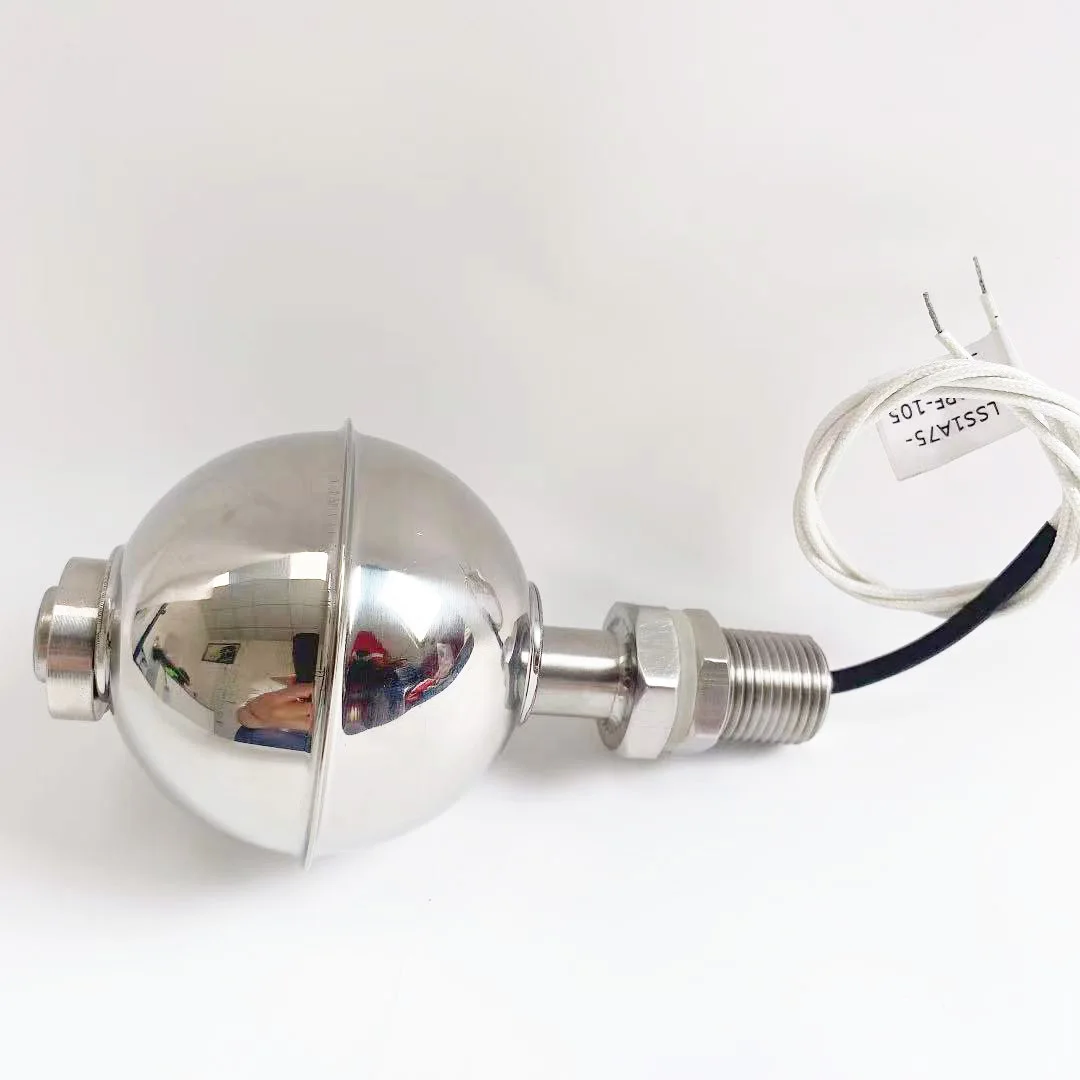

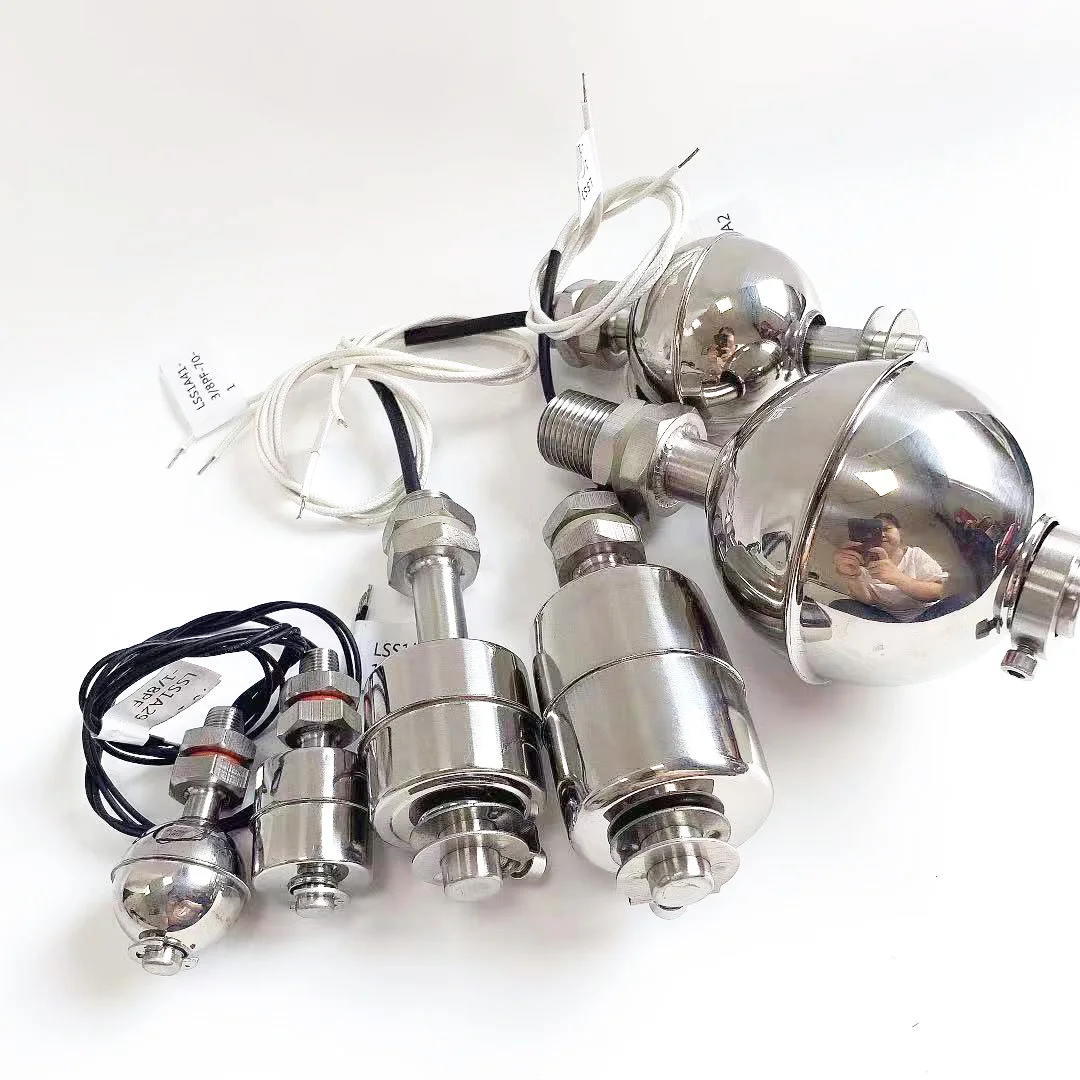

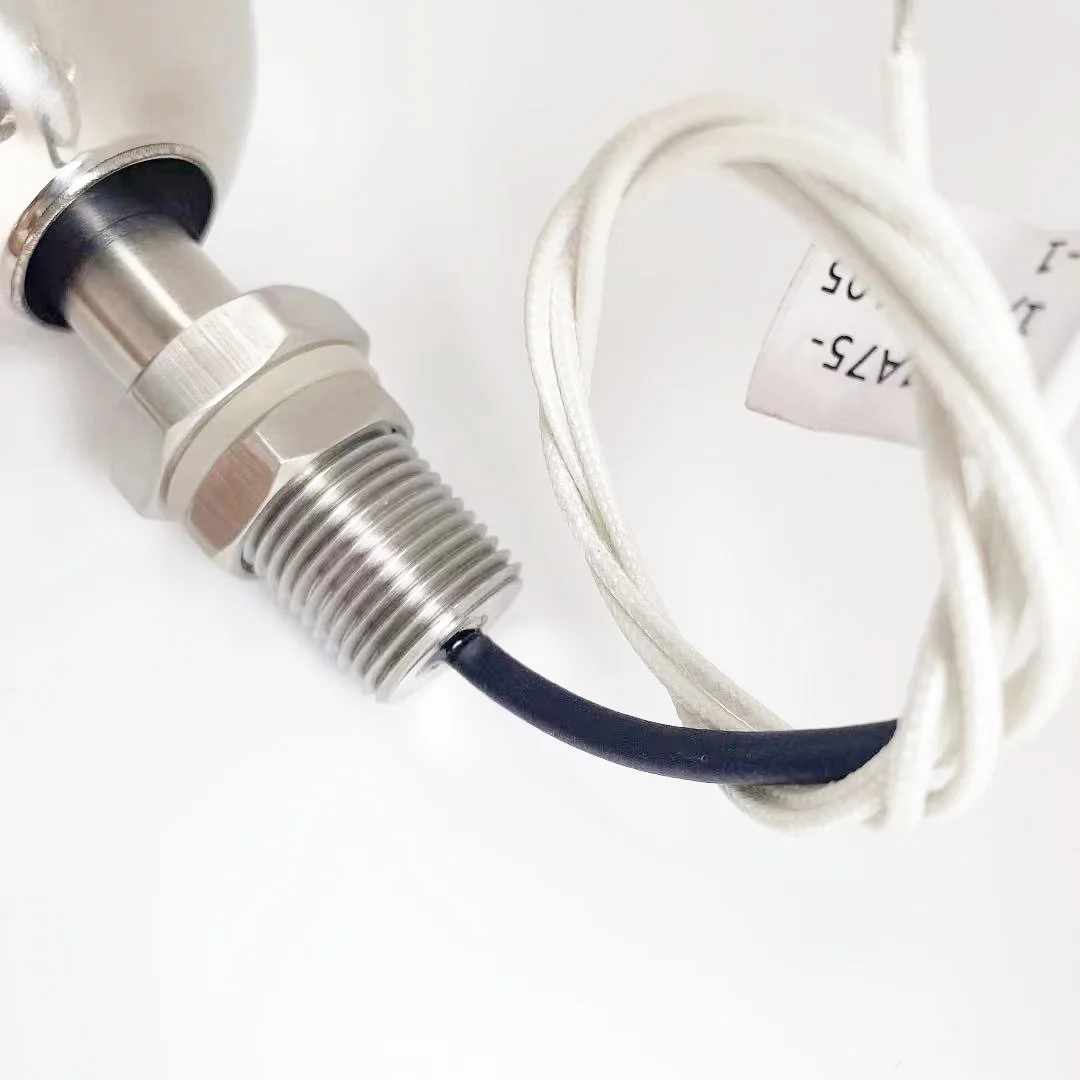

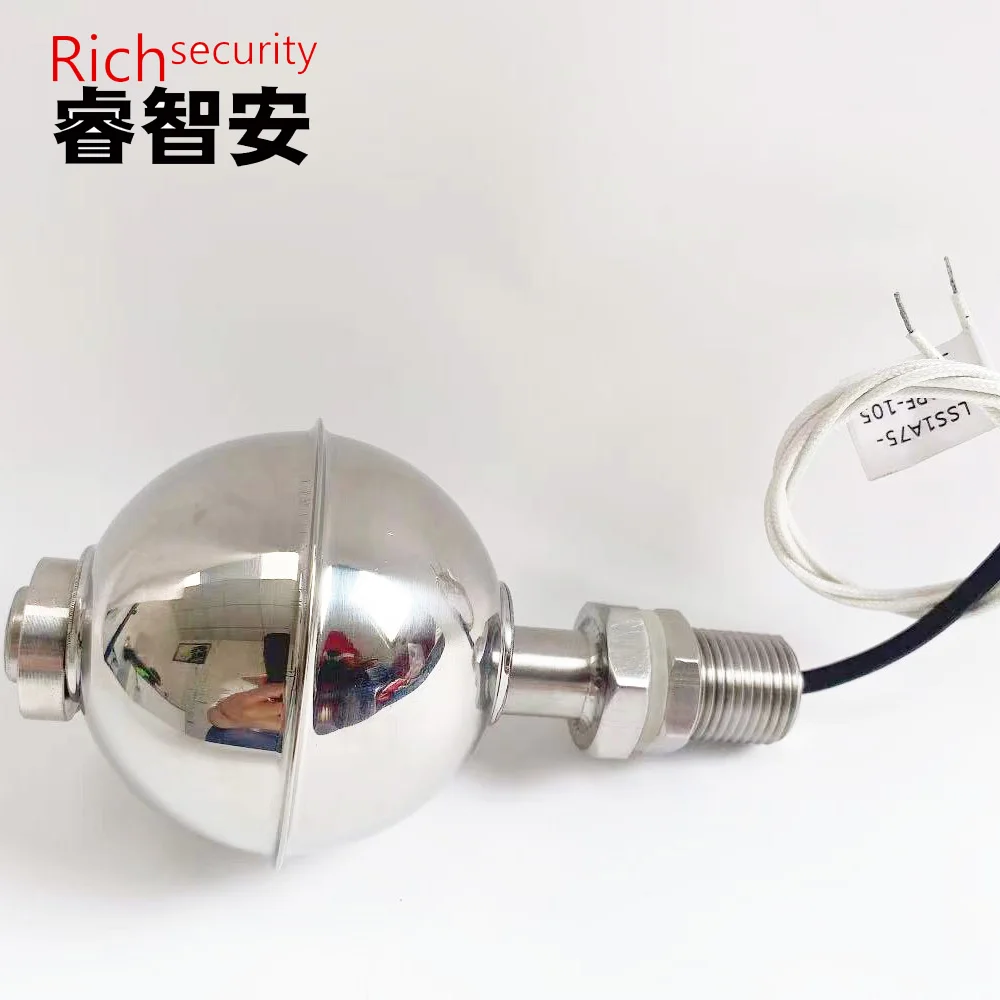

Vertical Installation Stainless Steel Magnetic Float level Sensors Float Switch Sensor

Product Overview

Description

10
9	9,Contact Type:NO(A)
8	8,Max Contact Power:10W
7	7,Max Switch Voltage:DC :100V	6,Idea For:
6	6 Contact.Min Voltage:DC :250V	5,Anti-Water:(Float Ball) 6%(1000hr)
5	5 Max Switch Current:0,5A
4	4,Min Breakdown:1.0A	4,Humidity :95%RH(80°)
3	3,Contact resistance:≦0.4Ω	3,Min Vibration:30G (10-50HZ)
2	2,Insulation resistance:≧100MΩ	2,TEMP:-20°~ + 80°C
1	1,Work Life:1X108 times(DC,5V, 10mA)
	Switch Characteristic	Operating Characteristic

Vertical Installation  Stainless Steel Magnetic Float level Sensors Float Switch Sensor



External fast fitting

No stadby power requirement

Customer can define activated distance,cable length and connector

Wide operation temperature:--40℃-+150℃

Suit to tough environment control, air conditioning system and indutrial process control

Ideal for water or other liquid with PH-/PH+

Material of body: SUS304

Material of float: SUS304

Material of E-ring: SUS304

Material of screw net: SUS304

Output: Normally open with 10W&50W

Leads: 1430UL22AWG430mm length

Temperature:-40℃-+150℃

Installation: Vertical
