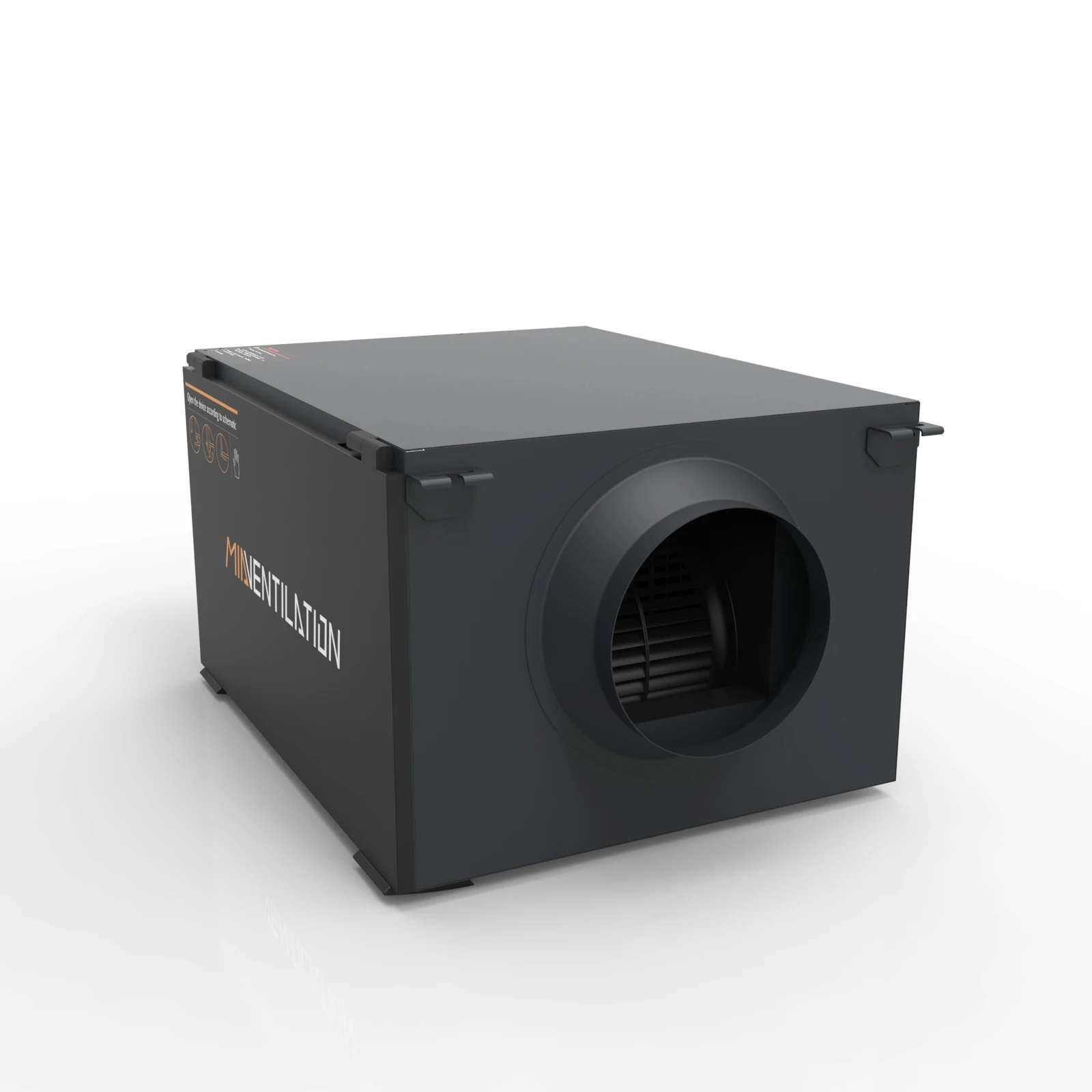

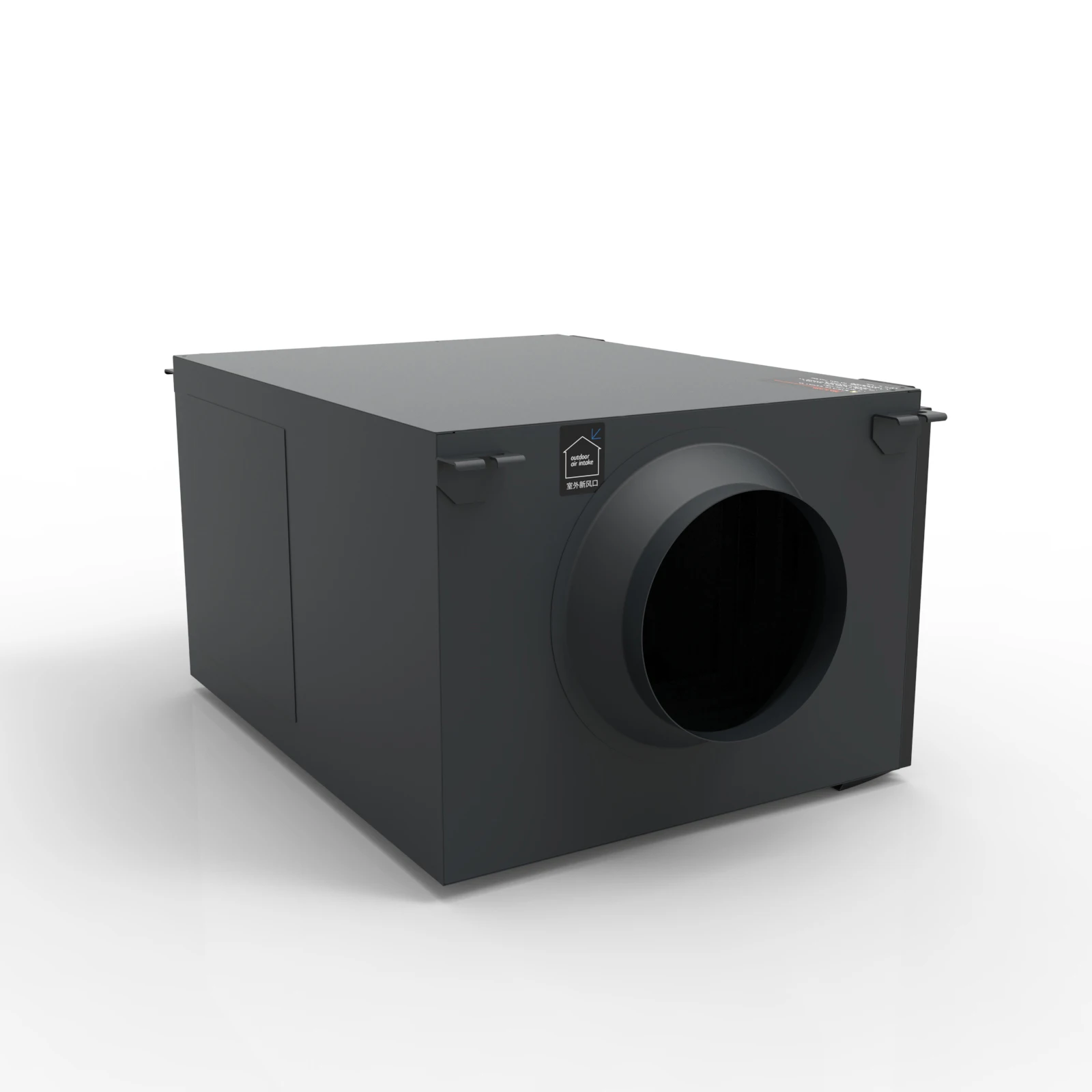

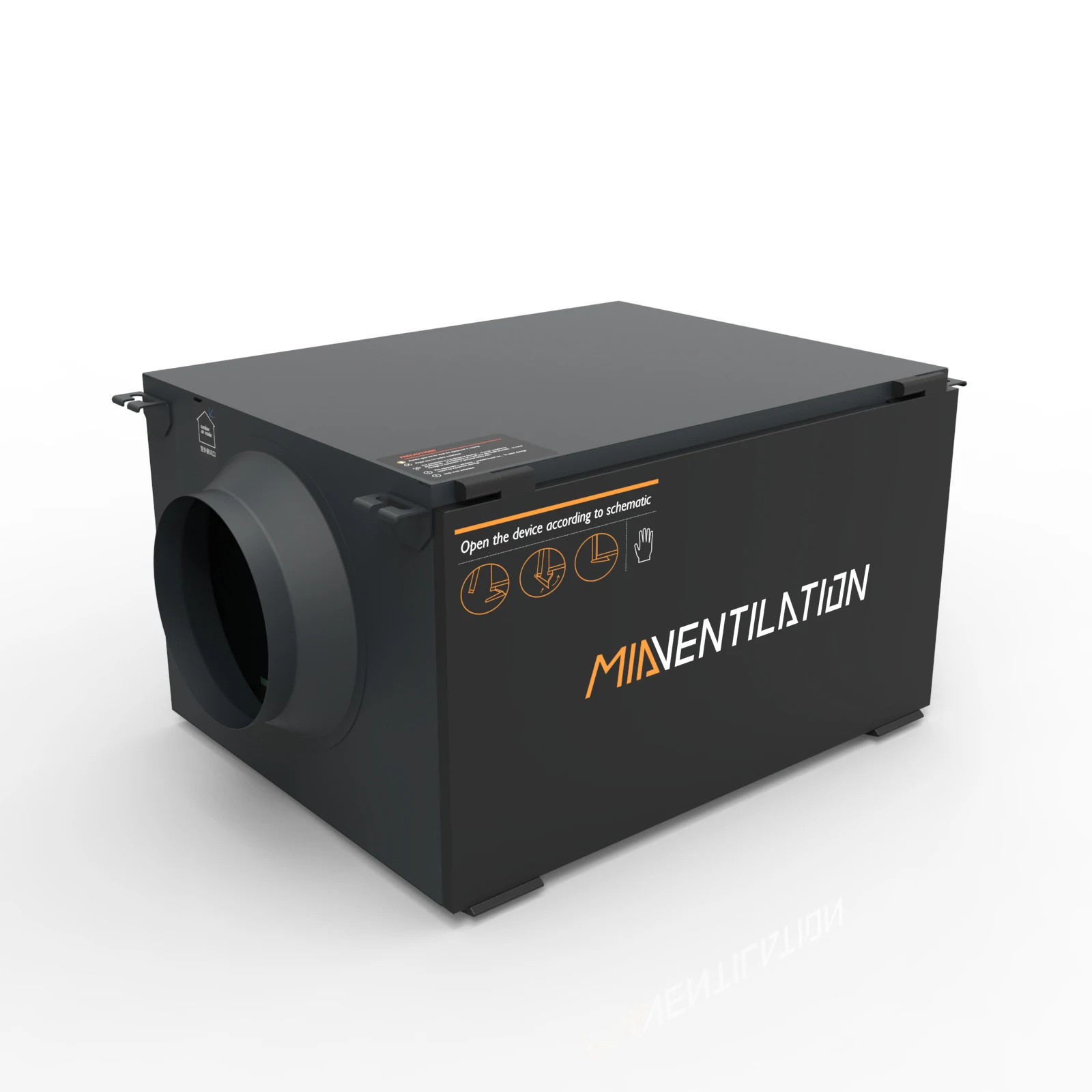

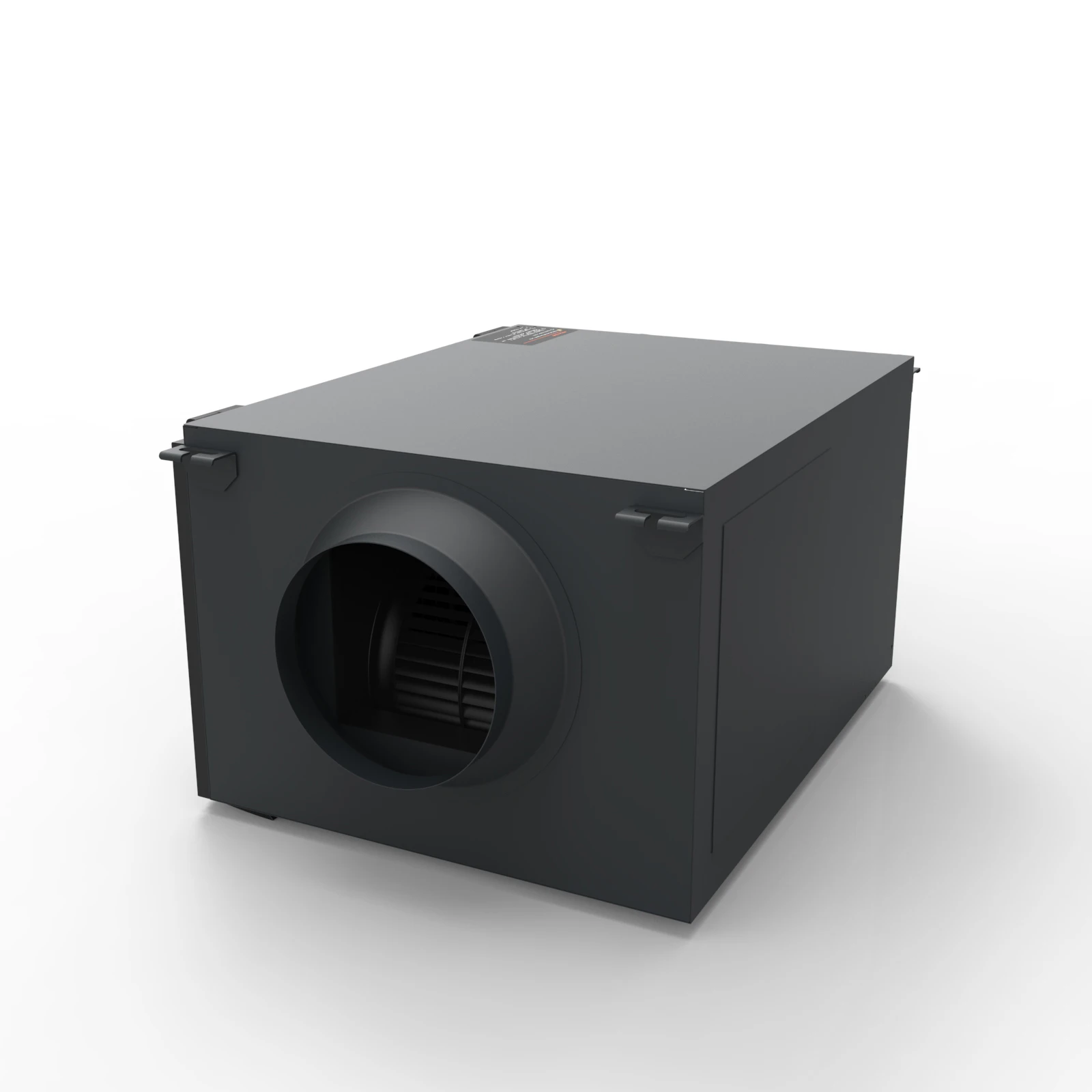

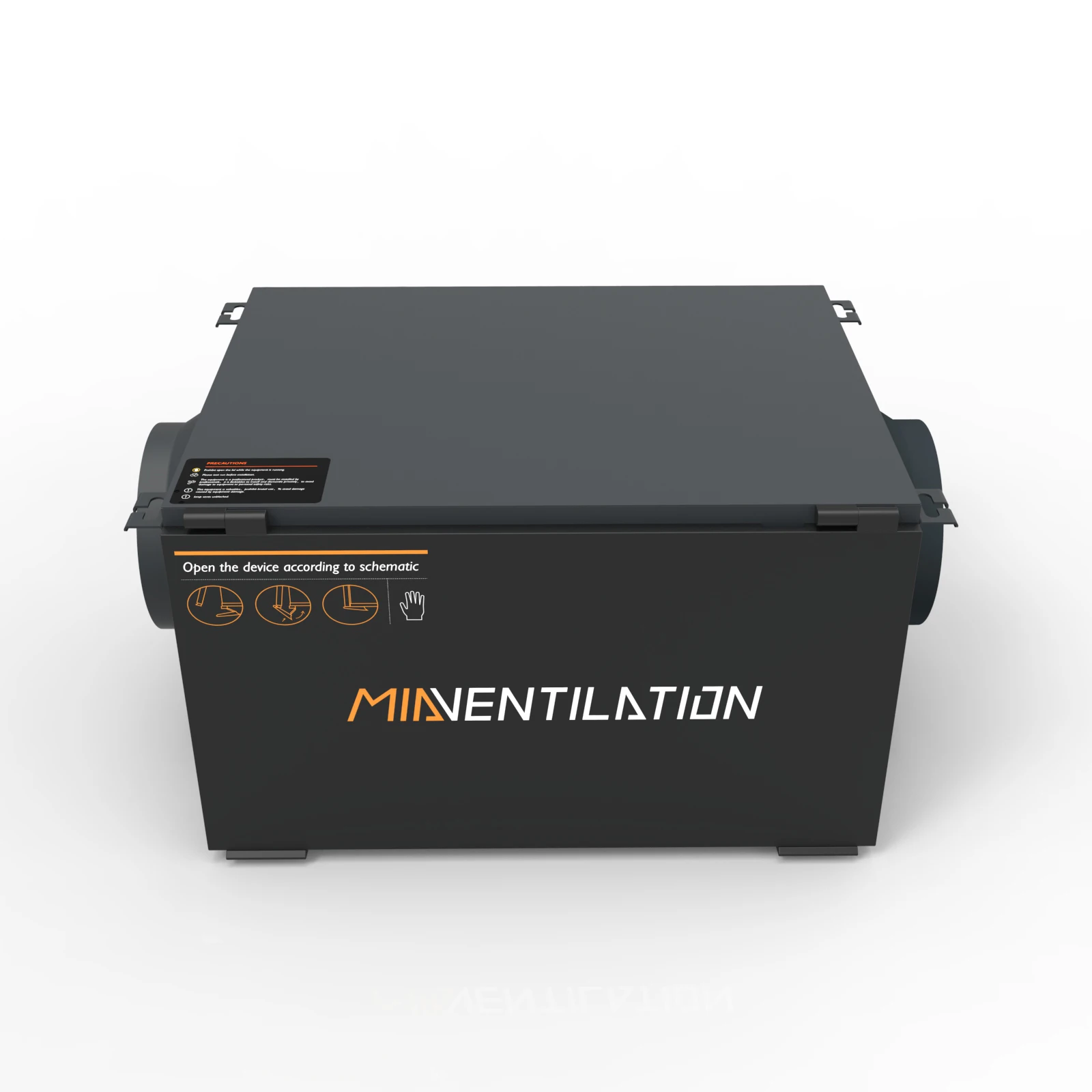

500 cmh single flow supplying fresh air or exhaust air super silent Duct fan Hepa Filter Carbon System Ventilation blower fan
- Category: >>>
- Supplier: Suzhou Mia Intelligent Technology Co. Ltd.
Share on (1600283090965):
Product Overview
Description
Note:
The page only displays the EXW price and distributor price. Please contact us before placing an order to confirm order details and total cost, including shipping and other costs.
Welcome to contact:
The page only displays the EXW price and distributor price. Please contact us before placing an order to confirm order details and total cost, including shipping and other costs.
Welcome to contact:
Name: Oli Zhou
WhatsApp: +86 15365346791
Mail: Oli.miavent@miachina.net
Website: www.miachina.net
Mail: Oli.miavent@miachina.net
Website: www.miachina.net
Product Desicription

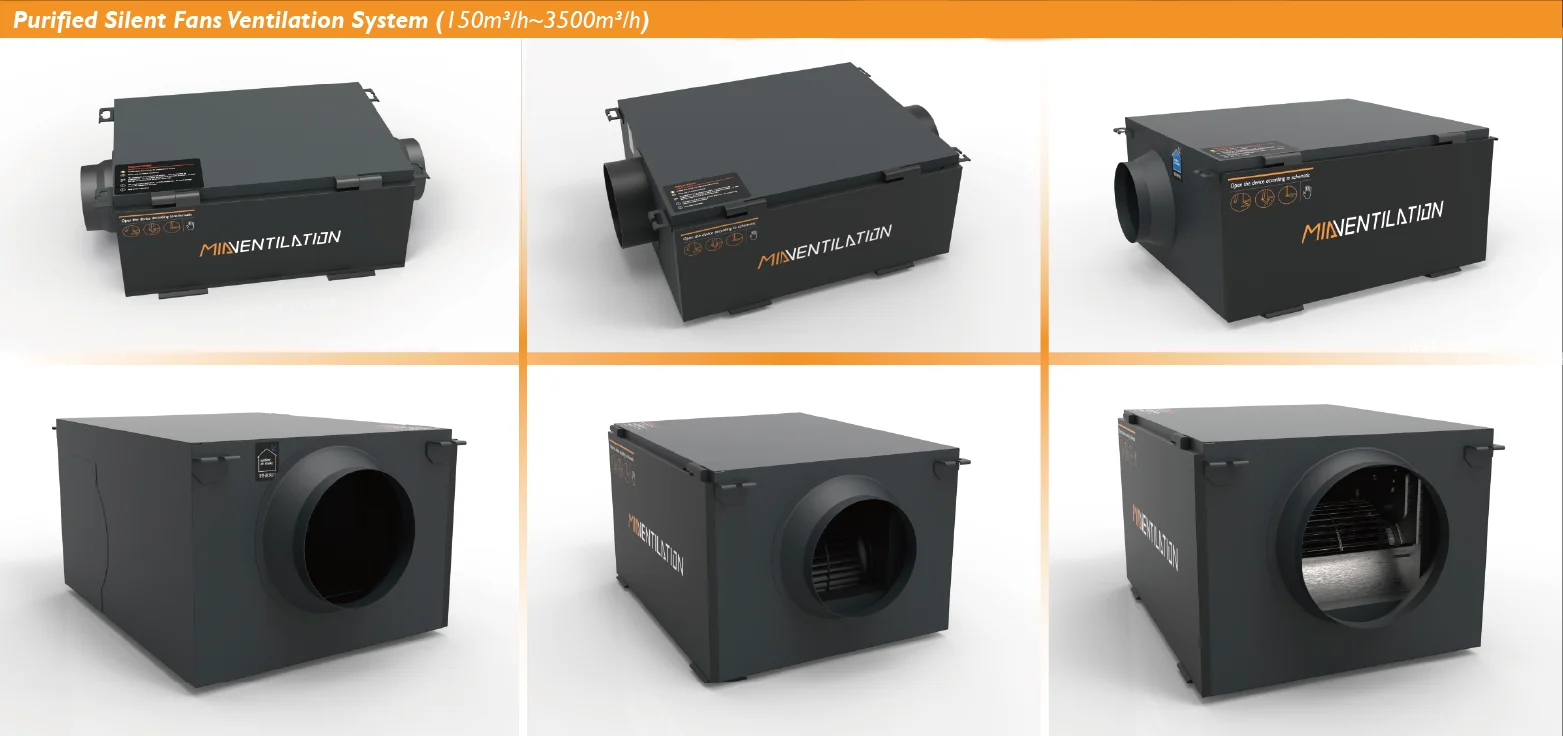

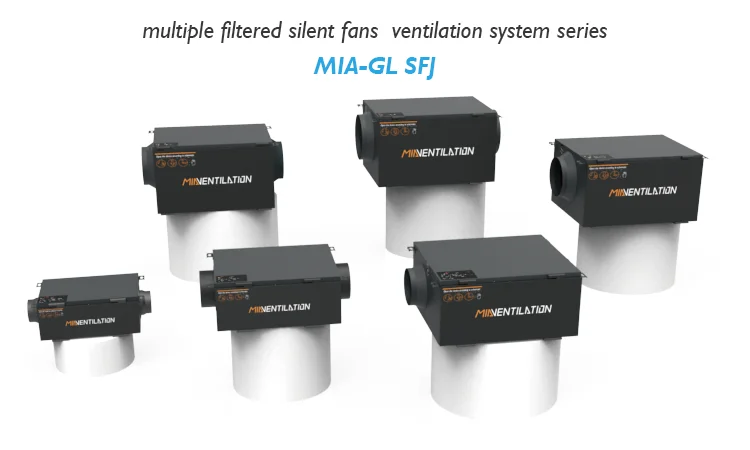

Purified Silent Fans Ventilation System (150m³/h~3500m³/h)
Multiple Filtered Silent Fans
Single flow fresh air ventilator, to supply or to exhaust fresh air with filters. Air volume from 150 CMH to 3500 CMH.
Pure Air: European standard H13 high efficiency≥99.97%.
MIA-GLXXSFJ stands for single flow mechanical ventilation system with washable activated carbon filter +H13 Hepa filter.
Single flow fresh air ventilator, to supply or to exhaust fresh air with filters. Air volume from 150 CMH to 3500 CMH.
Pure Air: European standard H13 high efficiency≥99.97%.
MIA-GLXXSFJ stands for single flow mechanical ventilation system with washable activated carbon filter +H13 Hepa filter.

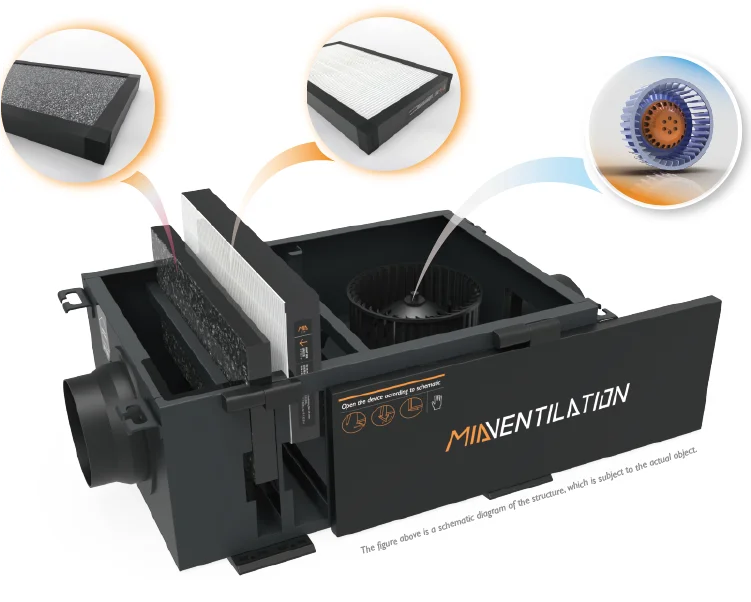

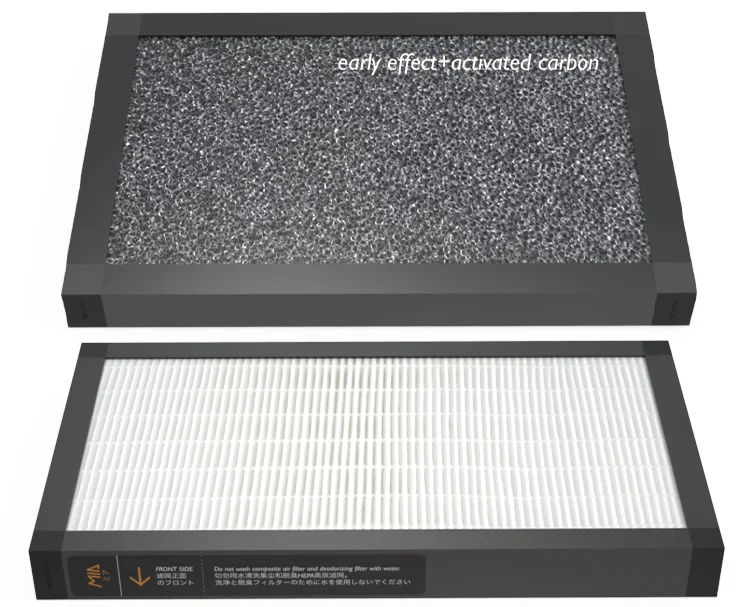

Early Effect+Activated Carbon
The sealing property is far more than the paper border with using the plastic margin. The filter with composite fiber, sprayed with activated carbon powder, can ilter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon power can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.
H13 High Efficiency Particulate Filter
The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the enviromental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.
Model and corresponding configuration instruction
MIA-GL· SFJ:PM2.5 multiple filtered silent fans: Early effect activated carbon filter + HEPA 13 filter
Technical Parameters
Model | Voltage (V) | Power (W) | Volume (m3/h) | Pressure (Pa) | Noise dB(A) | Dimensions (mm) | Weight (kg) |
MIA-GL15SFJ | 220V | 26W | 150 | 115 | 21 | 414x299x164 | 4.8 |
MIA-GL25SFJ | 220V | 46W | 250 | 132 | 27 | 414x299x164 | 5.1 |
MIA-GL35SFJ | 220V | 78W | 350 | 140 | 29 | 490x423x196 | 11.6 |
MIA-GL50SFJ | 220V | 112W | 500 | 185 | 31 | 550x482x258 | 14.8 |
MIA-GL80SFJ | 220V | 126W | 800 | 225 | 32 | 600x487x336 | 20 |
MIA-GL100SFJ | 220V | 138W | 1000 | 258 | 40 | 850x746x332 | 22 |
MIA-GL130SFJ | 220V | 143W | 1300 | 260 | 41 | 600x487x336 | 23.6 |
MIA-GL150SFJ | 220V | 152W | 1500 | 360 | 42 | 600x487x336 | 25.8 |
MIA-GL170SFJ | 220V | 168W | 1700 | 405 | 43 | 600x487x336 | 26.9 |
MIA-GL200SFJ | 220V | 175W | 2000 | 620 | 45 | 600x485x346 | 31.2 |
MIA-GL220SFJ | 220V | 352W | 2200 | 625 | 45 | 600x485x346 | 33.8 |
MIA-GL250SFJ | 220V | 188W | 2500 | 625 | 47 | 600x485x346 | 36.4 |
MIA-GL270SFJ | 220V | 232W | 2700 | 630 | 48 | 600x482x346 | 39.3 |
MIA-GL300SFJ | 220V | 252W | 3000 | 635 | 51 | 650x505x380 | 42.5 |
MIA-GL350SFJ | 220V | 258W | 3500 | 635 | 53 | 650x505x380 | 43.2 |
DC 24V Series - Technical Parameters
