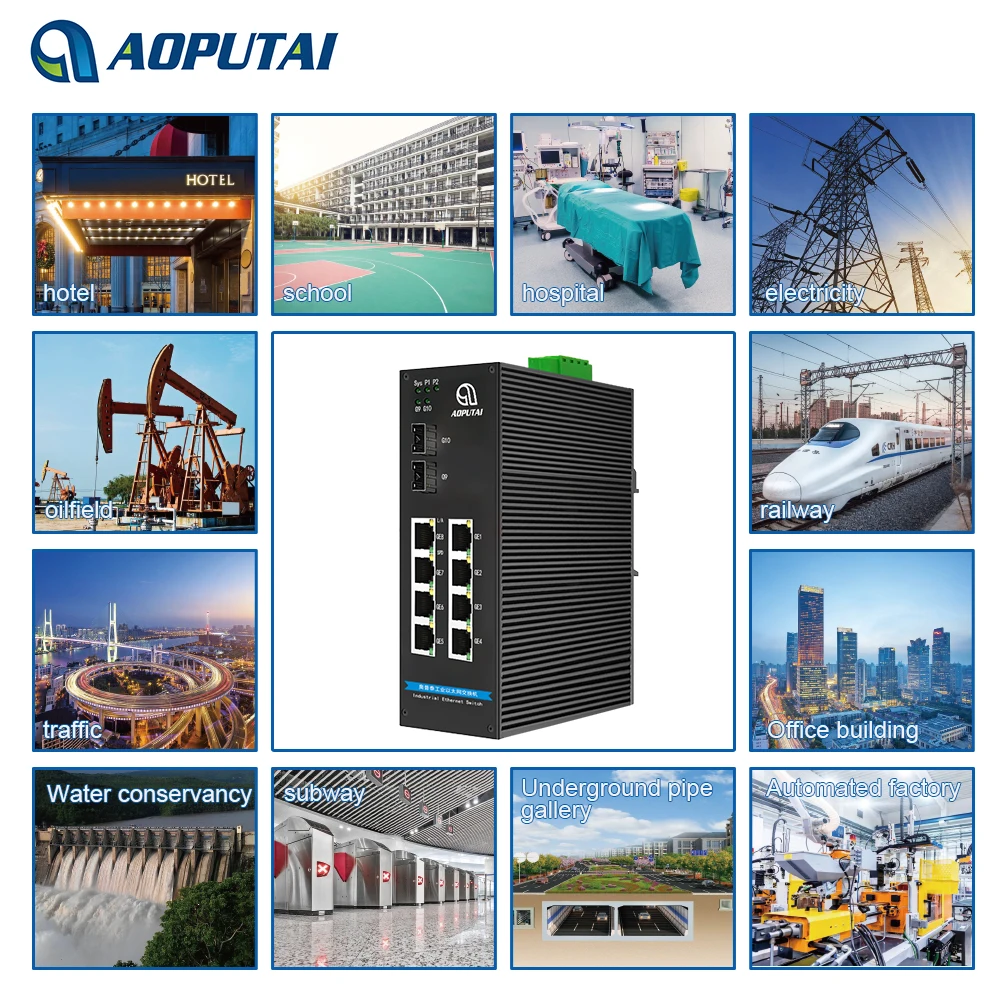

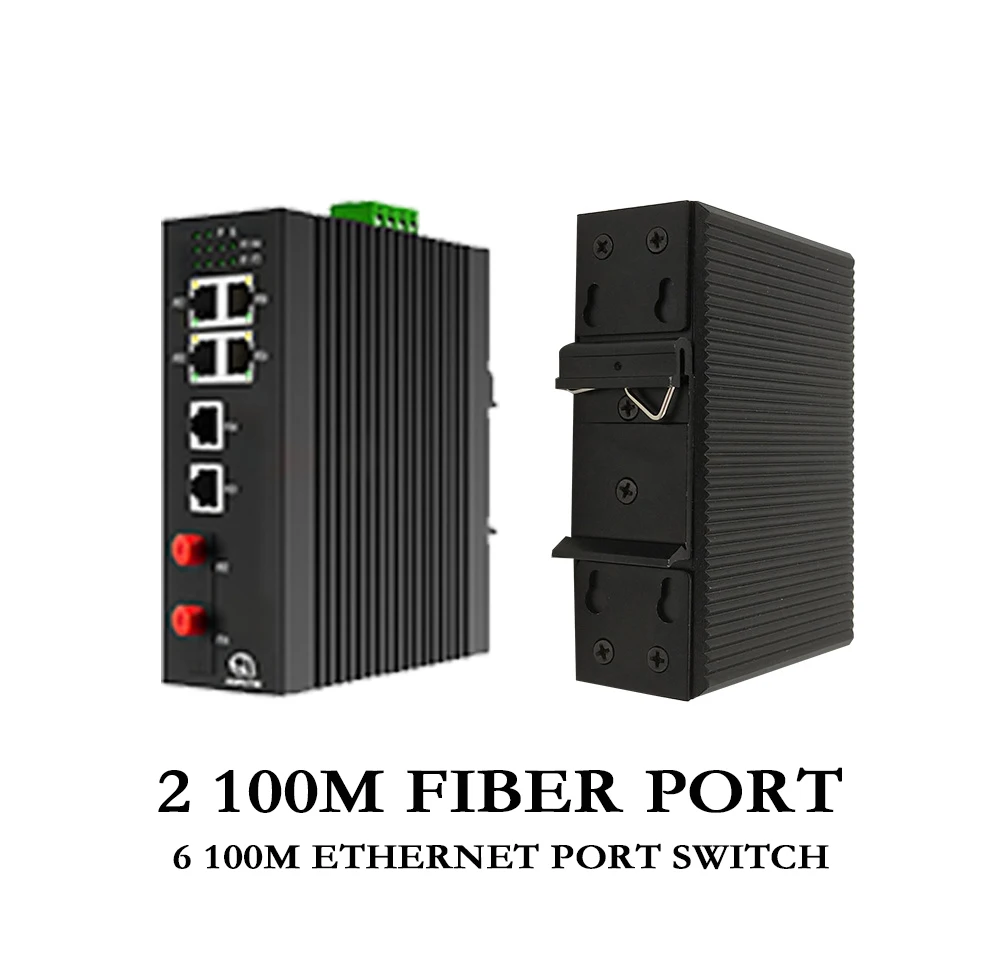

Industrial Grade managed 6 100M RJ45 Port And 2 100M Base FX Fiber Port Network Switch
- Category: Network Switches >>>
- Supplier: Liao Ning OPT optical communication co. LTD
Share on (1600283147697):
Product Overview
Description
AOPUTAI Industrial Switch

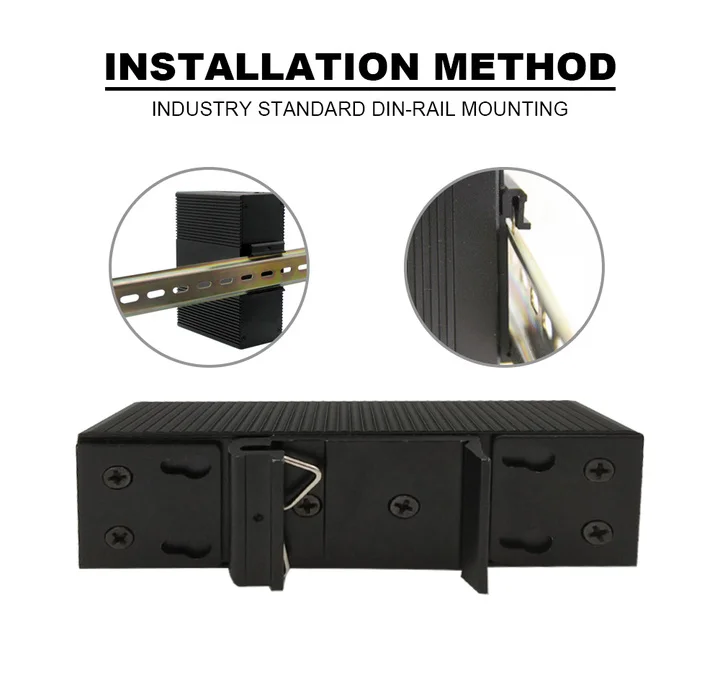

Industrial 8 Port 100M managed Din Rail
Ethernet Switch Including 2 Fiber Port
Product Name | Industrial Grade Network Switch |
Product Model | OPT DT/R 2FX+6FE-S-EI-M |
Port Definition | 2*10/100M Base-TX RJ45 Ports + 6 Base-FX Fiber port(FC/SC/ST) |
Network Protocols | IEEE802.3 |
IEEE802.3u | |
IEEE802.3z | |
IEEE802.3x | |
Fiber wavelength | 850nm/1310nm/1550nm |
Transmission distance | Single-mode single-fiber: 20/40/60/80Km |
Single-mode dual-fiber: 20/40/60/80Km | |
Overload protection | support |
Undervoltage protection | support |
Redundant protection | support |
Reverse connection protection | support |
Exchange level | layer 2 |
Bandwidth | 8G |
Packet forwarding rate | 3Mpps |
MAC | 16K |
MTBF | 100000 hours |
Shell | Corrugated high-strength metal housing |
Protection level | IP40 |
Working Environment | Operating temperature: -40~75℃ |
Humidity: 0%~90 % ( No condensation) | |
Standard | EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A EMS: IEC61000-4-2/3/4/5/6(ESD/RS/EFT/CS) IEC60068-2-6 IEC60068-2-27 IEC60068-2-23 IEEE802.3i IEEE802.3x IEEE802.3u |
Product Dimensions (L×W×H) | 173mm×142mm×53mm |
Package Dimensions (L×W×H) | 270mm×190mm×110mm |
Certification | CE FCC ROHS IOS |
Software Function | |
Port Management | Enable/Disable Port |
Speed Duplex MTU Setting | |
Flow-control | |
Port Information Check | |
Port Mirroring | Support port mirroring |
Port Speed Limit | Support port-based input/output bandwidth management |
Port Isolation | Support port Isolation BPDU guard Root guard |
Storm Suppression | Support broadcast storm suppression function, suppression number and limit type can be configured |
Link management | Retracting sword speed can reach 1 second, support protection automatic recovery function |
Support port loopback monitoring and looped port control | |
Support disable loop port time setting | |
Support user hierarchical management and password protection, support ARP denial of service | |
Support 802.1x authentication, centralized MAC address authentication, support dynamic APR detection | |
VLAN | Access |
Trunk | |
Voice VLAN | |
Number of VLAN 4K | |
Support GVRP dynamic VLAN registration | |
Support port, protocol, MAC-based VLAN partitioning | |
Spanning tree | Support STP spanning tree protocol |
Support RSTP Rapid Spanning Tree Protocol | |
Multicast | Support static addition, deletion IGMP-snooping |
Support MLD-snooping | |
Support v1/v2/v3 dynamic multicast monitor | |
Qos | Support flow rate limit CAR |
Support SP, WRR, SP+WRR |
Products Description
1. Support dual power input, redundant AC and DC power input
2. Active circuit protection, automatic circuit breaker protection for overvoltage and undervoltage
3.Industrial level 4 electromagnetic compatibility design, anti-electromagnetic interference, can adapt to various complex environments
4.Support video stream priority, solve the video jam phenomenon
3.Industrial level 4 electromagnetic compatibility design, anti-electromagnetic interference, can adapt to various complex environments
4.Support video stream priority, solve the video jam phenomenon
Customized
2.Packaging can be customized
3.Technical parameters can be customized
4.Interface can be customized
Working Temperature

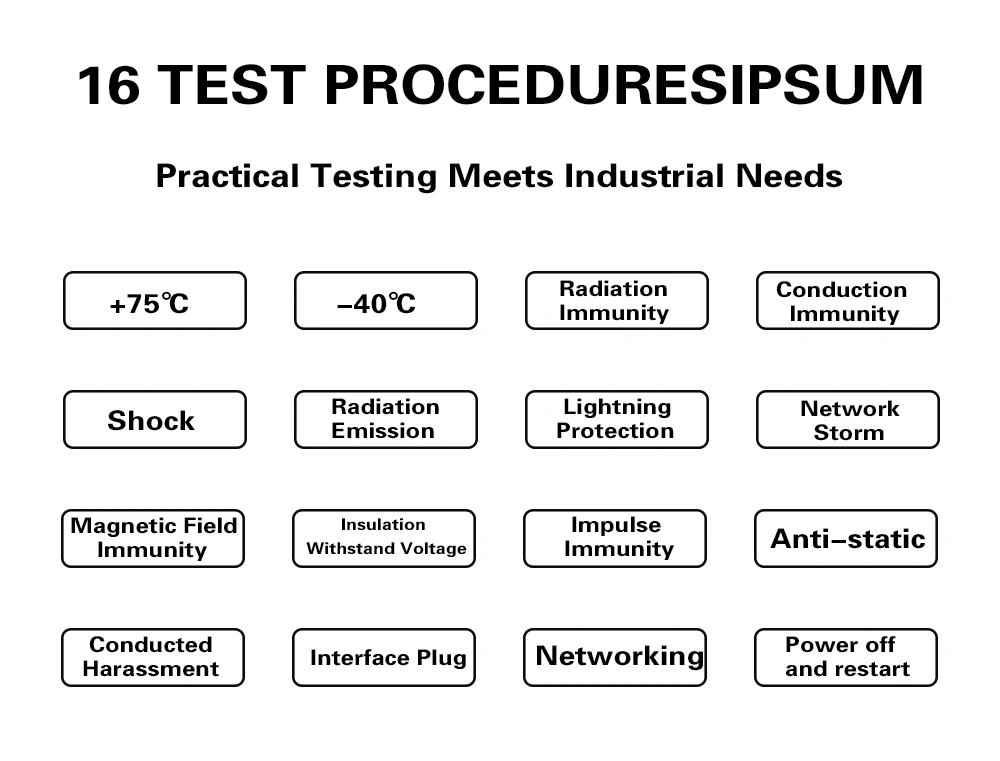

The industrial switch adopts wide temperature design and the working temperature is -40℃～75℃. It is an industrial-grade equipment that can be used under extreme conditions. Each industrial switch needs to go through layers of inspection before leaving the factory.
length : 173mm length : 270mm
width : 142mm width : 190mm
height : 53mm height : 110mm
G.W : 1.4KG
Why Choose Industrial Switch
1. Reliability: In an industrial field environment, reliability is very important. The main factors related to product reliability are: the tolerance of the equipment hardware to the working environment: such as operating temperature range, EMC electromagnetic compatibility, lightning protection level, installation and power supply mode, fanless design, redundancy mode, fault diagnosis and Resilience, etc. In the parameter description of the product, there should be a detailed description of the operating temperature range, electromagnetic protection, and lightning protection level.
2. Real-time: Network data transmission will have a certain delay. Therefore, the first thing to consider when choosing an industrial Ethernet switch is the port delay of the switch in the process of data frame forwarding. In a standard factory automation control system, the response time that the system can tolerate does not exceed 10 milliseconds. Therefore, when choosing a switch, it should be noted that the value of the switch port delay should not exceed 10 microseconds.
3. Compatibility: Industrial Ethernet switches and other industrial Ethernet components should be able to communicate using standard TCP/IP protocols. In any case, there should not be any incompatibility between industrial Ethernet equipment and commercial Ethernet equipment. Corresponding to different industrial fieldbus solutions, industrial Ethernet equipment should have the corresponding capabilities to be compatible with it.
2. Real-time: Network data transmission will have a certain delay. Therefore, the first thing to consider when choosing an industrial Ethernet switch is the port delay of the switch in the process of data frame forwarding. In a standard factory automation control system, the response time that the system can tolerate does not exceed 10 milliseconds. Therefore, when choosing a switch, it should be noted that the value of the switch port delay should not exceed 10 microseconds.
3. Compatibility: Industrial Ethernet switches and other industrial Ethernet components should be able to communicate using standard TCP/IP protocols. In any case, there should not be any incompatibility between industrial Ethernet equipment and commercial Ethernet equipment. Corresponding to different industrial fieldbus solutions, industrial Ethernet equipment should have the corresponding capabilities to be compatible with it.
Company Profile
Our Advantages
OPT Communications Co., Ltd. has been established for 14 years and has rich R&D experience in communications equipment products.
We have a mature R&D team. Our core value is to provide customers with the best products and services.
Our POE switches are ahead of the market for at least 5 years
We have a mature R&D team. Our core value is to provide customers with the best products and services.
OUR TEAM

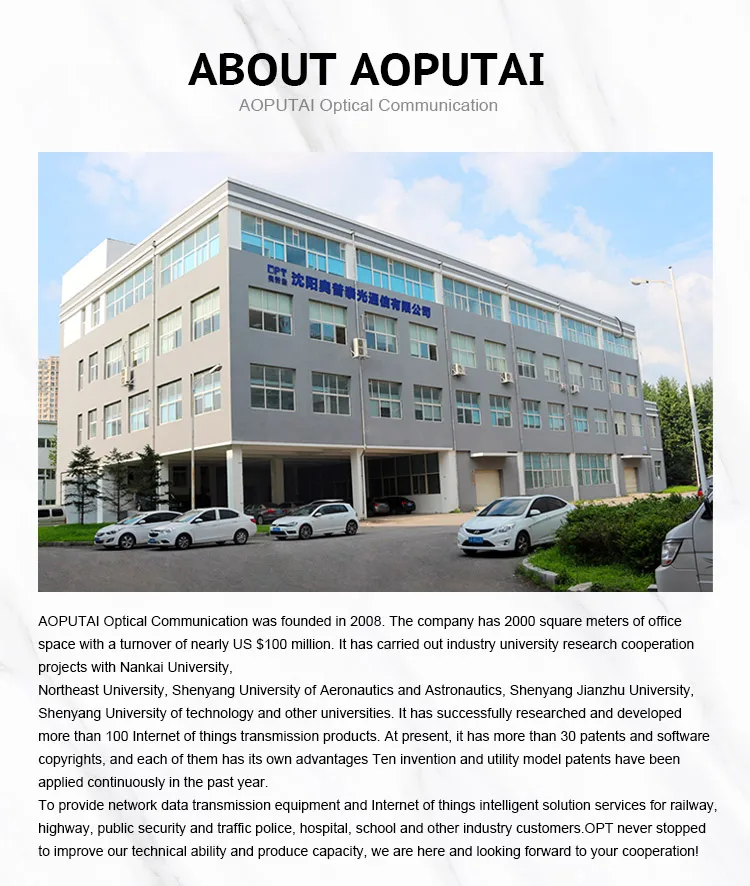

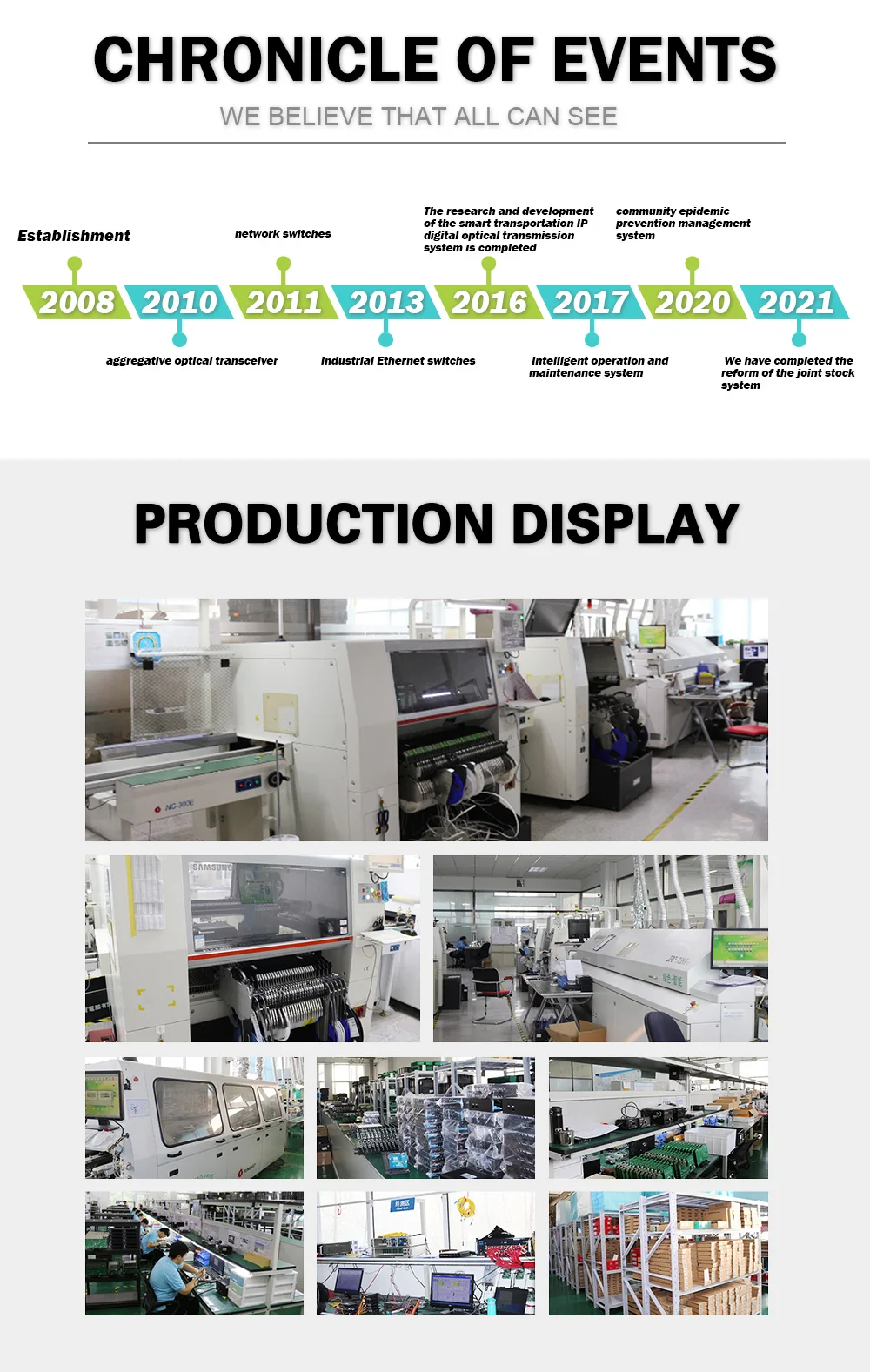

Liaoning OPT Optical Communication Co., Ltd. is located in Shenyang, Liaoning Province, the old industrial base in Northeast China.
Founded in 2008, we are an enterprise that integrating R&D, production, sales and service, with high and new technology and independent intellectual property rights.
OPT never stopped to improve our technical ability and produce capacity, we are here and looking forward to your cooperation!
EXHIBITION
Certifications
Cooperative Partner & Customer

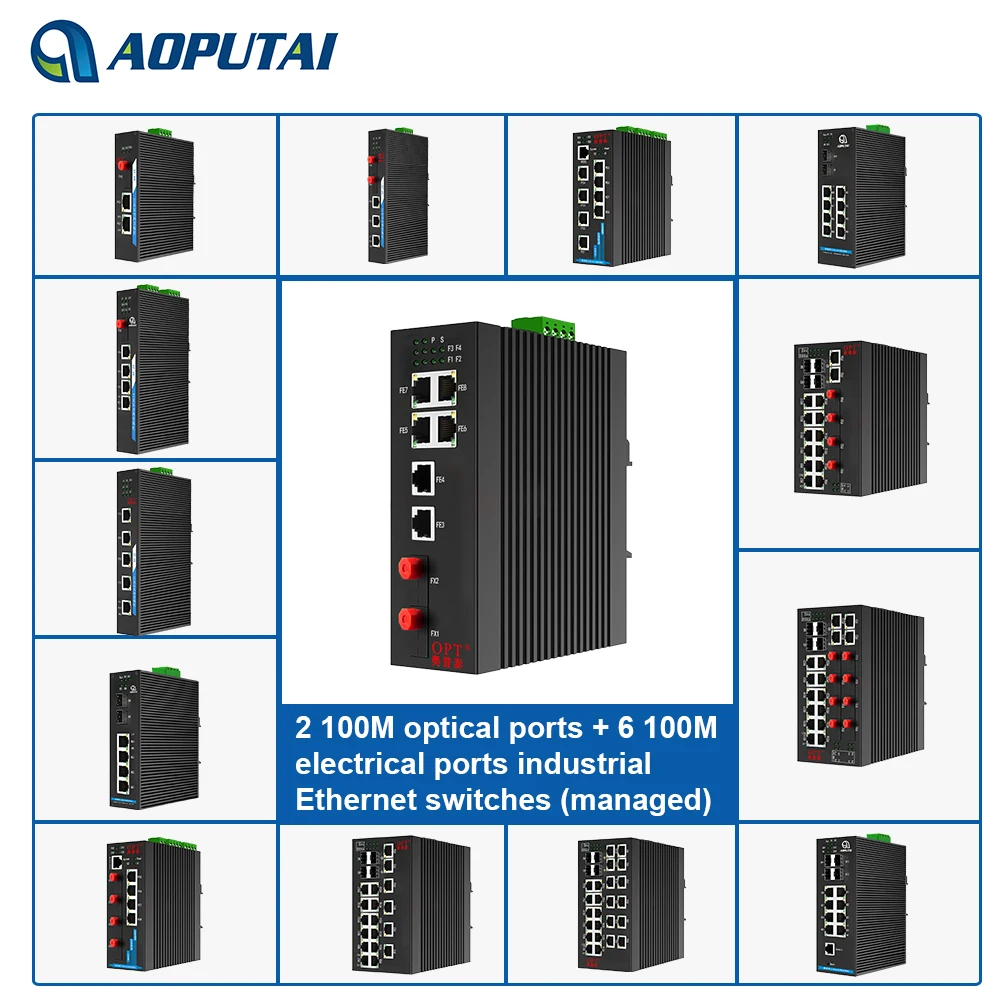

Recommend Products & Product packaging
FAQ
Q : What is your main products?
A : Industrial Ethernet Switch, Optical Switch, POE Switch, Bypass, ONU, and other Communication industry products.
Q : Is it safe on payment for me as we are the first cooperation?
A : We can do trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q : Do you test all your goods before delivery?
A : Yes, we have professional engineers to test all devices before shipping.
Q : Can I have my own customized product?
A : Yes. We have our own R&D team and production line.
Q : Can I have a sample order?
A : Yes. We welcome sample order to test and check quality.
A : Industrial Ethernet Switch, Optical Switch, POE Switch, Bypass, ONU, and other Communication industry products.
Q : Is it safe on payment for me as we are the first cooperation?
A : We can do trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q : Do you test all your goods before delivery?
A : Yes, we have professional engineers to test all devices before shipping.
Q : Can I have my own customized product?
A : Yes. We have our own R&D team and production line.
Q : Can I have a sample order?
A : Yes. We welcome sample order to test and check quality.
