Flat top screens are designed to reduce the abrasion of materials placed on the screens,which has very stable&heavy structure, their special flat top surface enables smooth working which enable even screen operation. Flat top screen has a longer wear life than common crimped wire screens. Depending on a sifter’s construction, it is possible to use lateral or longitudinal tension. Material: High tensile steel wire, manganese steel wire, S.S. wire etc.
Fine Mesh Screen
Fine mesh screen is used in many different applications requiring small particle size screening, sorting, sieving, classifying,sizing and separating. It may be provided complete with screen-edge treatments. Our Fine mesh screen use high quality high tensile strength wire mesh& stainless steel woven wire cloth to ensure accurate aperture and long work life. It suits for different hook type and edge treatments, such as flat panels and band hooks with different material, such as: galvanized sheet, stainless steel sheet and others.
Slotted opening screens
slotted screens are designed to offer high production by providing a greater percentage of open area and greater wear life than normal square aperture screens. Application: 1. Ideal for hot asphalt screening application; 2. Removing large amounts of fines; 3. Other server blinding problem. Benefits: 1. Single chute, double chute and triple chute Greater percentage of open area 2 Avoid blinding and pegging 3. High throughput 4. Easy and quick change out with no deck 5. Low cost solution to increase production
Double Wire Screen
Double weave screen Constructed by two small wires side by side perform better than one heavy gauge wire.This type ensures superior tensile strength and durability for heavy impact top deck applications . Substantially increases percentage open area over perforated polythene or rubber products. Benefits: Provides precise sizing in high compact heavy material applications Fit for large feed materials High throughput Easy and quick install , reduce installation time and cos Superior tensile strength and greater wear life

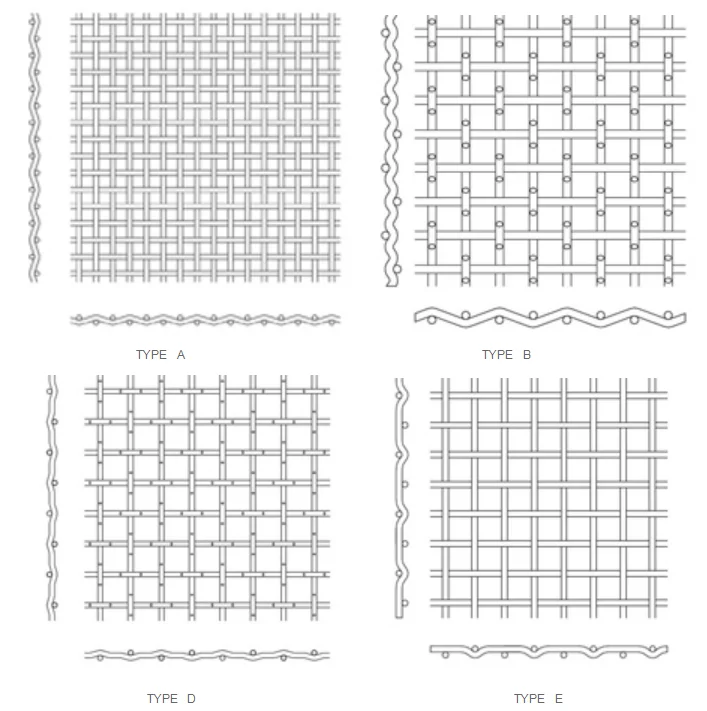

Square Opening Screen A
Square Opening Screen is a versatile screening media which is easy to install and maintain. Designed to a long wear life and can be economically used in most applications. Material: High Tensile Steel Wire or S.S. Wire Wire Diameter: 1.0-12.5mm Aperture: 1.6-150.0mm Edge Types: Flat Screen/ Wrapped or Hooked Characteristics: ±3% aperture tolerance, perfect flatness/ squareness, superior mesh evenness/ tightness Benefits 1. Large percentage open area boosts production 2. Fit for any tensioning hooks and any deck of the screen 3. Quick and easy change out of deck 4. A low initial cost compared to other media available 5. Much longer wear life than common woven wires. Production standard is according to ISO4783/3
Square Opening Screen B
Square Opening Screen is a versatile screening media which is easy to install and maintain. Designed to a long wear life and can be economically used in most applications. Material: High Tensile Steel Wire or S.S. Wire Wire Diameter: 1.0-12.5mm Aperture: 1.6-150.0mm Edge Types: Flat Screen/ Wrapped or Hooked Characteristics: ±3% opening tolerance, perfect flatness/ squareness, superior mesh evenness/ tightness Benefits: 1. Large percentage open area boosts production 2. Fit for any tensioning hooks and any deck of the screen 3. Quick and easy change out of deck 4. A low initial cost compared to other media available 5. 40% longer wear life than traditional woven wires. Production standard is according to ISO4783/3
Square Opening Screen D
Square Opening Screen is a versatile screening media which is easy to install and maintain. Designed to a long wear life and can be economically used in most applications. Material: High Tensile Steel Wire or S.S. Wire Wire Diameter: 1.0-12.5mm Aperture: 1.6-150.0mm Edge Types: Flat Screen/ Wrapped or Hooked Characteristics: ±3% aperture tolerance, perfect flatness/ squareness, superior mesh evenness/ tightness Benefits: 1. Large percentage open area boosts production 2. Fit for any tensioning hooks and any deck of the screen 3. Quick and easy change out of deck 4. A low initial cost compared to other media available 5. Much longer wear life than common woven wires. Production standard is according to ISO4783/3
Square Opening Screen E
Square Opening Screen is a versatile screening media which is easy to install and maintain. Designed to a long wear life and can be economically used in most applications. Material: High Tensile Steel Wire or S.S. Wire Wire Diameter: 1.0-12.5mm Aperture: 1.6-150.0mm Edge Types: Flat Screen/ Wrapped or Hooked Characteristics: ±3% aperture tolerance, perfect flatness/ squareness, superior mesh evenness/ tightness Benefits: 1. Large percentage open area boosts production 2. Fit for any tensioning hooks and any deck of the screen 3. Quick and easy change out of deck 4. A low initial cost compared to other media available 5. Much longer wear life than common woven wires. Production standard is according to ISO4783/3
Square Opening Screen
Recommend Products
We are a professional manufacturer of various wire and wire mesh products including Woven wire screen, Polyurethane Mesh,Self-cleaning screen, Square opening screen , Slotted screen ,Double weave screen and etc.We strictly comply with ISO9001 Quality Standard, attaching importance to honesty and credit so as to attain market share and customer loyalty. The quality of our products is paramount to us and our customers. Our products are designed to be durable and we guarantee you'll be satisfied.
Company Profile
FAQ
1. What’s your advantages?
-------We have a 60000㎡ factory including 30000㎡ workshop located in Anping wire mesh industrial park. We can supply cost-effective products, professional services and timely delivery.
2. What kinds of competitive products do you have?
-----We have POLY Self-cleaning Screens, Wire Self-cleaning Screens, PU-Mesh Screens and some screen accessories, can be produced independently by ourselves. Special material processing, accurate opening and stringent tolerance, superior screen flatness, tightness, abrasion makes the strongest screens.
3. Can I customized the products? -----Yes, as long as provide specifications, we can customize products.
