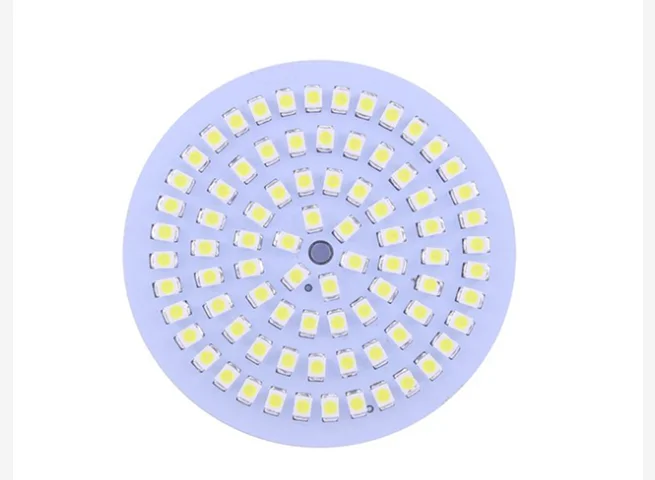

High quality SMT led pcb board assembly electronic assembly service Aluminum PCB Manufacturer for LED lighting
- Category: >>>
- Supplier: Shenzhen Kangling Electronic Technology Co. Ltd.
Share on (1600283233307):
Product Overview
Description
Video description
Quick Turn Lead Time | Standard Lead Time | ||||||||
Layer Count: | Lead Time | Special Requirement | Layer Count: | Sample Lead Time | Volume order lead time | ||||
1L/2L | 2-3days | 24Hours, 48Hours | 2L | 4days | 10days | ||||
4L | 3-4days | 48Hours | 4L | 5days | 11days | ||||
6L | 4-5days | 72Hours | 6L | 6days | 12days | ||||
8L | 5-6days | NA | 8L | 8days | 14days | ||||
10L | 6-7days | NA | 10L | 10days | 16days | ||||
12L | 7-8days | NA | 12L | 12days | 18days | ||||
14L | 8-9days | NA | 16L-32L | 18days | 24days | ||||
Raw Material Control
Kangling Electronic Technology CO.,LTD
—————————————————————————————————————————————————————————————
We do some policy to keep raw material safe and cost.
Products Detail
Kangling Electronic Technology CO.,LTD
—————————————————————————————— ———————————————————————————

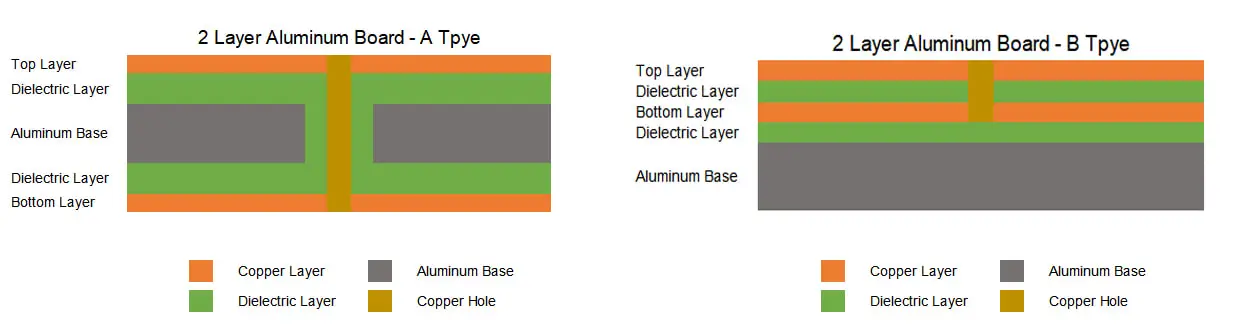

An aluminum PCB is a circuit board that uses aluminum as its substrate. Aluminum PCBs have excellent thermal conductivity, mechanical flatness, and mechanical consistency. As electronic products require a smaller and smaller size and a higher and higher power density, aluminum PCB becomes an ideal choice for circuits support and connection.
Lightness, corrosion resistance, good electricity and heat conduction, not magnetic, not toxic, and very ductile, all these wonderful features make aluminum excellent as a PCB’s substrate.
Lightness, corrosion resistance, good electricity and heat conduction, not magnetic, not toxic, and very ductile, all these wonderful features make aluminum excellent as a PCB’s substrate.
Why Choose Aluminum PCB from KL-PCB
• KL-PCB’s aluminum PCBs have low thermal resistance and high thermal conductivity, which increases your module’s power output and lengthen its lifespan.
• From cutting lamination to testing the finished boards, our whole production line for aluminuum PCBs is full automatic without human intervention, which ensures accuracy.
• We provide high-quality aluminum PCBs at lower prices than other PCB manufacturers because our PCB factory achieves full automatic production.
• Our R&D engineers make a good balance between thermal resistance and dielectric strength of the aluminum PCB, which ensures the boards meet your requirements.
• Machines and ink we use are customized for aluminum PCB fabrication. And we have our own sheet material factory, the Yugu Chemical Material Ltd.
• We can provide aluminum PCBs of any parameters to meet your requirements for LED lightning, power supply, and motor drive modules.
• KL-PCB’s aluminum PCBs have low thermal resistance and high thermal conductivity, which increases your module’s power output and lengthen its lifespan.
• From cutting lamination to testing the finished boards, our whole production line for aluminuum PCBs is full automatic without human intervention, which ensures accuracy.
• We provide high-quality aluminum PCBs at lower prices than other PCB manufacturers because our PCB factory achieves full automatic production.
• Our R&D engineers make a good balance between thermal resistance and dielectric strength of the aluminum PCB, which ensures the boards meet your requirements.
• Machines and ink we use are customized for aluminum PCB fabrication. And we have our own sheet material factory, the Yugu Chemical Material Ltd.
• We can provide aluminum PCBs of any parameters to meet your requirements for LED lightning, power supply, and motor drive modules.
Ink, Machines, and More Details
A. Machines

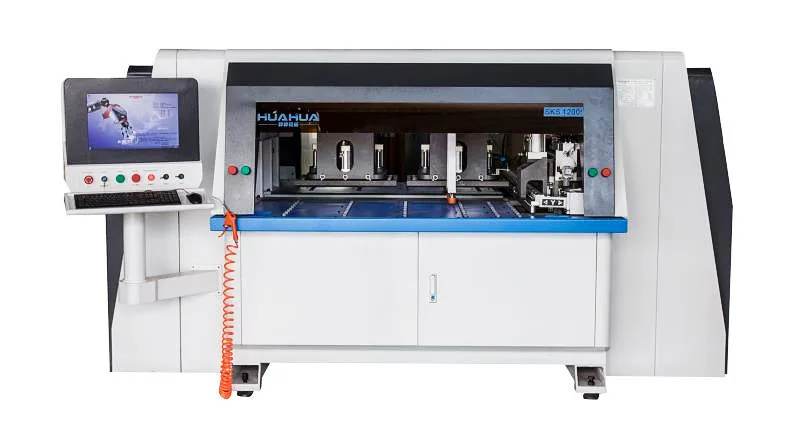

• Customized machines: because the rigidity of aluminum-based material is much harder than that of FR4, the machines used by KL-PCB are all customized for making aluminum substrate, so as to improve the problems of breaking knives and burrs.
• Other advanced equipment: we also have full-line operation, including LDI exposure machine, automatic test machine, automatic punching machine, and so on.
• Customized machines: because the rigidity of aluminum-based material is much harder than that of FR4, the machines used by KL-PCB are all customized for making aluminum substrate, so as to improve the problems of breaking knives and burrs.
• Other advanced equipment: we also have full-line operation, including LDI exposure machine, automatic test machine, automatic punching machine, and so on.
B. Ink
Ink printing has always been a difficult aspect to control in the production of aluminum PCB, especially white ink. In many cases, when the aluminum PCB is SMT patch, after reflow welding, the ink will turn yellow. The ink used by KL-PCB is TAIYO and other international brand ink, which ensure that the ink will not yellow.
Ink printing has always been a difficult aspect to control in the production of aluminum PCB, especially white ink. In many cases, when the aluminum PCB is SMT patch, after reflow welding, the ink will turn yellow. The ink used by KL-PCB is TAIYO and other international brand ink, which ensure that the ink will not yellow.
C. Double-sided aluminum PCB
KL-PCB has its own sheet material factory and can produce double-sided aluminum PCB. The ceramic filler is adopted in the insulation layer of all double-sided aluminum substrate to ensure thermal conductivity and plate non-layering and avoid other undesirable issues.
D. Available types of aluminum PCB for you to customize
Aluminum nitride PCB, flexible aluminum PCB, aluminum flexible PCB, aluminum foil PCB, aluminum PCB for LED, and so on are available to customize as you wish.
In many countries, aluminum PCB is also called aluminum foil PCB, aluminum clad PCB, aluminum backed PCB, aluminum core PCB, aluminum PCB prototyping, or aluminum PCB LED. If you have any questions about aluminum PCB stack up, please feel free to contactus by email at sales03@kl-pcb.com.
KL-PCB has its own sheet material factory and can produce double-sided aluminum PCB. The ceramic filler is adopted in the insulation layer of all double-sided aluminum substrate to ensure thermal conductivity and plate non-layering and avoid other undesirable issues.
D. Available types of aluminum PCB for you to customize
Aluminum nitride PCB, flexible aluminum PCB, aluminum flexible PCB, aluminum foil PCB, aluminum PCB for LED, and so on are available to customize as you wish.
In many countries, aluminum PCB is also called aluminum foil PCB, aluminum clad PCB, aluminum backed PCB, aluminum core PCB, aluminum PCB prototyping, or aluminum PCB LED. If you have any questions about aluminum PCB stack up, please feel free to contactus by email at sales03@kl-pcb.com.
Tech Specifications
Aluminum PCBs are mainly used in LED lighting, power supply, and motor drive modules.
• LED lighting: like most electronic components, heat is the biggest threat to LEDs. An LED generates much heat, which can affect its brightness, change the light color, and eventually fail it. To avoid the accumulation of heat in LEDs and keep a long time’s high brightness, aluminum PCBs are used in them to dissipate heat.
• LED lighting: like most electronic components, heat is the biggest threat to LEDs. An LED generates much heat, which can affect its brightness, change the light color, and eventually fail it. To avoid the accumulation of heat in LEDs and keep a long time’s high brightness, aluminum PCBs are used in them to dissipate heat.
• Power supply: aluminum PCB is the only choice for the DC/AC converter due to the limitation of size and high power density. From PCBONLINE, you can buy aluminum PCBs with various performance parameters required by DC/AC converters.
• Motor drive module: motor drive modules require compact structure and high reliability. Whether an aluminum PCBs can meet hese requirements depends on the power density it can withstand. Only aluminum PCBs with high thermal conductivity and high reliability can meet the wide range requirements of a motor drive module. PCBONLINE manufactures aluminum PCBs with good electrical insulation performance to meet the requirements of the module’s operation and safety testing.
Items | Capacity |
1.Base Material | FR4/High TG FR-4/ Aluminium/CEM-1/Rogers/Arlon/Taconic /Telfon |
2.Layers | 1-18Layer |
3.Finised inner/outer copper thickness | 1-6OZ |
4.Finished board thickness | 0.2-7.0mm |
5.Min hole size | Mechanical hole: 0.15mm Laser hole: 0.1mm |
6.Controlled Impedance | +/-5% |
7.Plugging vias capability | 0.2-0.8mm |
8.Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
9.Surface treatment | HASL, HASL lead free,Immersion Gold,Immersion Tin,Immersion Silver, Hard Gold, OSP... |
Our Workshop
Kangling Electronic Technology CO.,LTD
——————————————————————— ———————————————————————
Other Product
Kangling Electronic Technology CO.,LTD
—————————————————————————— ————————————————————————————
Packing & Delivery
____________________________________________________
Packaging Details：
PCB Board Printed Circuit Board PCB Fabrication PCB Circuit Board

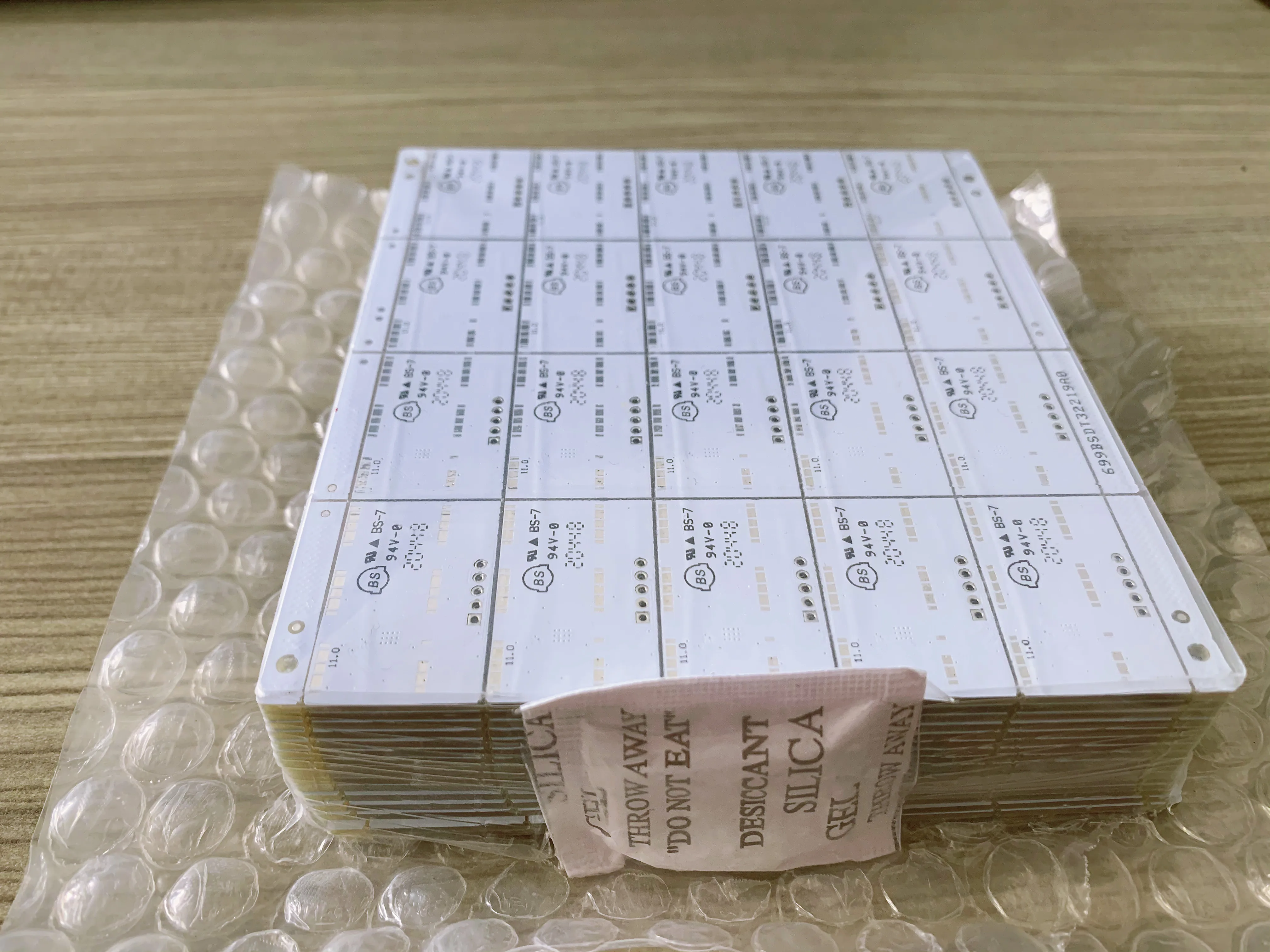

PCB: Vacuum Packing with Carton Box
