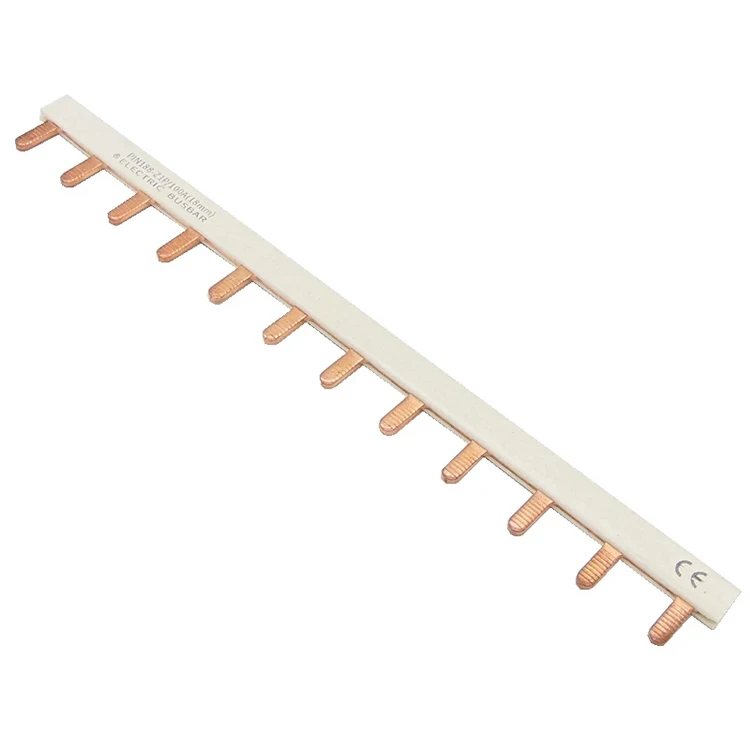

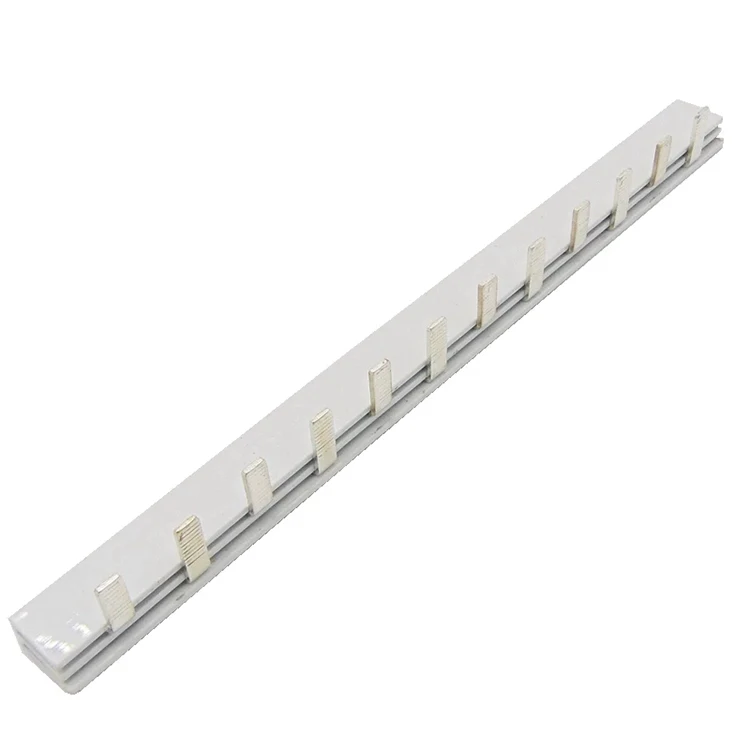

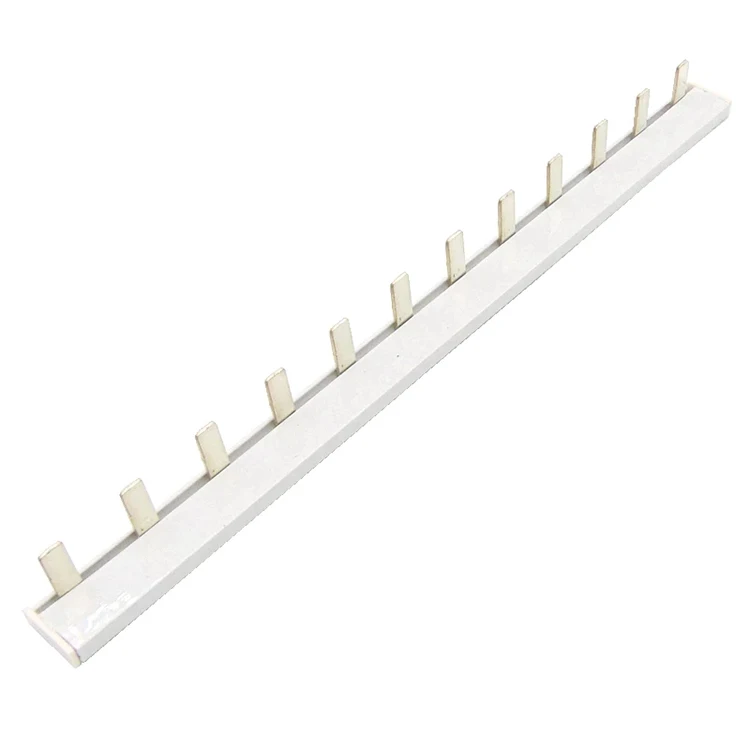

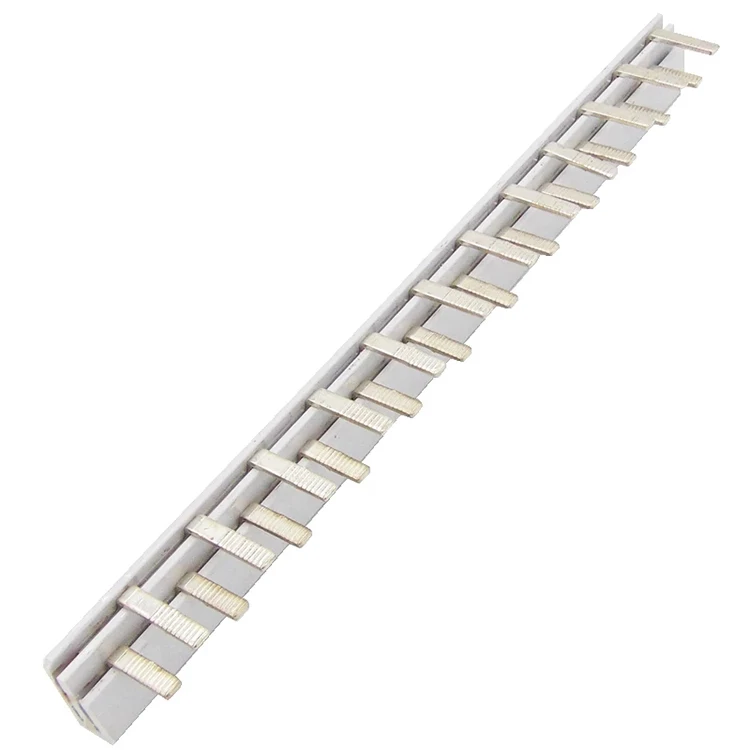

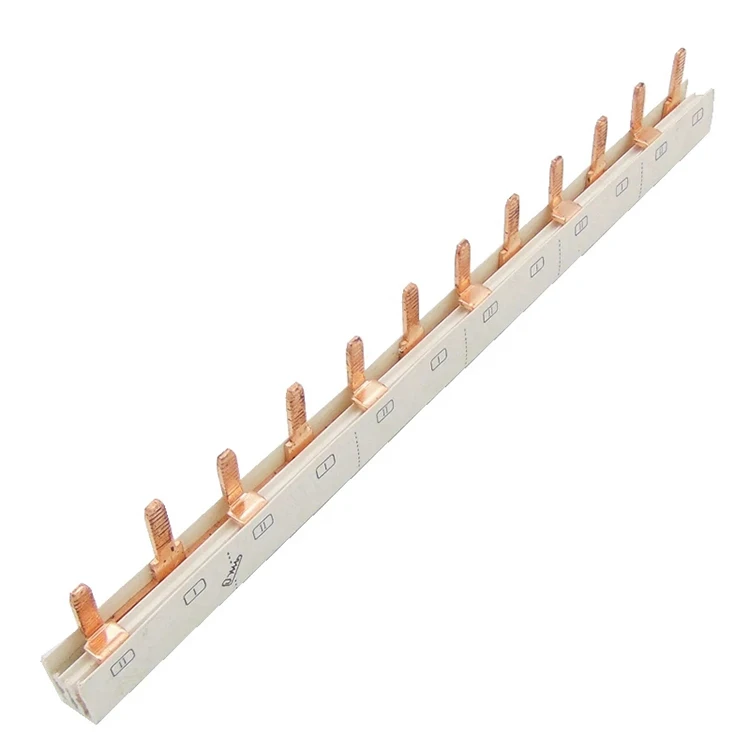

Manufacturer 32A to 100A Electric Pin Type Bus bar Copper Busbar For Electric Panel
- Category: >>>
- Supplier: Kaer Technology Co. Ltd
Share on (1600283486592):
Product Overview
Description
Product name
Comb Busbar For MCB
Key Elements

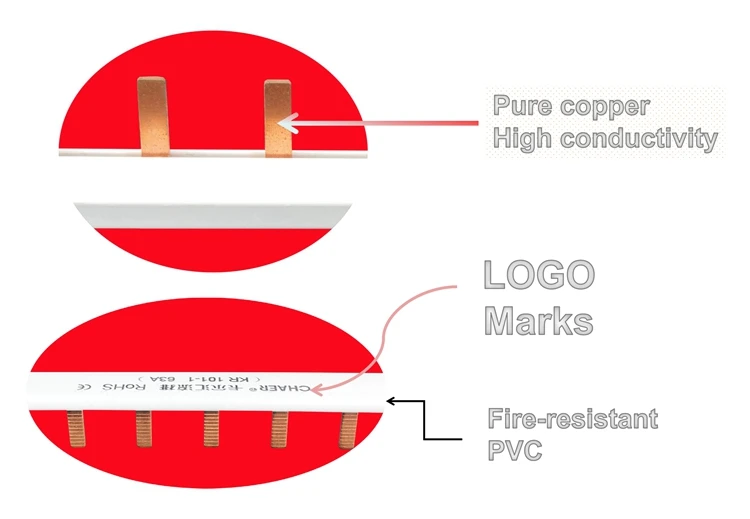

| Material: | T2 copper | Ampere: | A |
| Pole(s) | 2 | Housing material: | PVC |
| Equipment: | Punchig machine & manual assembly | ||
| Application: | Connection in circuit breakers | ||

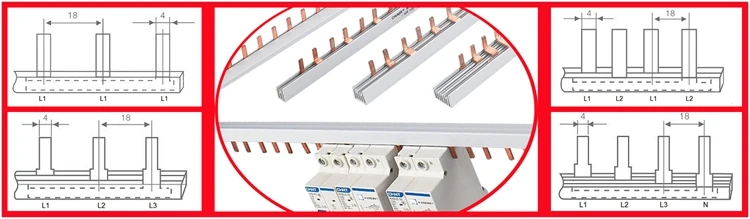

Busbar Series Pin Type
| Model | Pole(s) | Cross-section Area(mm2) | Ampere |
| KR101-1 | 1 | 10 | 63 |
| KR101-2 | 1 | 16 | 80 |
| KR101-3 | 1 | 21 | 100 |
| KR102-1 | 2 | 10 | 63 |
| KR102-2 | 2 | 16 | 80 |
| KR102-3 | 2 | 21 | 100 |
| KR103-1 | 3 | 10 | 63 |
| KR103-2 | 3 | 16 | 80 |
| KR103-3 | 3 | 21 | 100 |
| KR104-1 | 4 | 10 | 63 |
| KR104-2 | 4 | 16 | 80 |
| KR104-3 | 4 | 21 | 100 |

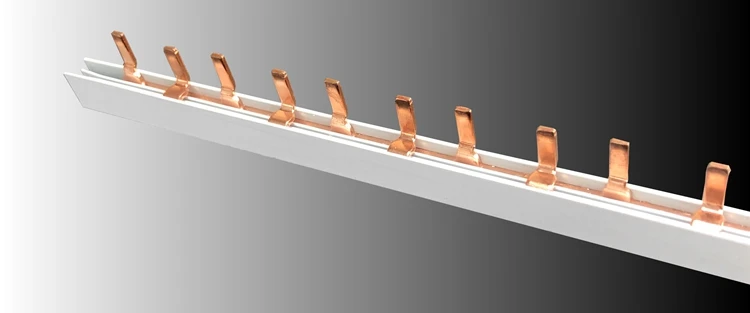

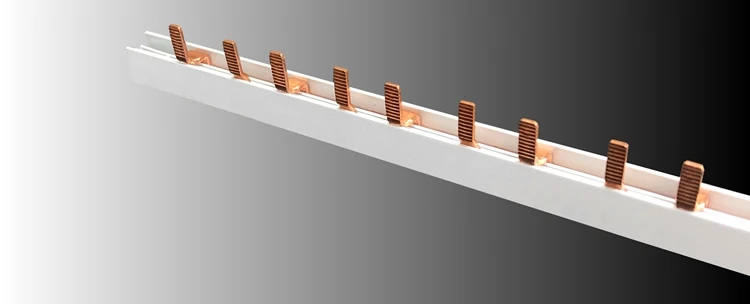

Real Shot
Get it
- Factory advantages: price + quality + delivery
- Follow-up
- Customs pass assistance
- Local logistics coordinationtion
Shipping support
- Local logistics: designated addresses in China
- Courier's service: major international express service providers
- International sea shipping: departure port Ningbo or Shanghai (preferred)
- International air shipping: departure port Wenzhou (preferred), also Hangzhou, Shanghai and other airports

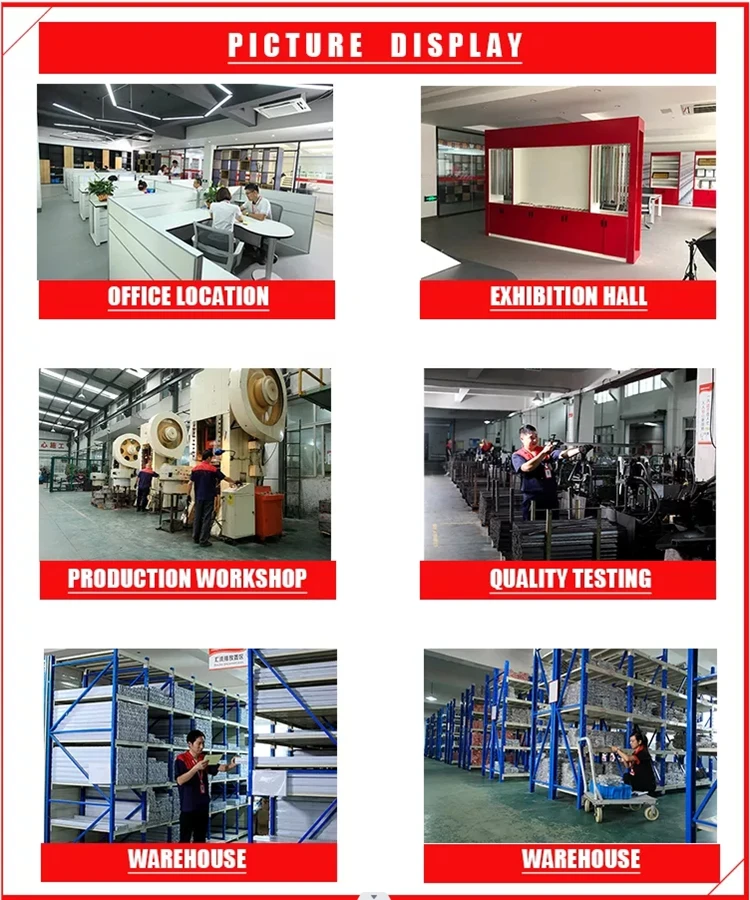

The Company
