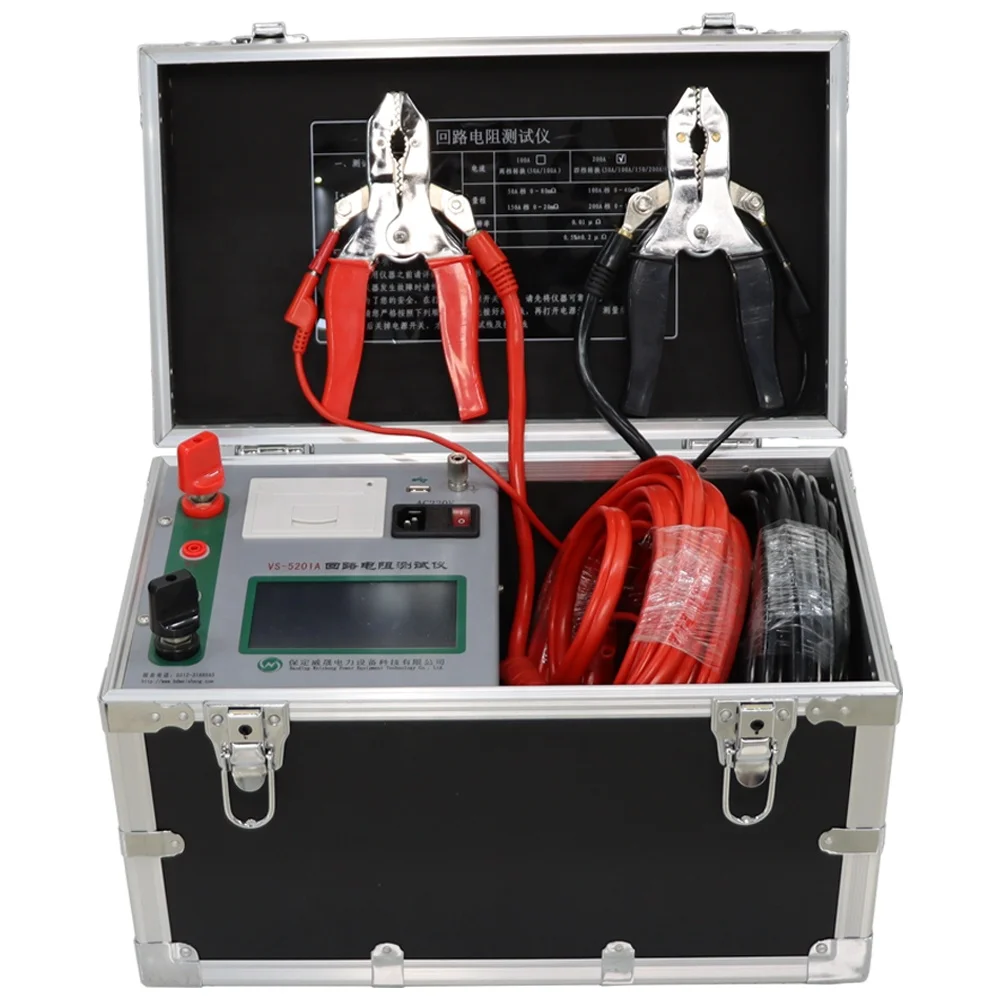

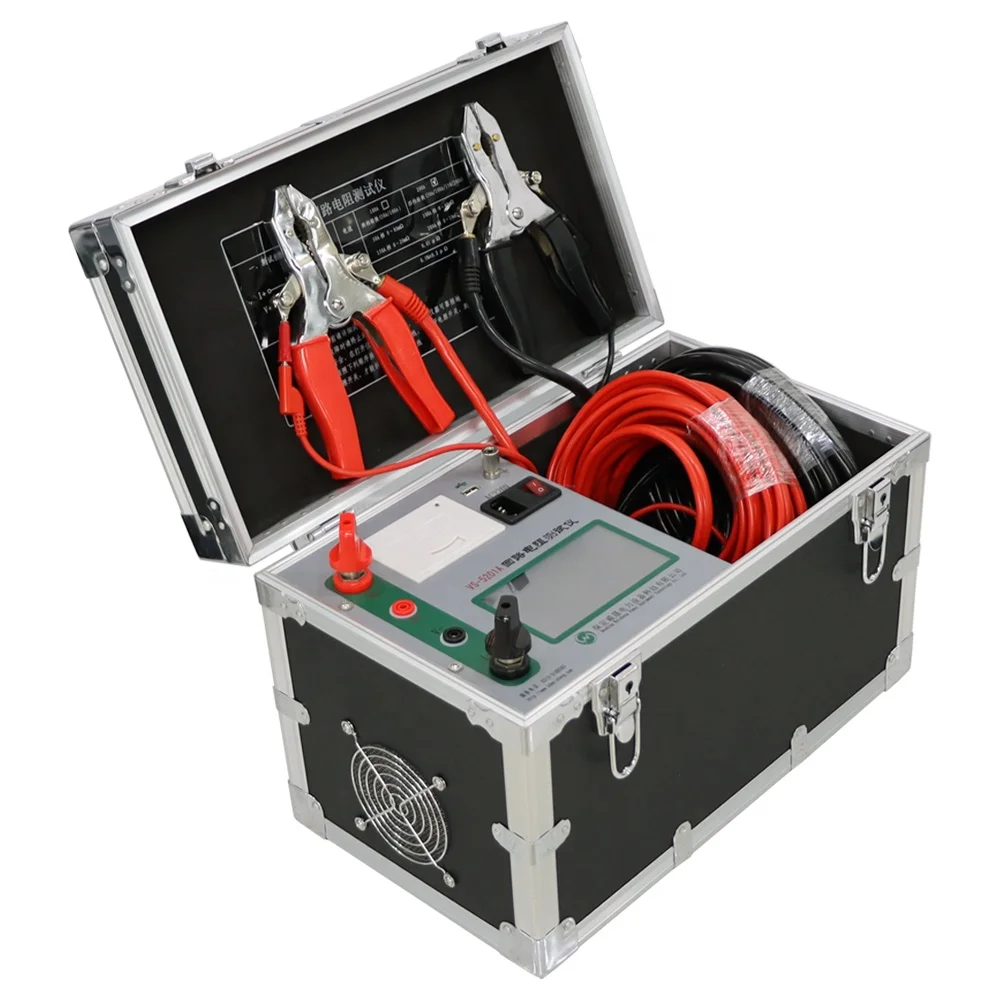

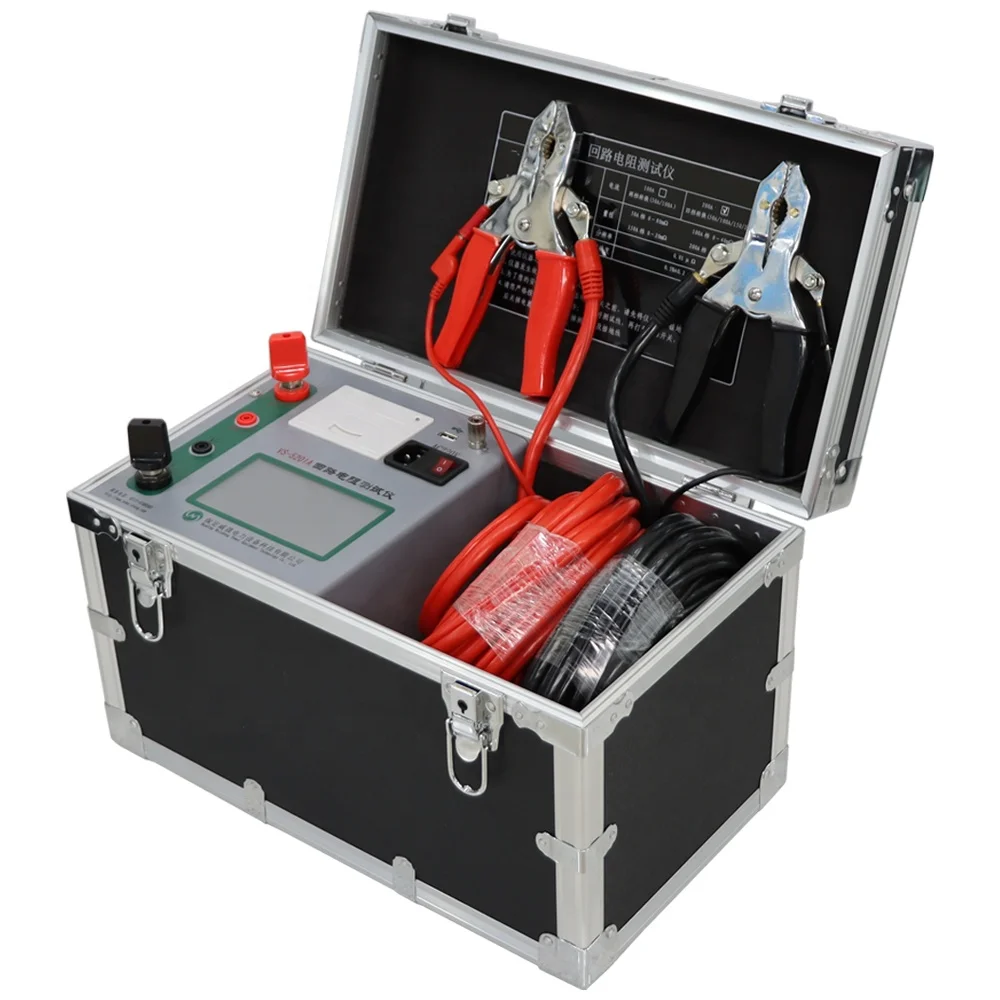

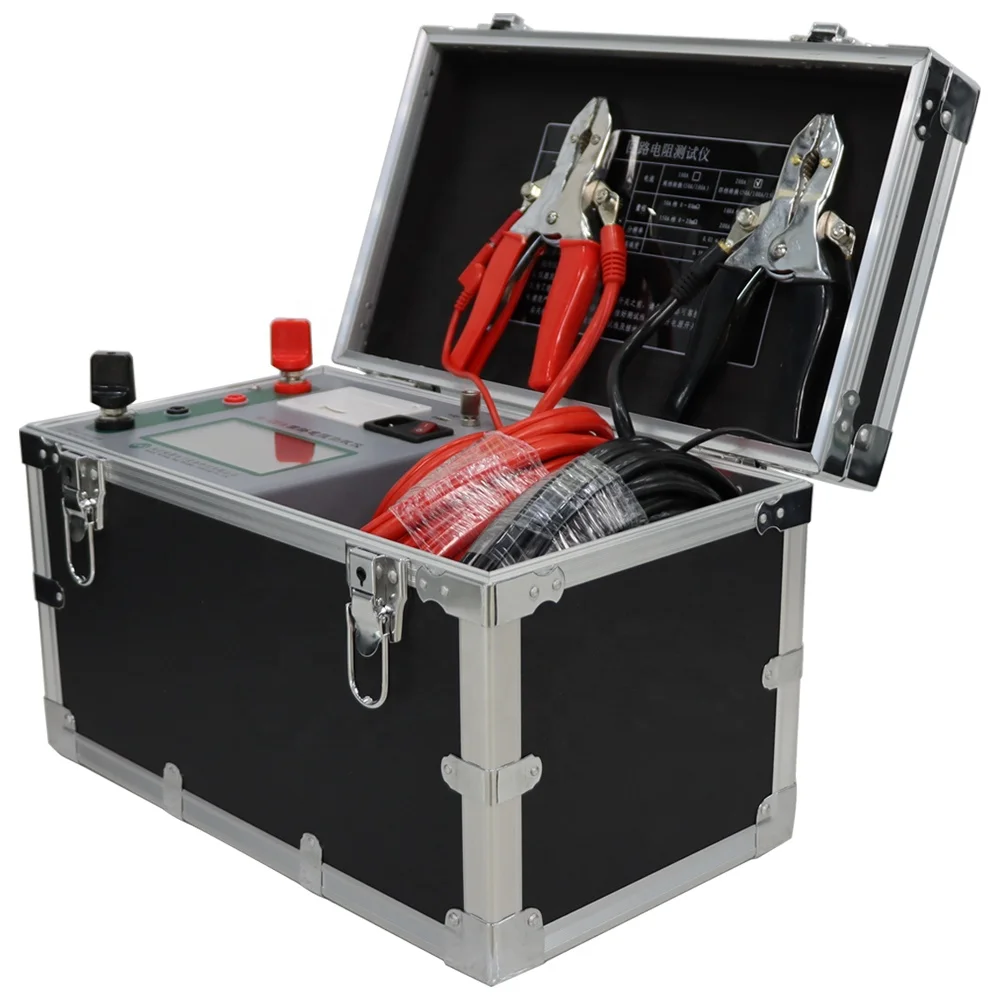

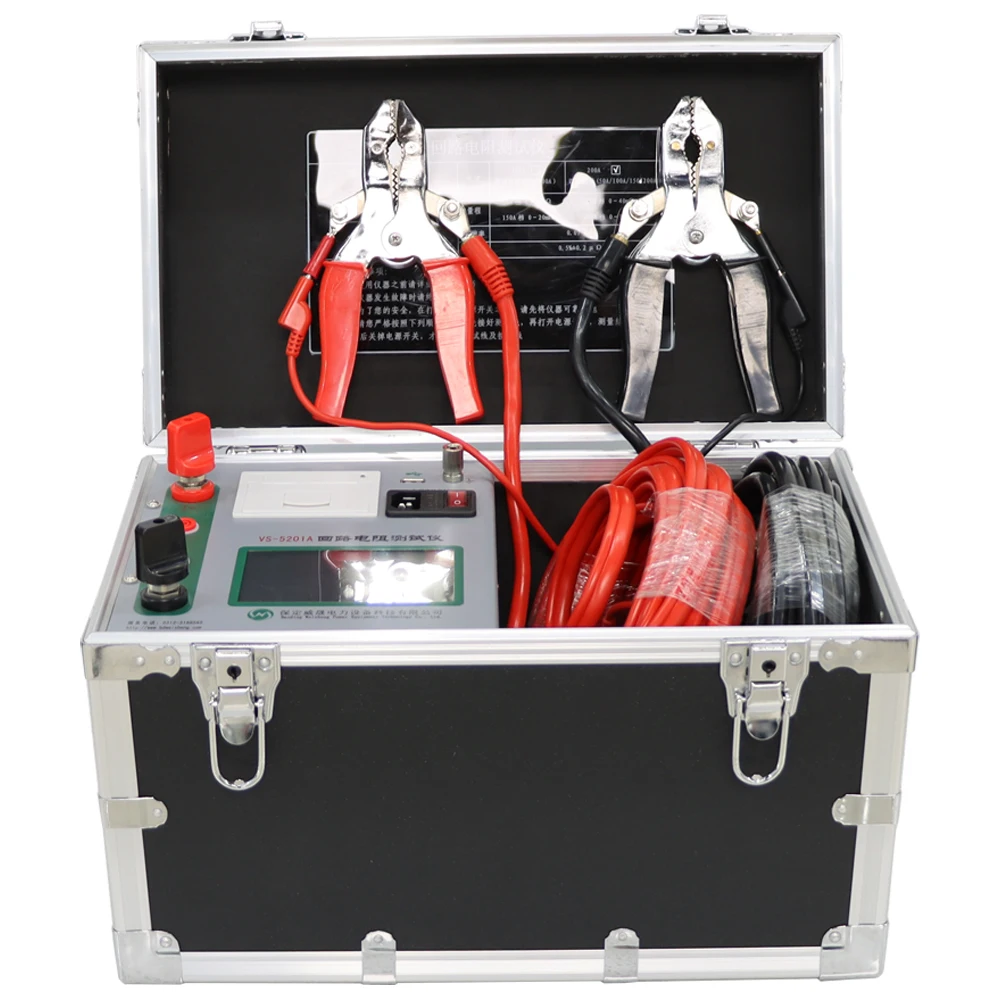

50A 100A 200A Micro Ohmmeter Micro Ohm Meter for Contact Resistance Test
- Category: >>>
- Supplier: Weshine Electric Manufacturing Co. Ltd.
Share on (1600283505083):
Product Overview
Description
Discount Benefits
Products Description
When a high current passes through a pair of mechanically independent metallic contacts, the resistance must be as low as possible. An increase in resistance can lead to additional degradation, as I2R losses will cause local heating of the contact surfaces. Weshine invented range of micro-ohmmeters measure both steady state and dynamic low resistance values. With test currents up to 600 A available, logging and trending are also available on some models. We ensure that our Contact Resistance tests sets are portable, making them suitable for field measurements. Our contact resistance testers’ portability makes them ideal for a vast range of resistance testing across the entire LV, MV HV and EHV spectrum.
The 5201 Series is designed to measure the resistance of circuit breaker contacts, bus-bar joints, contact elements in bus-bars and other high-current links. The testers have been designed with safety, ease of use and versatility in mind.
It can be used anywhere to measure a low resistance value with high accuracy. It conducts true DC ripple free current testing of
bus bars, circuit breakers, fuses, etc.
The 5201 Series is designed to measure the resistance of circuit breaker contacts, bus-bar joints, contact elements in bus-bars and other high-current links. The testers have been designed with safety, ease of use and versatility in mind.
It can be used anywhere to measure a low resistance value with high accuracy. It conducts true DC ripple free current testing of
bus bars, circuit breakers, fuses, etc.
PRODUCT INFORMATION | ||||||
Product Name | 100 A CONTACT RESISTANCE TESTER | |||||
Model Number | VS-5201 | Current Output | 50 A, 100 A; | |||
Test Range | 0 to 80 mΩ | Certificates | CE; EMC; LVD; ISO; IEC; | |||
MEASUREMENT OBJECTS | * circuit breakers * disconnecting switches * busbar connections * knife-contact fuses * safety devices …… | Certificates | CE; EMC; LVD; ISO; IEC; | |||
Dimensions | 360 x 235 x 270 mm | Weight | 8 kg | |||
For further information on Weshine's Service Solutions, contact our 24/7 online sales representative on alibaba.com or you may
For further information on Weshine's Service Solutions, contact our 24/7 online sales representative on alibaba.com or you may

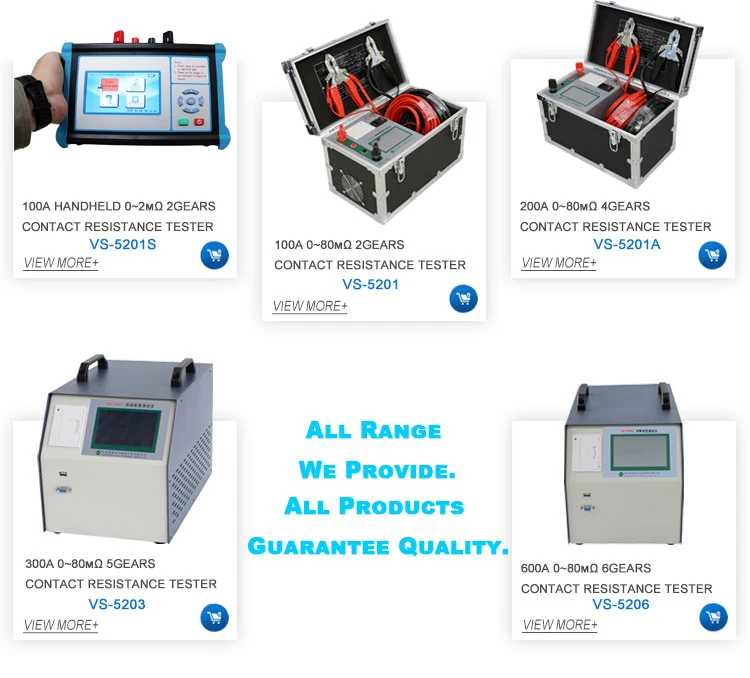

Recommend Products
VS-5201 SERIES
CONTACT RESISTANCE TESTER
* Test currents up to 600 A
* Auto range: 1 µΩ to 80 mΩ
* Small and weighs less than 16 lbs (8 kg)
* Memory for up to 500 test results
* 0.0001 µohms best resolution
Measurement objects:
* Circuit breakers* Disconnecting switches
* Busbar connections
* Knife-contact fuses
* Safety devices
……
* Safety devices
……

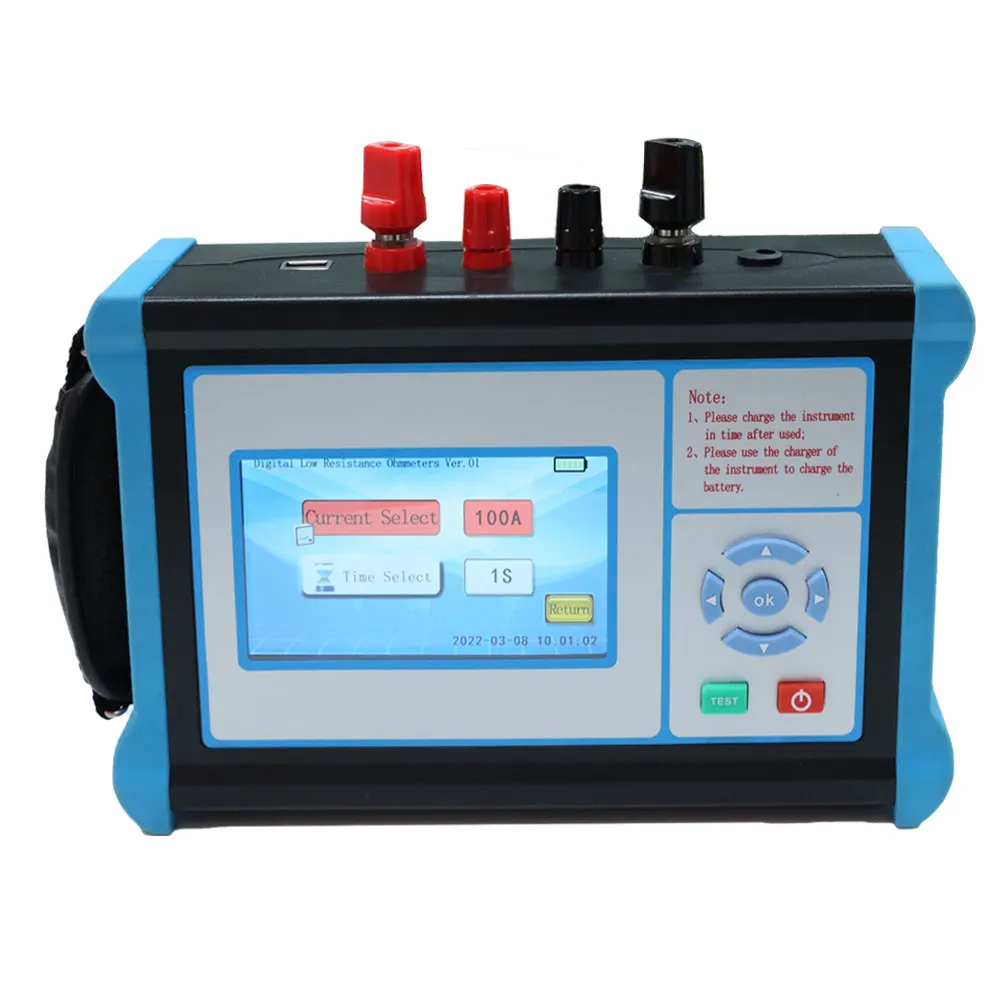

VS-5201S
HANDHELD 100A
CONTACT RESISTANCE TESTER
* Up to 100 Amps
* Battery supplied
* Lightweight – 1 kg
* Battery supplied
* Lightweight – 1 kg
* Auto range: 1 µΩ to 2 mΩ
Measurement objects:
* Circuit breakers* Bus-bar joints
* Other high-current links

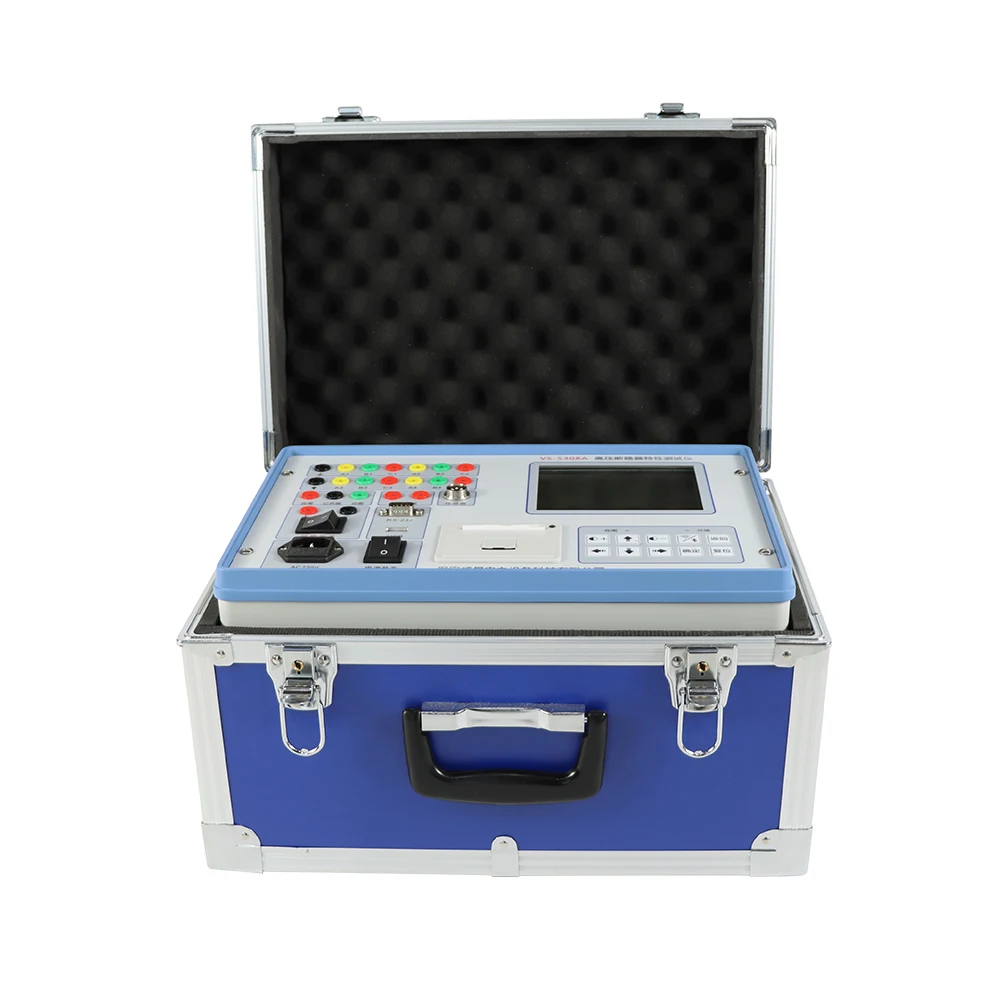

VS-5308 SERIES
CIRCUIT BREAKER ANALYSIS SYSTEMS
* Timing test (O, C, OC, CO & OCO)
* Breaker ripples graphs (timing, travel, vibration, current, voltage)
* Output spring charging motor voltage
Optional functions:
* Capable of measuring circuit breakers with graphite contacts (Siemens) — 5308B
* Capable of measuring SF6 circuit breakers (Dual ground testing)— 5308C
* Breaker ripples graphs (timing, travel, vibration, current, voltage)
* Output spring charging motor voltage
Optional functions:
* Capable of measuring circuit breakers with graphite contacts (Siemens) — 5308B
* Capable of measuring SF6 circuit breakers (Dual ground testing)— 5308C

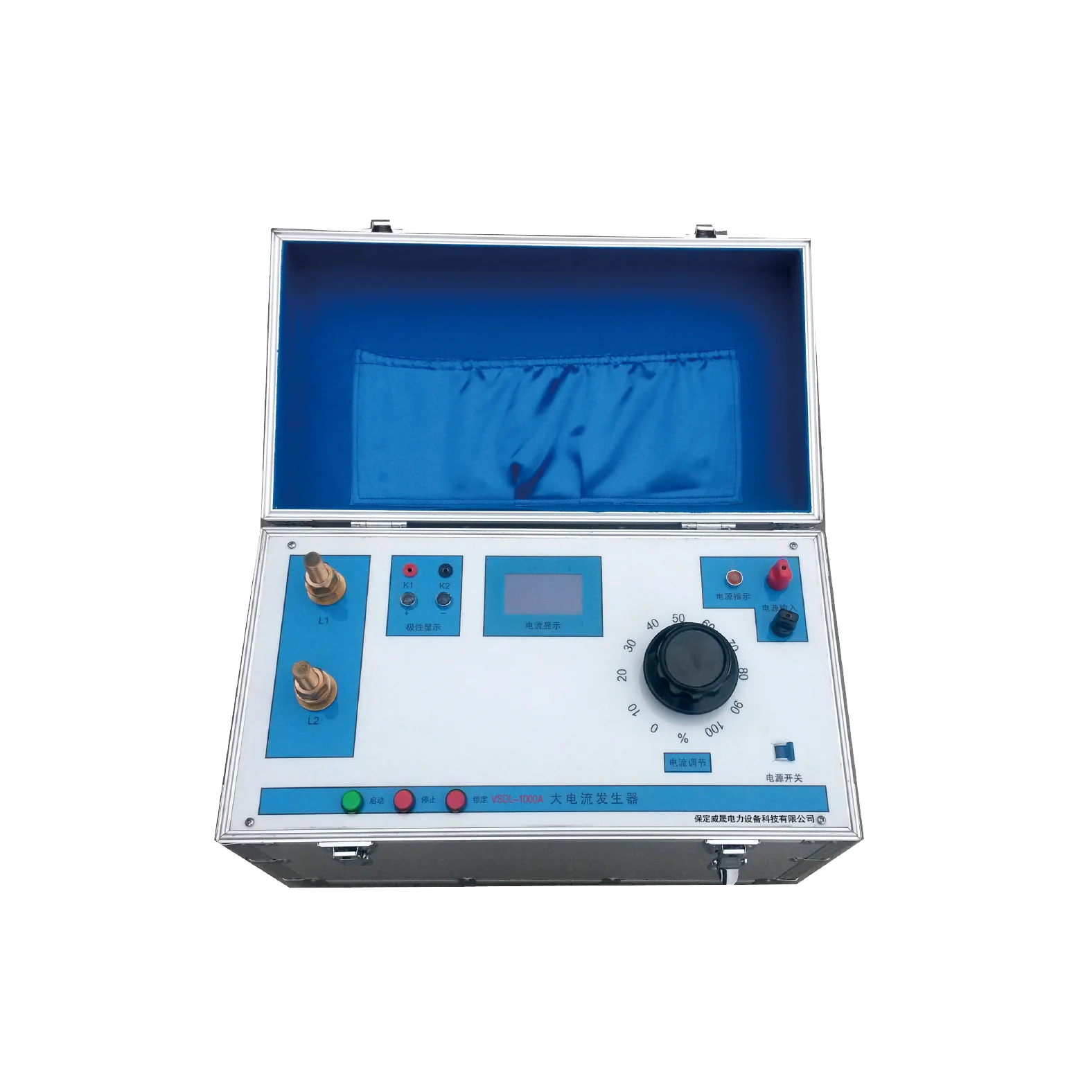

VS-PCI SERIES
PRIMARY INJECTION TEST SYSTEMS
* Up to 15000 A output current
* Real-time current display
* Real-time current display
* Polarity and Turns Ratio automatic measurement
* Compact format
Typical application:
* Primary injection testing of protective relay equipment and circuit breakers.
* Test the turns ratio of current transformers.
* Temperature rise test for various power equipment.
