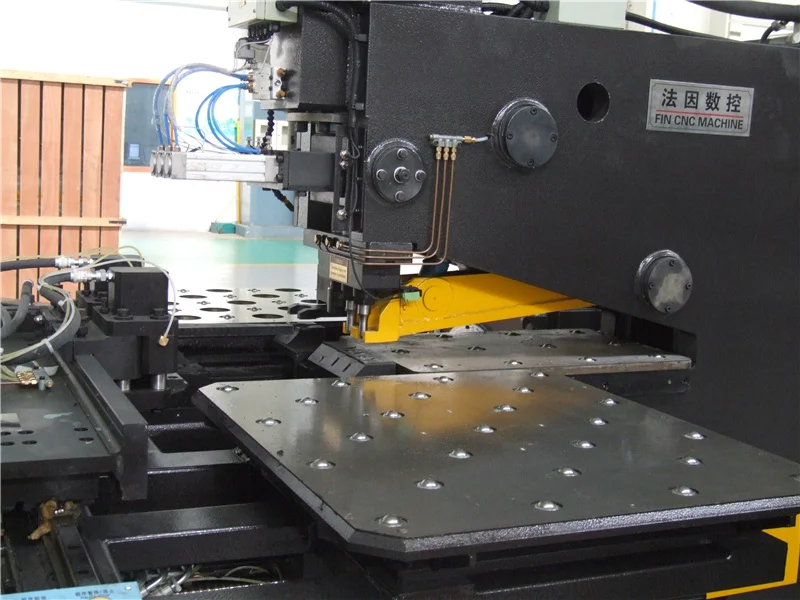

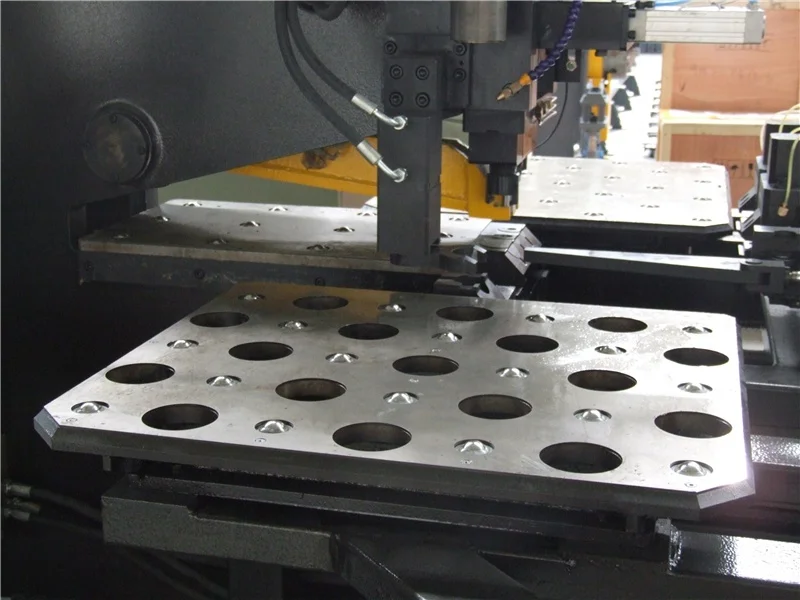

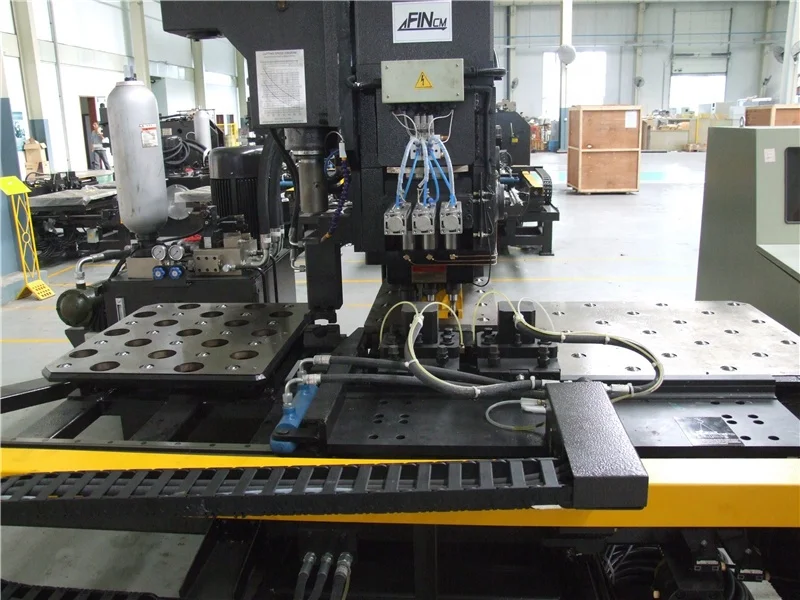

 Machine Name：CNC Hudraulic Punching and Drilling Machine
Machine Model: PPD103B

Technical Specifications of PPD103B
1) Max. punching force: 1000kN
2) Max. size of workpiece: 775×1500mm
3) Thickness of workpiece: 5 ~ 25mm
4) Max. punching diameter : φ25.5mm(16Mn, 20mm thickness, Q235, 25mm thickness)
(we only provide the die of 16mm thickness for test run. If you want the die of 20mm, 25mm thickness for test run, you must
provide the female die yourself)
5) No. of die station: 3(one of them can be equipped with stamping die)
6) Min. distance between hole and plate edge : 25mm
7) Max. punching force: 800kN
8) No. and Dimension of character: 10 (14×10mm)

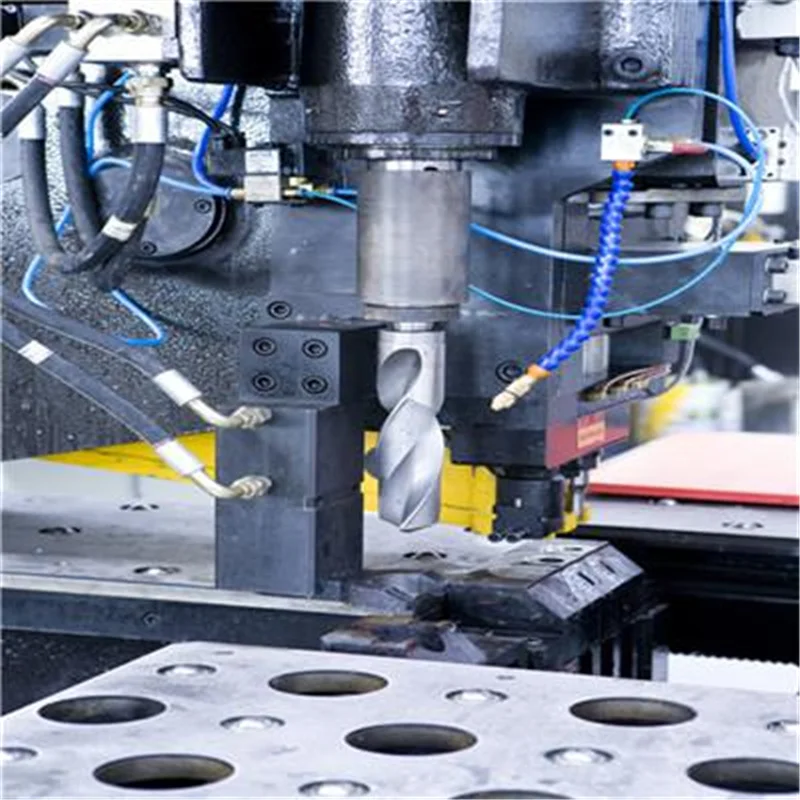

9) Drilling diamete(high-speed steel twist drill): φ16 ~ φ50mm
10) Rotation speed of drilling spindle(stepless speed variation):120~560r／min, 5.5kW
11) Max.stroke of drilling spindle: 180mm
12) Feeding speed (hydraulic stepless adjustment) 20~200mm／min

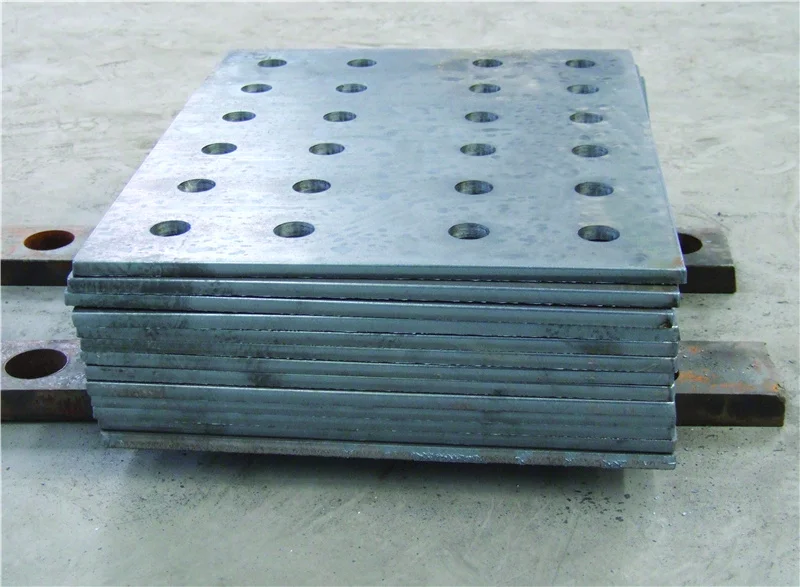

13) The processing precision: It can fit the stipulations of first-rate products in < The Classifying Standard of Steel Tower of
the Transmit Electricity Line >
The specific numerical value as follows :
a) The space between arbitrary holes on the joint plate: longitudinal: ±0.5mm
transverse : ±0.5mm
b) Node plate: space between any two group holes: ±1.0mm,
the space of the hole to the side of the steel plate: ±1.0mm
c) The vertical degree, “t” is the thickness of plate ≤ 0.03t and ≤ 2mm
14) Motor power of hydraulic pump: 15kW
15) The servo motor power of X and Y axes: 2×2kW
16) The compressed air force ×discharging quantity: 0.5MPa×0.1m3/min
17) Overall dimension (length × width ×height): 3100×2988×2720mm
18) Net weight : Approx.6500kg
19) The motor of X and Y axes are world famous brand AC servo motor. The main electric controlling components (PLC and CNC
orientation system, encoder and switch without touching), hydraulic components, pneumatic valve (electromagnetic valve, overflow
valve, and unloading valve) and cylinder are all world famous brand.
20) Working environment:
Working temperature: 0℃ ~ 40℃
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
