smart basic meter pulse output LD digital integrated type magnetic 4-20mA output electrical water flow meter

Share on:

Price:$360.00 - $380.00
Price in USD:Details


Product Overview


Product Description

Quick Details-electromagnetic flow meter

Product name: electromagnetic flow meter

Model number: HLSLD

Application:conductive liquids

Liner:PTFE / Rubber / F46

Electrode:SUS 316L

Connection: flange connection type

Measuring tube: stainless steel 304

Flange/ housing:carbon steel


Power supply:24VDC / 220VAC

Signal output:4-20mA /HART / RS485 / Modbus

Protection grade: IP65/IP68

Stress levels: ≤1.6Mpa


 Hollysys Industrial Instrument offer you,

<![if !supportLists]>1.   <![endif]>Factory direct price, fast delivery
2.Nice quality
3. MOQ is 1 set, trial order is welcome
4.Online payment is acceptable
5.After sales services 7*24
6. Support OEM according to your requirements;


Main Features

1). With simple structure ,the flow meter is of high reliability.
2). The wide range of the nominal bore is suitable for all the pipe size between DN3 and DN3000.

3). Measurement is independent of fluid density ,viscosity ,humidity ,temperature pressure and conductivity.
4). The sensor with advanced processing technology and liquid airproof is of long natural life and of nice resistance to shaking leakage.It guarantees the instrument good precision and stability .

           ITEM                   The Specifications of electromagnetic flowmeter
    Installation Type    Split / remote, integrated / compact
     End connection    Flange, threaded, clamping, insertion type, etc.

Electrode materials

316L  HC  HB    Ta  Ti

Lining Material

F46,PTFE, PFA (resistance to negative pressure), chloroprene rubber, polyurethane

Electrode Type

Standard type 316L, scraper-type (DN ≥ 50)

Dielectric conductivity

> 5μs/cm

Accuracy grade

±0.2%~±0.5% RS.

Flow Range


Maximum temperature

of medium

For rubber liner ≤ 80 °C,  for PTFE liner ≤ 120°C,polyurethane<80°C

Ambient temperature

-20°C ~ +60°C

Working pressure

0.6Mpa-4.0Mpa, the special high rpressure is available

Protection Level

IP65, IP67, IP68 (optional)

Ground flange material

Stainless steel1Cr18Ni9Ti


Forward and backward instantaneous flowrate, total flow, velocity, flowrate percentage with back light


4-20mA current output ,0-1kHz frequency output


RS485 Modbus, RS232Modbus, HART, Profibus, GPRS, etc.

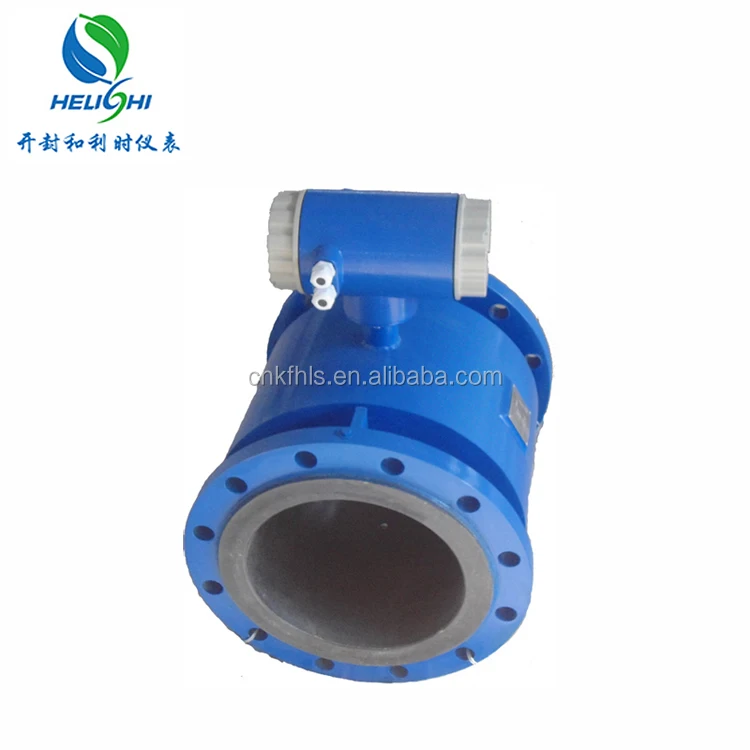

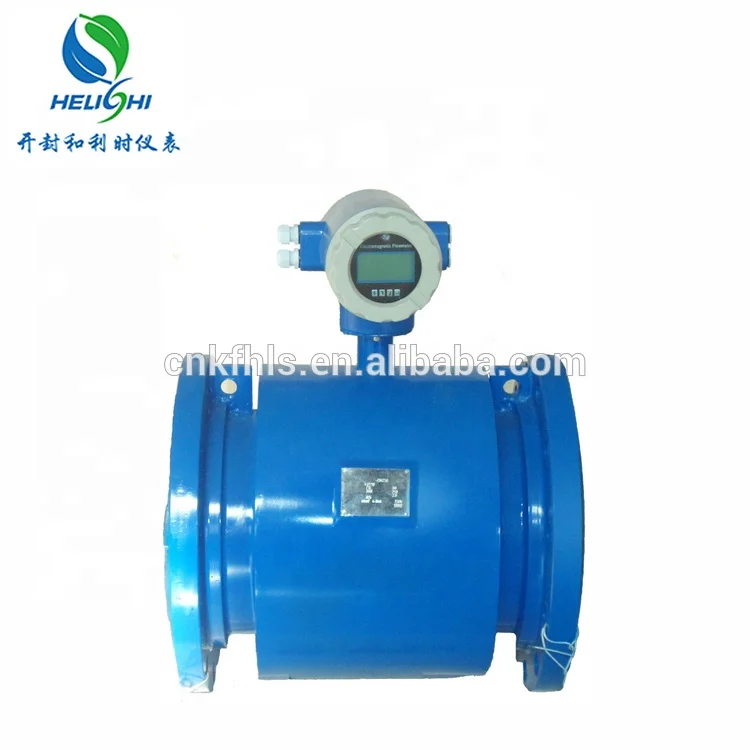

Product display

magnetic flow meter (5)magnetic flow meter (2)mag flow meter 009magnetic flow meter (3)magnetic flow meter (9)_01_06

Packaging & Shipping

_08wooden packing flowmeters

Our Services

After Sales Service.

We promise to deliver the following after-sales service:

1.Warranty: The warranty period is 12 months starting from the shipping date;

2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;

3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on
actual charges incurred such as travel expense;

4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

flowmeter (17)

Company Information




Q1: what is your business scope?
A: we produce all kinds of gas and liquid flowmeters


Q2. Could I get samples?
A:Yes,we can arrange production and delivery as soon as possible to help you get the sample.


Q3. How about the quality of the magnetic flow meter?
A:Every magnetic flow meter is five-pionted calibrated in flow meter calibration equipment,we'd provide factory certification test to you.


Q4. Could I visit your factory?
A:Of course, our factory is located in kaifeng. Welcome to our factory


Q5.What is your MOQ?
A: To start our cooperation, sample order is acceptable.
