Автоматический электронный установка для мерной отрезки ленты ZCUAT 9GR 5 999 мм длина реза с циклом счетные функции

Share on:


Price:255,00 $ - 280,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description





Features



  • Safety function and design for finger

  • Memory function enable set six different length before use.(for example: 50-60- 70-80-90-100mm, repeat cutting)

  • Can setting the number of tape cutting decreasing.

  • Any size of tapes fit without bobbins and Max Outside Diameter is 300mm

  • Enable to cut Protection Film, Copper Foil, Aluminum Foil, Insulation material and more.

  • Enable to hold the film or tape by using Flexible Tape Support.

  • Preset and Loop counter functions.

  • Compact body answers to Cell-System.

  • Enable to use 2 rolls at the same time.

  • Dual Photo Sensor.

  • Build-in Tweezers, Oil, and Separator.

  • Engineer can successfully remove the roller unit, without the tools.


 Specifications




















































Tape Width



6-60mm



Tape Length



5-999mm



Tape Thickness



0.05-0.3mm



Usable Tapes



Filament, Strong, Acetate Cloth, Glass Cloth, Double-Sided, Normex, Pre-stick, Cellophane, Craft, Masking, Plastic, and more.



Usable Non Adhesive Material



Protection Film, Paper Tape, Insulation Film, Aluminum Foil, Copper Foil etc.



Feeding Speed



200 mm/ sec 50pcs/min  (when cut Craft Tape)



Max. Outside Dia. of Roll



300mm



Accessories



Power Cord, 2A Fuse (Built-In Inlet), Separator, Guide Plate, Tweezers, Blade Oil.



Power Requirement



AC100V 50/60Hz 25W



Body Material



Anti-Static ABS



Dimensions & Weight



116 mm(W)x140 mm(L)x213 mm(H)


1.6kg

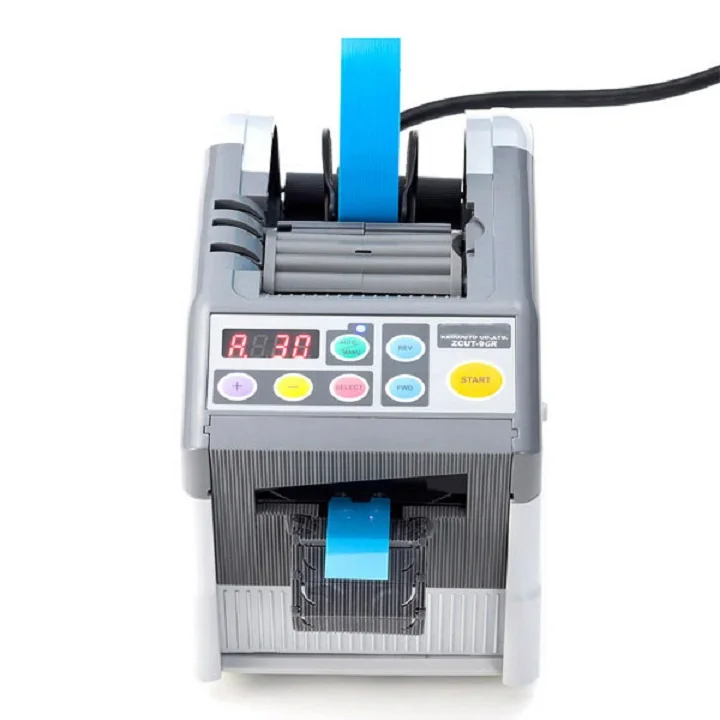

Product Picture



























1600284319771
