Manufacture Chargeable Reverb Electric Electronic Guitars 50w Bass Pedals PCB Circuit Board Assembly Manufacturing Service PCBA
- Category: >>>
- Supplier: Qimao Electronics (Dingnan) Co. Ltd.
Share on (1600284356137):
Product Overview
Description

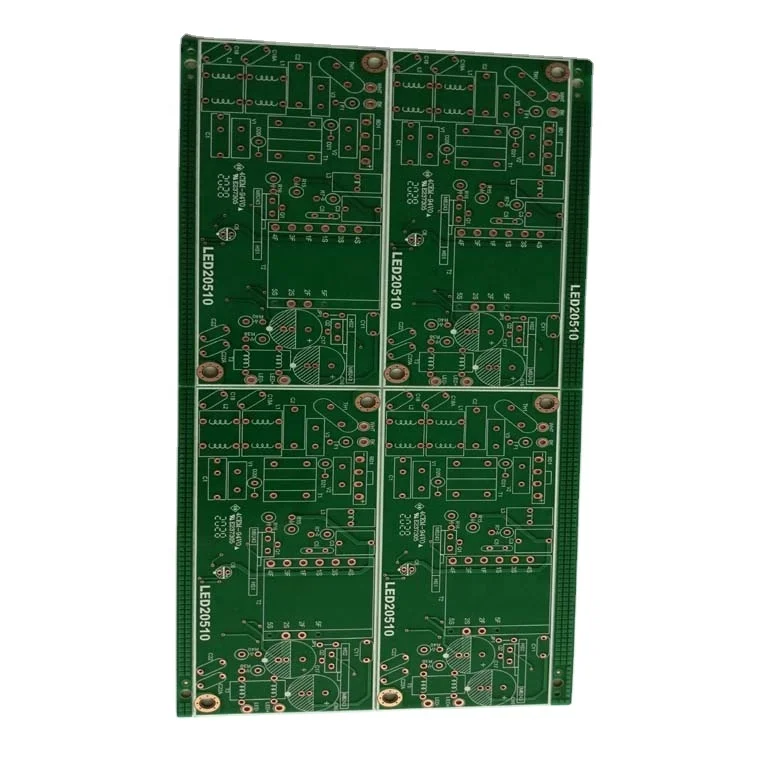

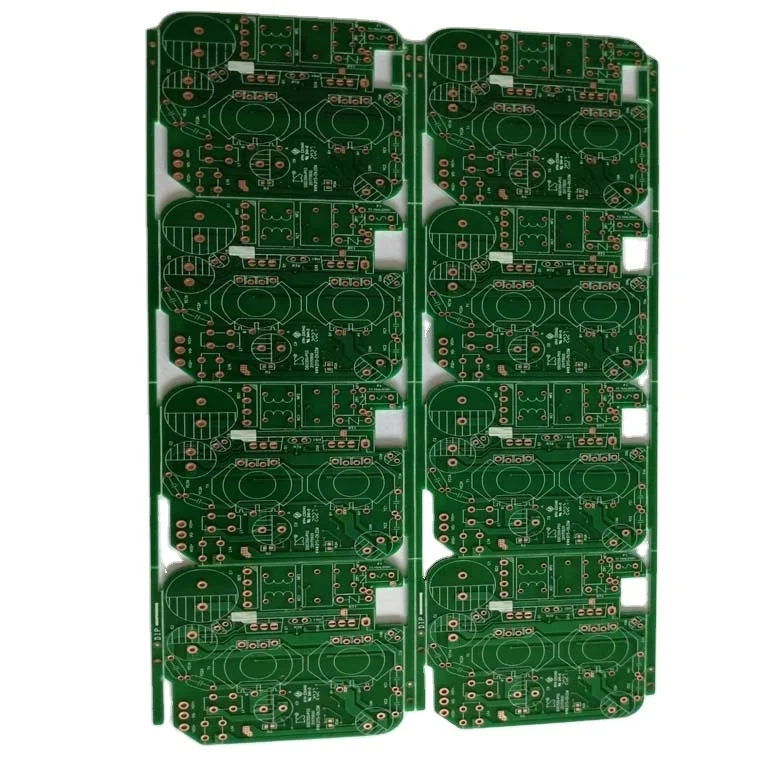

Manufacture Chargeable Reverb Electric Electronic Guitars 50w Bass Pedals PCB Circuit Board Assembly Manufacturing Service PCBA![]()
Product Description
| Project | Process Capability |
| Number Of Layers | 2-20 layers |
| Board Thickness | 0.3-3.2mm |
| Type Of Substrate | FR-4 halogen-free report TG |
| Substrate Manufacturer | Health Benefits, South Asia, KB |
| Copper Foil Thickness | 1/2-4 OZ |
| Peel Strength | ≥12.3N/CM |
| Maximum Working Plate Size | 600mm*1200mm |
| Minimum Line Width Distance | 0.075mm/0.075mm |
| Minimum Welding Ring | ≥0.125mm |
| Impedance Control | ≥250hm |
| Minimum Aperture | 0.1mm |
| Pth/npth | ±0.076mm±0.05mm |
| Hole Copper Thickness | ≥35Rm |
| Minimum Dielectric Layer | 0.0635mm |
| Layer Bias | ±0.076mm |
| Minimum Margin Oil Bridge | 0.05mm |
| Minimum Text Width | 0.10mm |
| Version Bend | ≤0.5% |
| Aspect Ratio | 08:01 |
| Surface Treatment | OSP/IMEN/HAL |
More ink colors can be customized
